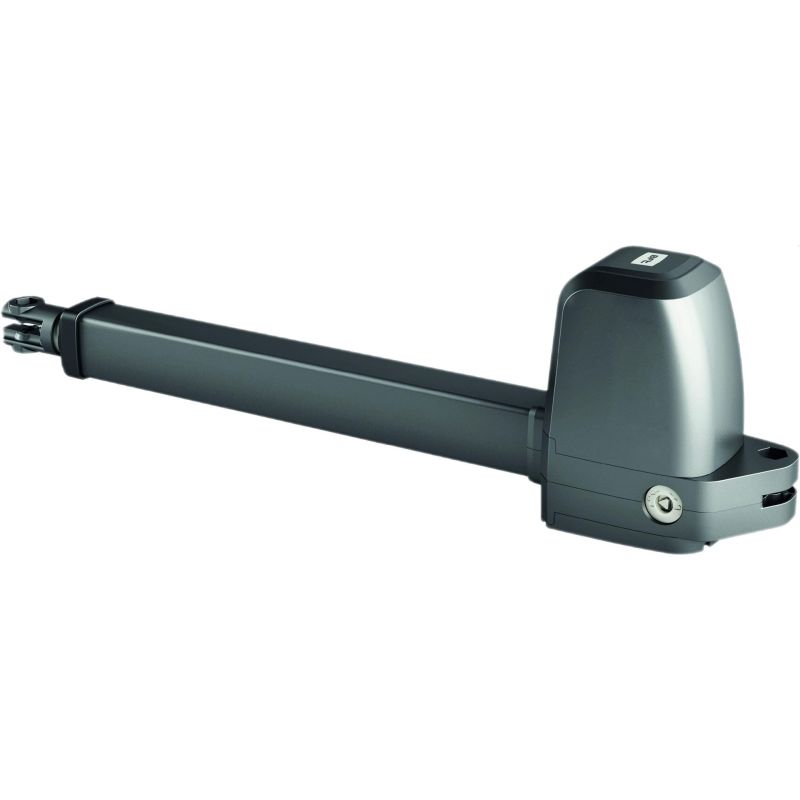

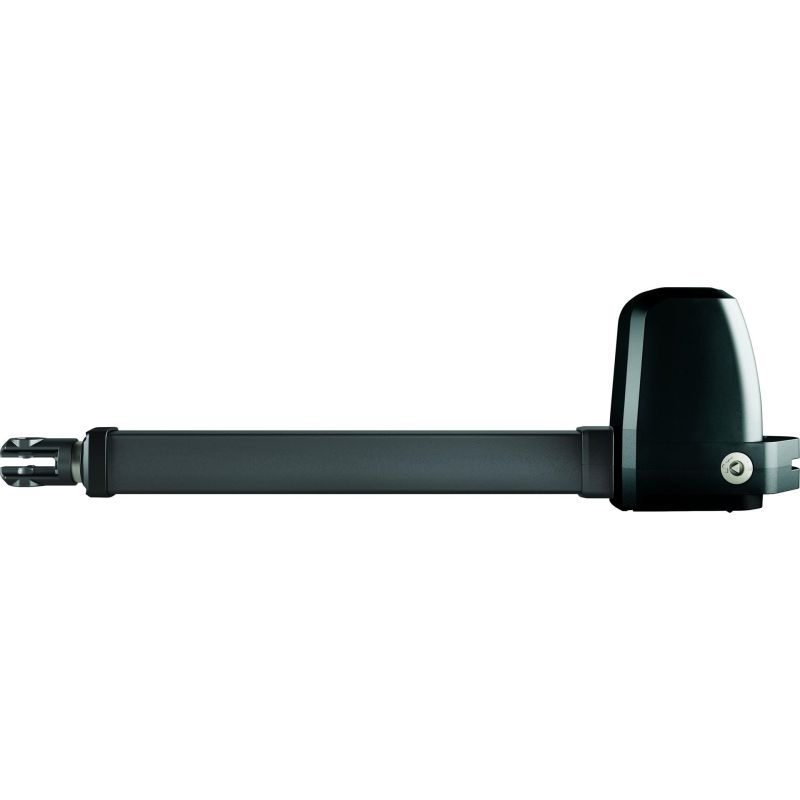

BFT ATHOS KIT AC A40 for swing gates
BFT ATHOS KIT AC A40 for swing gates
BFT ATHOS KIT AC A40 for swing gates
PRICE:
682,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Limit switch: No
- Opening time: 16 seconds
- Gear lubrication: Grease
- Usage mode: 60 cycles per day
- Unlocking: Triangular key
- Application for posts
- Brick
- Metal
- Maximum leaf weight: 400 kg
- Obstacle response: Electric clutch
- Maximum leaf length: 4 m
- Maximum opening angle: 110°
- IP protection class: IP54

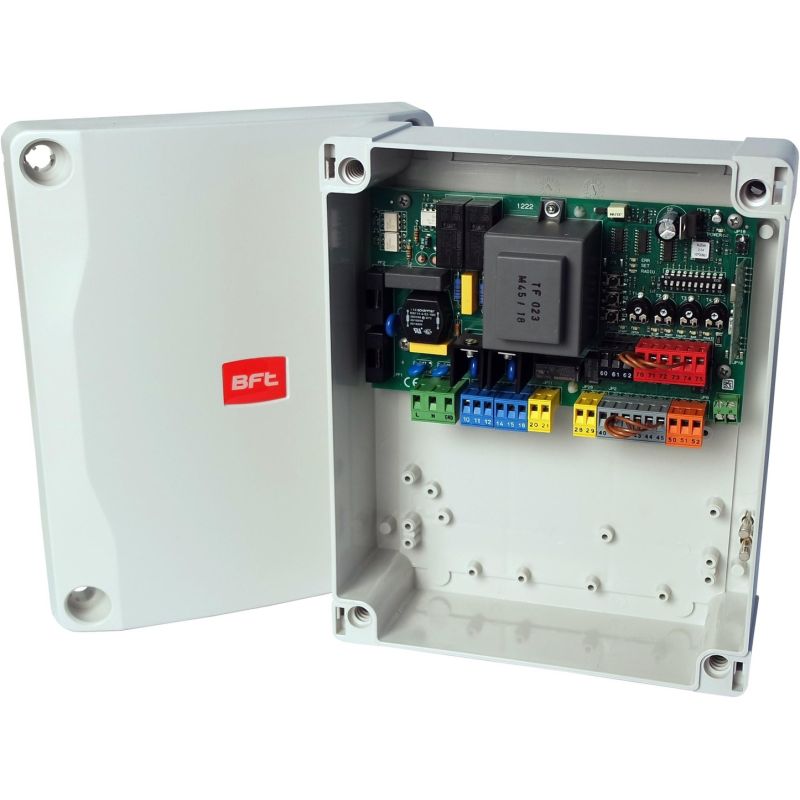

- Control unit: Alena SW2
- Proper Use: Swing Gate
- Usable working stroke: 400 mm
- Slowdown: Yes
- Lock function: Yes
- Product type: Set
- Obstacle detection: Yes
- Power
- Power supply voltage: 230 V
- Motor voltage: 230 V
- Frequency: 50 Hz
- Power consumption: 280 W
- Weight and dimensions
- Actuator weight: 7.3 kg
- Working conditions
- Temperature range (operation): -20 - 55 °C
- Package contents

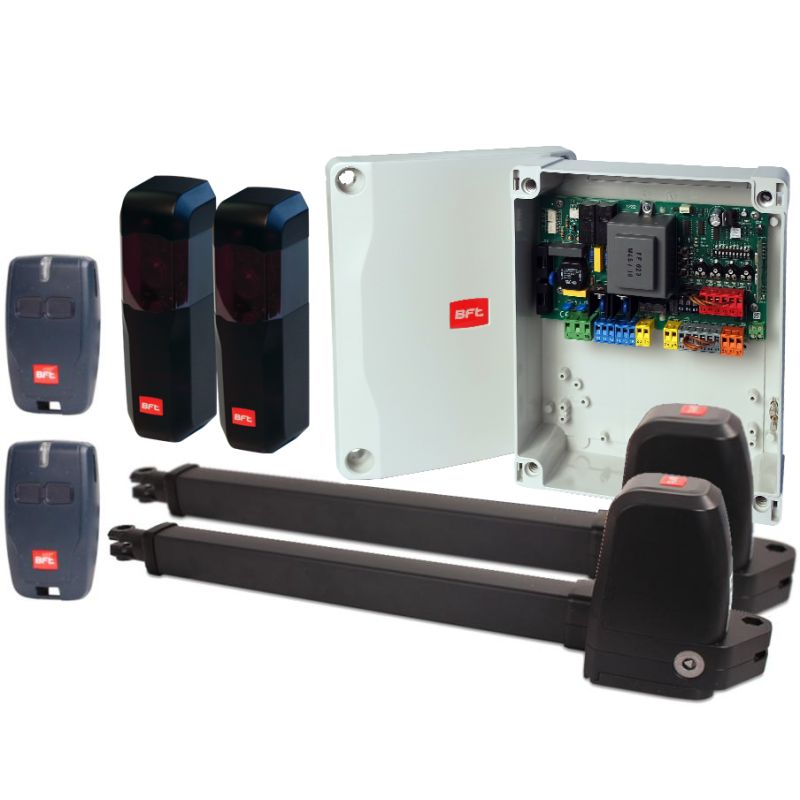

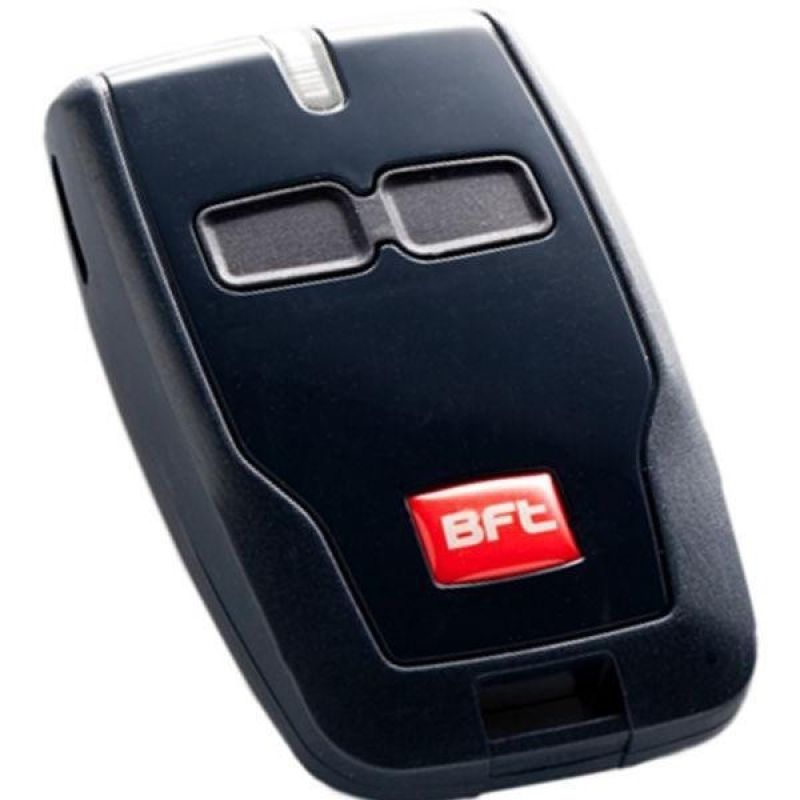

- Set contents: ATHOS AC A40 actuator - left/right, ALENA SW2 control unit, Control unit housing, COMPACTA A20-180 photocells, Two Mitto B2 remote controls, Set of mounting accessories
| Name | Details |
|---|---|
| Producer | BFt |
