BFT DEIMOS AC A800 KIT PL for sliding gates
BFT DEIMOS AC A800 KIT PL for sliding gates
BFT DEIMOS AC A800 KIT PL for sliding gates
PRICE:
567,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- IP protection class: IP44
- Product type: Set
- Proper Use: Sliding Gate
- Soft start: Yes
- Number of channels: 4
- Feed speed: 9 m/min
- Torque (min): 20 N m
- Gear lubrication: Grease
- Maximum load: 800 kg
- Built-in radio: Yes
- Gear module: 4 mm (14 teeth)
- Impact Response: Electric Clutch, Edge Strip
- Usage mode: 10 cycles per hour
- Setting operating parameters: Trimmers + Microswitches
- Number of supported remote controls (max): 63
- Slowdown: Yes

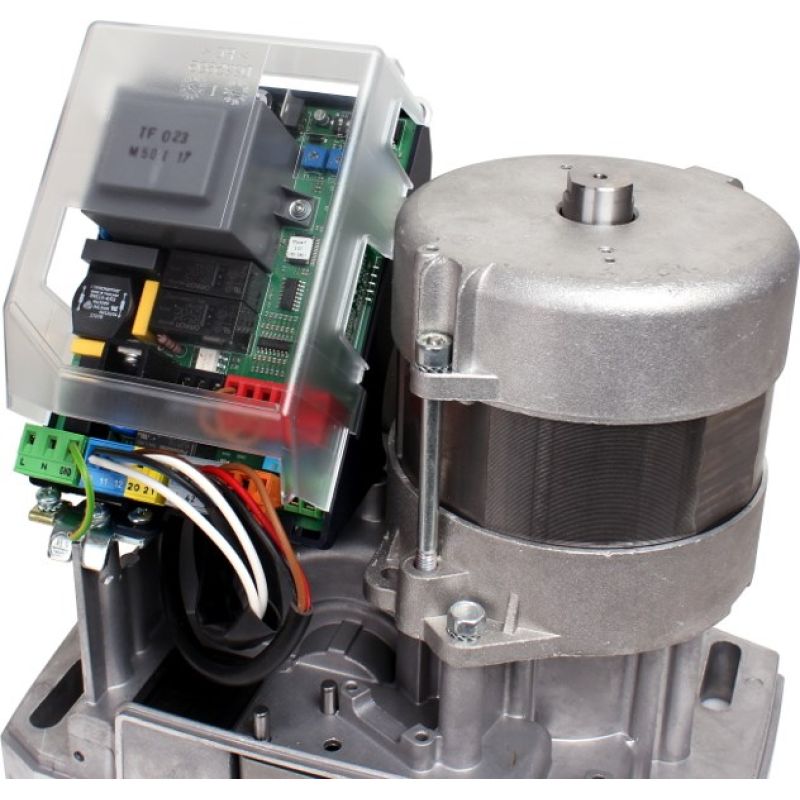

- Control unit: SHYRA AC F SL
- Type of limit switches: Magnetic
- Power
- Motor voltage: 230 V
- Power consumption: 300 W
- Power supply voltage: 230 V
- Frequency: 50 Hz
- Weight and dimensions
- Actuator weight: 8.7 kg
- Working conditions
- Temperature range (operation): -20 - 55 °C
- Package contents

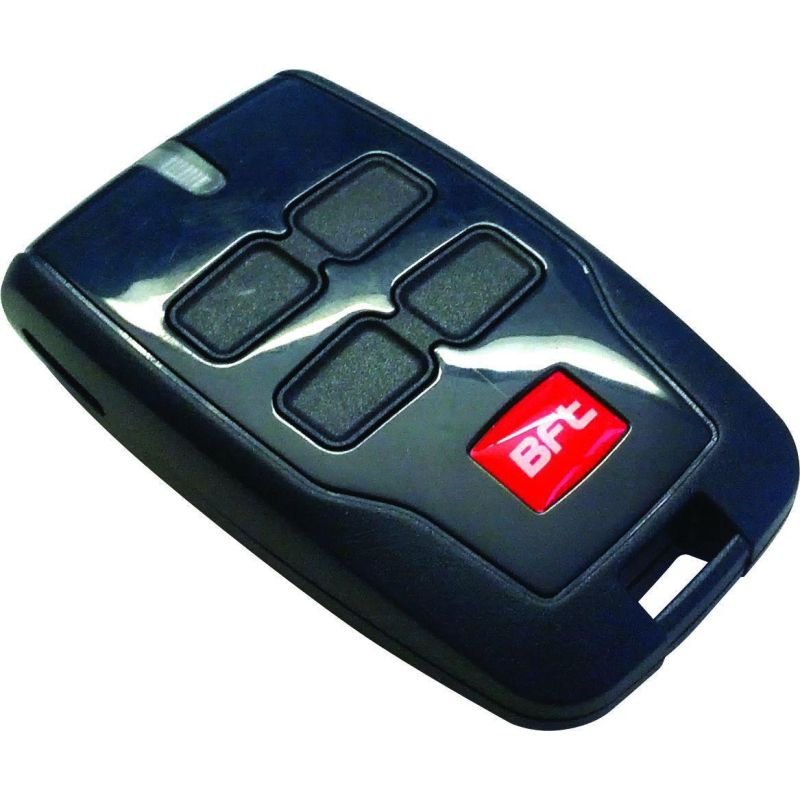

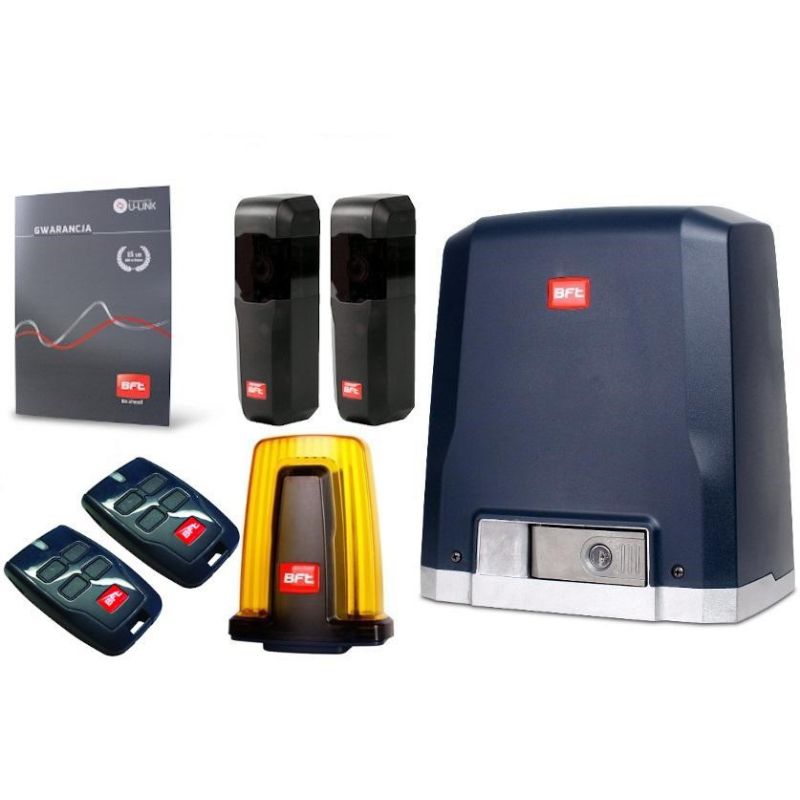

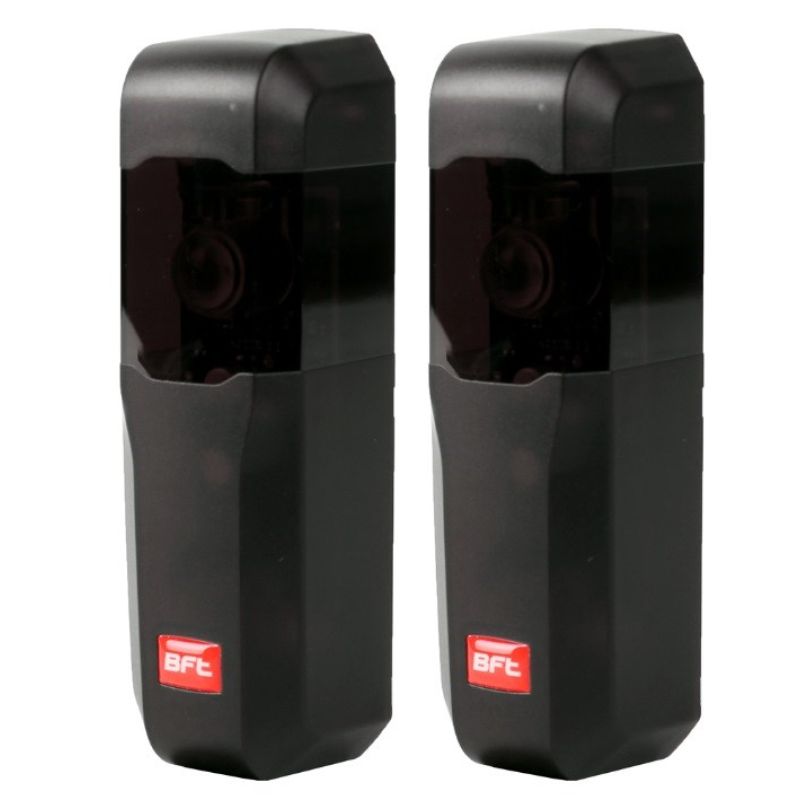

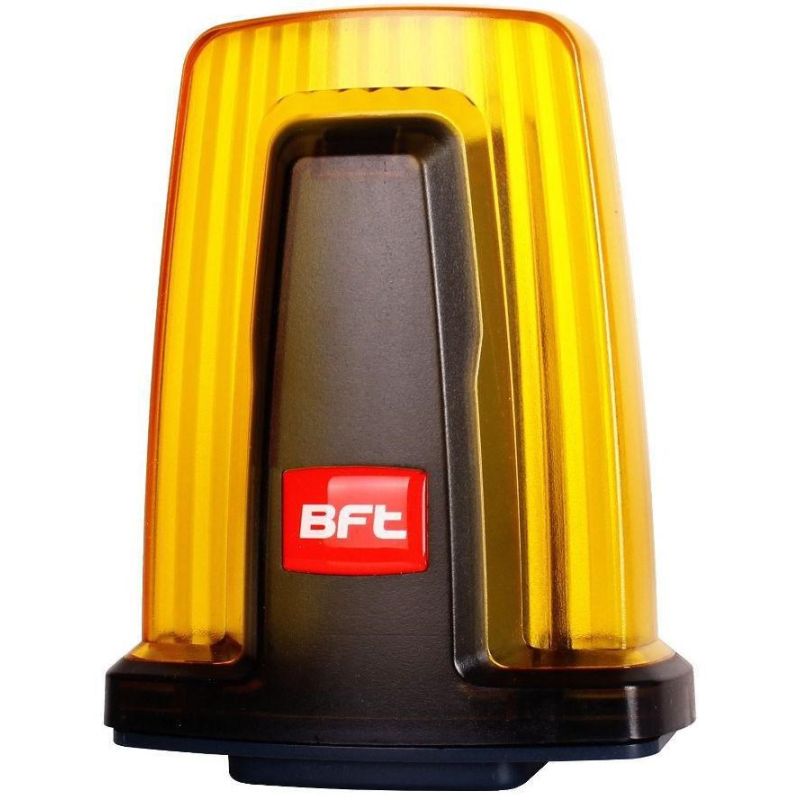

- Set contents: BFT DEIMOS AC A 800 actuator with SHYRA AC F SL control unit, BFT Compacta A20-180 photocells, 2x BFT MITTO B4 remote control, BFT RADIUS 230V lamp with antenna, mounting accessories
| Name | Details |
|---|---|
| Producer | BFt |
