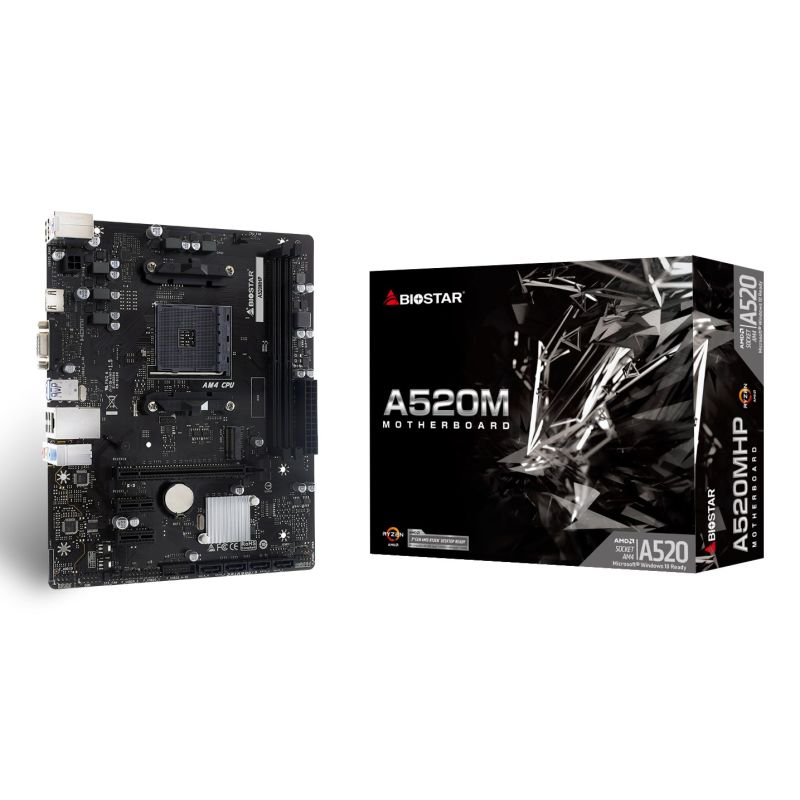

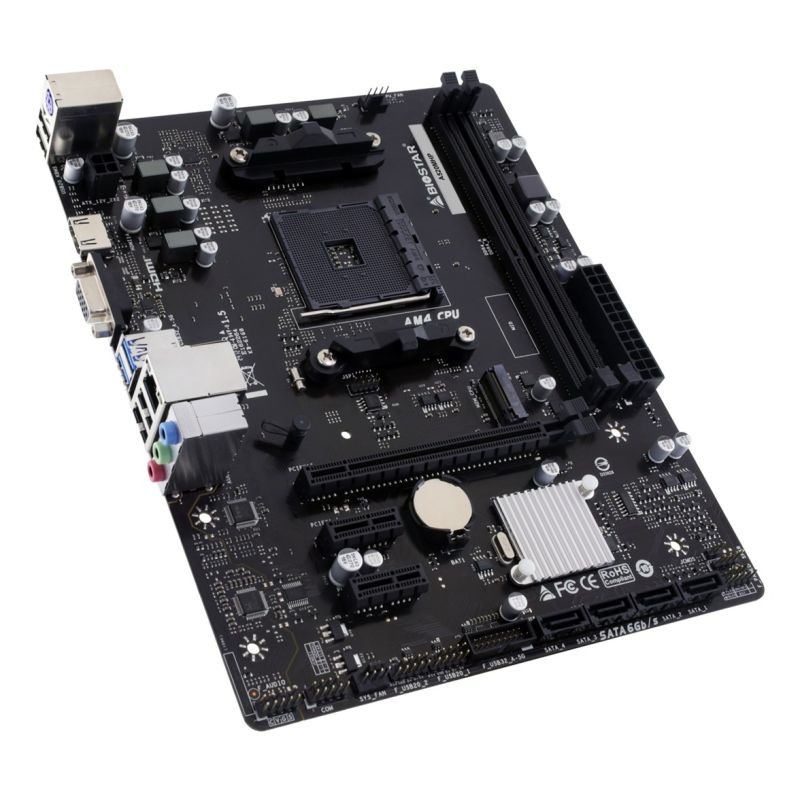

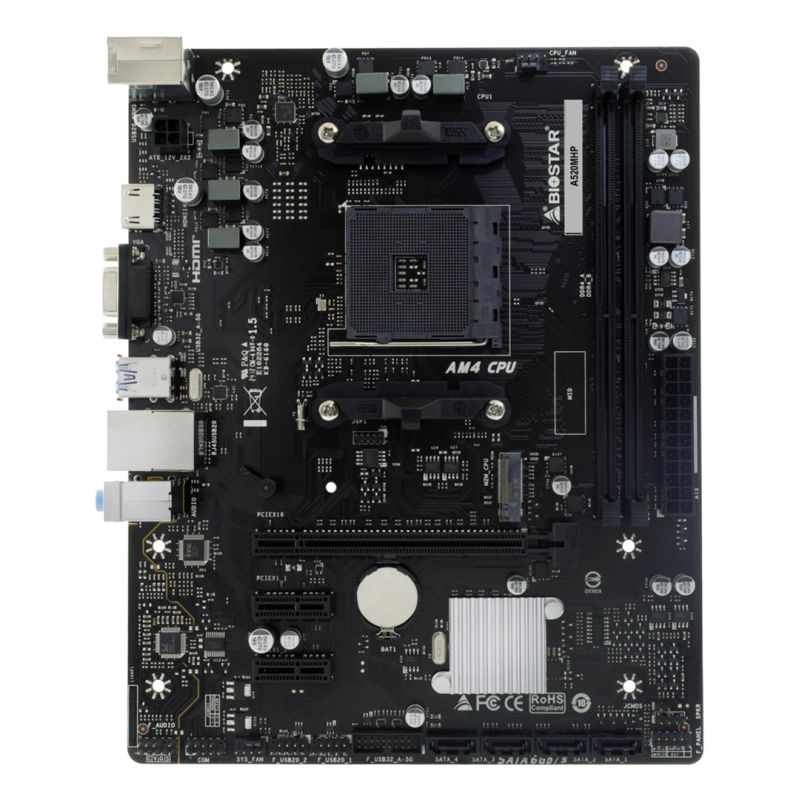

BIOSTAR A520MHP motherboard
BIOSTAR A520MHP motherboard
BIOSTAR A520MHP motherboard
PRICE:
74,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported processor sockets: Socket AM4
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Processor
- AMD Ryzen 3000 Series
- AMD Ryzen 4000 Series
- AMD Ryzen 5000 Series
- Graphics
- DirectX Version: 12.0
- HDCP: Yes
- Memory
- Supported memory clock speeds
- 3800 MHz
- 4400 MHz
- 2133 MHz
- 3200 MHz
- 4266 MHz
- 2667 MHz
- 2933 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- 4133 MHz
- Memory slot type: SO-DIMM
- Supported memory types: DDR4-SDRAM
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 64 GB
- Number of memory slots: 2
- Supported memory module capacities
- 8GB
- 32GB
- 16GB
- ECC Compatibility: Non-ECC
- Supported memory clock speed (max): 4400 MHz
- Supported memory clock speeds
- Characteristics
- Audio chip: Realtek ALC897
- Chipset Board Family: AMD
- Audio output channels: 7.1 ch.
- Motherboard Layout: AMD A520
- Power supply type: ATX
- Motherboard format: Micro ATX
- Supported Windows operating systems
- Windows 11
- Windows 10
- Supported CPU sockets (cooler): Socket AM4
- Weight and dimensions
- Product width: 235 mm
- Product depth: 190 mm
- Internal I/O
- Audio connector: Yes
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- Number of USB 2.0 ports: 2
- Number of SATA III connectors: 4
- Fan connector: Yes
- CPU fan connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Front panel audio connector: Yes
- Network
- LAN Controller: Realtek RTL8111H
- Wi-Fi: No
- Ethernet interface type: Gigabit Ethernet
- Bluetooth: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI
- Memory drivers
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 1
- RAID levels
- 10
- 1
- 0
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 3.0, SATA III
- RAID Service: Yes

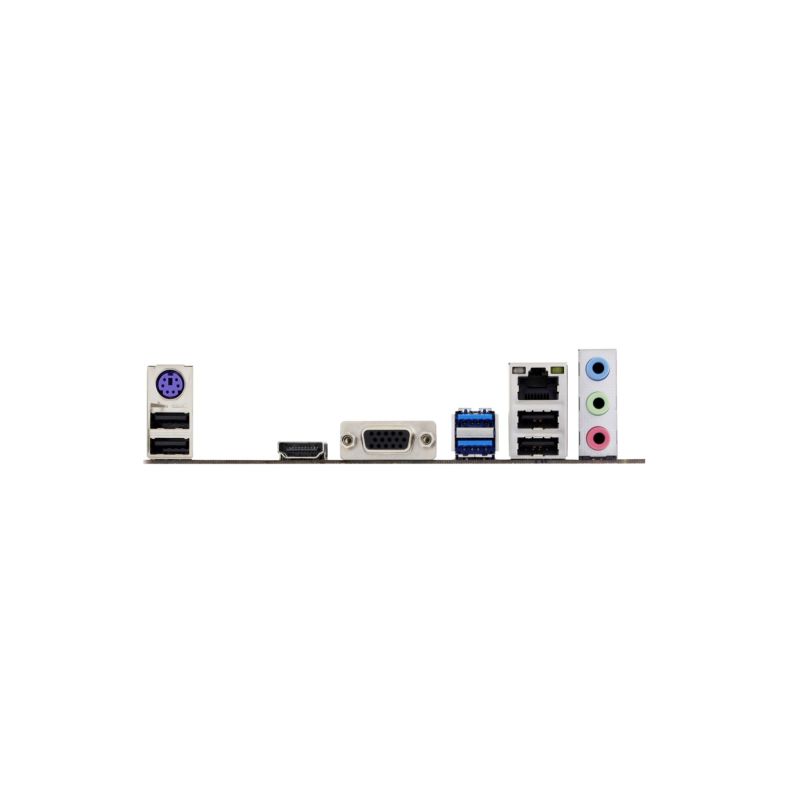

- Rear Panel I/O Ports
- Number of PS/2 ports: 1
- Headphone outputs: 1
- Number of VGA (D-Sub) ports: 1
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- Microphone: Yes
- Number of HDMI ports: 1
- Line Input: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 slots: 1
- Safety warning
- Warnings
- Dispose of in accordance with local regulations regarding electronic waste.
- Avoid direct contact with sensitive electronic components.
- Store away from water and sources of moisture.
- Warnings
| Name | Details |
|---|---|
| Producer | Biostar |
