BIOSTAR H610MH D5 motherboard
BIOSTAR H610MH D5 motherboard
BIOSTAR H610MH D5 motherboard
PRICE:
98,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor
- Intel® Core™ i7
- Intel® Core™ i3
- Intel® Core™ i9
- Intel® Pentium®
- Intel® Core™ i5
- Intel® Celeron®
- Processor socket: LGA 1700
- Maximum number of SMP processors: 1
- Graphics
- DirectX Version: 12.0
- HDCP: Yes
- Memory
- Maximum memory capacity: 96 GB
- Memory slot type: DIMM
- Supported memory module capacities
- 8GB
- 48GB
- 32GB
- 16GB
- 24GB
- Memory Channel Support: Dual Channel
- Supported memory types: DDR5-SDRAM
- Supported memory clock speeds: 4800 MHz
- Number of memory slots: 2
- Characteristics
- Monitoring computer status
- Processor
- Fan
- Tension
- Temperature
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 ch.
- Motherboard format: Micro ATX
- Motherboard Layout: Intel H610
- Chipset Board Family: Intel
- Monitoring computer status
- Weight and dimensions
- Product depth: 236 mm
- Product width: 208 mm
- Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Front panel audio connector: Yes
- CPU fan connector: Yes
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- Number of SATA III connectors: 4
- TPM Connector: Yes
- Number of COM sockets: 1
- Fan connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of USB 2.0 ports: 2
- Network
- Wired LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN Controller: Intel® I219-V
- BIOS
- BIOS Type: UEFI
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III

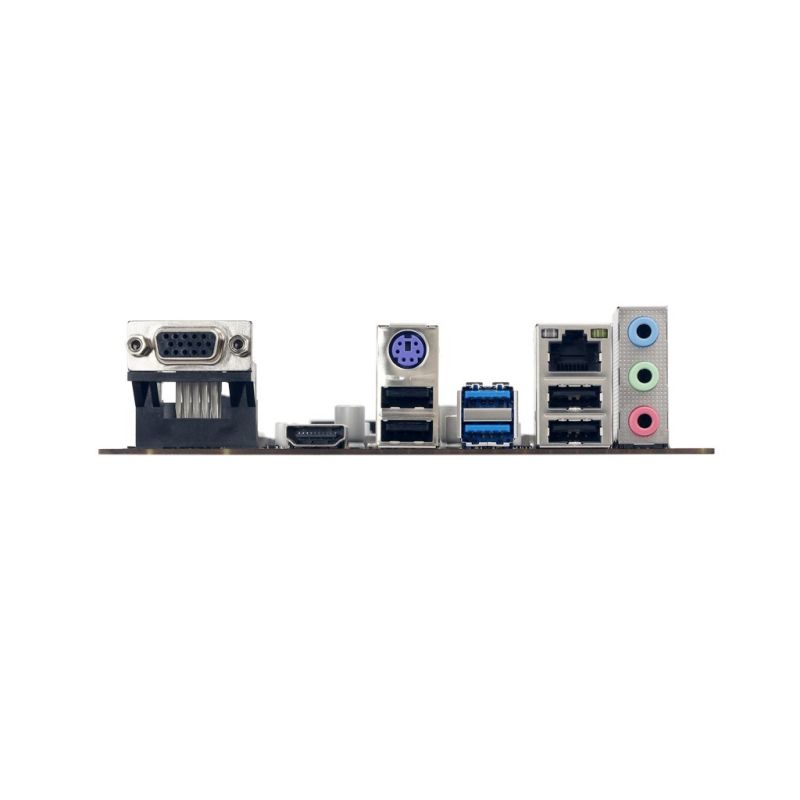

- Rear Panel I/O Ports
- Number of VGA (D-Sub) ports: 1
- Number of USB 2.0 ports: 4
- Number of HDMI ports: 1
- Number of PS/2 ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Logistics data
- Harmonized System (HS) code: 84733020
- Safety warning
- Warnings
- Avoid direct contact with electronics to prevent electrostatic damage.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Warnings
