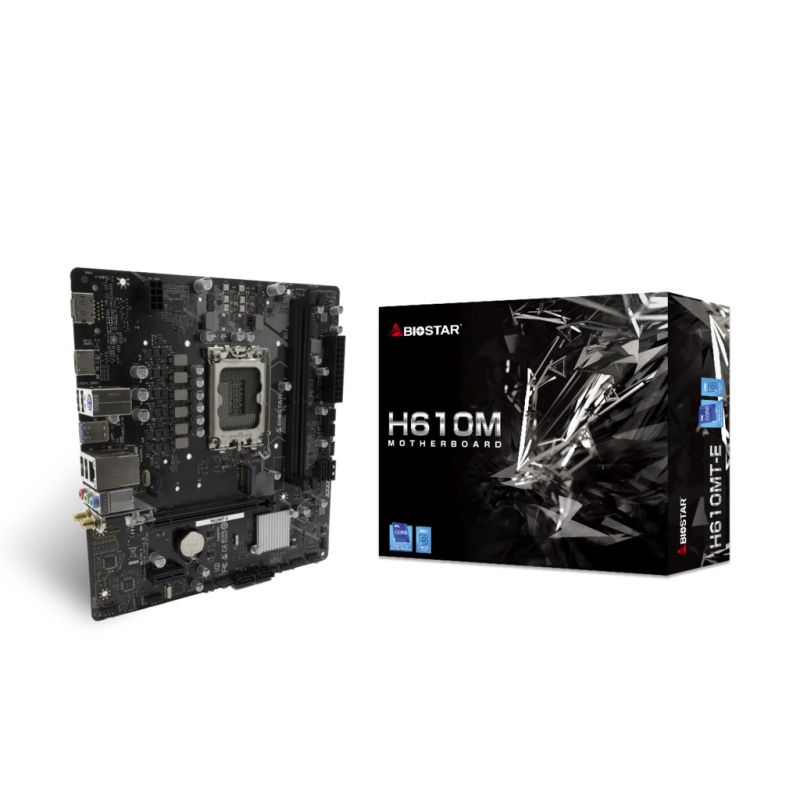

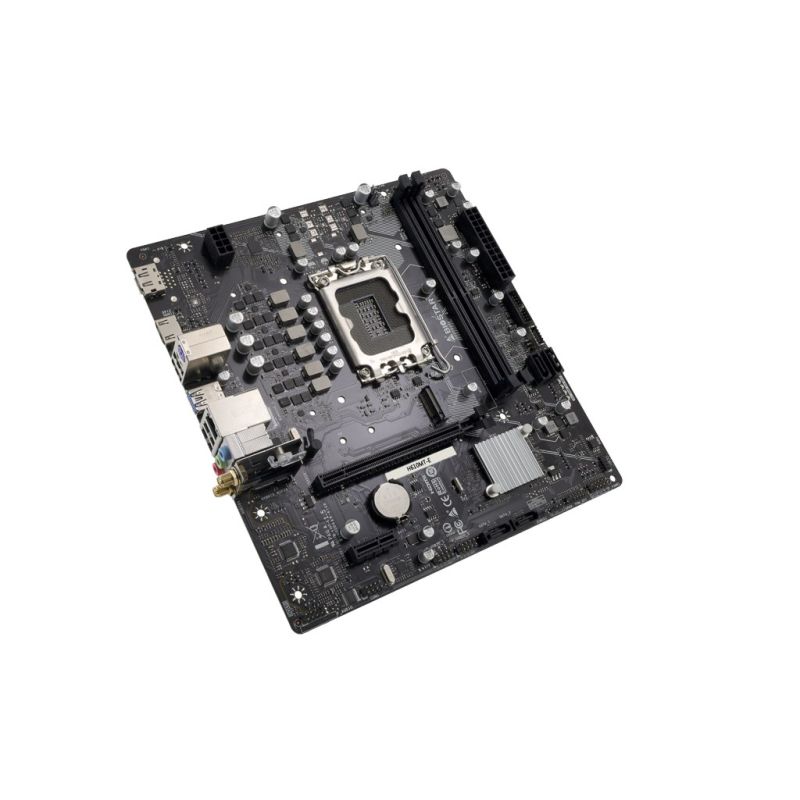

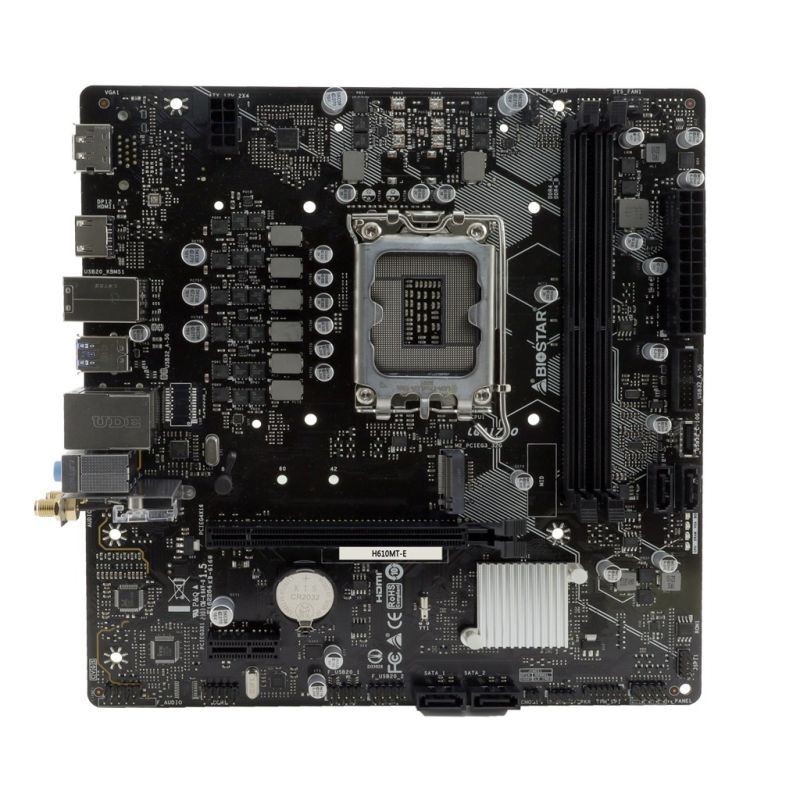

BIOSTAR H610MTE motherboard
BIOSTAR H610MTE motherboard
BIOSTAR H610MTE motherboard
PRICE:
86,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor
- Intel® Celeron®
- Intel Core i3 12th Gen
- Intel Core i9 13th Gen
- Intel Core i9 14th Gen
- Intel Core i7 13th Gen
- Intel Core i3 13th Gen
- Intel Core i7 12th Gen
- Intel Core i5 12th Gen
- Intel® Pentium®
- Intel Core i5 13th Gen
- Intel Core i9 12th Gen
- Processor socket: LGA 1700
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Memory slot type: DIMM
- Supported memory types: DDR4-SDRAM
- Maximum memory capacity: 64 GB
- Memory Channel Support: Dual Channel
- Supported memory clock speeds
- 2933 MHz
- 2133 MHz
- 1866 MHz
- 3200 MHz
- 2666 MHz
- 2400 MHz
- Number of memory slots: 2
- ECC Compatibility: Non-ECC
- Characteristics
- Motherboard Layout: Intel H610
- Audio chip: Realtek ALC897
- Motherboard format: Micro ATX
- Audio output channels: 7.1 ch.
- Chipset Board Family: Intel
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Weight and dimensions
- Product depth: 228 mm
- Product width: 216 mm
- Internal I/O
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- CPU fan connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of USB 2.0 ports: 2
- TPM Connector: Yes
- Number of COM sockets: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Front panel audio connector: Yes
- Network
- LAN Controller: Realtek RTL8111H
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Drivers included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III

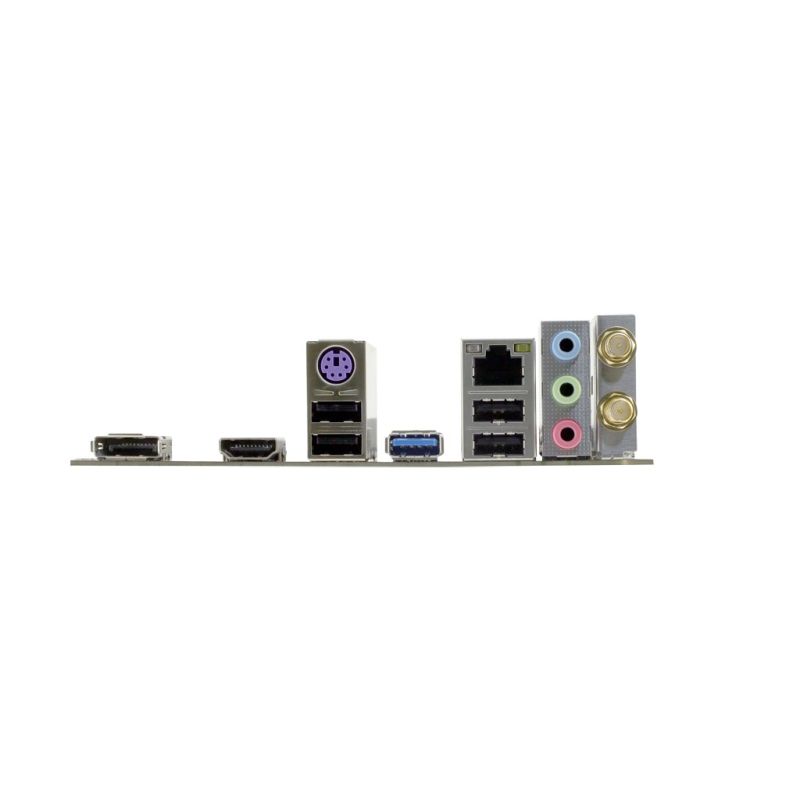

- Rear Panel I/O Ports
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 4
- Number of PS/2 ports: 1
- Microphone: Yes
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x1 (Gen 3.x) slots: 1
- Safety warning
- Warnings
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Warnings
