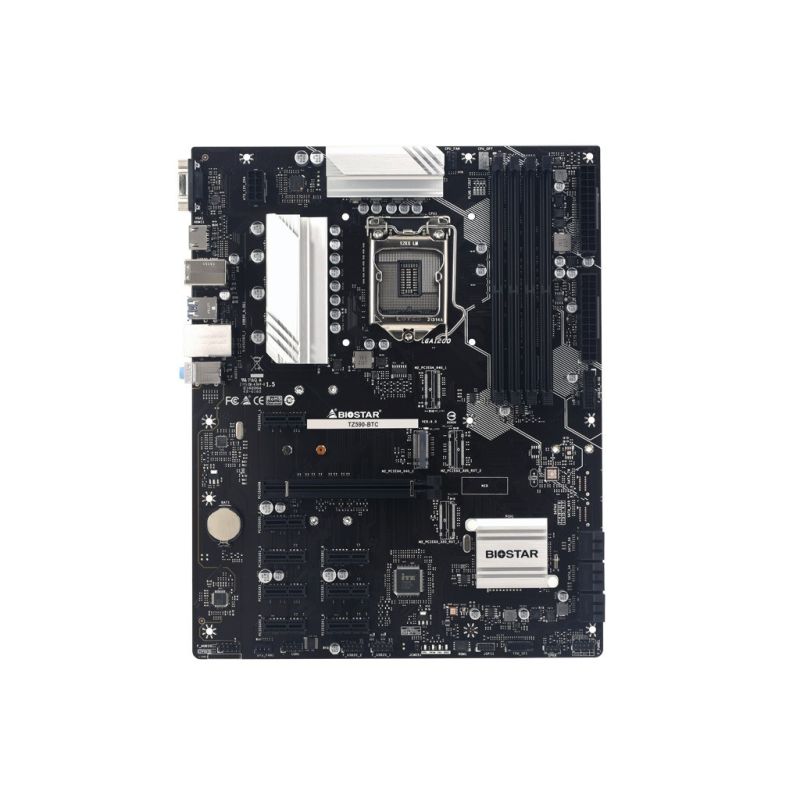

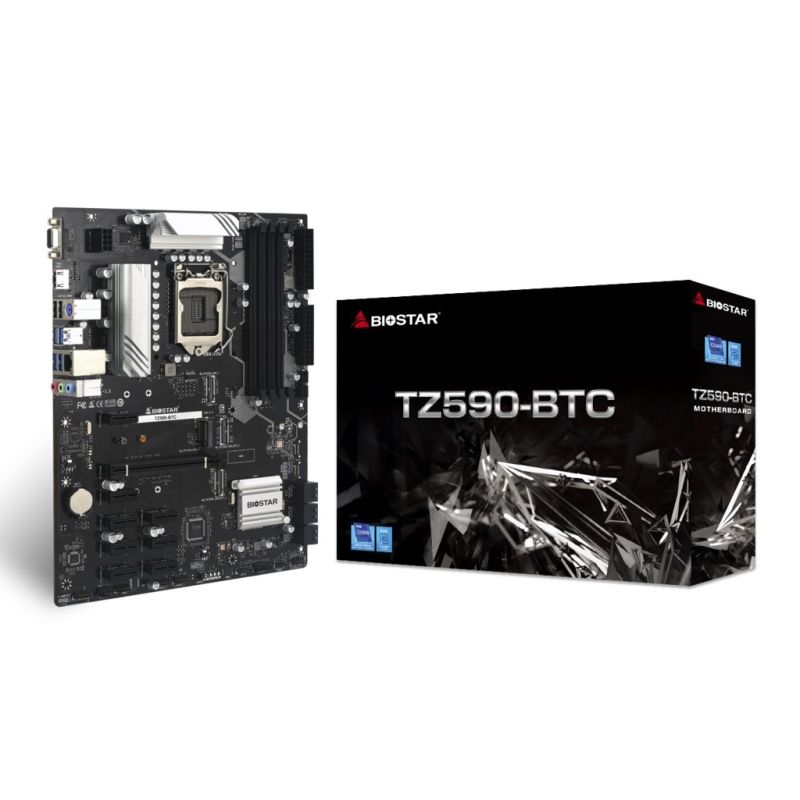

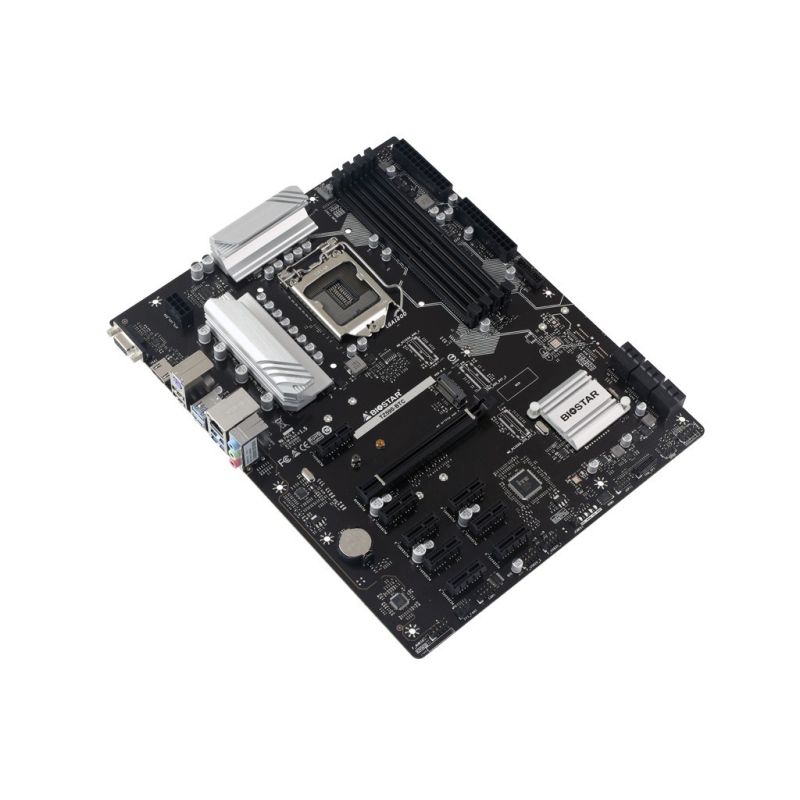

Biostar TZ590-BTC motherboard
Biostar TZ590-BTC motherboard
Biostar TZ590-BTC motherboard
PRICE:
106,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor
- Intel® Core™ i5
- Intel® Core™ i3
- Intel® Core™ i9
- Intel® Core™ i7
- Processor socket: LGA 1200 (Socket H5)
- Processor manufacturer: Intel
- Processor
- Graphics
- HDCP: Yes
- Memory
- ECC Compatibility: Non-ECC
- Supported memory types: DDR4-SDRAM
- Supported memory clock speeds
- 3200 MHz
- 2666 MHz
- 3600 MHz
- 2400 MHz
- 2133 MHz
- 2933 MHz
- 2800 MHz
- Maximum memory capacity: 128 GB
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Supported memory clock speed (max): 3600 MHz
- Characteristics
- Audio chip: Realtek ALC887
- Chipset Board Family: Intel
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Motherboard Layout: Intel Z590
- Motherboard format: ATX
- Product color: Black
- Audio output channels: 7.1 ch.
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Internal I/O
- Front panel connector: Yes
- Front panel audio connector: Yes
- Number of COM sockets: 1
- Number of SATA III connectors: 6
- ATX power socket (24-pin): Yes
- TPM Connector: Yes
- CPU fan connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of USB 2.0 ports: 2
- Network
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- LAN Controller: Intel I219V
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III
- Number of supported HDDs: 6

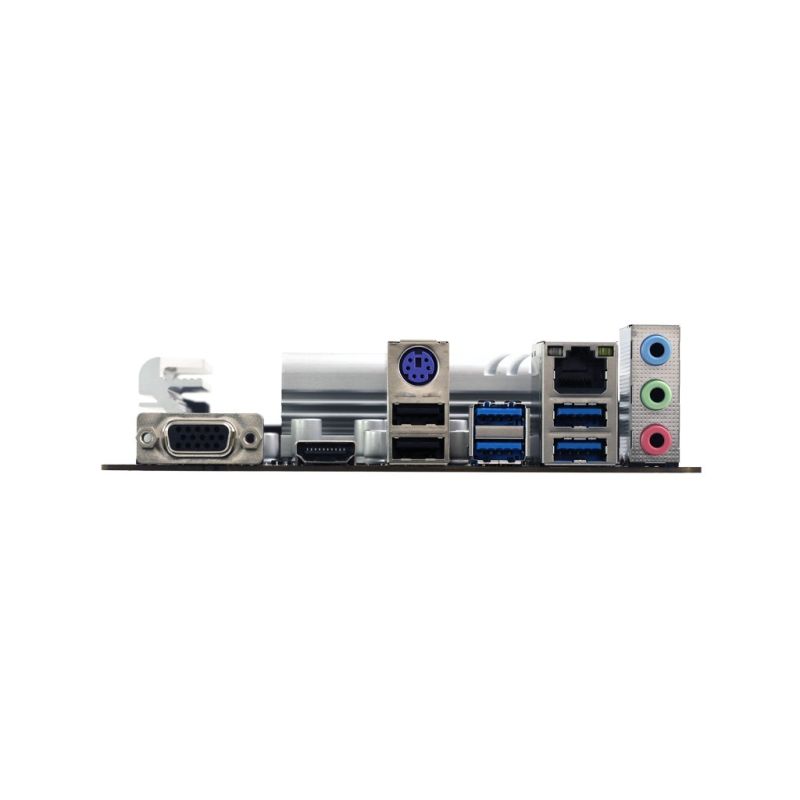

- Rear Panel I/O Ports
- Number of HDMI ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of PS/2 ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of VGA (D-Sub) ports: 1
- Number of USB 2.0 ports: 2
- Number of audio jacks: 3
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x1 (Gen 3.x) slots: 8
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Biostar |
| Department | Electronics |
