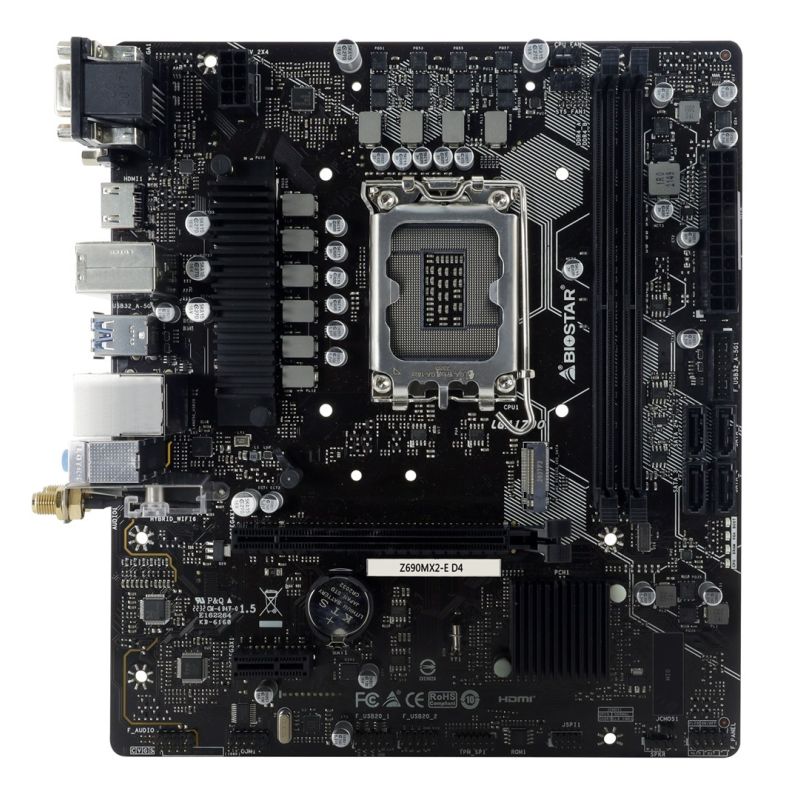

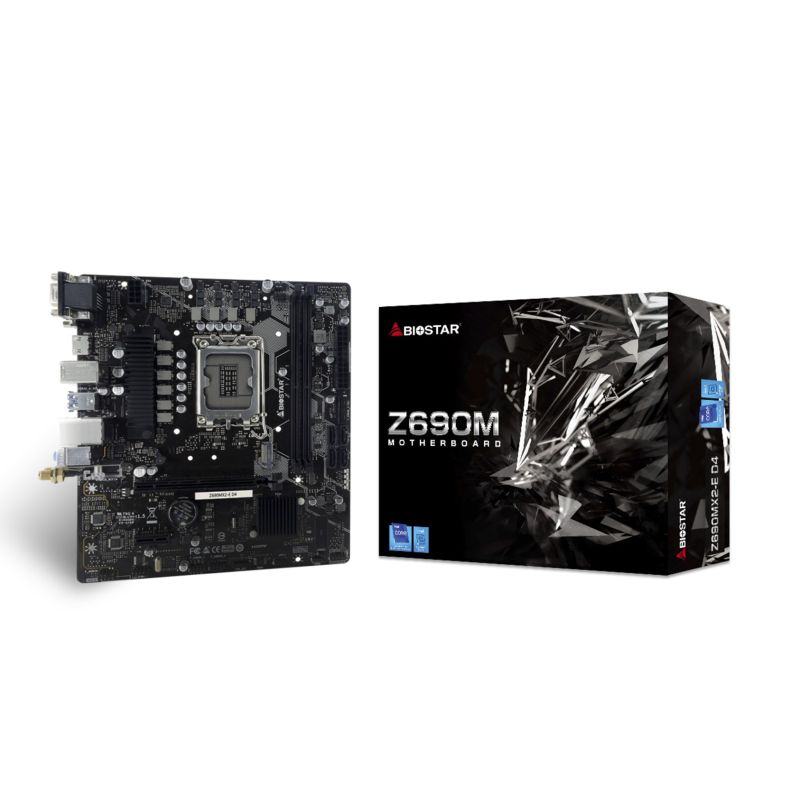

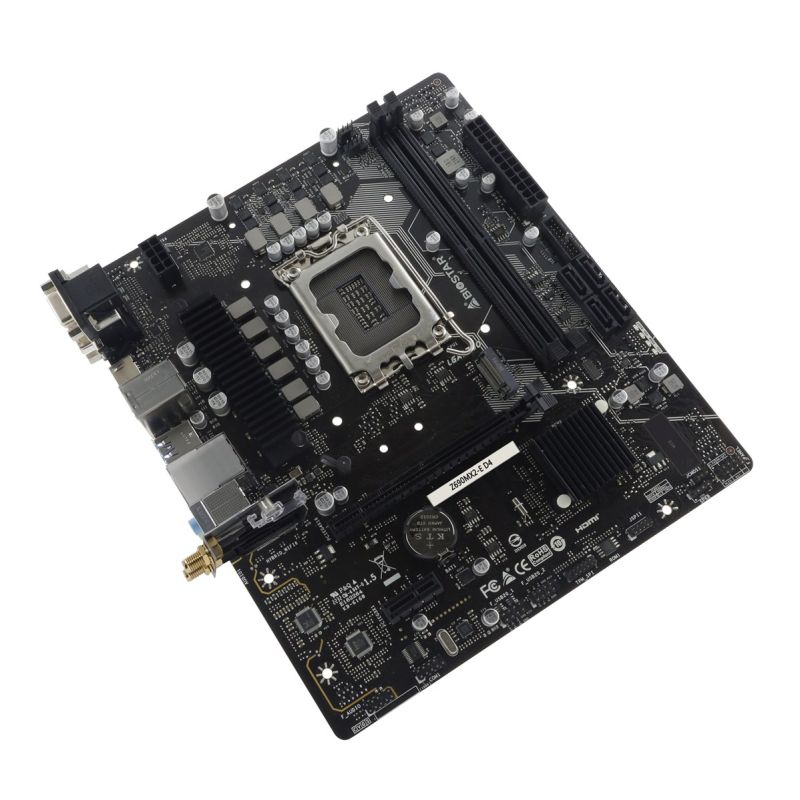

BIOSTAR Z690MX2-E D4 motherboard
BIOSTAR Z690MX2-E D4 motherboard
BIOSTAR Z690MX2-E D4 motherboard
PRICE:
123,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor
- Intel Core i9 12th Gen
- Intel Core i3 14th Gen
- Intel Core i3 13th Gen
- Intel Core i7 12th Gen
- Intel Core i5 14th Gen
- Intel Core i5 13th Gen
- Intel Core i9 13th Gen
- Intel Core i7 13th Gen
- Intel Core i5 12th Gen
- Intel Core i7 14th Gen
- Intel Core i9 14th Gen
- Intel Core i3 12th Gen
- Processor socket: LGA 1700
- Memory
- Supported memory clock speeds
- 3200 MHz
- 2666 MHz
- 3800 MHz
- 4400 MHz
- 2133 MHz
- 1866 MHz
- 2933 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- Maximum memory capacity: 64 GB
- ECC Compatibility: Non-ECC
- Memory slot type: DIMM
- Number of memory slots: 2
- Supported memory types: DDR4-SDRAM
- Memory Channel Support: Dual Channel
- Supported memory clock speeds
- Characteristics
- Audio chip: Realtek ALC897
- Monitoring computer status
- Fan
- Temperature
- Processor
- Audio output channels: 7.1 ch.
- Motherboard Layout: Intel Z690
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Motherboard format: Micro ATX
- Chipset Board Family: Intel
- Weight and dimensions
- Product depth: 236 mm
- Product width: 208 mm
- Internal I/O
- Number of USB 2.0 ports: 4
- Front panel connector: Yes
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- CPU fan connector: Yes
- Number of case fan connectors: 1
- TPM Connector: Yes
- Number of COM sockets: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- EPS power supply connector (8-pin): Yes
- Network
- LAN Controller: Realtek RTL8125B
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi: No
- BIOS
- BIOS Type: UEFI
- Package contents
- Drivers included: Yes
- Cables: SATA
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID levels
- 5
- 1
- 0
- 10
- RAID Service: Yes
- Number of supported HDDs: 5

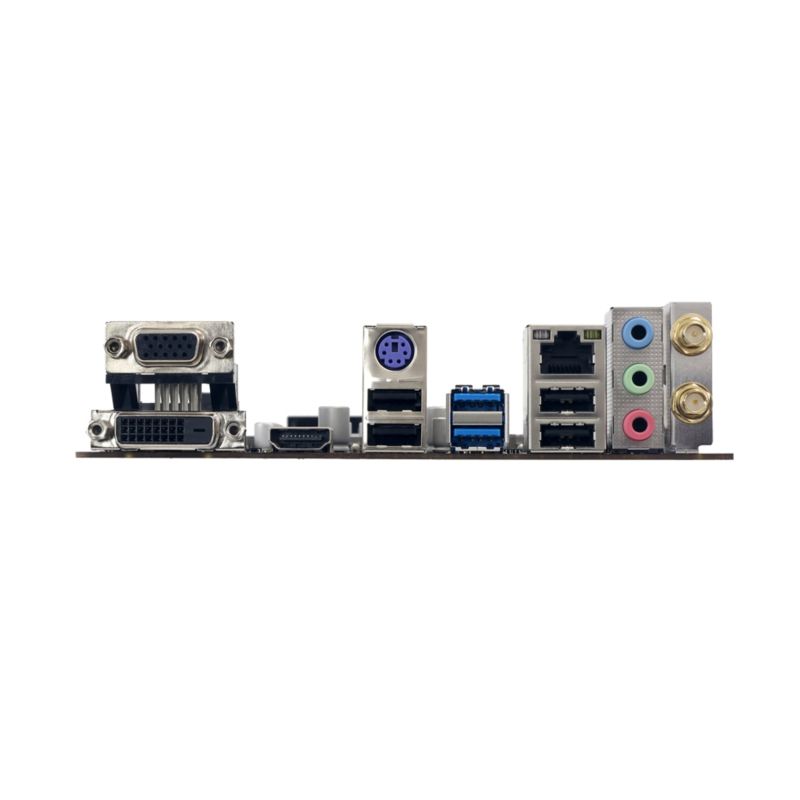

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of VGA (D-Sub) ports: 1
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 4
- Number of DVI-D ports: 1
- Number of PS/2 ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
- PCI Express x1 (Gen 3.x) slots: 1
- Safety warning
- Warnings
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Warnings
| Name | Details |
|---|---|
| Producer | Biostar |
