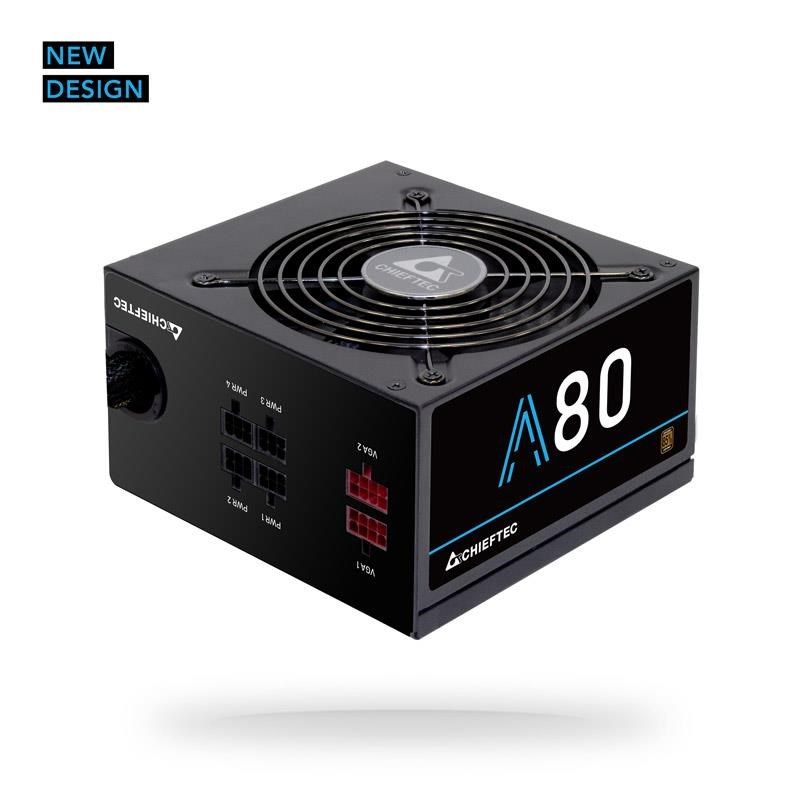

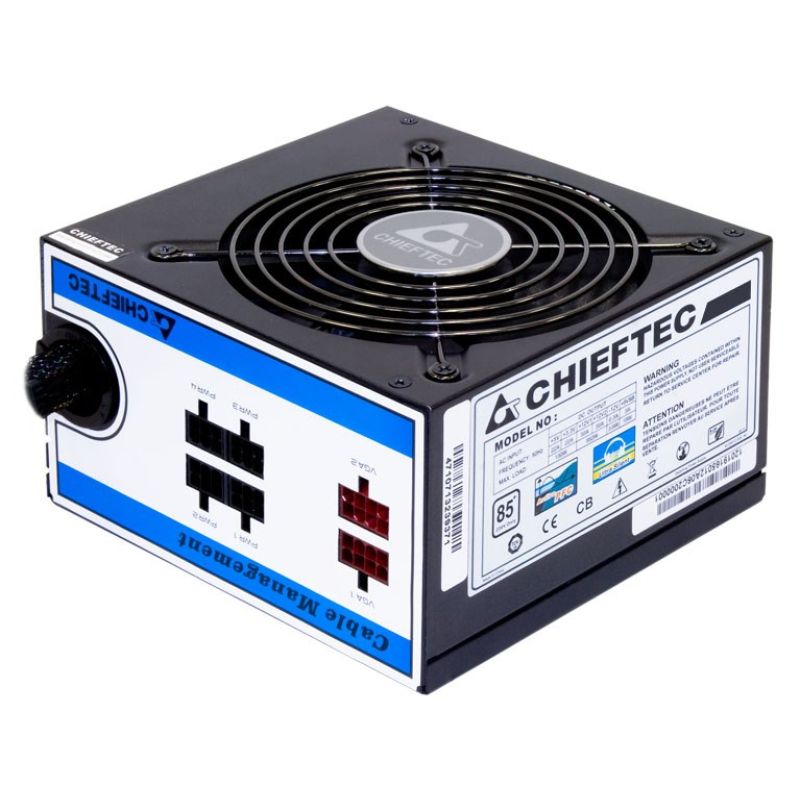

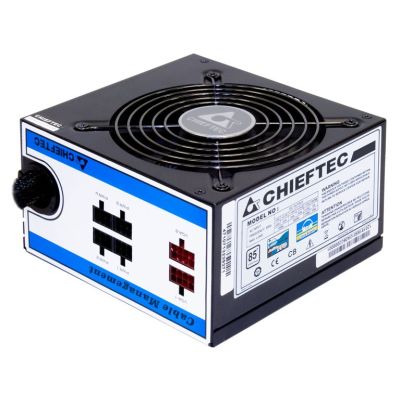

Chieftec A-80 CTG-750C Power Supply (750 W; Active; 120 mm)
Chieftec A-80 CTG-750C Power Supply (750 W; Active; 120 mm)
Chieftec A-80 CTG-750C Power Supply (750 W; Active; 120 mm)
PRICE:
108,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Cooling type: Active
- Number of fans: 1 fan
- Fan bowl diameter: 12 cm
- Fan Location: Top
- Product color: Black
- Power
- Maximum output current (+5V): 22A
- Maximum output current (+12 V1): 35 A
- Total power (+5V): 130 W
- Input current: 6 A
- AC input frequency: 50 Hz
- Power protection features
- Protection against overvoltage
- Overcurrent
- Low voltage protection
- Short circuit
- Overheating protection
- Overload
- Total power (+3.3V): 130 W
- Maximum output current (+12 V2): 35 A
- Maximum input current (@ 110V): +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
- Total power (+12V): 648 W
- Maximum output current (-12V): 0.3A
- PFC (Power Factor Correction) Type: Active
- Efficiency: 85%
- Total power: 750 W
- Total power (+5 Vsb): 15 W
- Total power (-12V): 3.6 W
- Maximum output current (+5 Vsb): 3 A
- Power factor: 0.9
- Maximum output current (+3.3V): 22 A
- AC input voltage: 230 V
- Weight and dimensions
- Product width: 150 mm
- Product height: 87 mm
- Product depth: 140 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS
- Power supply type (PSU): ATX
- ATX version: 2.3
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- Packaging data
- Packaging type: Box
- Certificates
- Certificates of conformity: RoHS
- Ports and interfaces
- Motherboard power connector: 24-pin ATX
- PCI Express power connectors (6+2 pin): 2
- Cabling Type: Semi-Modular
- EPS power supply connector (8-pin): Yes
- CPU power connectors (8-pin): 1
- Floppy drive connector: 2
- P4 CPU connector (4-pin): 1
- Number of SATA power connectors: 6
- Peripheral (Molex) Power Connectors (4-pin): 4
- Logistics data
- Harmonized System (HS) code: 84733020
