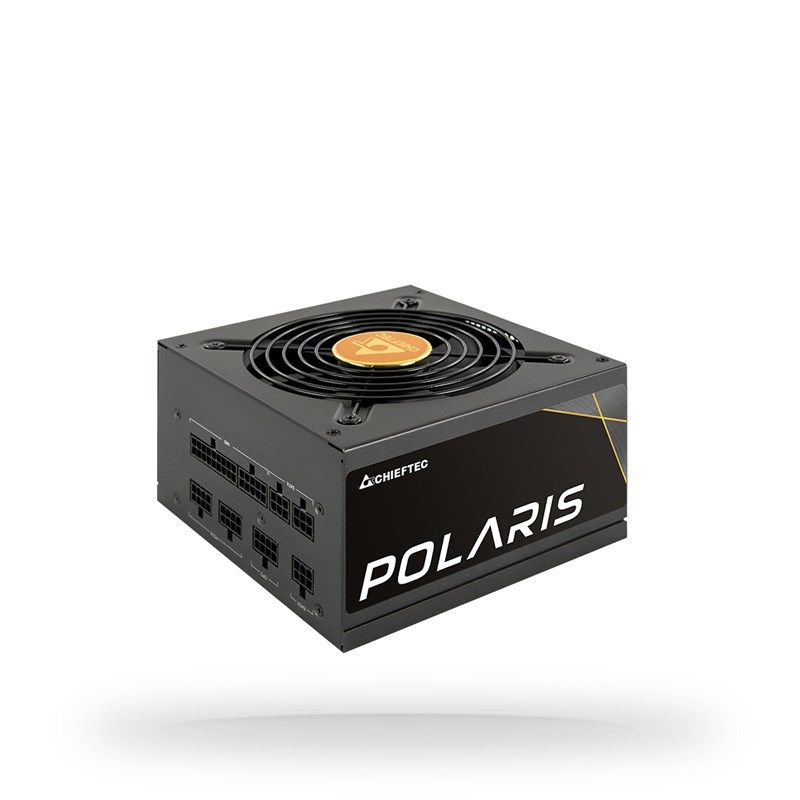

CHIEFTEC ATX 650W PSU 80+ Gold Power Supply
CHIEFTEC ATX 650W PSU 80+ Gold Power Supply
CHIEFTEC ATX 650W PSU 80+ Gold Power Supply
PRICE:
155,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!

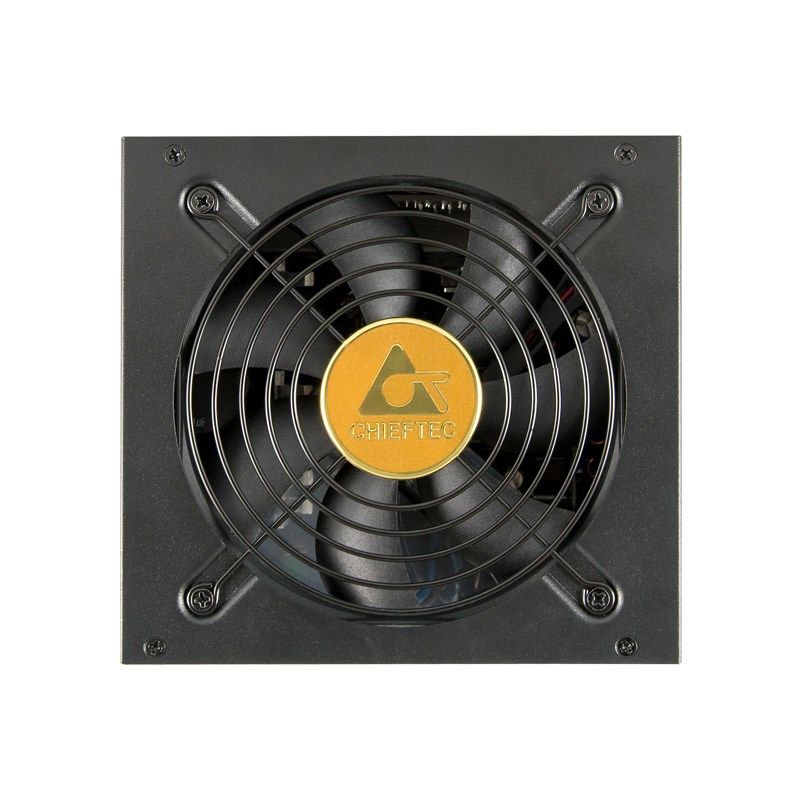

- Design
- Number of fans: 1 fan
- Fan Location: Top
- Fan bowl diameter: 12 cm
- Cooling type: Active
- Product color: Black
- Power
- Total power (+5V): 120 W
- PFC (Power Factor Correction) Type: Active
- Total power (-12V): 3.6 W
- Maximum output current (-12V): 0.3A
- Power protection features
- Short circuit
- Overheating protection
- Protection against overvoltage
- Overcurrent
- Low voltage protection
- Overload
- Input current: 10 A
- Maximum output current (+5 Vsb): 3 A
- Total power (+5 Vsb): 15 W
- AC input voltage: 100 - 240 V
- Maximum output current (+5V): 22A
- Total power (+12V): 650 W
- Total power (+3.3V): 120 W
- Maximum output current (+12V): 54.2A
- Maximum output current (+3.3V): 22 A
- Total power: 650 W
- AC input frequency: 50 - 60 Hz
- Weight and dimensions
- Product height: 87 mm
- Product width: 150 mm
- Product weight: 2.17 kg
- Product depth: 140 mm
- Efficiency
- Power supply type (PSU): PS/2
- 80 PLUS Certificate: 80 PLUS Gold
- Intended use: PC
- ATX version: 2.4
- Packaging data
- Weight with packaging: 2.48 kg
- Packaging type: Box
- Certificates
- Certificates of conformity: RoHS

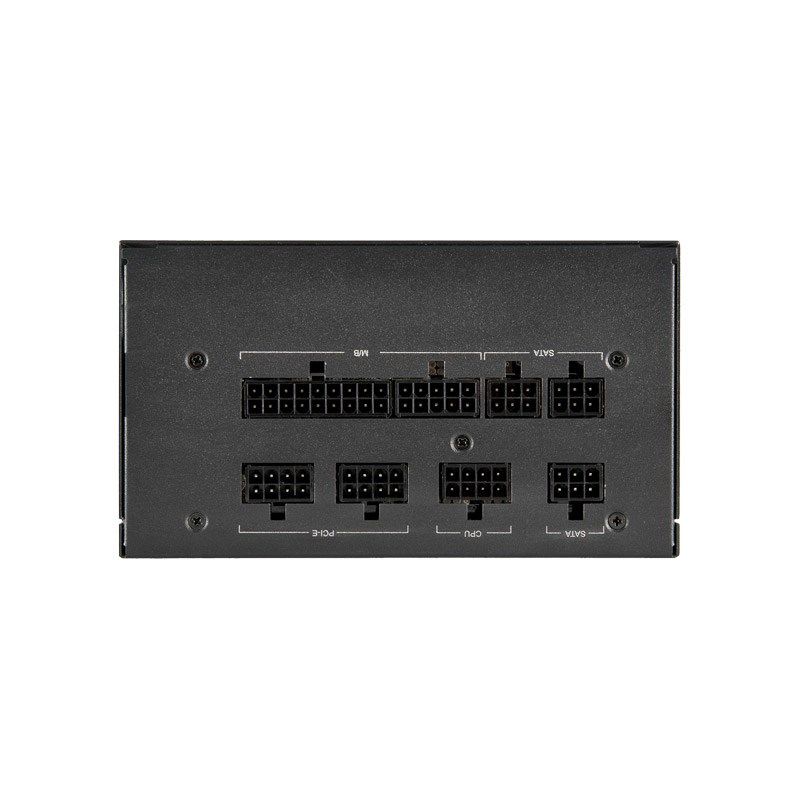

- Ports and interfaces
- Wiring Type: Fully Modular
- CPU power cable length: 65 cm
- PCI Express power cable length: 50 cm
- Motherboard cable length: 65 cm
- Number of SATA power connectors: 6
- PCI Express power connectors (6+2 pin): 4
- SATA power cable length
- 150
- 450
- Floppy disk drive slot: Yes
- Motherboard power connector: 20+4 pin ATX
- Peripheral (Molex) Power Cable Length
- 450 mm
- 150
- Floppy drive connector: 1
- CPU power supply connector (4+4 pin): Yes
- Peripheral (Molex) Power Connectors (4-pin): 3
- Logistics data
- Harmonized System (HS) code: 84733020
| Name | Details |
|---|---|
| Producer | Chieftec |
