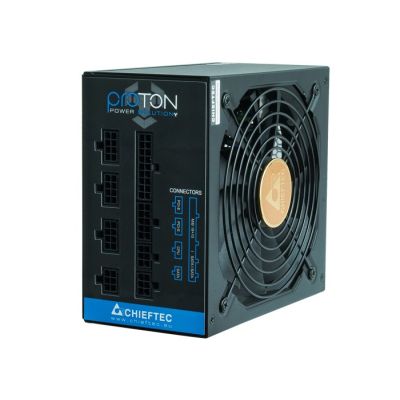

Chieftec BDF-650C Power Supply Module 650 W 20+4 pin ATX PS/2 Black
Chieftec BDF-650C Power Supply Module 650 W 20+4 pin ATX PS/2 Black
Chieftec BDF-650C Power Supply Module 650 W 20+4 pin ATX PS/2 Black
PRICE:
123,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Built-in switch: Yes
- Fan bowl diameter: 14 cm
- Product color: Black
- Cooling type: Active
- Fan Location: Top
- Number of fans: 1 fan
- Power
- AC input voltage: 115 - 230 V
- AC input frequency: 50 - 60 Hz
- Efficiency: 85%
- Power factor: 0.9
- Power protection features
- Low voltage protection
- Overload
- Short circuit
- Overheating protection
- Protection against overvoltage
- Overcurrent
- Total power: 650 W
- Maximum output current (-12V): 0.3A
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+3.3V): 22 A
- Maximum output current (+12V): 54.2A
- Total power (+5V): 120 W
- Maximum output current (+5V): 22A
- Total power (+3.3V): 120 W
- Maximum output current (+5 Vsb): 2.5 A
- Weight and dimensions
- Product depth: 140 mm
- Product height: 87 mm
- Product width: 150 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS Bronze
- Intended use: PC
- ATX version: 2.3
- Power supply type (PSU): PS/2
- Packaging data
- User Manual: Yes
- Packaging type: Box
- Ports and interfaces
- Peripheral (Molex) Power Connectors (4-pin): 3
- PCI Express power connectors (6+2 pin): 4
- Floppy disk drive slot: Yes
- CPU power supply connector (4+4 pin): Yes
- Number of SATA power connectors: 6
- Motherboard power connector: 20+4 pin ATX
- Other functions
- Warranty card: Yes
- Logistics data
- Harmonized System (HS) code: 84733020
| Name | Details |
|---|---|
| Producer | Chieftec |
