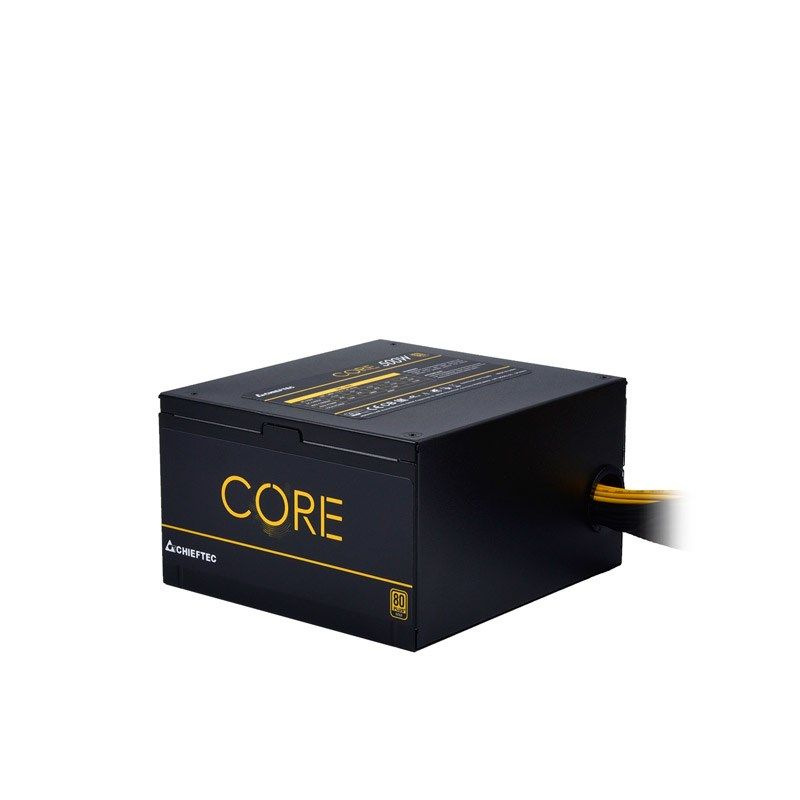

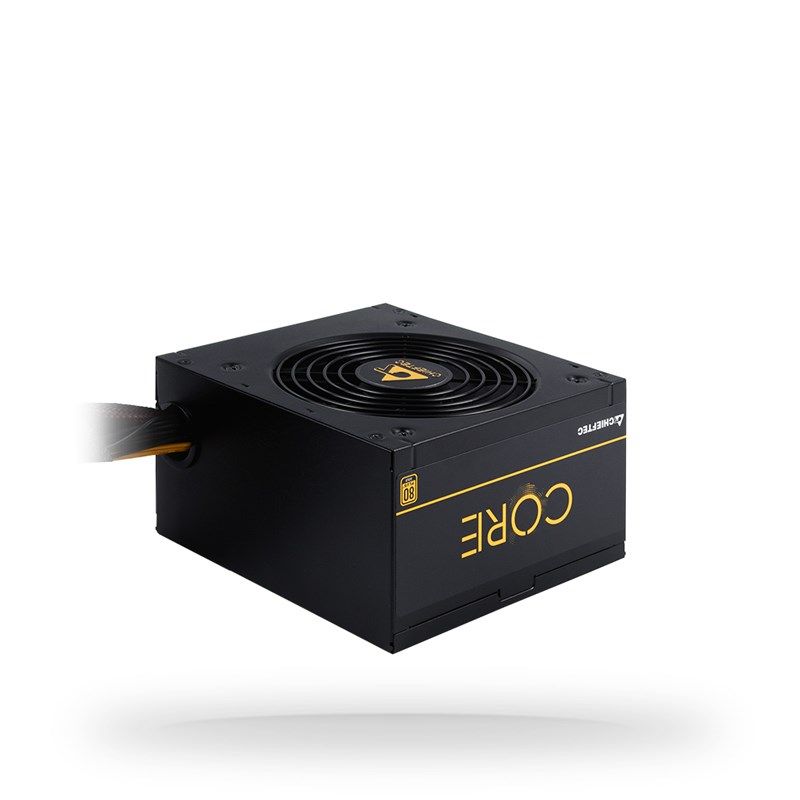

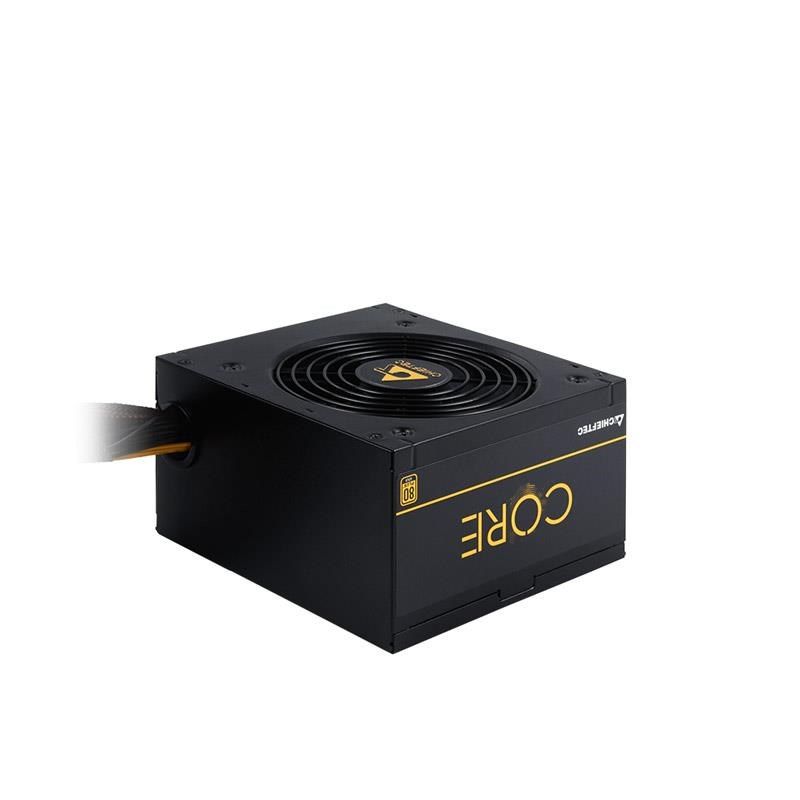

CHIEFTEC CORE 500W ATX 80+ gold power supply
CHIEFTEC CORE 500W ATX 80+ gold power supply
CHIEFTEC CORE 500W ATX 80+ gold power supply
PRICE:
98,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Cooling type: Active
- Product color: Black
- Number of fans: 1 fan
- Fan bowl diameter: 12 cm
- Power
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Input current: 8 A
- Maximum output current (+5V): 18A
- Maximum output current (+5 Vsb): 2.5 A
- Maximum output current (+12 V1): 41 A
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+3.3V): 18 A
- Total power (+5 Vsb): 12.5 W
- Maximum output current (-12V): 0.3A
- Total power: 500 W
- Power protection features
- Overload
- Short circuit
- Protection against overvoltage
- Total power (-12V): 3.6 W
- Weight and dimensions
- Product weight: 1.65 kg
- Product width: 140 mm
- Product height: 86 mm
- Product depth: 150 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS Gold
- Power supply type (PSU): PS/2
- Intended use: PC
- ATX version: 2.3
- Packaging data
- Weight with packaging: 2.06 kg
- Ports and interfaces
- Peripheral (Molex) Power Connectors (4-pin): 3
- Floppy disk drive slot: Yes
- SATA power cable length
- 150
- 500 mm
- Peripheral (Molex) Power Cable Length
- 500 mm
- 150
- PCI Express power cable length: 50 cm
- CPU power supply connector (4+4 pin): Yes
- Wiring Type: Non-Modular
- Number of SATA power connectors: 4
- CPU power cable length: 65 cm
- PCI Express power connectors (6+2 pin): 1
- Motherboard power connector: 24-pin ATX
- Floppy drive connector: 1
- Logistics data
- Harmonized System (HS) code: 84733020
- Safety warning
- Warnings
- Do not open the housing – risk of electric shock.
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Warnings
| Name | Details |
|---|---|
| Producer | Chieftec |
