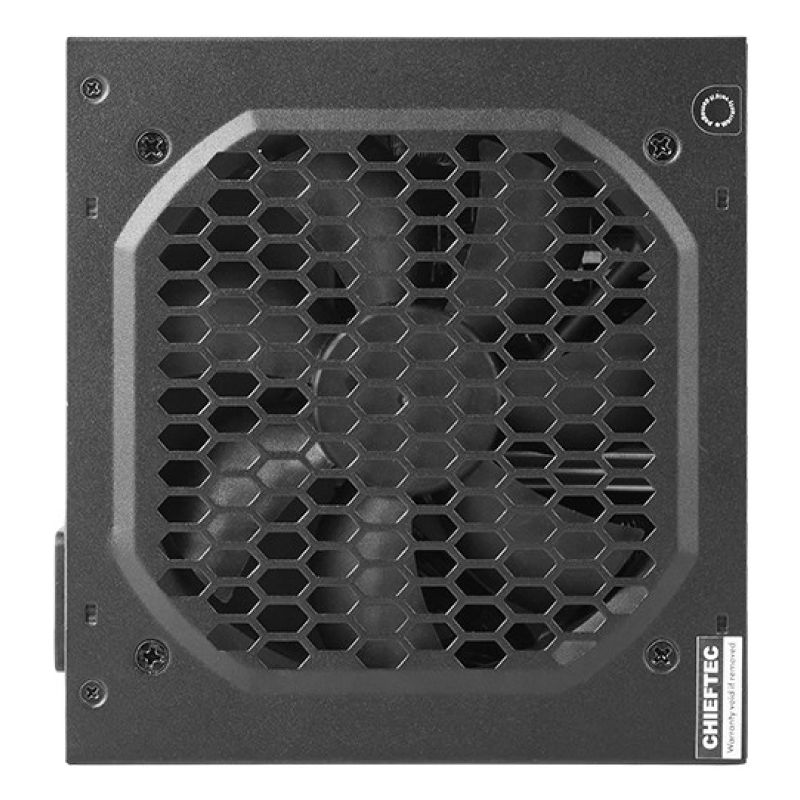

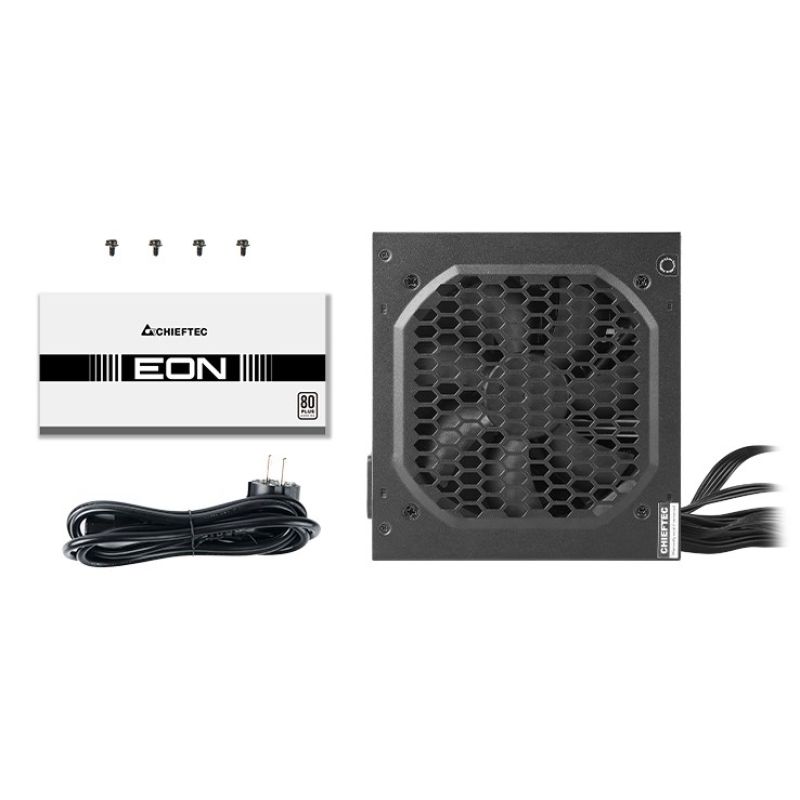

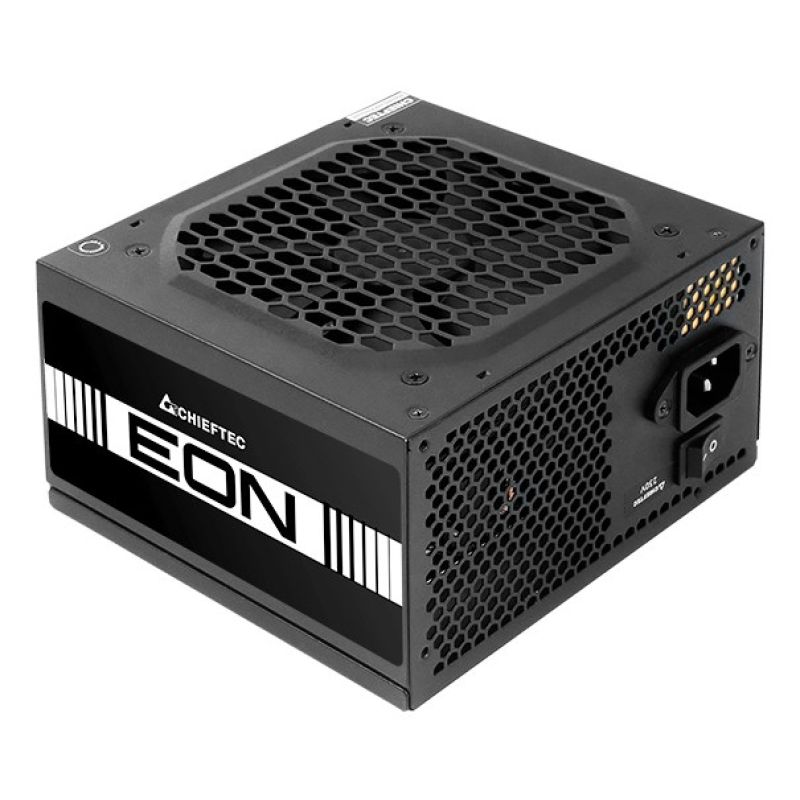

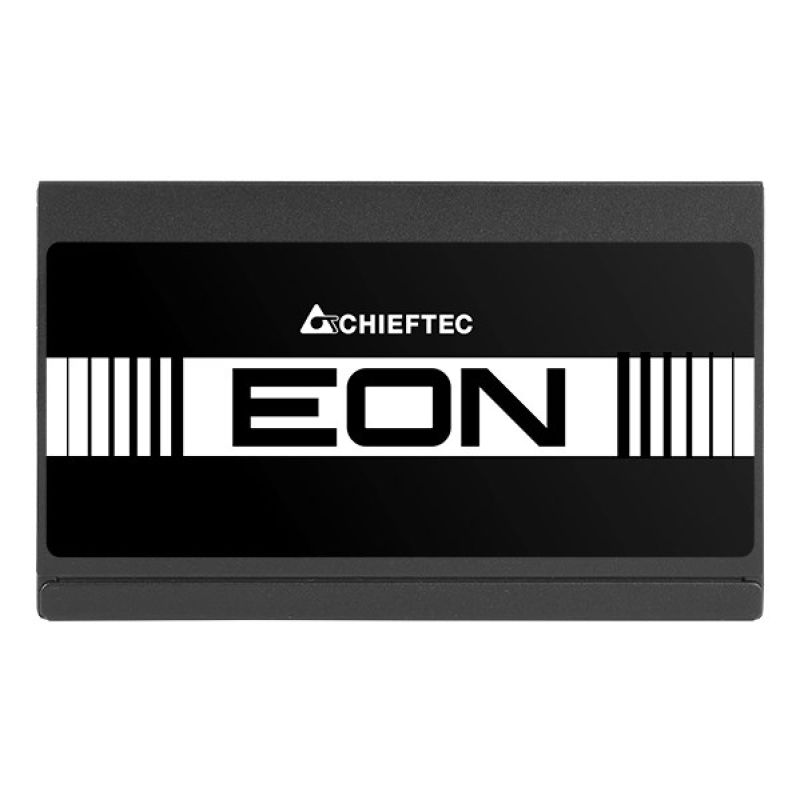

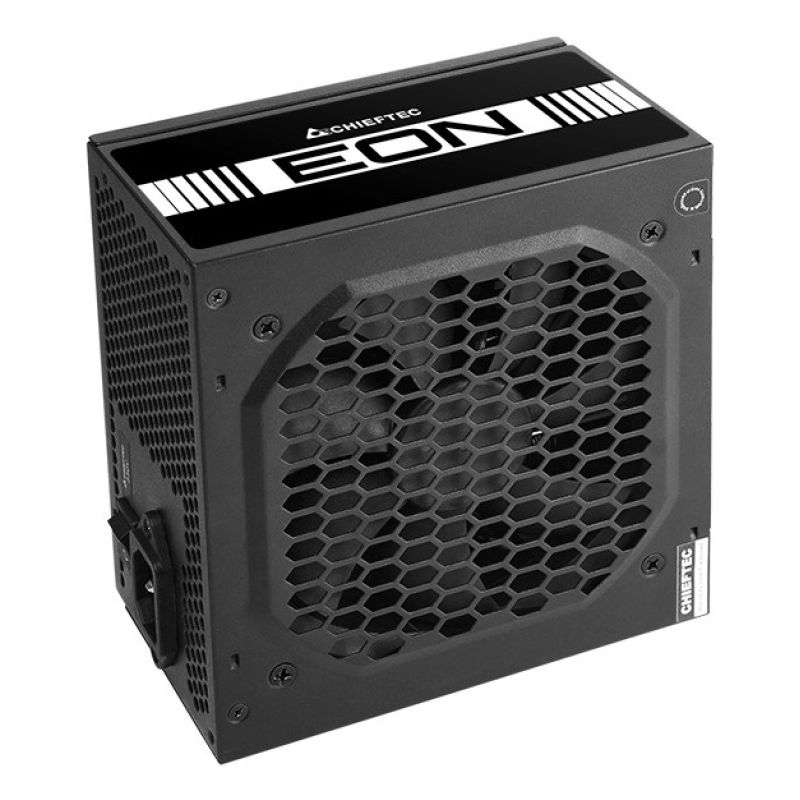

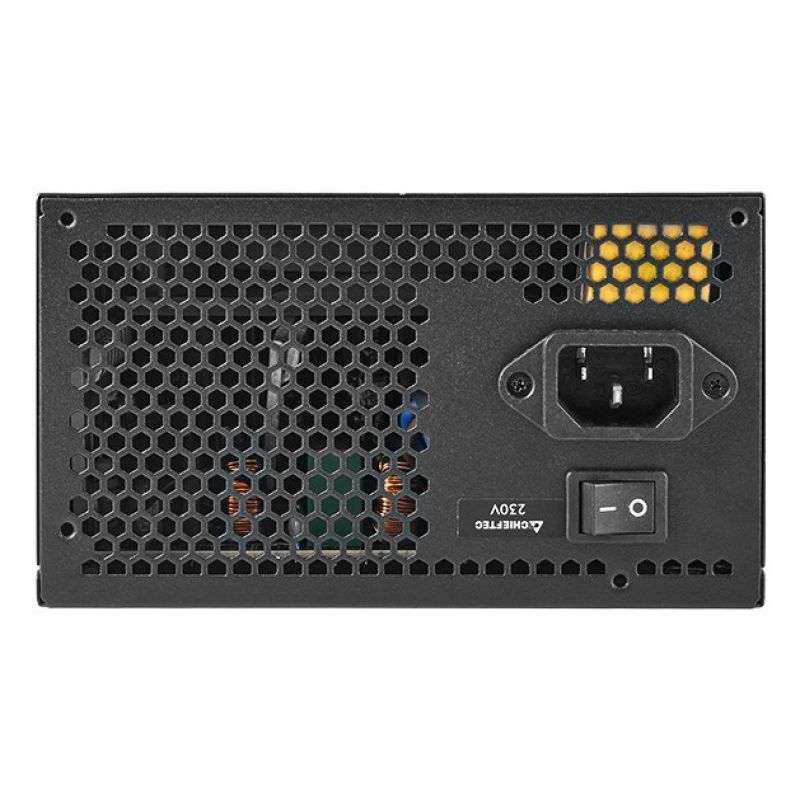

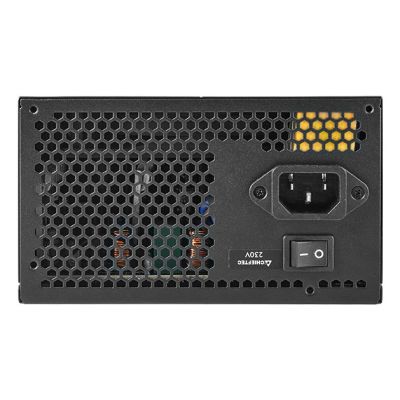

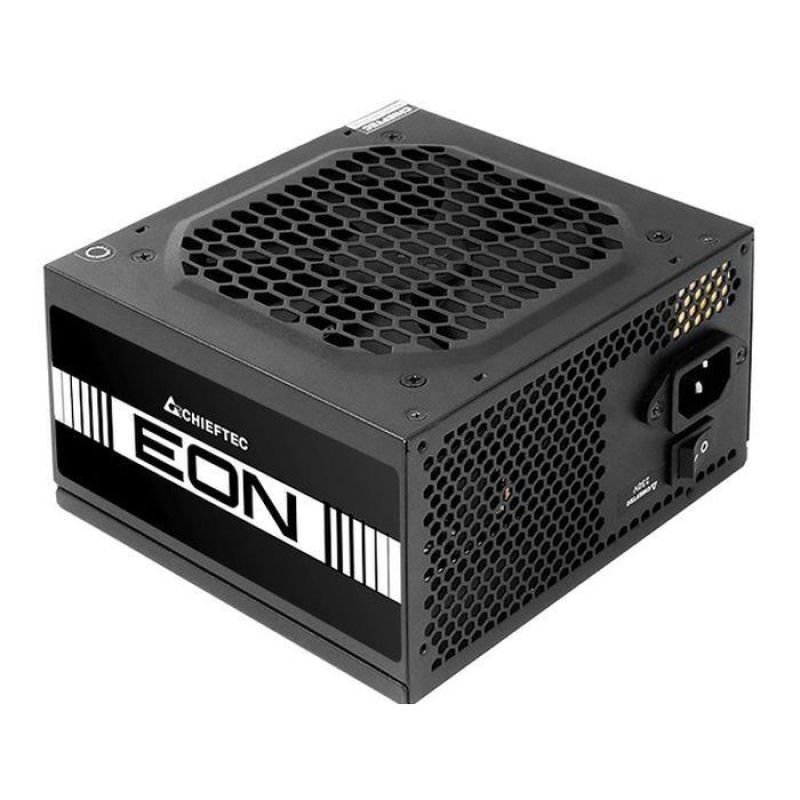

Chieftec EON ZPU-400S Power Supply Module 400 W 20+4 pin ATX ATX Black
Chieftec EON ZPU-400S Power Supply Module 400 W 20+4 pin ATX ATX Black
Chieftec EON ZPU-400S Power Supply Module 400 W 20+4 pin ATX ATX Black
PRICE:
49,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Environmental (sustainability) certification: ErP
- Design
- Product color: Black
- Built-in switch: Yes
- Fan bowl diameter: 12 cm
- Power
- AC input voltage: 200 - 240 V
- Input current: 3 A
- AC input frequency: 50 Hz
- Power protection features
- Overvoltages and inrush current
- Short circuit
- Surge protection
- Maximum input current (@ 220V): 3 A
- Total power (+5 Vsb): 12.5 W
- Total power: 400 W
- Maximum output current (+3.3V): 20 A
- Maximum output current (-12V): 0.4A
- Maximum output current (+12 V1): 30 A
- PFC (Power Factor Correction) Type: Active
- Total power (-12V): 4.8 W
- Power factor: 0.9
- Maximum output current (+5 Vsb): 2.5 A
- Maximum output current (+5V): 20A
- Weight and dimensions
- Product depth: 140 mm
- Product width: 150 mm
- Product weight: 1.15 kg
- Product height: 86 mm
- Efficiency
- Intended use: PC/server
- 80 PLUS Certificate: 80 PLUS
- ATX version: 2.3
- Supported motherboard type: ATX
- Power supply type (PSU): ATX
- Packaging data
- Packaging type: Box
- Weight with packaging: 1.4 kg
- Certificates
- Certificates of conformity
- CB
- CE
- EAC
- RoHS
- Certificates of conformity
- Ports and interfaces
- Peripheral (Molex) Power Connectors (4-pin): 2
- ATX power supply connector (20+4 pin): Yes
- EPS power connector (4+4 pin): Yes
- Number of SATA power connectors: 4
- PCI Express power connectors (6+2 pin): 1
- SATA power cable length
- 550
- 600
- Peripheral (Molex) Power Cable Length
- 450 mm
- 150
- CPU power supply connector (4+4 pin): Yes
- Wiring Type: Non-Modular
- Motherboard power connector: 20+4 pin ATX
- Motherboard cable length: 55 cm
- Logistics data
- Warranty period: 2 years
- Safety warning
- Warnings
- Do not open the housing – risk of electric shock.
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Hazard pictogram(s)
- GHS07: Irritating substances
- GHS02: Flammable substances
- GHS09: Environmentally Harmful Substances
- Warnings
| Name | Details |
|---|---|
| Producer | Chieftec |
