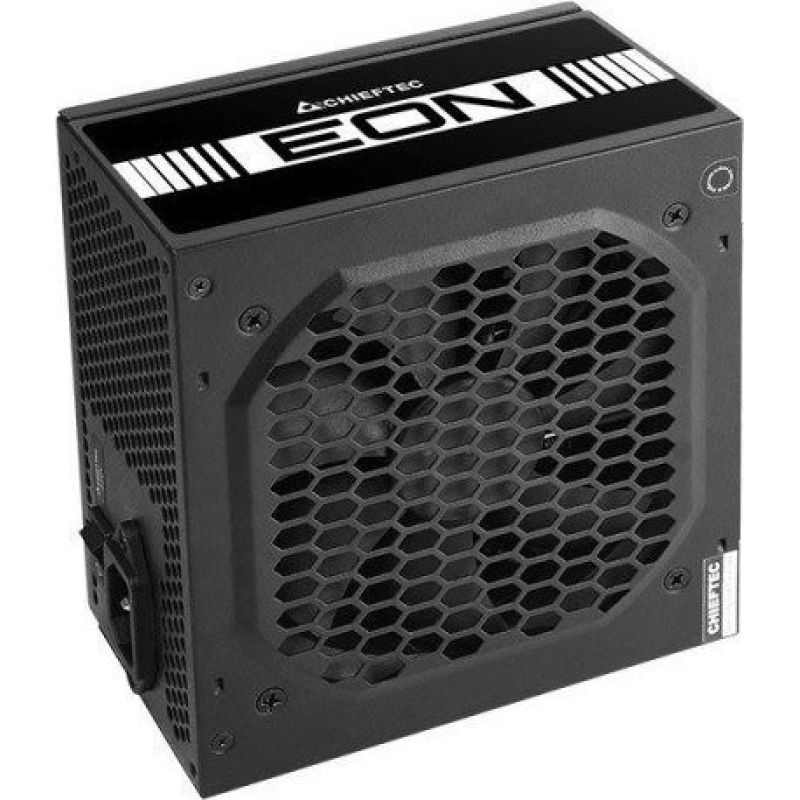

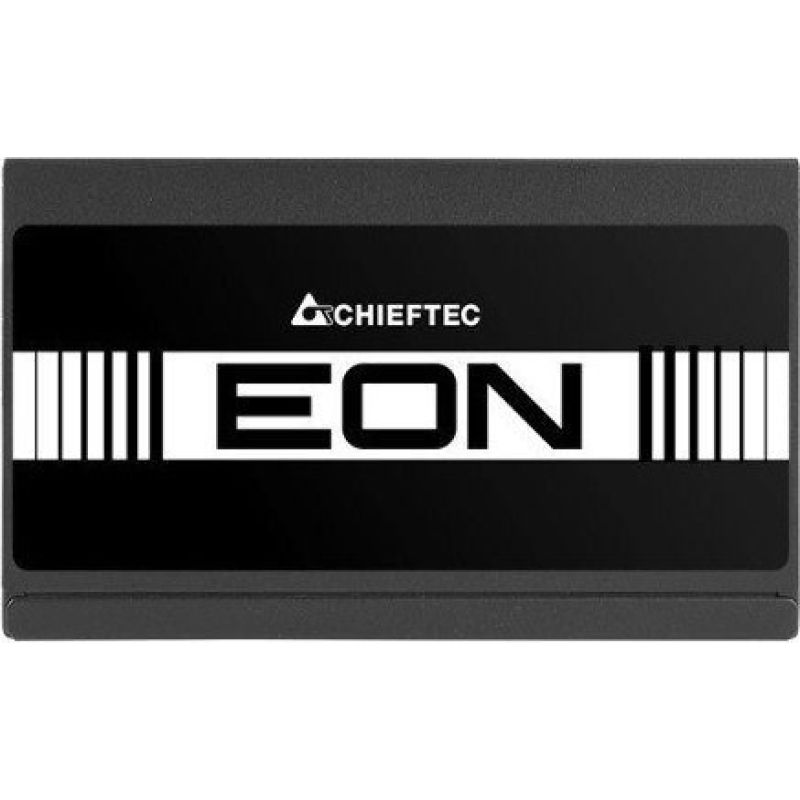

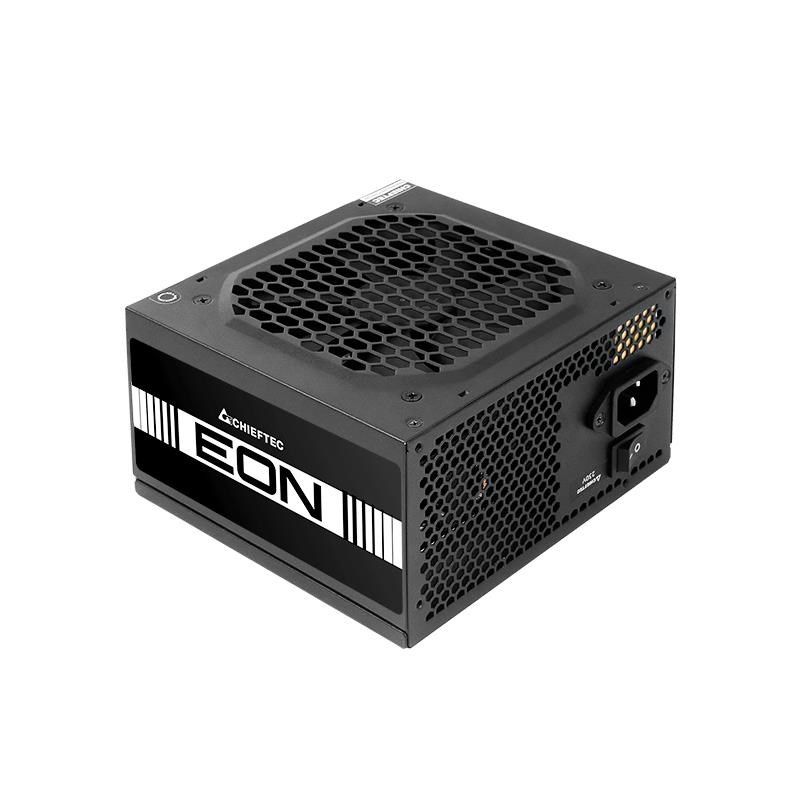

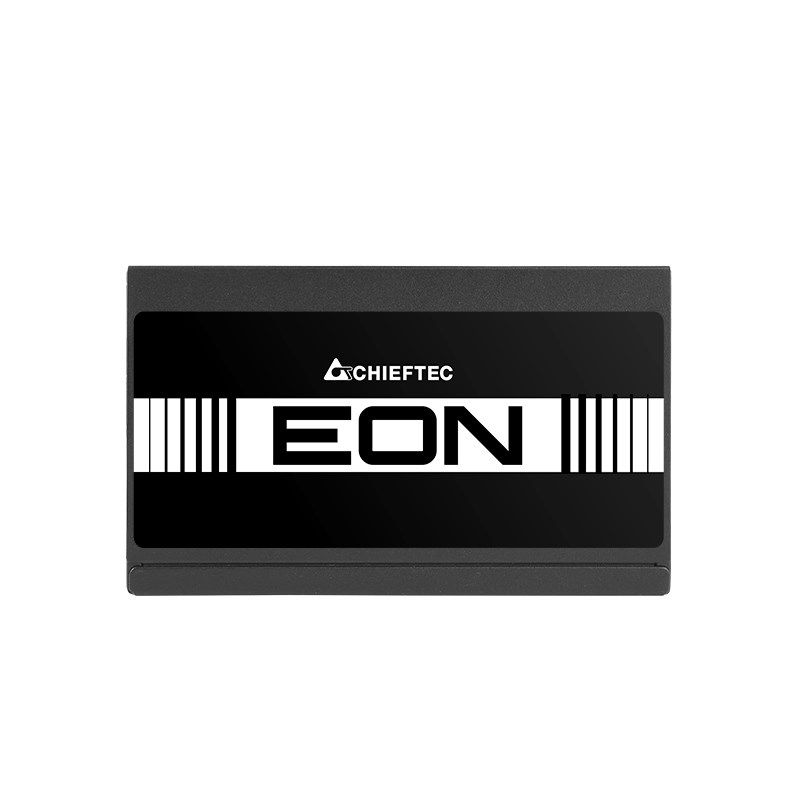

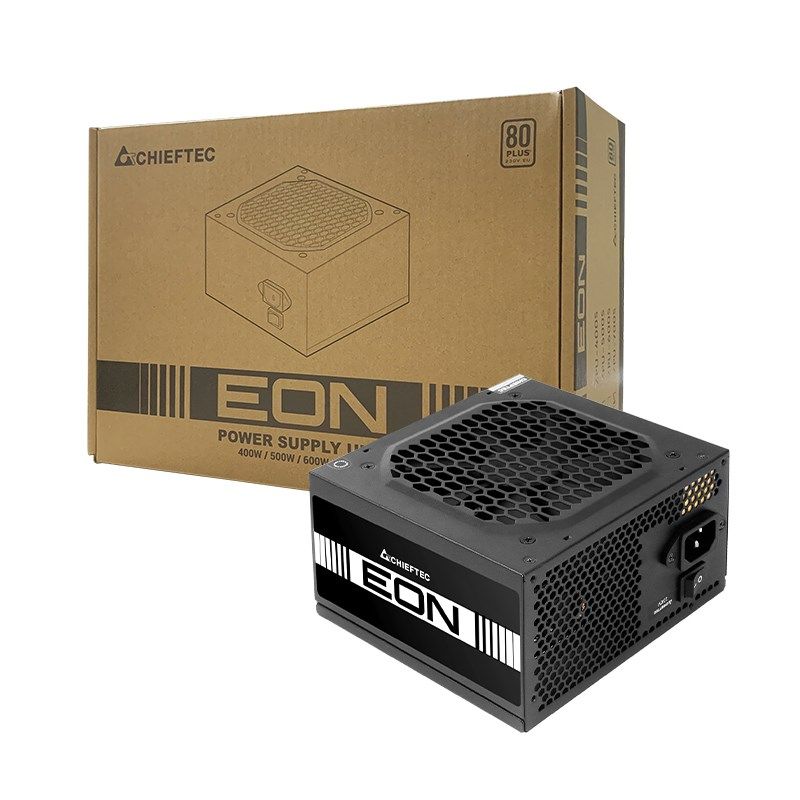

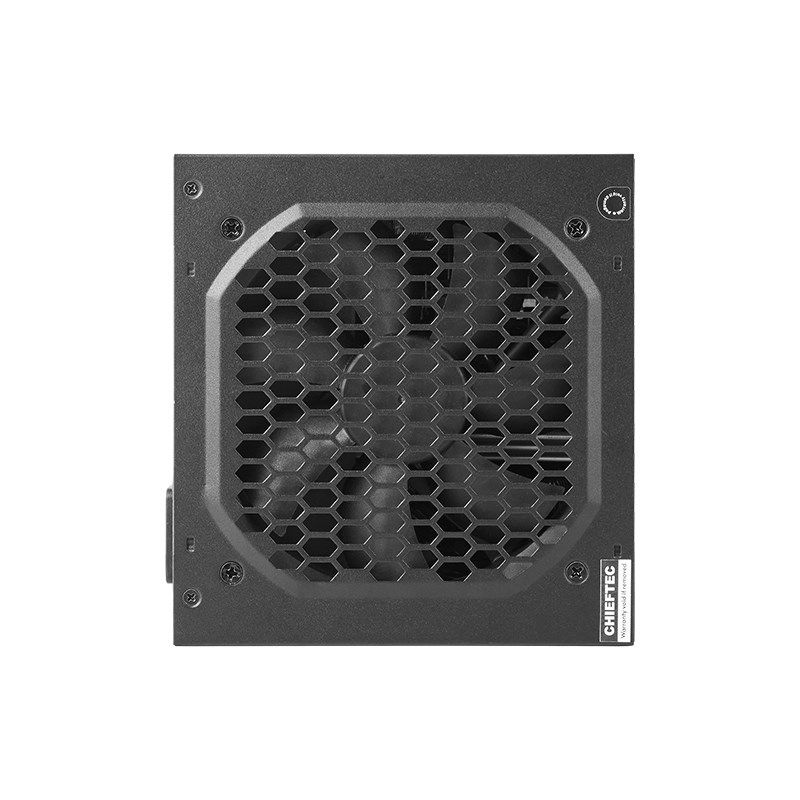

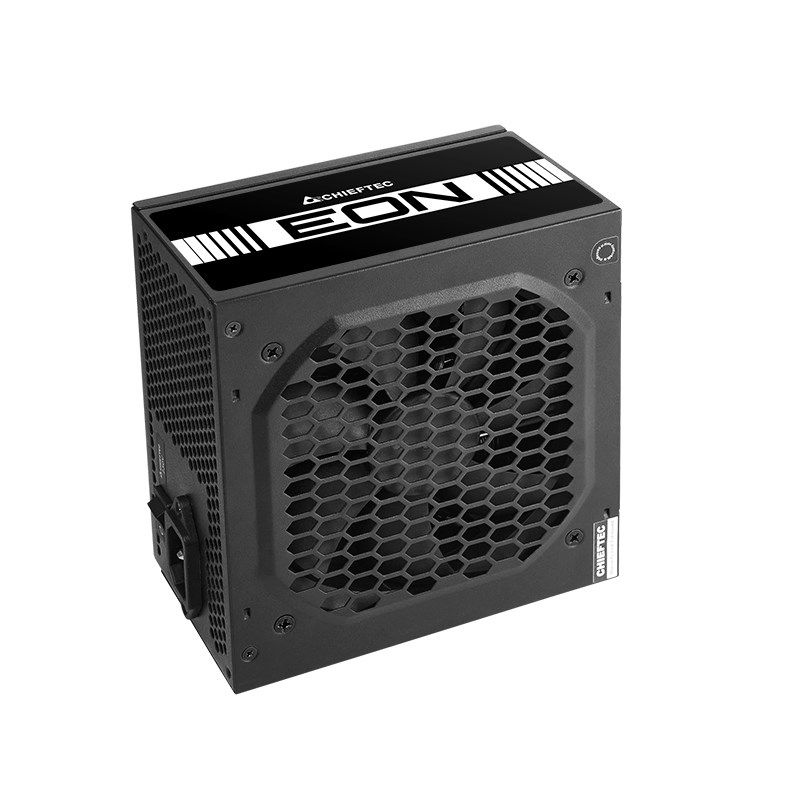

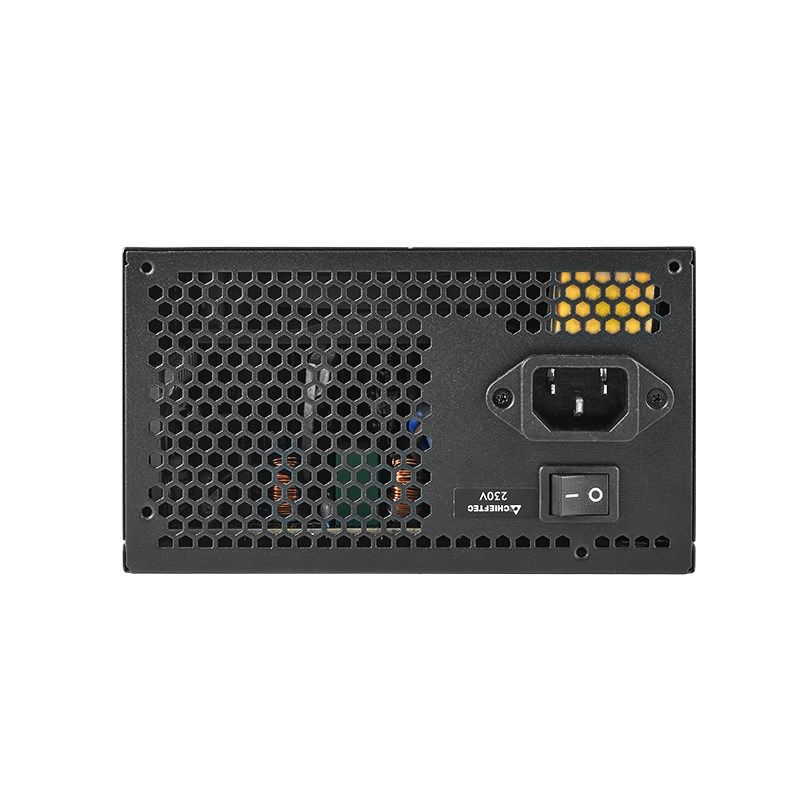

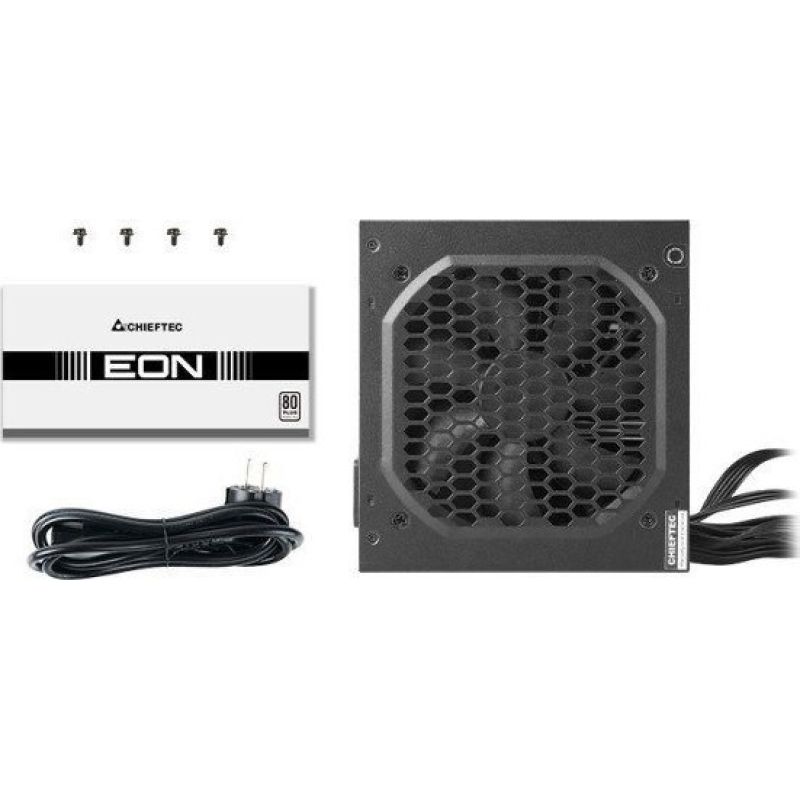

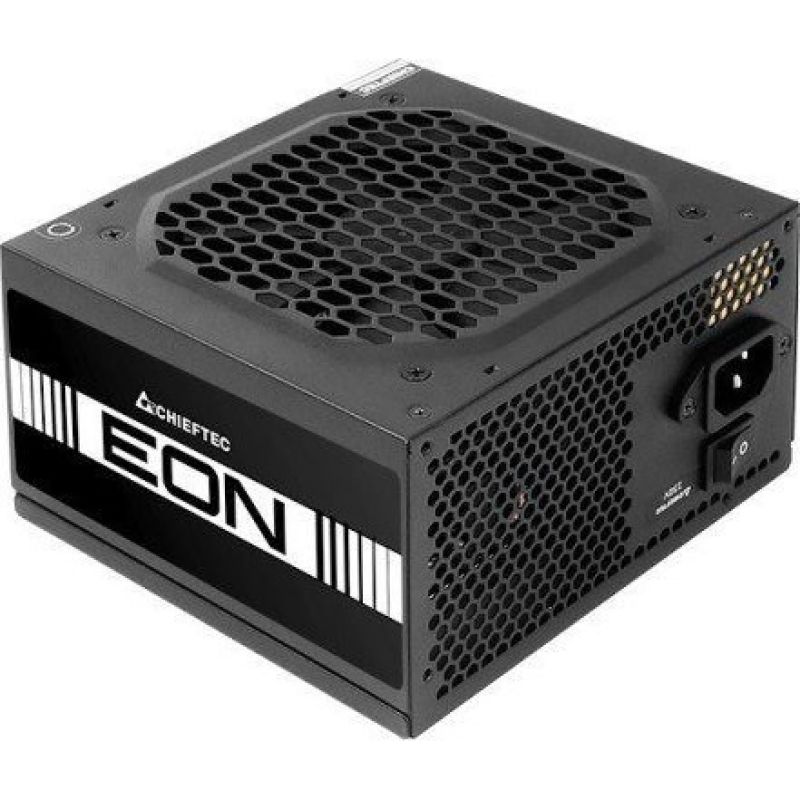

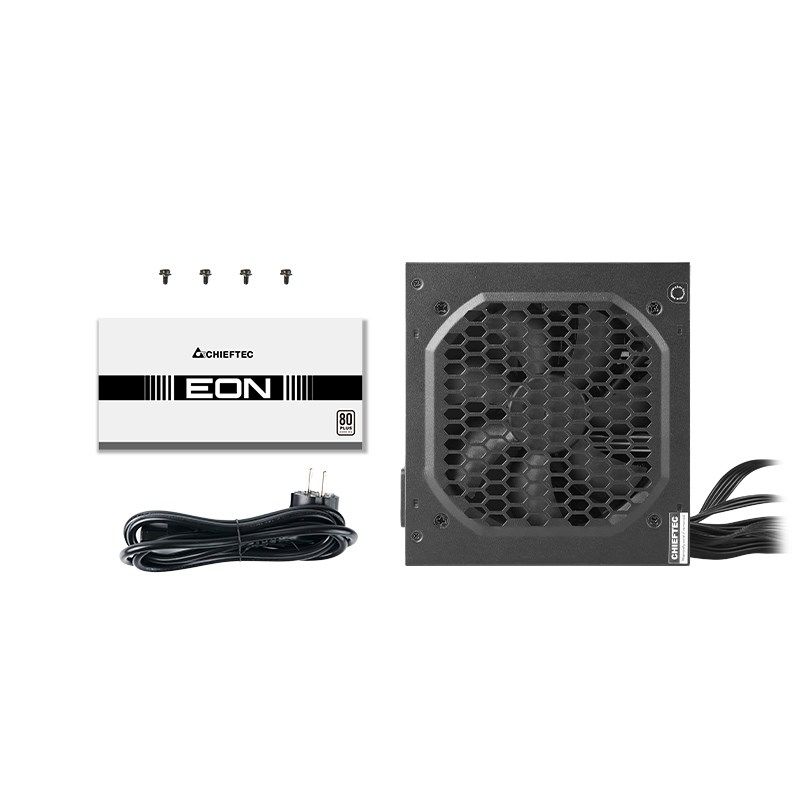

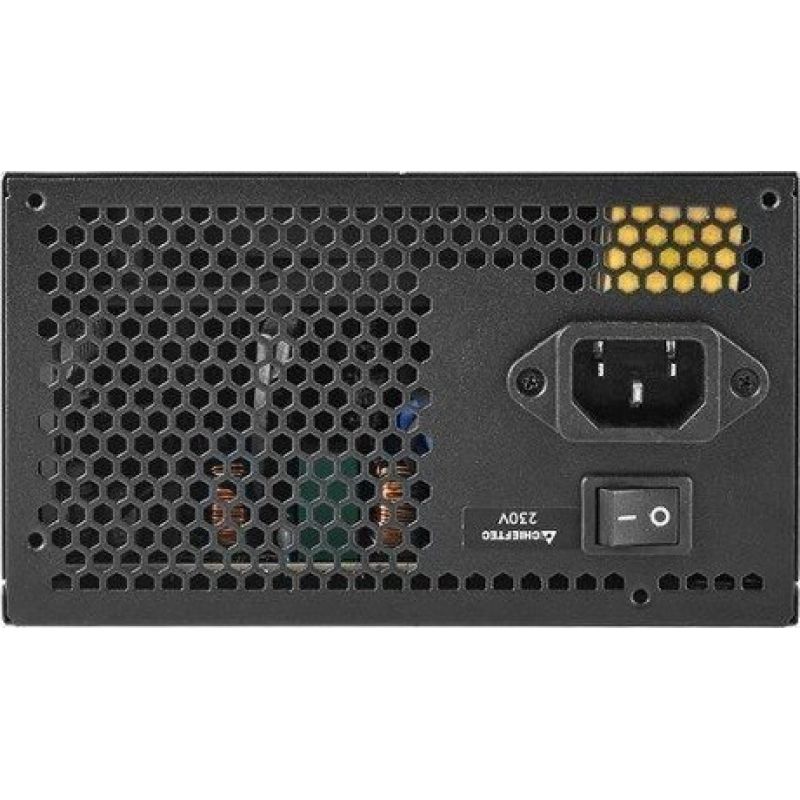

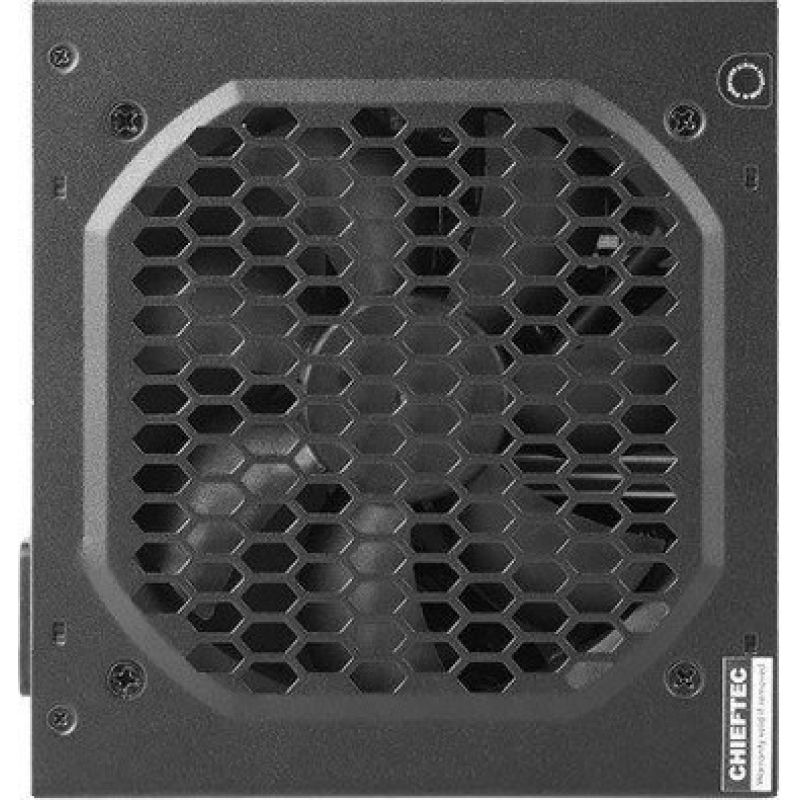

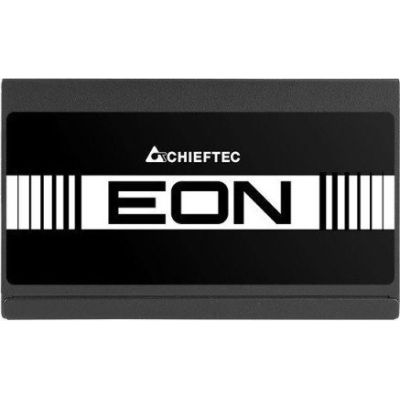

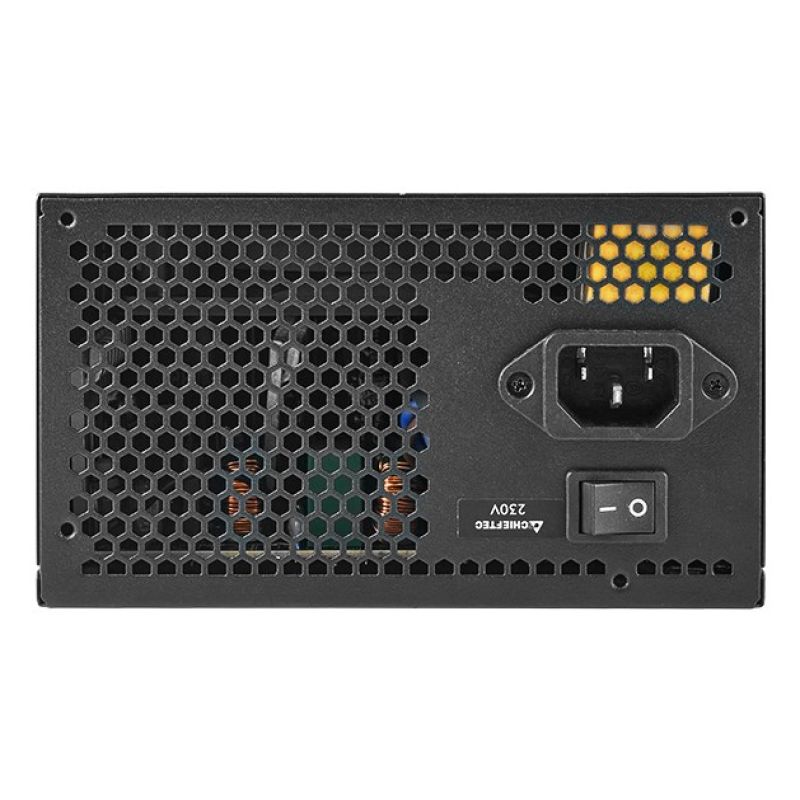

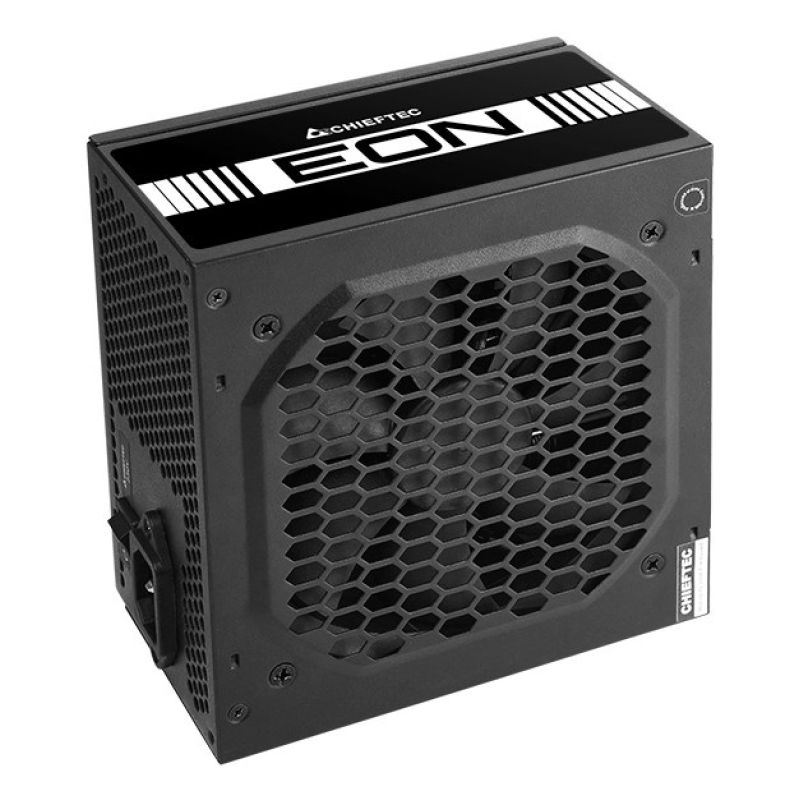

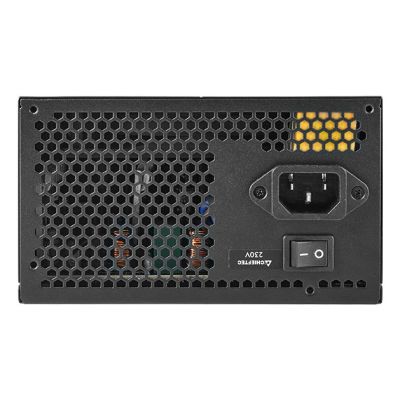

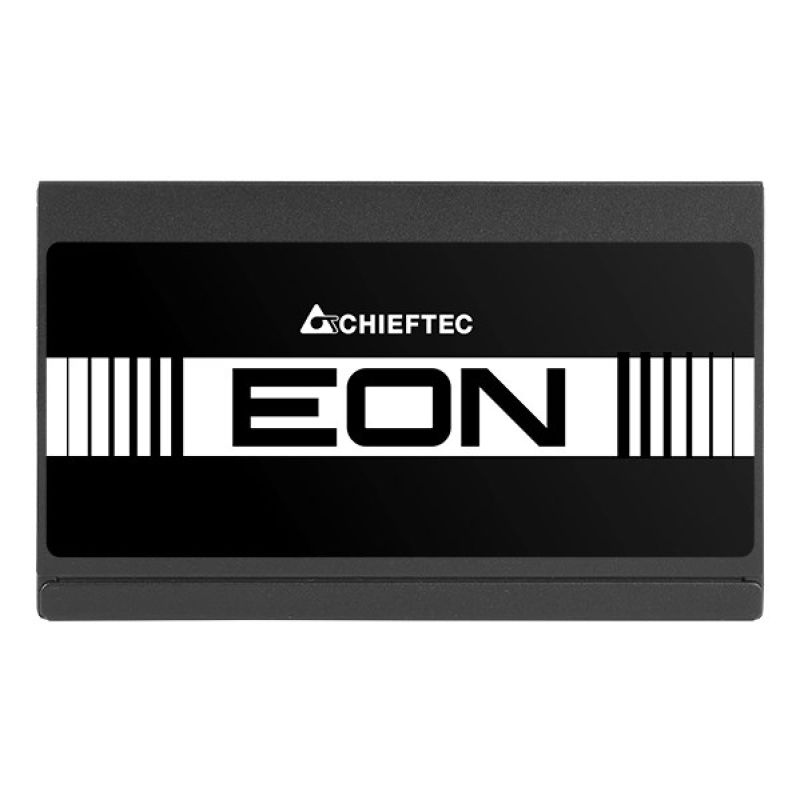

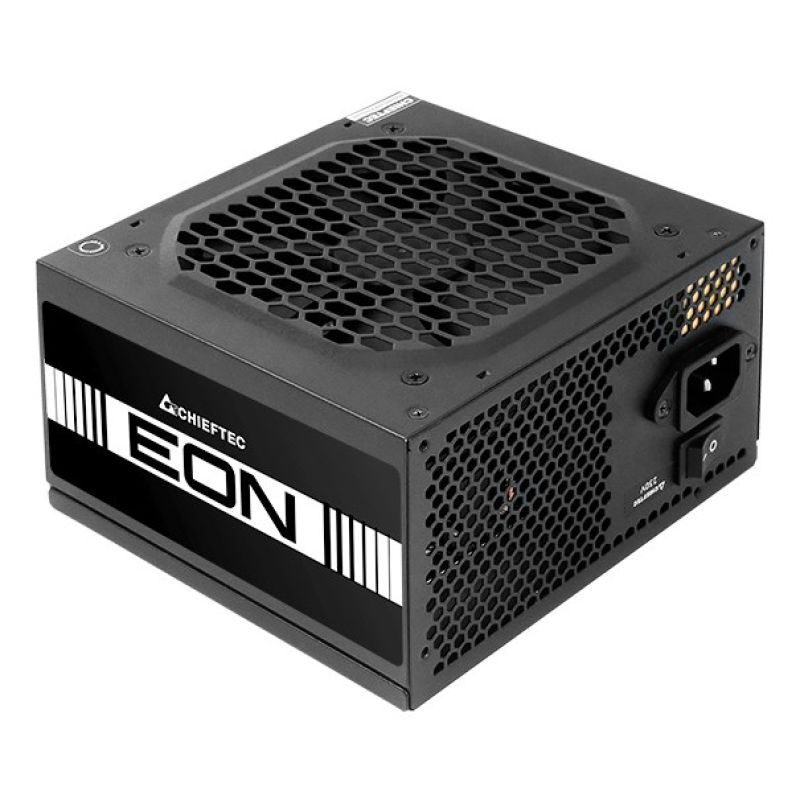

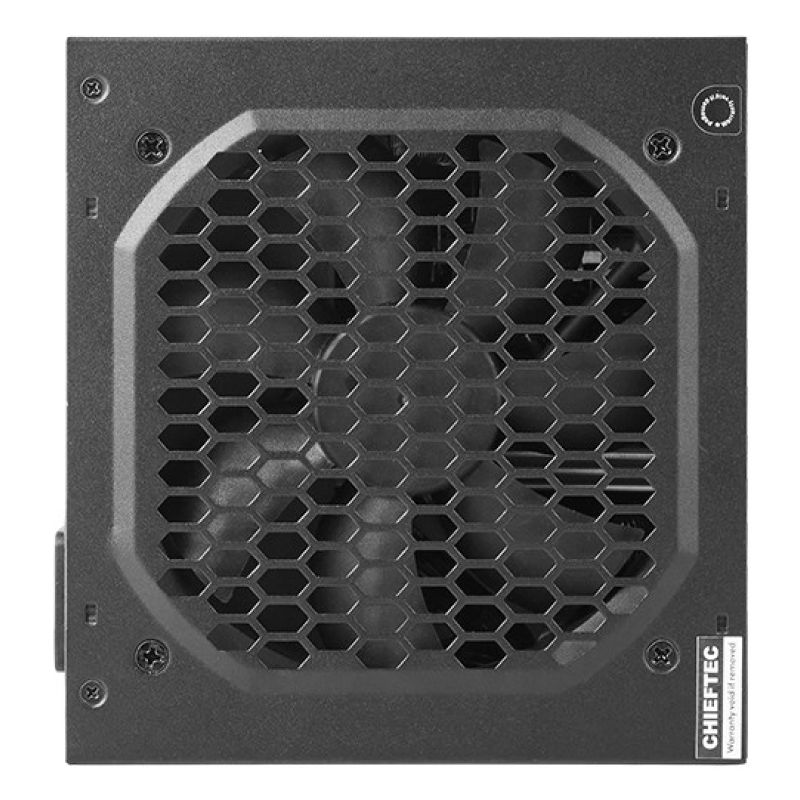

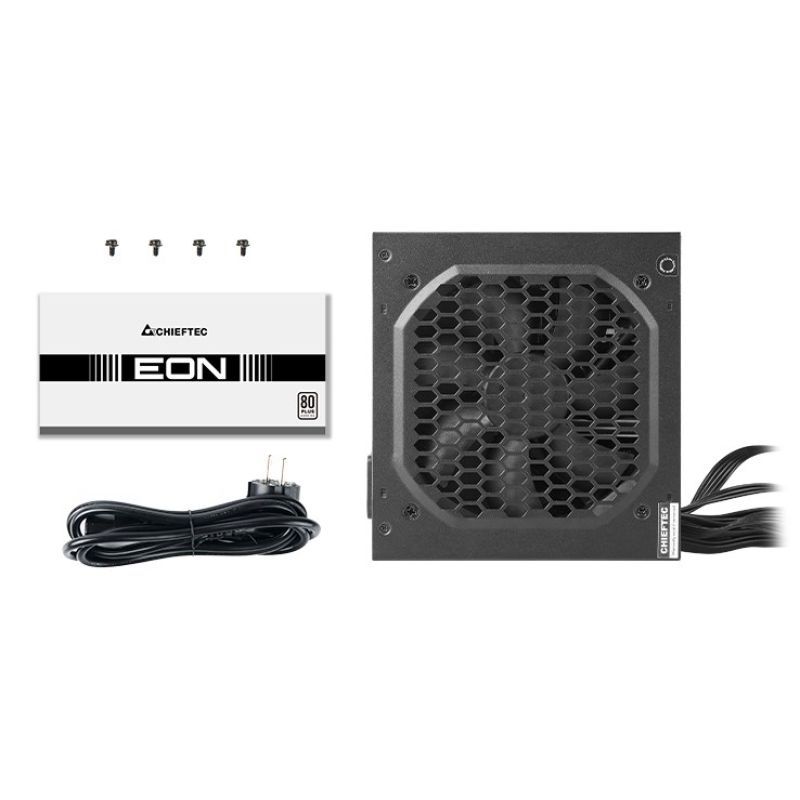

Chieftec EON ZPU-700S 700W Power Supply
Chieftec EON ZPU-700S 700W Power Supply
Chieftec EON ZPU-700S 700W Power Supply
PRICE:
74,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Built-in switch: Yes
- Fan bowl diameter: 12 cm
- Power
- AC input voltage: 200 - 240 V
- AC input frequency: 50 Hz
- Maximum output current (+5 Vsb): 2.5 A
- Power protection features
- Overvoltages and inrush current
- Short circuit
- Surge protection
- Maximum output current (+3.3V): 20 A
- Total power (-12V): 4.8 W
- Power factor: 0.9
- PFC (Power Factor Correction) Type: Active
- Input current: 5.5 A
- Total power: 700 W
- Maximum output current (+12 V1): 53 A
- Maximum output current (+5V): 20A
- Maximum output current (-12V): 0.4A
- Maximum input current (@ 220V): 5.5 A
- Weight and dimensions
- Product width: 150 mm
- Product height: 86 mm
- Product depth: 140 mm
- Product weight: 1.4 kg
- Efficiency
- Intended use: PC/server
- Supported motherboard type: ATX
- Power supply type (PSU): ATX
- ATX version: 2.3
- 80 PLUS Certificate: 80 PLUS
- Ports and interfaces
- Number of SATA power connectors: 4
- Motherboard cable length: 65 cm
- SATA power cable length
- 750 mm
- 600
- 450
- PCI Express power connectors (6+2 pin): 2
- Wiring Type: Non-Modular
- Motherboard power connector: 20+4 pin ATX
- CPU power supply connector (4+4 pin): Yes
- EPS power connector (4+4 pin): Yes
- ATX power supply connector (20+4 pin): Yes
- Peripheral (Molex) Power Cable Length
- 750
- 600
- 450 mm
- Logistics data
- Warranty period: 2 years
| Name | Details |
|---|---|
| Producer | Chieftec |
