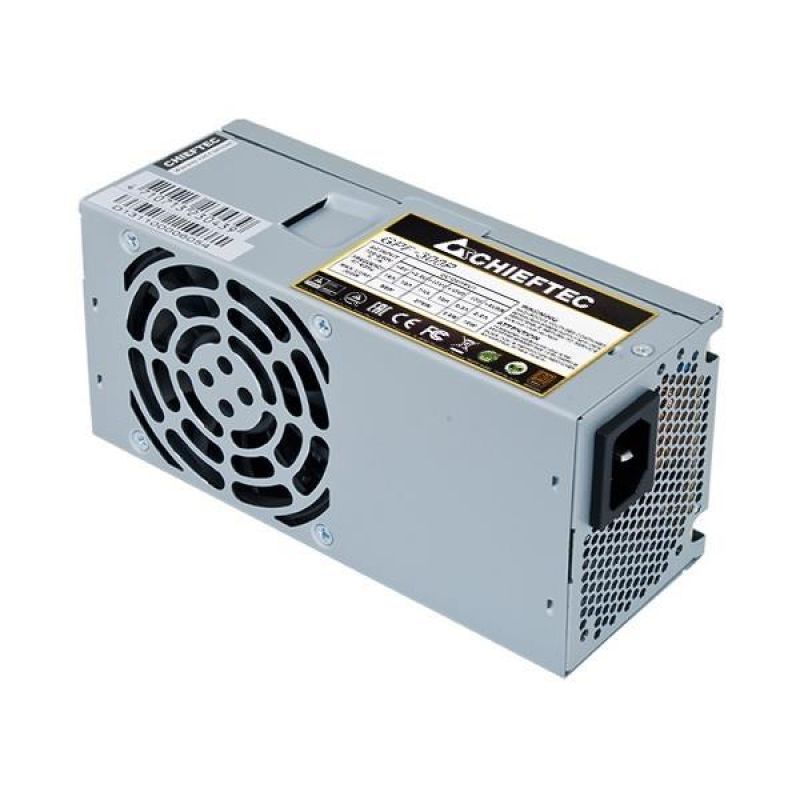

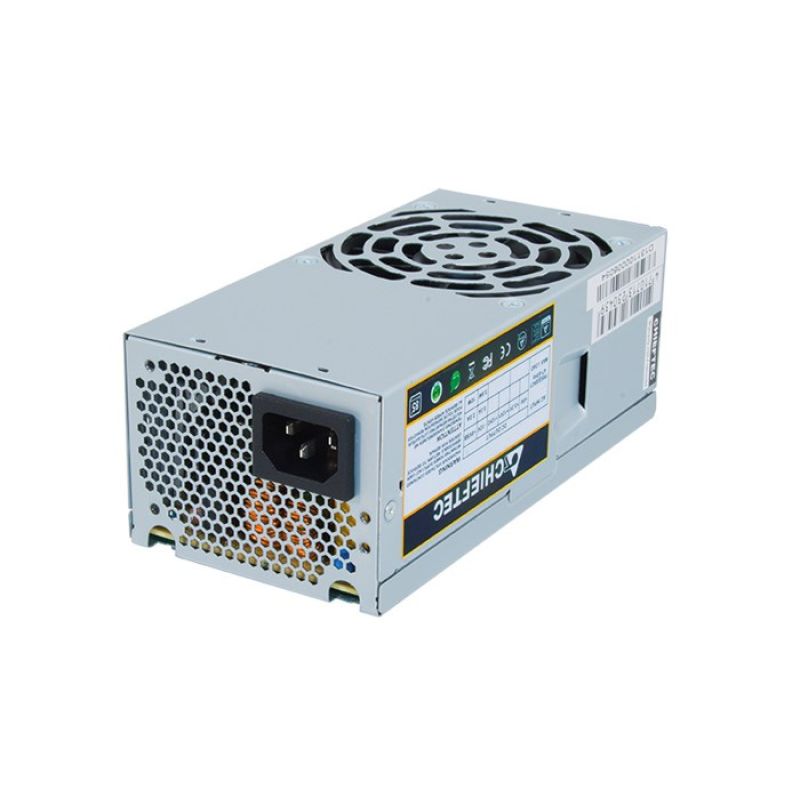

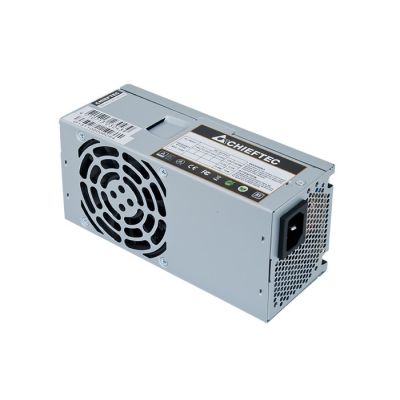

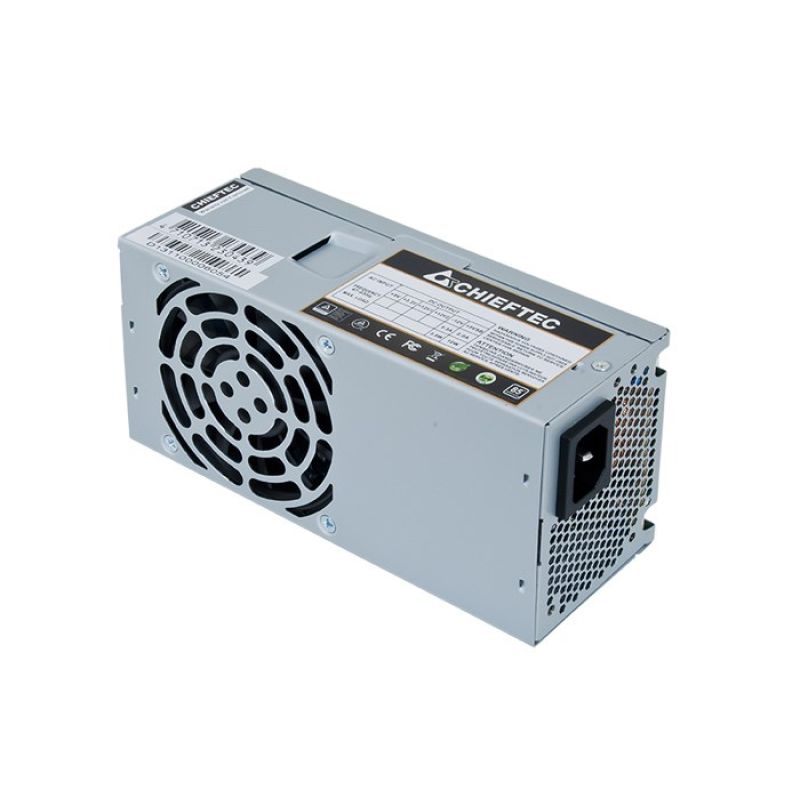

CHIEFTEC GPF-300P 300W TFX BULK POWER SUPPLY
CHIEFTEC GPF-300P 300W TFX BULK POWER SUPPLY
CHIEFTEC GPF-300P 300W TFX BULK POWER SUPPLY
PRICE:
56,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Environmental (sustainability) certification: RoHS
- Design
- Cooling type: Active
- Number of fans: 1 fan
- Fan bowl diameter: 8 cm
- Product color: Gray
- Power
- AC input frequency: 47 - 63 Hz
- Maximum output current (+5 Vsb): 2 A
- Maximum output current (+12 V1): 14 A
- PFC (Power Factor Correction) Type: Active
- Total power (+5V): 95 W
- Maximum output current (-12V): 0.3A
- Power protection features
- Low voltage protection
- Overload
- Protection against overvoltage
- Short circuit
- Overheating protection
- Total power (+3.3V): 95 W
- Total power: 300 W
- Total power (+5 Vsb): 10 W
- Input current: 6.3 A
- AC input voltage: 115 - 230 V
- Maximum output current (+12 V2): 15 A
- Power factor: 0.9
- Maximum output current (+5V): 15A
- Maximum output current (+3.3V): 16 A
- Total power (-12V): 3.6 W
- Weight and dimensions
- Product height: 65 mm
- Product depth: 175 mm
- Product weight: 1.07 kg
- Product width: 85 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS Bronze
- ATX version: 2.3
- Intended use: PC/server
- Power supply unit (PSU) type: TFX
- Packaging data
- Weight with packaging: 1.13 kg
- Ports and interfaces
- EPS power connector (4+4 pin): Yes
- Peripheral (Molex) Power Cable Length
- 150
- 350 mm
- CPU power cable length: 35 cm
- Floppy drive cable length: 15 cm
- Wiring Type: Non-Modular
- Motherboard cable length: 30 cm
- Motherboard power connector: 20+4 pin ATX
- SATA power cable length
- 150
- 350 mm
- Peripheral (Molex) Power Connectors (4-pin): 2
- Number of SATA power connectors: 4
- Floppy drive connector: 1
- Logistics data
- Harmonized System (HS) code: 84733020
- Safety warning
- Warnings
- Do not open the housing – risk of electric shock.
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Warnings
| Name | Details |
|---|---|
| Producer | Chieftec |
