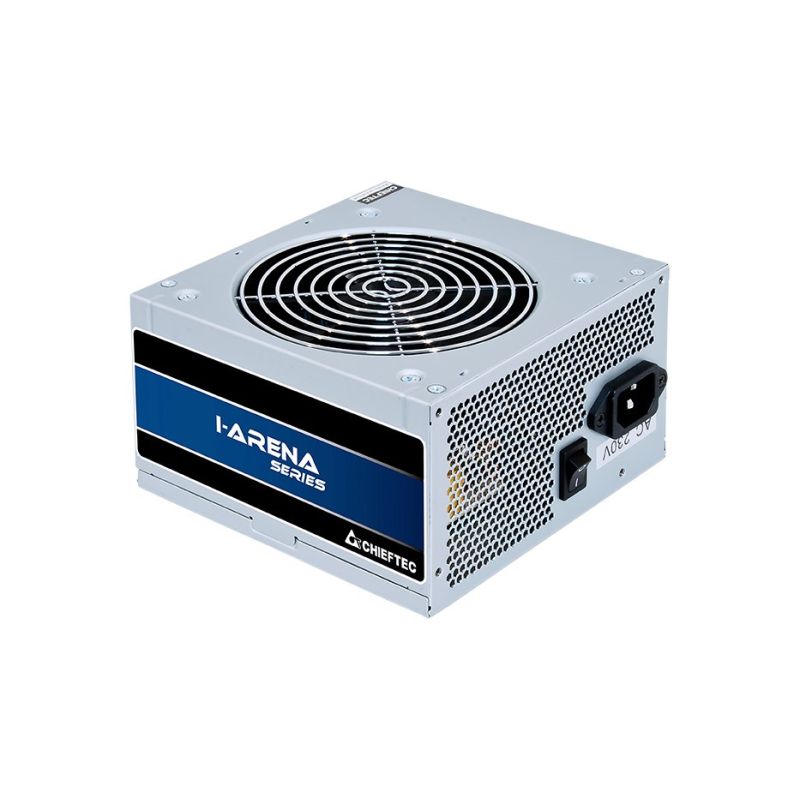

Chieftec iARENA GPB-500S Power Supply (500W)
Chieftec iARENA GPB-500S Power Supply (500W)
Chieftec iARENA GPB-500S Power Supply (500W)
PRICE:
56,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Cooling type: Active
- Product color: Silver
- Fan Location: Top
- Number of fans: 1 fan
- Built-in switch: Yes
- Fan bowl diameter: 12 cm
- Power
- Efficiency: 85%
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+3.3V): 18 A
- Total power: 500 W
- Maximum output current (+5 Vsb): 2.5 A
- Input current: 4 A
- Maximum output current (-12V): 0.3A
- Maximum output current (+12 V1): 38 A
- AC input frequency: 47 - 63 Hz
- Total power (+12V): 456 W
- Power factor: 0.9
- Maximum output current (+5V): 17A
- AC input voltage: 200 - 240 V
- Total power (+5V): 110 W
- Total power (+5 Vsb): 12.5 W
- Total power (-12V): 3.6 W
- Total power (+3.3V): 110 W
- Power protection features
- Overload
- Short circuit
- Protection against overvoltage
- Low voltage protection
- Weight and dimensions
- Product height: 87 mm
- Product width: 140 mm
- Product depth: 150 mm
- Efficiency
- Intended use: PC
- Power supply type (PSU): PS/2
- ATX version: 2.3
- RoHS Compliant: Yes
- Packaging data
- Packaging type: Box
- Ports and interfaces
- PCI Express power connectors (6+2 pin): 1
- Number of SATA power connectors: 5
- Motherboard power connector: 20+4 pin ATX
- Peripheral (Molex) Power Connectors (4-pin): 3
- Other functions
- User Manual: Yes
- Warranty card: Yes
- Safety warning
- Warnings
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Do not open the housing – risk of electric shock.
- Warnings
| Name | Details |
|---|---|
| Producer | Chieftec |
