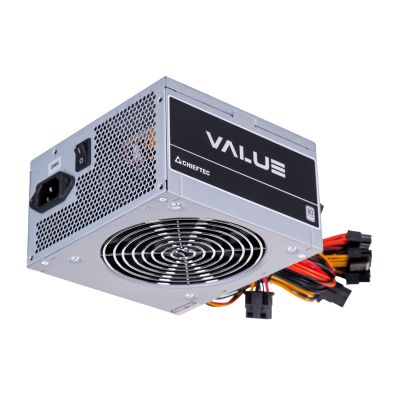

CHIEFTEC POWER SUPPLY VALUE SERIES APB-400B8 400W
CHIEFTEC POWER SUPPLY VALUE SERIES APB-400B8 400W
CHIEFTEC POWER SUPPLY VALUE SERIES APB-400B8 400W
PRICE:
46,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Silver
- Fan bowl diameter: 12 cm
- Number of fans: 1 fan
- Power
- Input current: 3 A
- Maximum output current (-12V): 0.3A
- Total power: 400 W
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12V): 30A
- AC input voltage: 200 - 240 V
- Power factor: 0.9
- Maximum output current (+3.3V): 17 A
- Total power (-12V): 3.6 W
- Total power (+5V): 100 W
- AC input frequency: 47 - 63 Hz
- Total power (+5 Vsb): 12.5 W
- Power protection features
- Short circuit
- Overload
- Protection against overvoltage
- Low voltage protection
- Total power (+3.3V): 100 W
- Maximum output current (+5 Vsb): 2.5 A
- Total power (+12V): 360 W
- Maximum output current (+5V): 16A
- Weight and dimensions
- Product height: 87 mm
- Product depth: 150 mm
- Product width: 140 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS
- ATX version: 2.3
- Intended use: PC/server
- Power supply type (PSU): PS/2
- Ports and interfaces
- Number of SATA power connectors: 3
- PCI Express power connectors (6+2 pin): 1
- Peripheral (Molex) Power Cable Length
- 350 mm
- 150
- CPU power supply connector (4+4 pin): Yes
- SATA power cable length
- 350 mm
- 150
- Floppy disk drive slot: Yes
- Motherboard power connector: 20+4 pin ATX
- CPU power cable length: 35 cm
- PCI Express power cable length: 35 cm
- Wiring Type: Non-Modular
- EPS power connector (4+4 pin): Yes
- Floppy drive connector: 1
- Peripheral (Molex) Power Connectors (4-pin): 2
- Motherboard cable length: 35 cm
- Logistics data
- Harmonized System (HS) code: 84733020
- Safety warning
- Warnings
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Do not open the housing – risk of electric shock.
- Warnings
| Name | Details |
|---|---|
| Producer | Chieftec |
