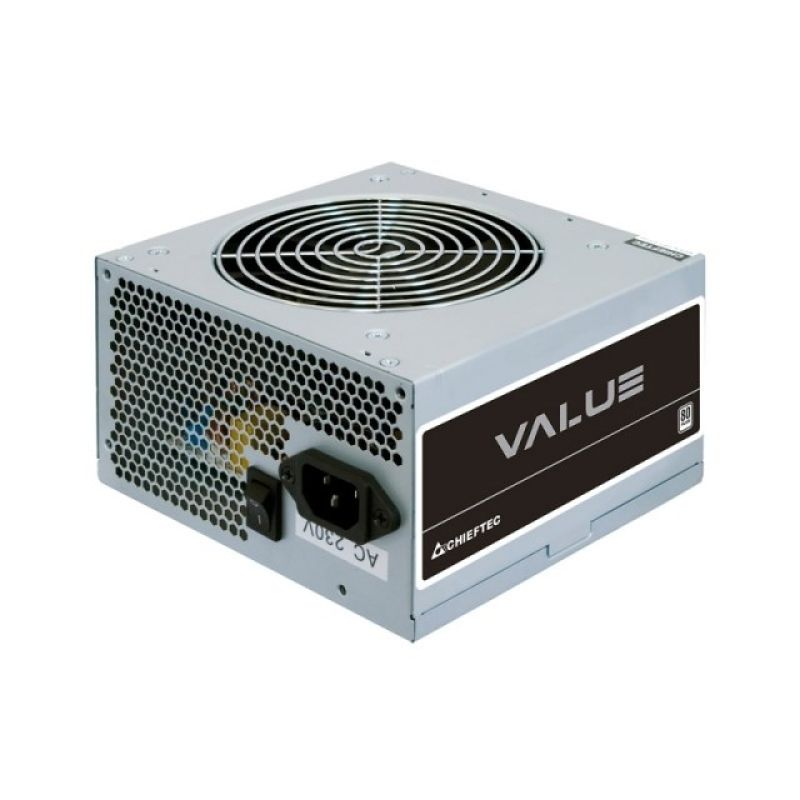

CHIEFTEC POWER SUPPLY VALUE SERIES APB-600B8 600W
CHIEFTEC POWER SUPPLY VALUE SERIES APB-600B8 600W
CHIEFTEC POWER SUPPLY VALUE SERIES APB-600B8 600W
PRICE:
69,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Fan Location: Top
- Product color: Steel
- Cooling type: Active
- Built-in switch: Yes
- Fan bowl diameter: 12 cm
- Number of fans: 1 fan
- Power
- Total power: 600 W
- Maximum output current (+3.3V): 20 A
- AC input frequency: 47 - 63 Hz
- AC input voltage: 200 - 240 V
- Total power (+5 Vsb): 12.5 W
- Total power (-12V): 3.6 W
- Maximum output current (+12 V1): 46 A
- Total power (+5V): 120 W
- Maximum output current (-12V): 0.3A
- Total power (+3.3V): 120 W
- Peak power: 600 W
- Total power (+12V): 552 W
- Maximum input current (@ 220V): 4.5 A
- Maximum output current (+5 Vsb): 2.5 A
- Maximum output current (+5V): 20A
- Weight and dimensions
- Product depth: 140 mm
- Product height: 87 mm
- Product weight: 1.42 kg
- Product width: 150 mm
- Efficiency
- ATX version: 2.3
- Intended use: PC
- 80 PLUS Certificate: 80 PLUS
- Power supply type (PSU): ATX
- Packaging data
- Weight with packaging: 1.56 kg
- Certificates
- Certificates of conformity
- RoHS
- CE
- Certificates of conformity
- Ports and interfaces
- Floppy disk drive slot: Yes
- Motherboard power connector: 20+4 pin ATX
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 2
- Peripheral (Molex) Power Cable Length
- 150
- 500 mm
- Wiring Type: Non-Modular
- Floppy drive cable length: 15 cm
- SATA power cable length
- 150
- 500 mm
- EPS power supply connector (8-pin): No
- Peripheral (Molex) Power Connectors (4-pin): 2
- Motherboard cable length: 55 cm
- Number of SATA power connectors: 4
- Logistics data
- Harmonized System (HS) code: 84733020
| Name | Details |
|---|---|
| Producer | Chieftec |
