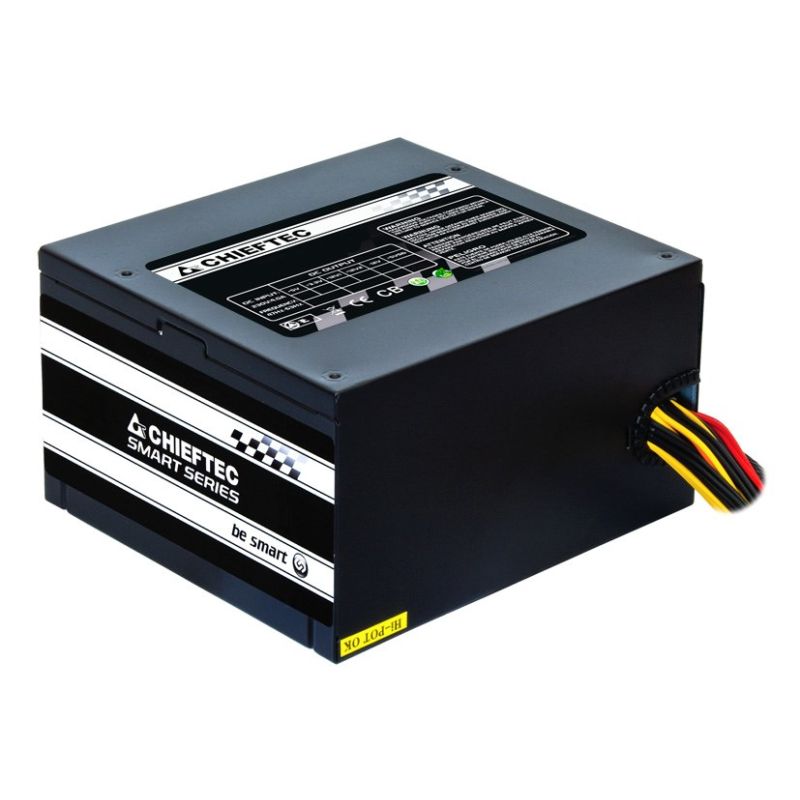

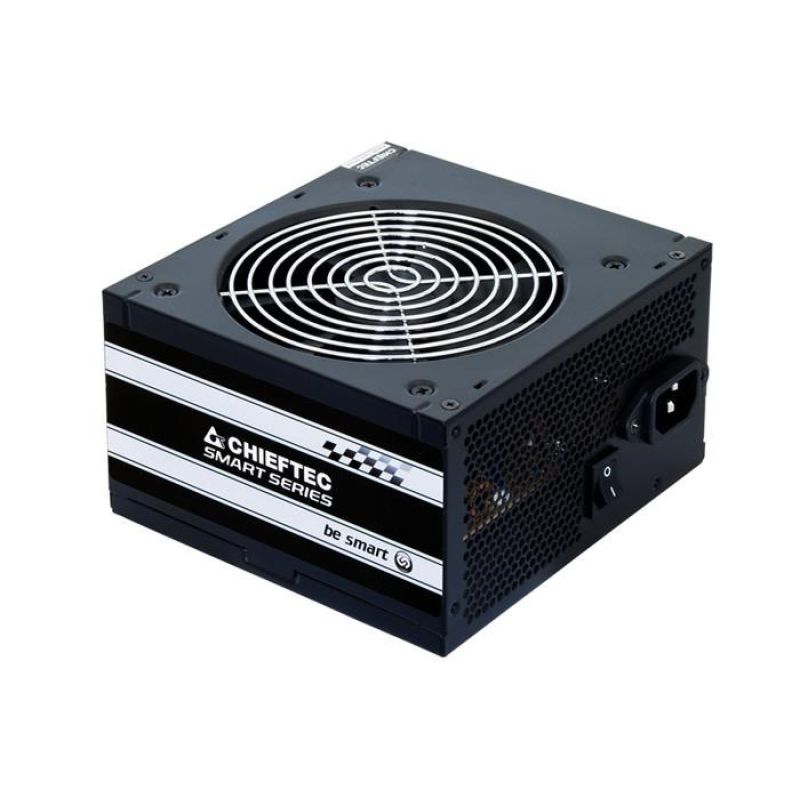

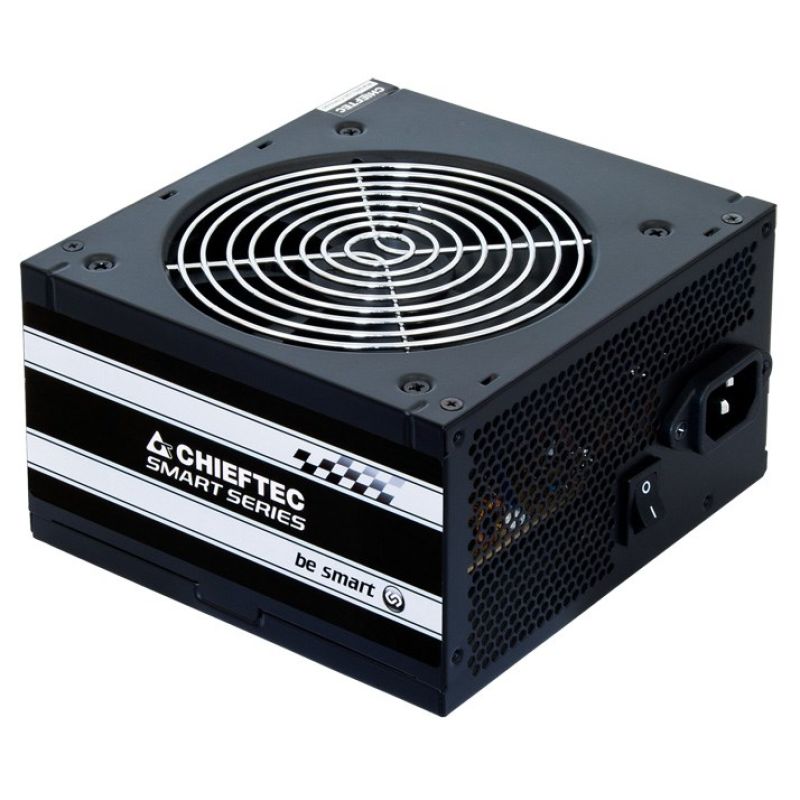

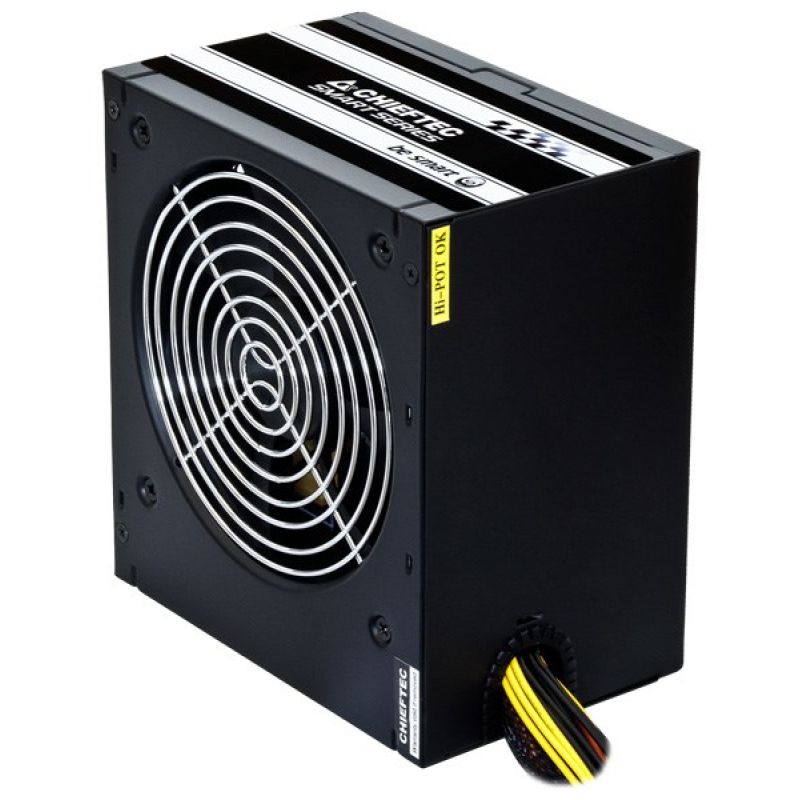

Chieftec Smart GPS-400A8 Power Supply (400W)
Chieftec Smart GPS-400A8 Power Supply (400W)
Chieftec Smart GPS-400A8 Power Supply (400W)
PRICE:
49,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Environmental (sustainability) certification: RoHS
- Design
- Product color: Black
- Fan bowl diameter: 12 cm
- Power
- AC input frequency: 47 - 63 Hz
- Input current: 4 A
- Maximum output current (+5 Vsb): 3 A
- Total power (+5 Vsb): 12.5 W
- Maximum output current (+3.3V): 22 A
- Maximum output current (+12 V1): 18 A
- AC input voltage: 230 V
- Maximum output current (-12V): 0.3A
- Total power: 400 W
- Power protection features
- Protection against overvoltage
- Low voltage protection
- Short circuit
- Overload
- Total power (-12V): 3.6 W
- Maximum output current (+5V): 18A
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12 V2): 17 A
- Total power (+3.3V): 120 W
- Total power (+5V): 120 W
- Weight and dimensions
- Product depth: 140 mm
- Product width: 150 mm
- Product height: 87 mm
- Efficiency
- 80 PLUS Certificate: No
- ATX version: 2.3
- Intended use: PC
- Power supply type (PSU): ATX
- Ports and interfaces
- Wiring Type: Non-Modular
- P4 CPU connector (4-pin): 1
- Motherboard power connector: 20+4 pin ATX
- Peripheral (Molex) Power Connectors (4-pin): 2
- PCI Express power connectors (6+2 pin): 1
- Number of SATA power connectors: 3
- Safety warning
- Warnings
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Do not open the housing – risk of electric shock.
