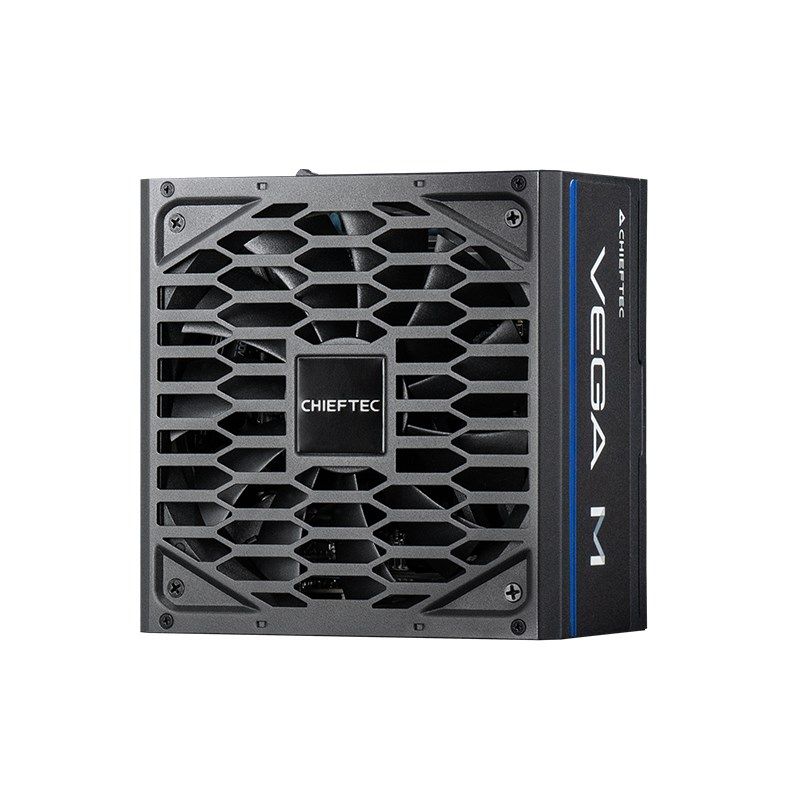

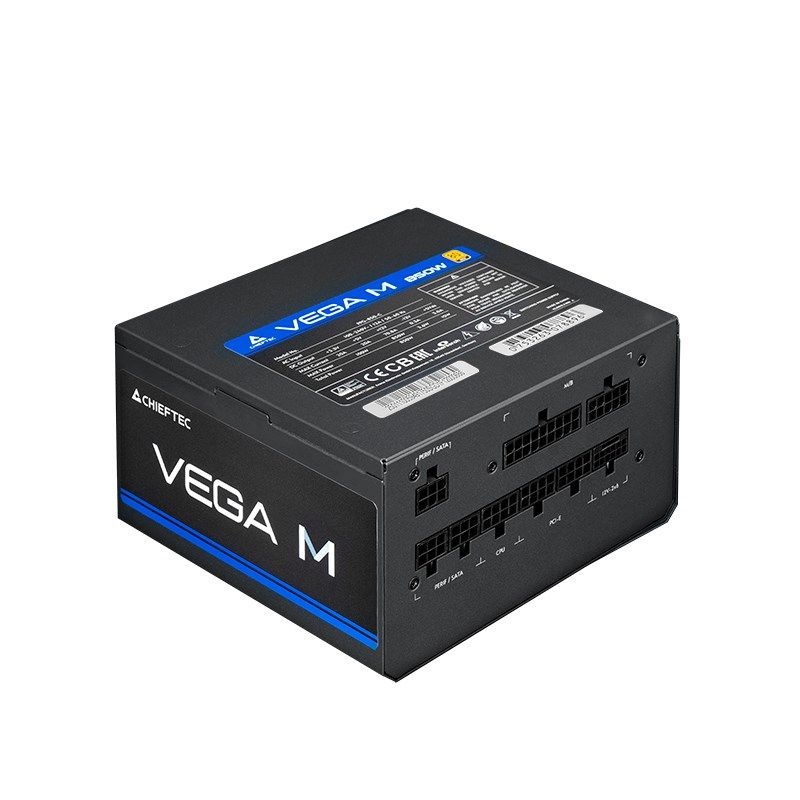

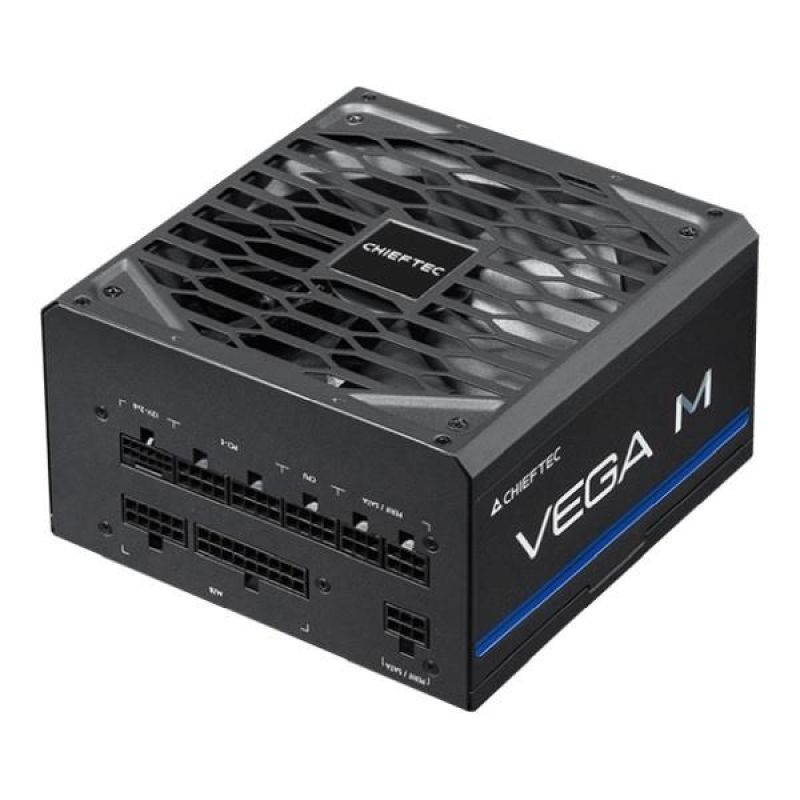

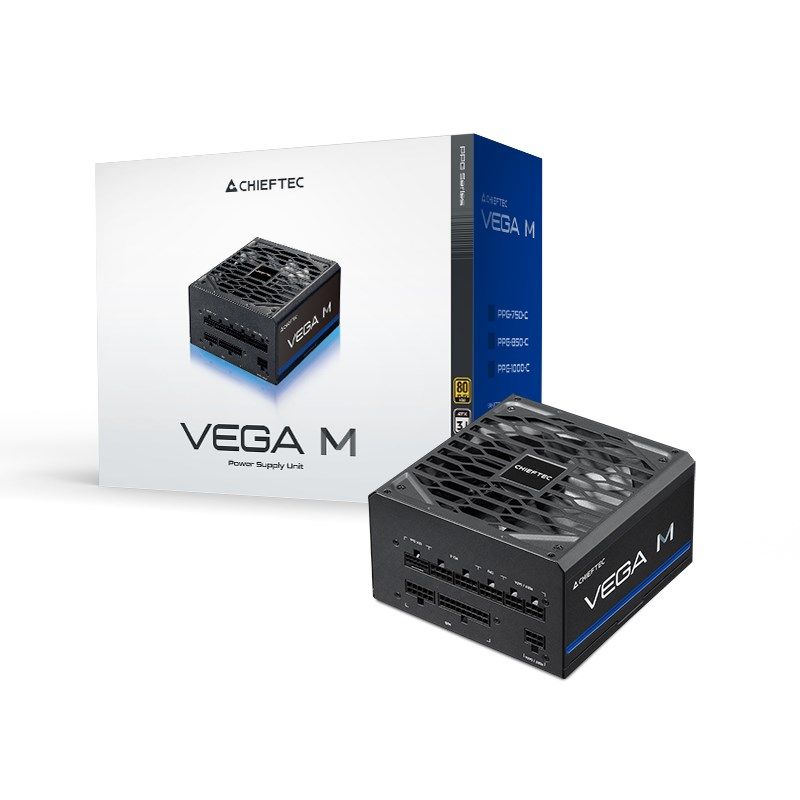

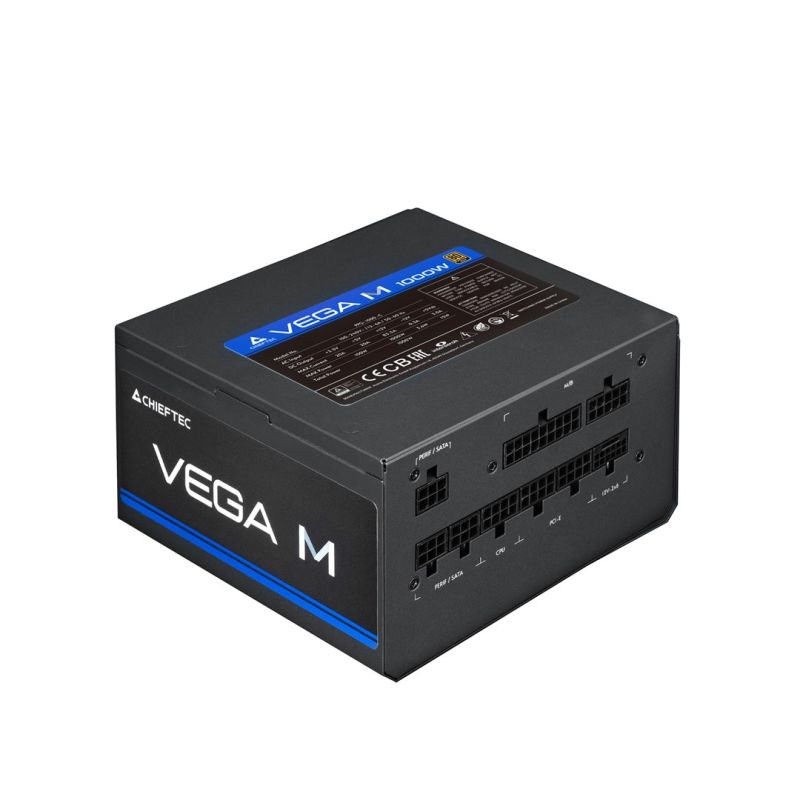

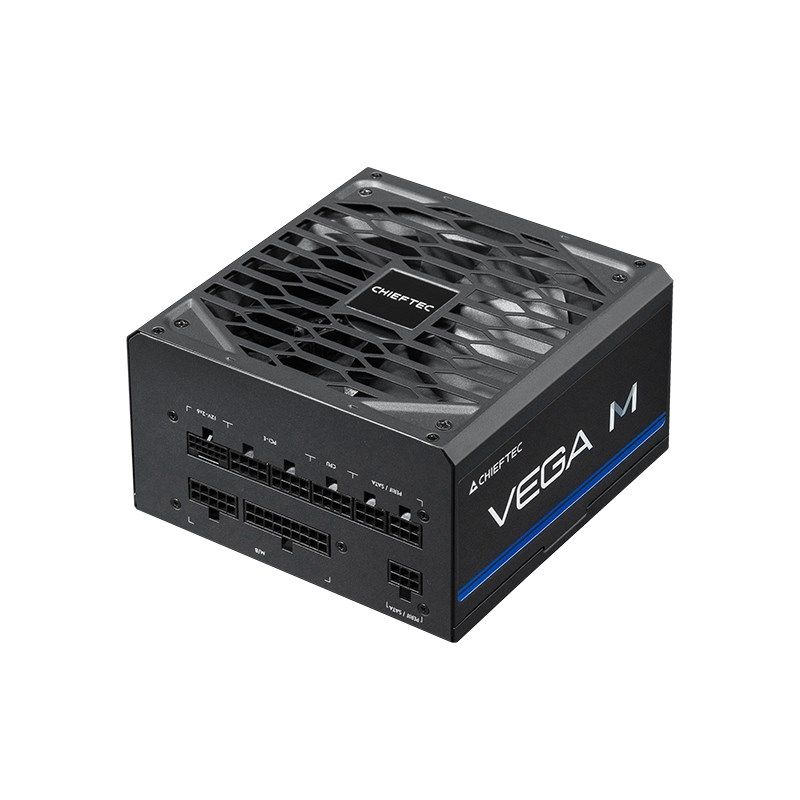

Chieftec Vega M PPG-1000-M 80+ GOLD ATX3.1 power supply
Chieftec Vega M PPG-1000-M 80+ GOLD ATX3.1 power supply
Chieftec Vega M PPG-1000-M 80+ GOLD ATX3.1 power supply
PRICE:
157,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Cooling type: Active
- Fan bowl diameter: 13.5 cm
- Backlight: No
- Product color: White
- Power

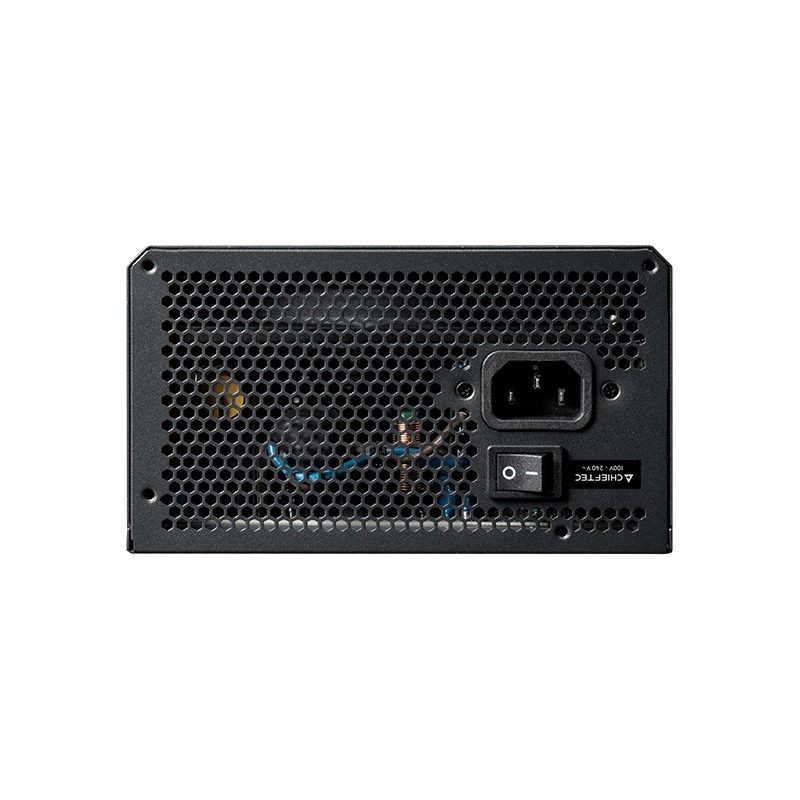

- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Maximum output current (+3.3V): 20 A
- Total power (+5V): 100 W
- Total power (+5 Vsb): 15 W
- Input current: 12 A
- Power protection features
- Overvoltages and inrush current
- Short circuit
- Overload
- Protection against overvoltage
- Overcurrent
- Total power (+12V): 1000 W
- Total power (+3.3V): 100 W
- Maximum output current (+5V): 20A
- Total power: 1000 W
- Maximum output current (+5 Vsb): 3 A
- Total power (-12V): 3.6 W
- Maximum output current (-12V): 0.3A
- Maximum output current (+12V): 83.33A
- Weight and dimensions
- Product height: 85 mm
- Product width: 150 mm
- Product depth: 150 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS Gold
- Bearing Technology: FDB
- ATX version: 3.1
- Intended use: PC
- Power supply type (PSU): ATX

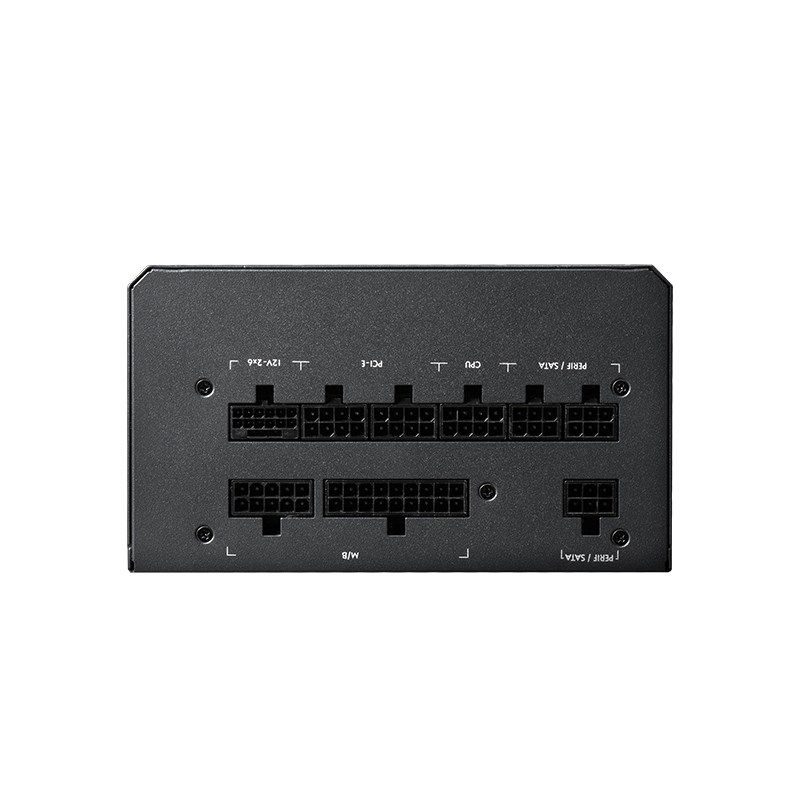

- Ports and interfaces

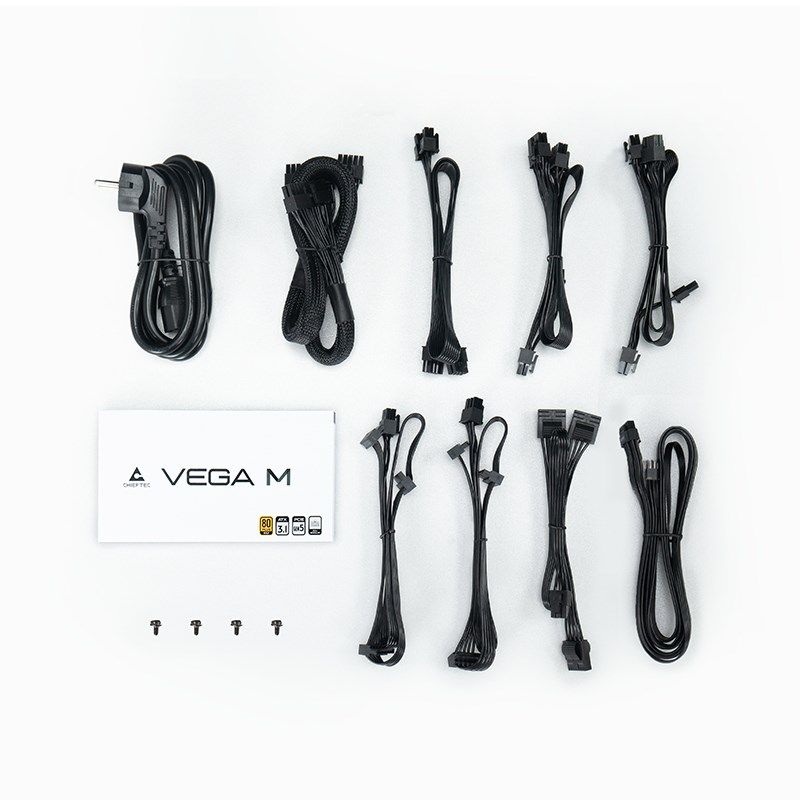

- Wiring Type: Fully Modular
- Peripheral (Molex) Power Cable Length
- 400 mm
- 150
- PCI Express power connectors (6+2 pin): 4
- EPS power connector (4+4 pin): Yes
- CPU power supply connector (4+4 pin): Yes
- Motherboard cable length: 60 cm
- SATA power cable length
- 400
- 150
- Number of SATA power connectors: 6
- Motherboard power connector: 24-pin ATX
- Peripheral (Molex) Power Connectors (4-pin): 3
- EPS power supply connector (8-pin): Yes
- PCI Express slot: Yes
- PCI Express power cable length: 60 cm
- ATX power socket (24-pin): Yes
- CPU power cable length: 65 cm
- PCI Express power connectors (12+4 pin): 1
- PCI Express power connectors (12+4 pin) cable length: 600 mm
- Number of EPS connectors: 2
| Name | Details |
|---|---|
| Producer | Chieftec |
