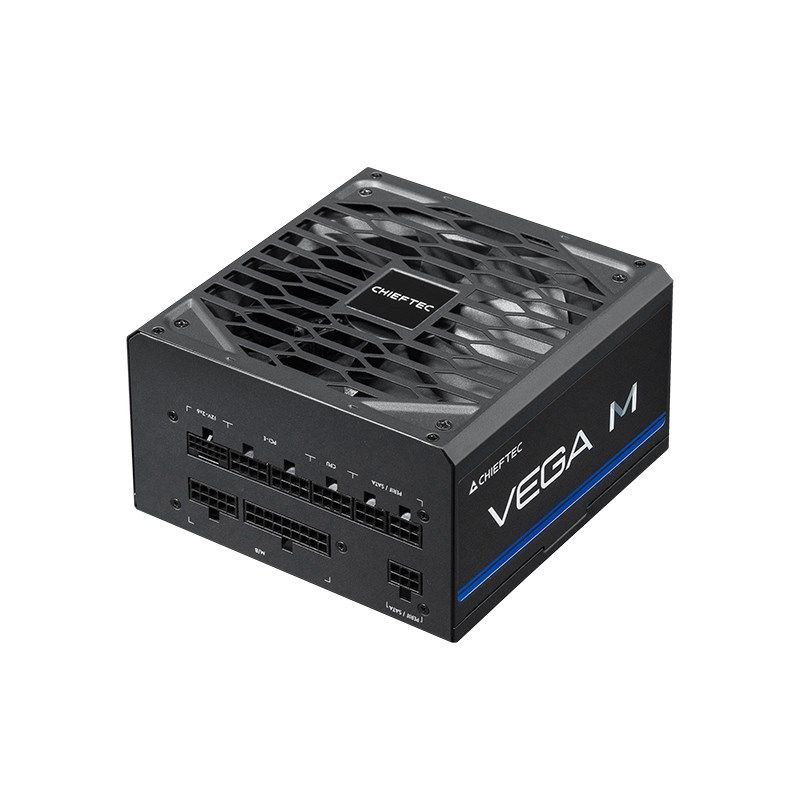

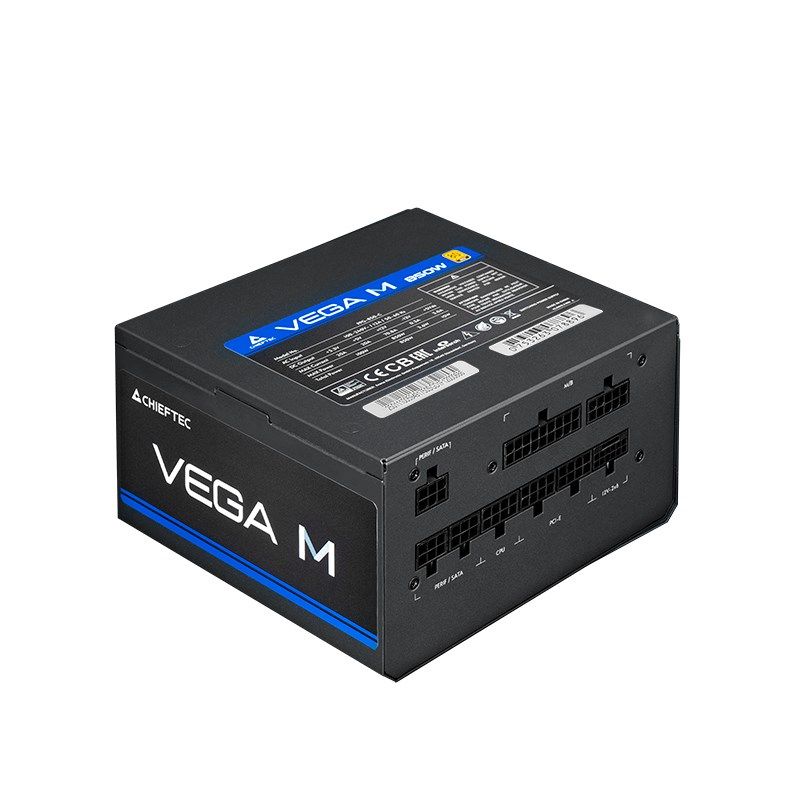

Chieftec Vega M Series PPG-750-C 80+ Gold ATX Power Supply
Chieftec Vega M Series PPG-750-C 80+ Gold ATX Power Supply
Chieftec Vega M Series PPG-750-C 80+ Gold ATX Power Supply
PRICE:
155,99
€
IN A WAREHOUSE
8 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design

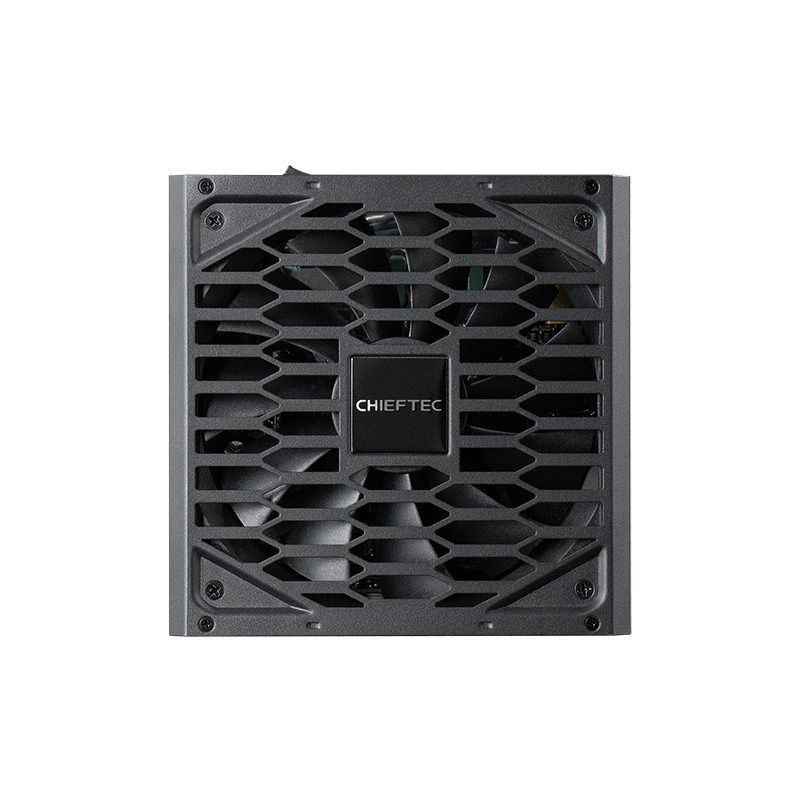

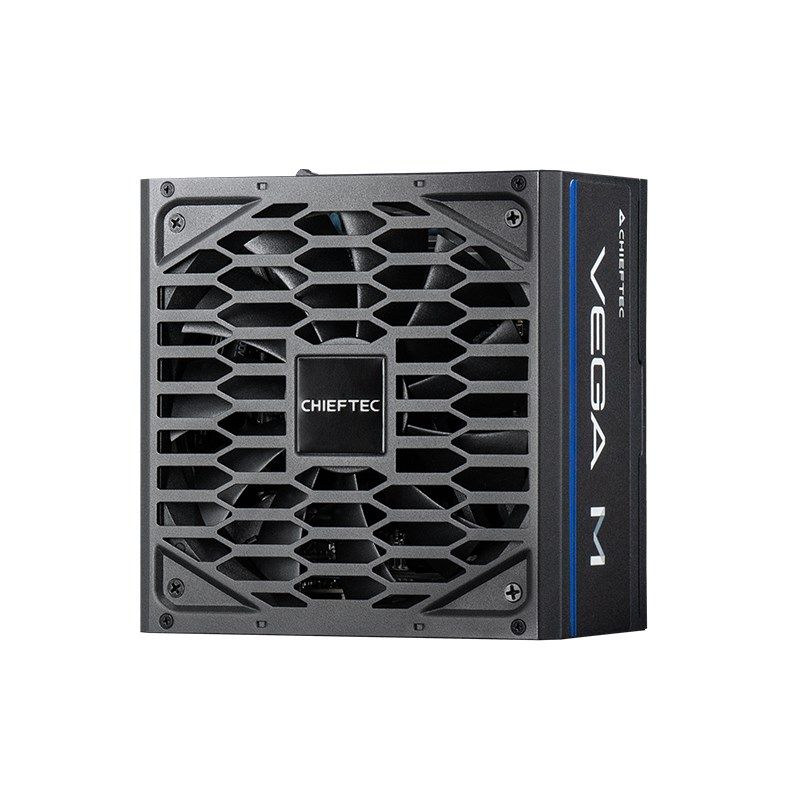

- Fan diameter: 13.5 cm
- Cooling type: Active
- Product colour: Black
- Lighting: No
- Power
- Total power (+5 V): 100 W
- AC input frequency: 50/60 Hz
- PFC (Power Factor Correction) type: Active

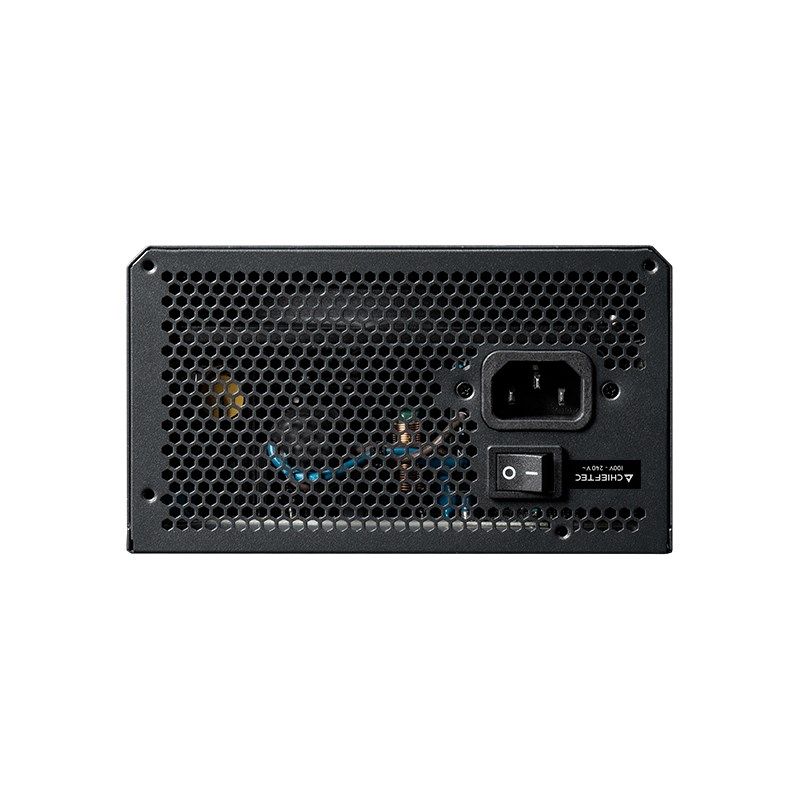

- AC input voltage: 100–240 V
- Total power: 750 W
- Maximum output current (-12 V): 0.3 A
- Maximum output current (+5 V): 20 A
- Maximum output current (+3.3V): 20 A
- Total power (+3.3 V): 100 W
- Maximum output current (+12 V1): 62.5 A
- Weight and dimensions
- Product depth: 150 mm
- Product width: 150 mm
- Product height: 85 mm
- Product weight: 1.96 kg
- Performance
- Power supply type (PSU): ATX
- Purpose: PC
- Bearing technology: FDB
- 80 PLUS certification: 80 PLUS Gold
- ATX version: 3.1
- Packaging data
- Weight including packaging: 2.43 kg

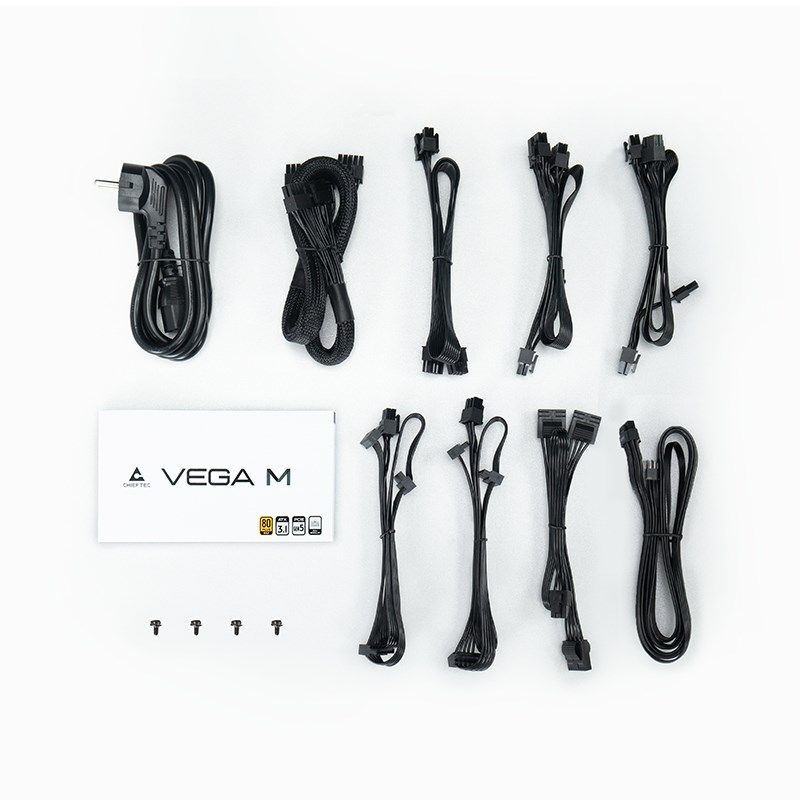

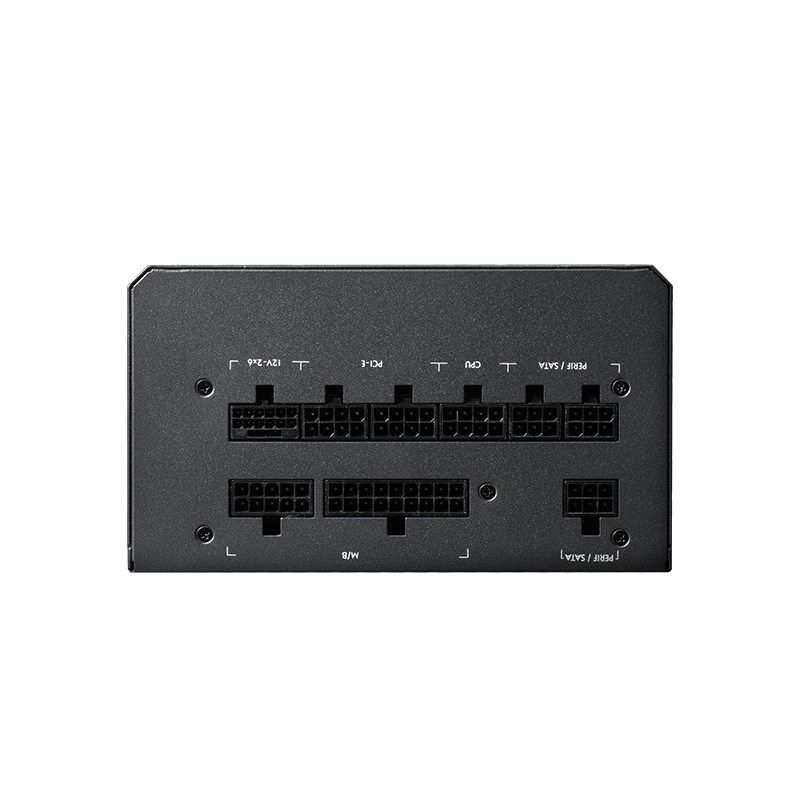

- Ports and interfaces
- EPS power supply connector (8-pin): Yes
- SATA power cable length: 400 mm
- Motherboard cable length: 60 cm
- PCI Express power connectors (6+2-pin): 4
- ATX power socket (24-pin): Yes
- CPU power cable length: 65 cm
- Peripheral power connectors (Molex) (4-pin): 3
- Number of SATA power connectors: 6
- Cabling type: Fully modular
- Motherboard power connector: 20+4-pin ATX
- PCI Express power connectors (12+4-pin): 1
- PCI Express power connectors (12+4-pin) cable length: 600 mm
- CPU power supply connector (4+4-pin): Yes
- EPS power connector (4+4-pin): Yes
- ATX power supply connector (20+4-pin): Yes
- Peripheral (Molex) power cable length: 400 mm
