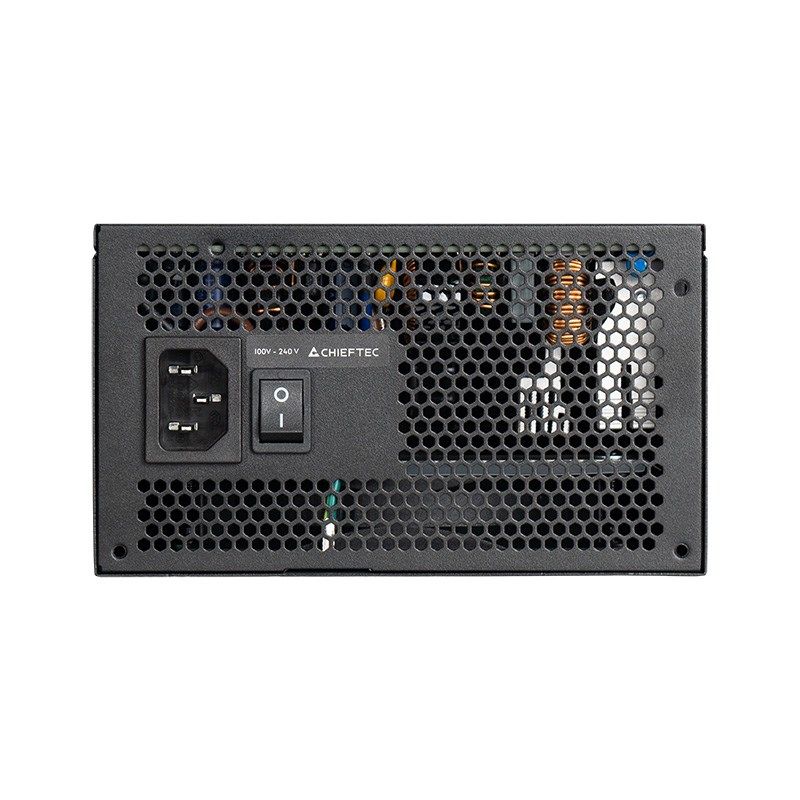

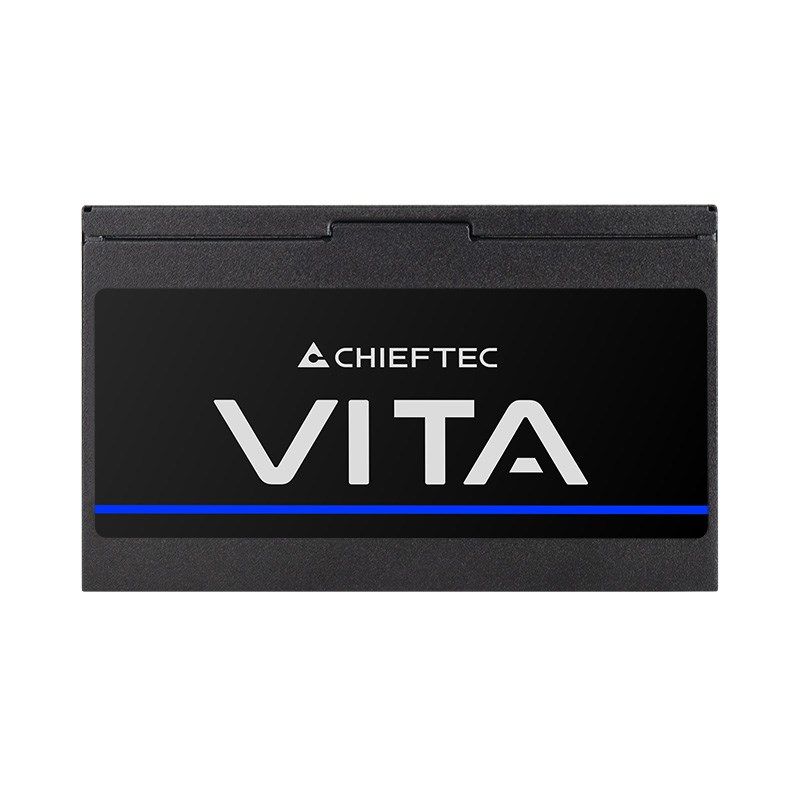

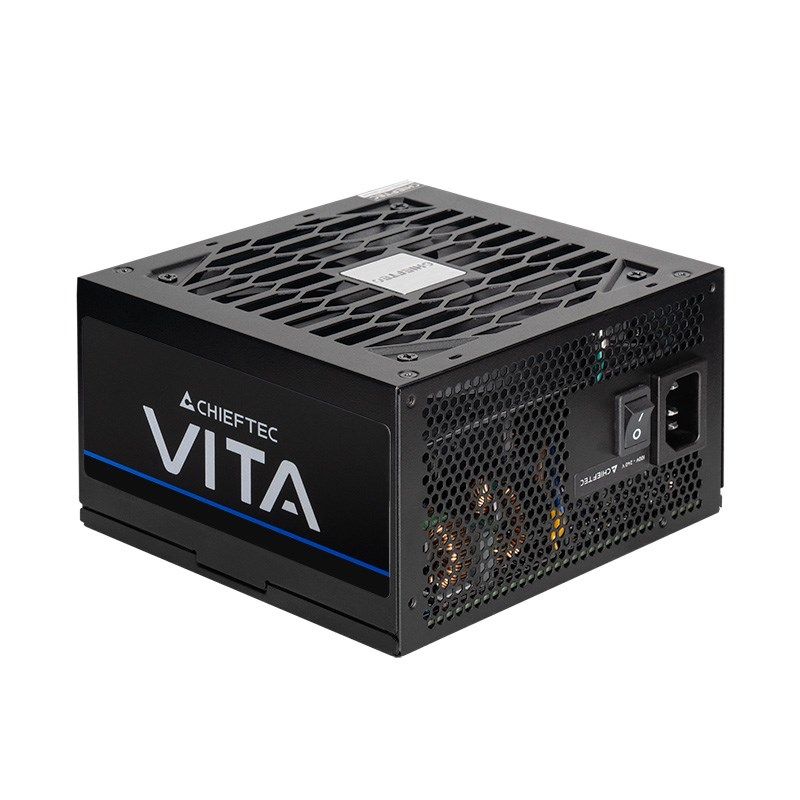

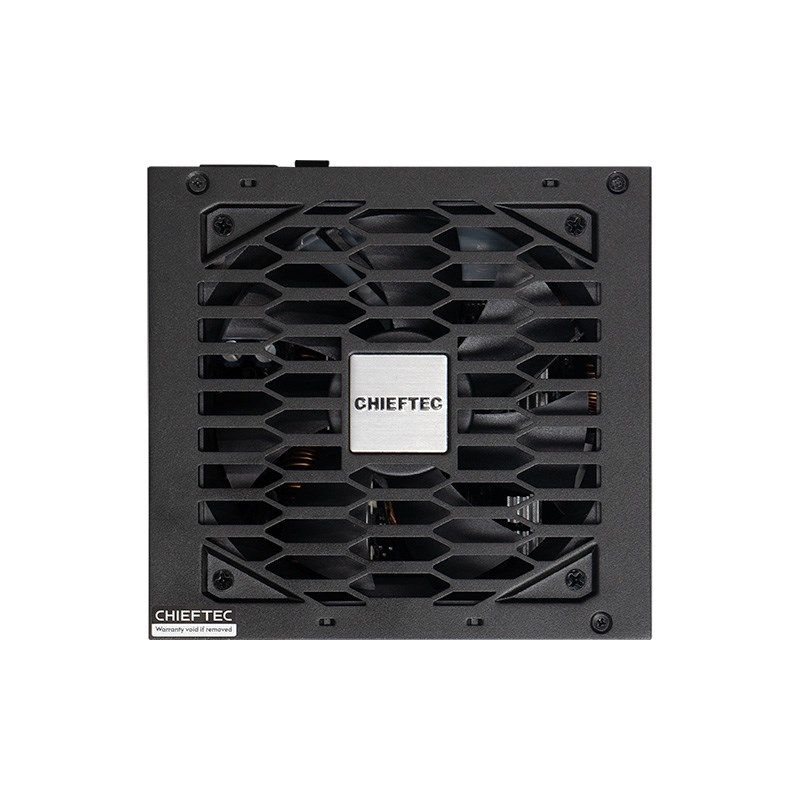

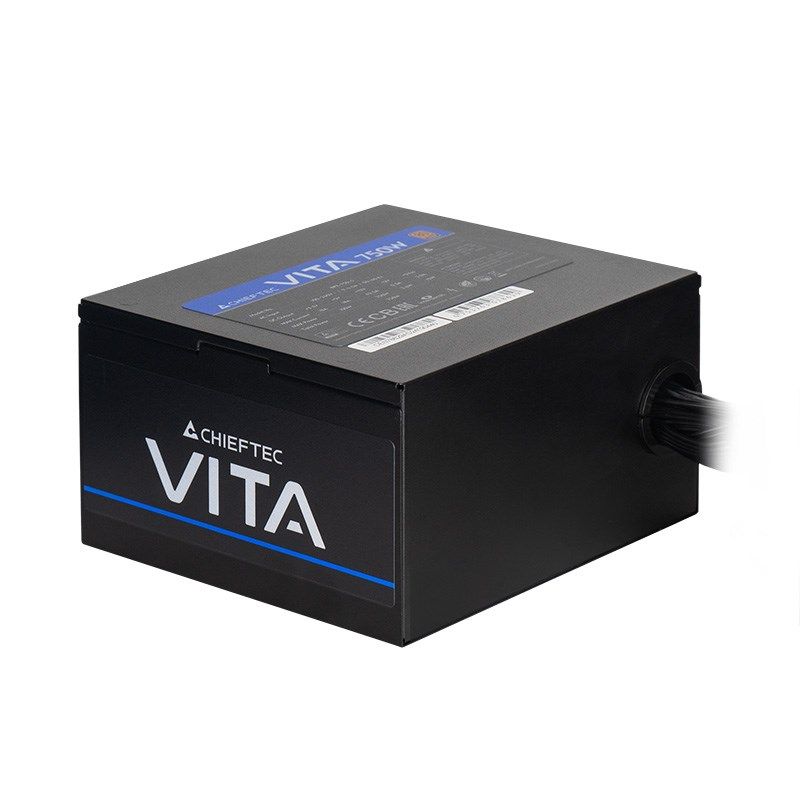

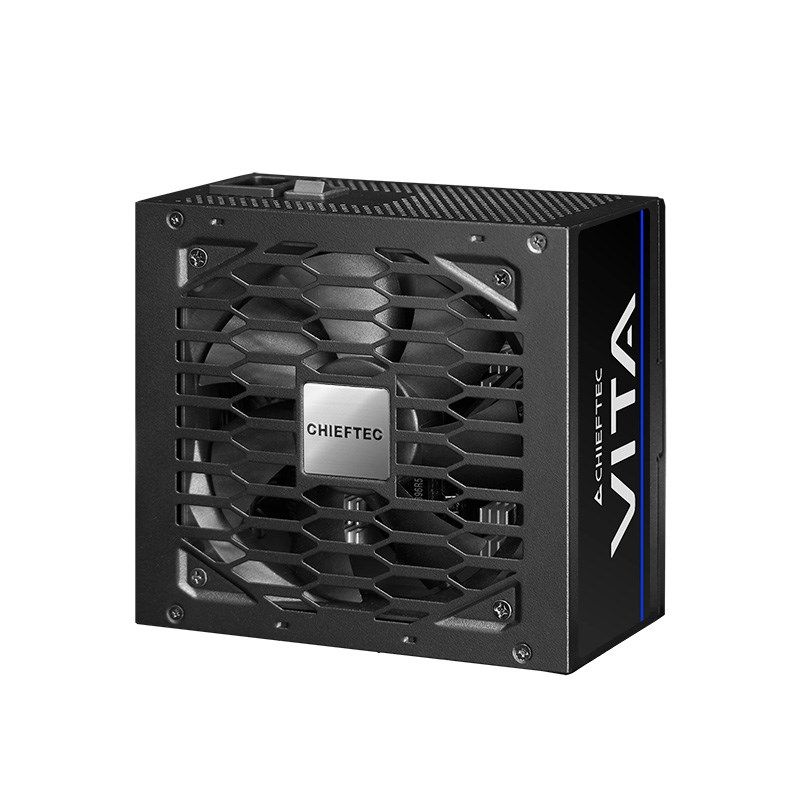

Chieftec Vita BPX-650-S Power Supply Module 650W 24-pin ATX ATX Black
Chieftec Vita BPX-650-S Power Supply Module 650W 24-pin ATX ATX Black
Chieftec Vita BPX-650-S Power Supply Module 650W 24-pin ATX ATX Black
PRICE:
98,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Cooling type: Active
- Product color: Black
- Power
- Total power (-12V): 3.6 W
- Maximum output current (+5 Vsb): 3 A
- Maximum output current (+3.3V): 18 A
- AC input voltage: 100 - 240 V
- Maximum output current (+12V): 54.1 A
- PFC (Power Factor Correction) Type: Active
- Input current: 8-4 A
- AC input frequency: 50/60 Hz
- Maximum output current (+5V): 18A
- Maximum output current (-12V): 0.3A
- Total power: 650 W
- Total power (+5 Vsb): 15 W
- Power protection features
- Overvoltages and inrush current
- Short circuit
- Overheating protection
- Overload
- Low voltage protection
- Protection against overvoltage
- Overcurrent
- Weight and dimensions
- Product depth: 150 mm
- Product width: 140 mm
- Product weight: 1.9 kg
- Product height: 86 mm
- Efficiency
- ATX version: 2.53
- Intended use: PC
- 80 PLUS Certificate: 80 PLUS Bronze
- Power supply type (PSU): ATX
- Packaging data
- Packaging type: Box
- Weight with packaging: 2.7 kg
- Ports and interfaces
- Number of EPS connectors: 2
- Motherboard power connector: 24-pin ATX
- PCI Express power connectors (6+2 pin): 2
- ATX power socket (24-pin): Yes
- EPS power connector (4+4 pin): Yes
- SATA power cable length
- 150
- 450
- Number of SATA power connectors: 6
- Wiring Type: Non-Modular
- Motherboard cable length: 65 cm
- Peripheral (Molex) Power Connectors (4-pin): 2
