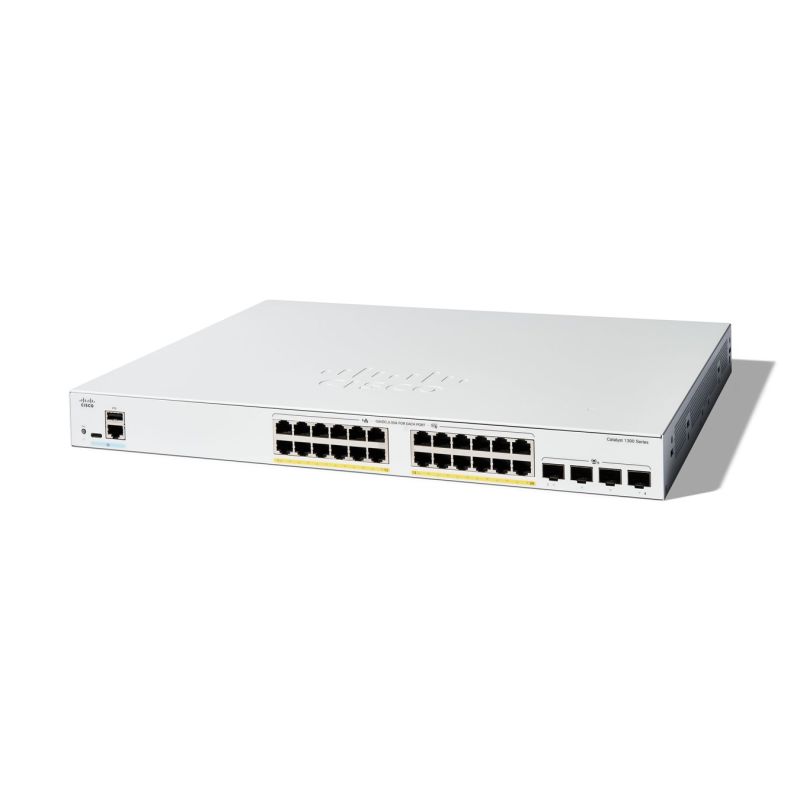

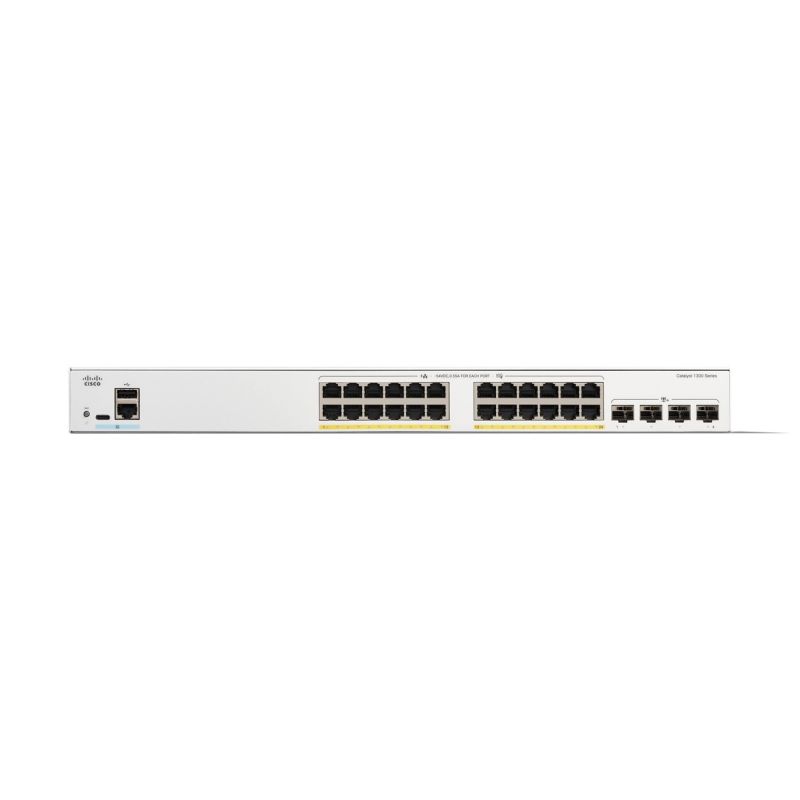

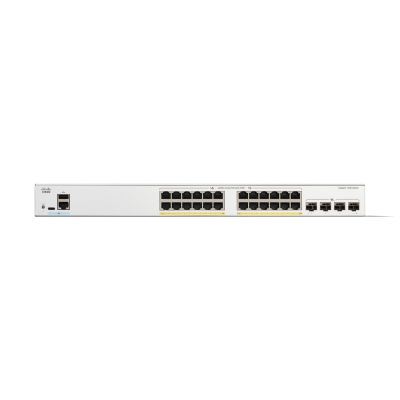

Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) PoE Support Gray
Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) PoE Support Gray
Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) PoE Support Gray
PRICE:
2303,99
€
IN A WAREHOUSE
8 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Reset button: Yes
- Product colour: Gray
- Country of origin: China
- Rack mounting: Yes
- Power
- AC input voltage: 100 - 220 V
- Power source: AC
- AC input frequency: 50/60 Hz
- Power plug type: Type C
- Power consumption: 40.9 W
- Weight and dimensions
- Product width: 350 mm
- Product weight: 4.6 kg
- Product depth: 444.5 mm
- Product height: 43.9 mm
- Security
- Authentication: MAC-based authentication, web-based authentication
- DoS attack prevention: Yes
- Queue scheduling algorithms: Weighted Round Robin (WRR)
- Access Control List (ACL) rules: 1024
- Encryption / security
- SNMPv3
- SSH
- SNMPv2
- SNMP
- HTTPS
- SSH-2
- DHCP features
- DHCP snooping
- DHCP client
- DHCP relay
- DHCP auto-config
- DHCP server
- IGMP snooping: Yes
- IGMP proxy: Yes
- Authentication type: RADIUS, TACACS+
- Access Control List (ACL): Yes
- SSH/SSL support: Yes
- Management features
- Web-based management: Yes
- Switch layer: L2/L3
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Command-line interface (CLI) configuration: Yes
- MIB support: Y
- Operating conditions
- Storage temperature range: -25 - 70 °C
- Permissible relative humidity: 10 - 90%
- Operating temperature range: -5 - 50 °C
- Heat dissipation: 1548.8 BTU/h
- Relative humidity range: 10 - 90%
- Network
- Spanning Tree Protocol: Yes
- QinQ implementation: Selective QinQ
- Head-of-line (HOL) blocking: Yes
- Virtual LAN features
- Private VLAN
- Voice VLAN
- Port mirroring: Yes
- Policy-based routing: Yes
- Rate limiting: Yes
- Supported cable types: Cat5e
- Communication standards
- IEEE 802.3
- IEEE 802.1s
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.1x
- IEEE 802.3z
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3an
- IEEE 802.1Q
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.3ae
- IEEE 802.3ad
- Link aggregation: Yes
- Traffic congestion control: Yes
- VLAN support: Yes
- Performance
- Processor frequency: 1.4 MHz
- MTBF (Mean Time Between Failures): 698220 h
- Plug and Play support: Yes
- Flash memory size: 512 MB
- Internal memory: 1 GB
- Built-in processor: Yes
- Memory type: DDR4-SDRAM
- Noise level: 34.8 dB
- Packaging data
- Package depth: 575.1 mm
- Weight with packaging: 7.18 kg
- Package height: 108 mm
- Package width: 512.1 mm
- Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- IPv4 and IPv6 features
- IPv6 TFTP
- ICMPv6
- IPv6 SSH
- IPv6 Telnet
- IPv6 SNMP
- Ports and interfaces
- Number of Ethernet ports for RJ-45 basic switching: 24
- Console port: RJ-45/USB Type-C
- Number of SFP module slots: 4
- RJ-45 Ethernet port type for basic switching: Gigabit Ethernet (10/100/1000)
- Data transmission
- Routing/switching capacity: 128 Gbit/s
- Number of queues: 8
- Jumbo Frames extension: 9000
- Address table size: 16000 entries
- Number of static routes: 990
- Jumbo Frames support: Yes
- Static route: Yes
- Packet buffer memory: 1.5 MB
- Power over Ethernet (PoE)
- Number of Fast Ethernet ports (PoE): 24
- Total Power over Ethernet (PoE) budget: 375 W
- PoE support: Yes
- Multicast features
- Multicast support: Yes
