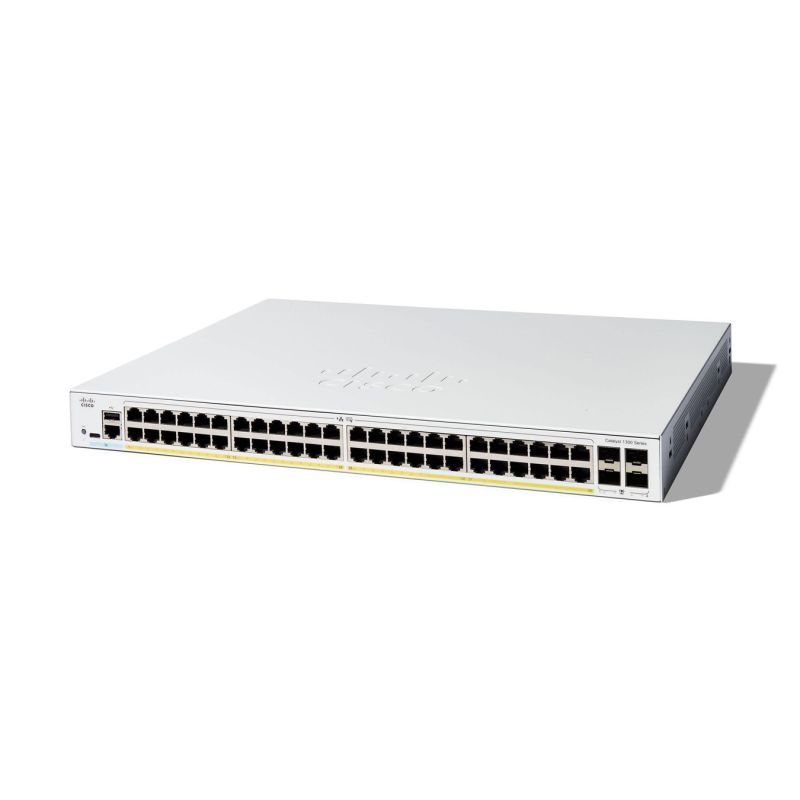

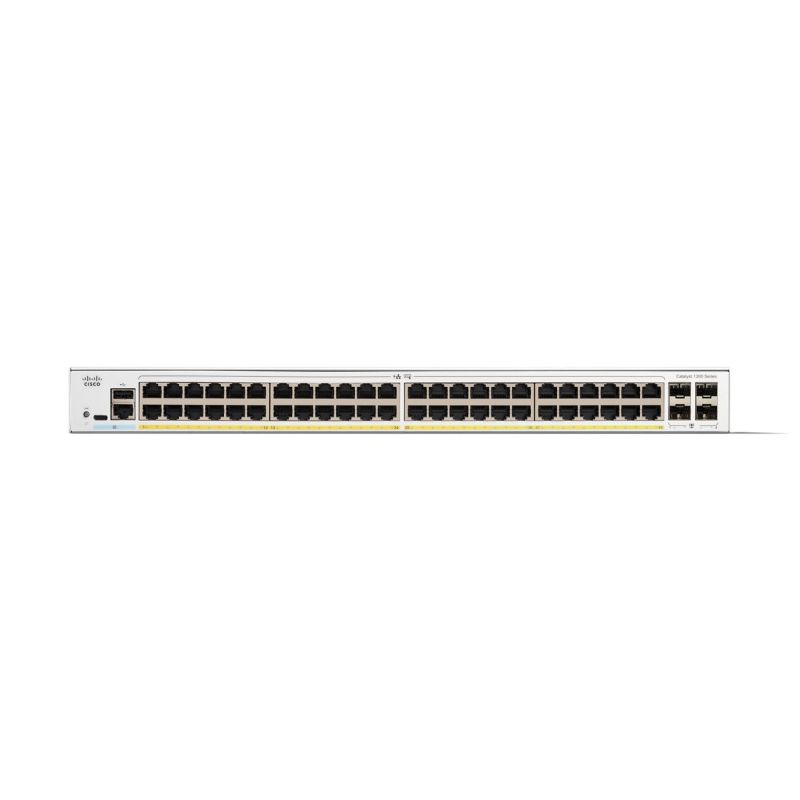

Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) PoE Support Grey
Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) PoE Support Grey
Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) PoE Support Grey
PRICE:
2782,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting: Yes
- Product colour: Grey
- Country of origin: China
- Reset button: Yes
- Power
- AC input frequency: 50/60 Hz
- Power plug type: Type C
- Power consumption: 43,93 W
- AC input voltage: 100 - 220 V
- Power source: AC
- Weight and dimensions
- Product weight: 5,43 kg
- Product height: 43,9 mm
- Product width: 350 mm
- Product depth: 444,5 mm
- Security
- DHCP features
- DHCP client
- DHCP snooping
- DHCP relay
- DHCP auto-configuration
- DHCP server
- Encryption/security
- HTTPS
- SNMPv3
- SNMPv2
- SSH
- SNMP
- SSH-2
- Access Control List (ACL) rules: 1024
- Queue scheduling algorithms: Weighted Round Robin (WRR)
- IGMP snooping: Yes
- Access Control List (ACL): Yes
- Authentication: MAC-based authentication, Web authentication
- DoS attack prevention: Yes
- Authentication type: RADIUS, TACACS+
- SSH/SSL support: Yes
- IGMP proxy: Yes
- DHCP features
- Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Command-line interface (CLI) configuration: Yes
- Web-based management: Yes
- Switching layer: L2/L3
- MIB support: Y
- Operating conditions
- Heat dissipation: 1542,3 BTU/h
- Operating temperature range: -5 - 50 °C
- Allowable relative humidity: 10 - 90%
- Relative humidity range: 10 - 90%
- Storage temperature range: -25 - 70 °C
- Network
- Communication standards
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3an
- IEEE 802.3ad
- IEEE 802.3ae
- IEEE 802.1s
- IEEE 802.3z
- IEEE 802.1x
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1D
- IEEE 802.1ab
- Spanning Tree Protocol: Yes
- Supported cable types: Cat5e
- Flow control: Yes
- Virtual LAN features
- Private VLAN
- Voice VLAN
- Link aggregation: Yes
- Head-of-line (HOL) blocking: Yes
- Port mirroring: Yes
- Rate limiting: Yes
- Policy-based routing: Yes
- VLAN support: Yes
- QinQ implementation: Selective QinQ
- Communication standards
- Performance
- MTBF (Mean Time Between Failures): 856329 h
- Processor frequency: 1,4 MHz
- Memory type: DDR4-SDRAM
- Noise level: 37,3 dB
- Flash memory size: 512 MB
- Internal memory capacity: 1 GB
- Plug and Play support: Yes
- Built-in processor: Yes
- Packaging data
- Package depth: 571,8 mm
- Weight with packaging: 7,01 kg
- Package width: 480,8 mm
- Package height: 95 mm
- Protocols
- IPv4 and IPv6 features
- IPv6 TFTP
- IPv6 SNMP
- ICMPv6
- IPv6 SSH
- IPv6 Telnet
- GARP VLAN Registration Protocol (GVRP): Yes
- IPv4 and IPv6 features
- Ports and interfaces
- Number of Combo SFP ports: 4
- Console port: RJ-45/USB Type-C
- Number of RJ-45 Ethernet ports for basic switching: 48
- RJ-45 Ethernet port type for basic switching: Gigabit Ethernet (10/100/1000)
- Data transmission
- Address table size: 16000 entries
- Number of static routes: 990
- Number of queues: 8
- Jumbo Frames size: 9000
- Routing/switching capacity: 104 Gbit/s
- Static route: Yes
- Packet buffer memory: 3 MB
- Jumbo Frames support: Yes
- Power over Ethernet (PoE)
- PoE support: Yes
- Total Power over Ethernet (PoE) budget: 375 W
- Number of Fast Ethernet ports (PoE): 48
- Multicast features
- Multicast support: Yes
- Safety warning
- Warnings
- The product must not be disposed of with regular household waste. Take used electronic equipment to a disposal point in accordance with local regulations.
- Do not open the housing or attempt to repair the device yourself.
- Make sure that the device is properly ventilated during operation.
- Warnings
