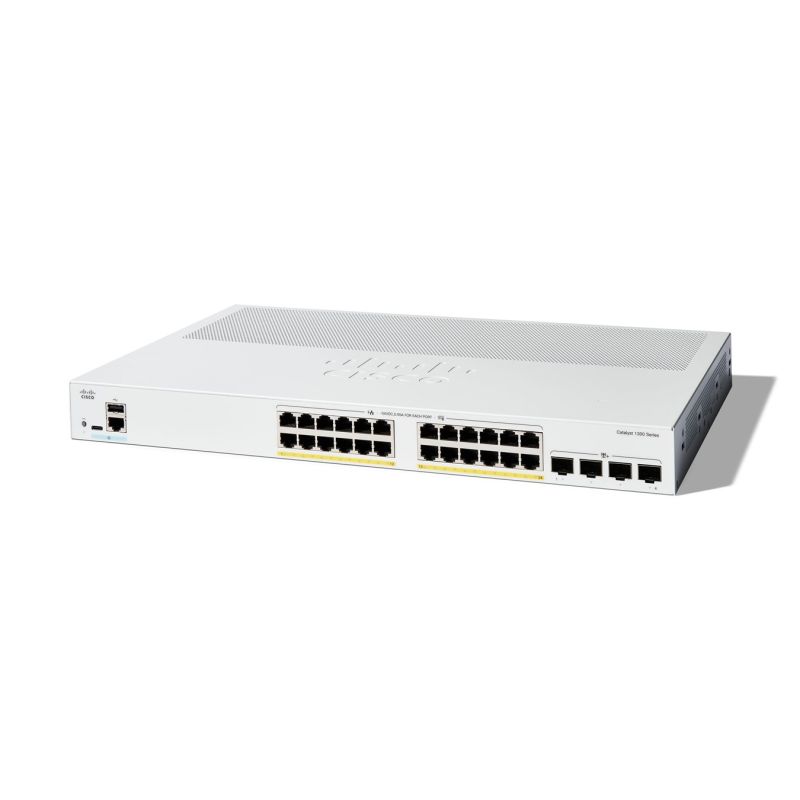

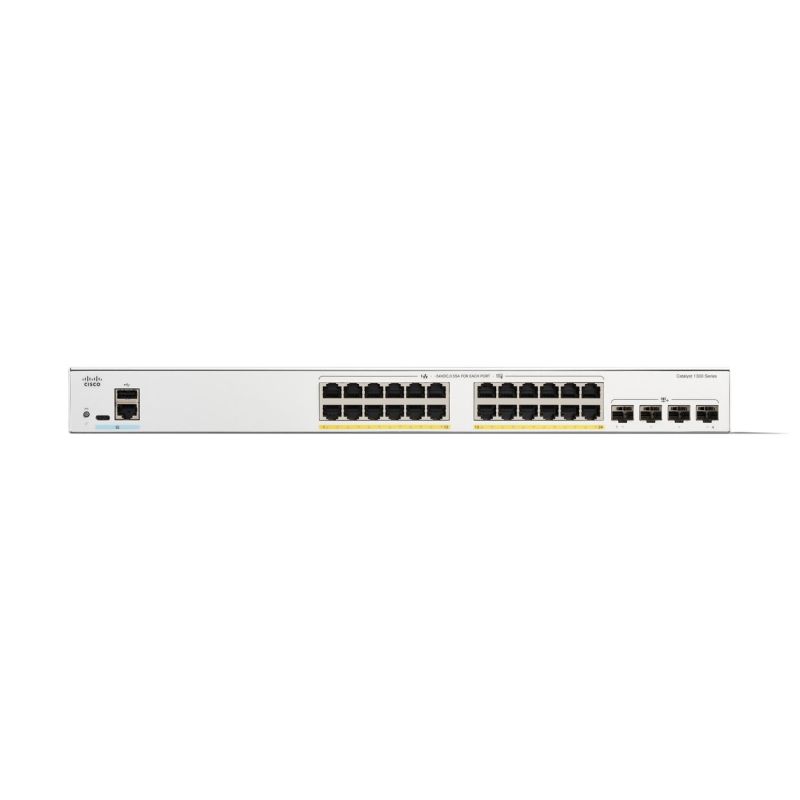

Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) with PoE Support, Grey
Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) with PoE Support, Grey
Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) with PoE Support, Grey
PRICE:
1728,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product colour: Grey
- Rack mounting: Yes
- Reset button: Yes
- Power
- Power consumption: 31.8 W
- AC input frequency: 50/60 Hz
- Power plug type: Type C
- Power source: AC
- AC input voltage: 100 - 220 V
- Weight and dimensions
- Product width: 298.7 mm
- Product weight: 3.68 kg
- Product height: 43.9 mm
- Product depth: 444.5 mm
- Security
- DoS attack prevention: Yes
- Encryption/security
- SSH-2
- HTTPS
- SNMPv2
- SSH
- SNMP
- SNMPv3
- Authentication type: RADIUS, TACACS+
- DHCP features
- DHCP auto-config
- DHCP relay
- DHCP snooping
- DHCP client
- DHCP server
- Access Control List (ACL): Yes
- SSH/SSL support: Yes
- Queue scheduling algorithms: Weighted Round Robin (WRR)
- Access Control List (ACL) rules: 1024
- Authentication: MAC-based authentication, Web authentication
- IGMP snooping: Yes
- IGMP proxy: Yes
- Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Switching layer: L2/L3
- Command-line interface (CLI) configuration: Yes
- MIB support: Y
- Operating conditions
- Allowed relative humidity: 10 - 90%
- Operating temperature range: -5 - 50 °C
- Storage temperature range: -25 - 70 °C
- Heat dissipation: 804.1 BTU/h
- Relative humidity range: 10 - 90%
- Network
- VLAN features
- Private VLAN
- Voice VLAN
- Policy-based routing: Yes
- Communication standards
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3z
- IEEE 802.1Q
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3an
- IEEE 802.3ad
- IEEE 802.3ae
- IEEE 802.3
- IEEE 802.1x
- IEEE 802.1s
- Supported cable types: Cat5e
- QinQ implementation: Selective QinQ
- Flow control: Yes
- Link aggregation: Yes
- Spanning Tree Protocol: Yes
- Rate limiting: Yes
- Port mirroring: Yes
- Head-of-line (HOL) blocking: Yes
- VLAN support: Yes
- VLAN features
- Performance
- Built-in processor: Yes
- Processor frequency: 1.4 MHz
- MTBF (Mean Time Between Failures): 698220 h
- Memory type: DDR4-SDRAM
- Internal memory: 1 GB
- Plug & Play support: Yes
- Flash memory size: 512 MB
- Packaging data
- Package weight: 5.99 kg
- Package height: 105.9 mm
- Package width: 430 mm
- Package depth: 575.1 mm
- Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- IPv4 and IPv6 features
- ICMPv6
- IPv6 SSH
- IPv6 SNMP
- IPv6 TFTP
- IPv6 Telnet
- Ports and interfaces
- Number of RJ-45 Ethernet ports for basic switching: 24
- Console port: RJ-45/USB Type-C
- Number of SFP+ module slots: 4
- Type of RJ-45 Ethernet ports for basic switching: Gigabit Ethernet (10/100/1000)
- Logistics data
- Country of origin: China
- Data transmission
- Static route: Yes
- Jumbo Frames extension: 9000
- Address table size: 16000 entries
- Number of static routes: 990
- Number of queues: 8
- Packet buffer memory: 1.5 MB
- Jumbo Frames support: Yes
- Routing/switching capacity: 128 Gbit/s
- Power over Ethernet (PoE)
- PoE support: Yes
- Total Power over Ethernet (PoE) budget: 195 W
- Number of Fast Ethernet (PoE) ports: 24
- Multicast features
- Multicast support: Yes
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Cisco |
| Colour | Gray/Silver |
| Department | Electronics |
