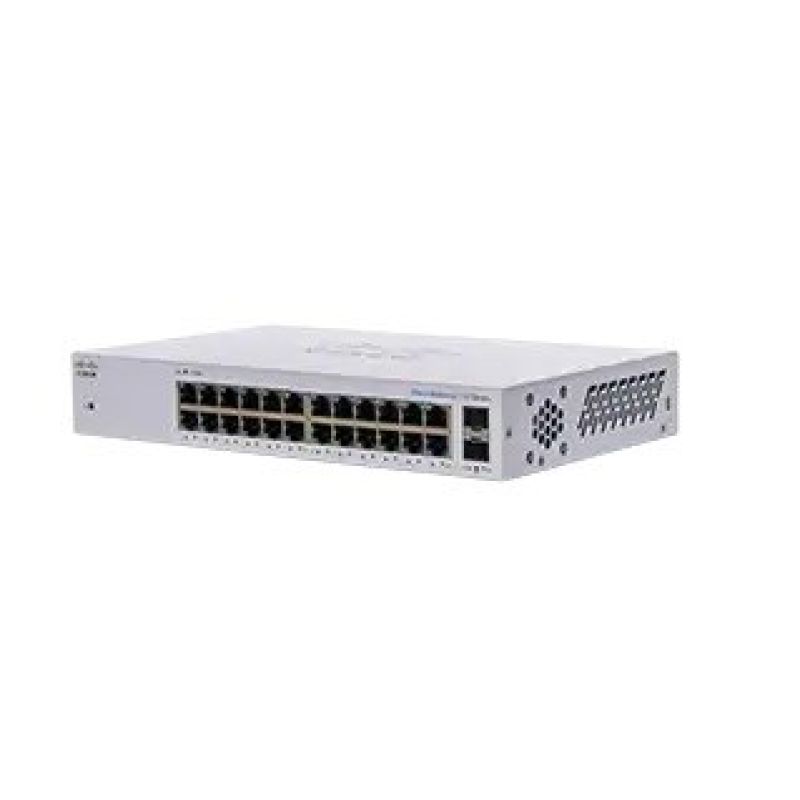

Cisco CBS110-24T-EU Switch
Cisco CBS110-24T-EU Switch
Cisco CBS110-24T-EU Switch
PRICE:
355,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product colour: Grey
- Form factor: 1U
- Rack mounting: Yes
- LED indicators: Yes
- Power
- AC input frequency: 50–60 Hz
- Redundant power supply (RPS) support: No
- Number of power supply units: 1
- AC input voltage: 110–240 V
- Power supply included: Yes
- Weight and dimensions
- Product height: 44 mm
- Product width: 279 mm
- Product weight: 1.56 kg
- Product depth: 170 mm
- Protection
- Queue scheduling algorithms: Weighted Round Robin (WRR)
- Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
- Switching layer: L2
- Operating conditions
- Permitted relative humidity: 5–90%
- Heat dissipation: 55.75 BTU/h
- Temperature range (storage): -20–70 °C
- Temperature range (operation): 0–40 °C
- Relative humidity range: 10–90%
- Network
- Ethernet LAN data transfer rate: 10, 100, 1000 Mbit/s
- Half duplex: Yes
- 10G support: No
- Full duplex: Yes
- Auto MDI/MDI-X: Yes
- Flow control support: Yes
- Copper Ethernet cabling technology
- 100BASE-TX
- 10BASE-T
- 1000BASE-T
- Communication standards
- IEEE 802.3z
- IEEE 802.3u
- IEEE 802.3az
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3
- IEEE 802.1p
- Head-of-line blocking (HOL): Yes
- Performance
- Processor frequency: 400 MHz
- MTBF (Mean Time Between Failures): 524296 h
- Flash memory size: 8 MB
- Internal memory capacity: 64 MB
- Built-in processor: Yes
- Packaging content
- Quick start guide: Yes
- Hook mounting kit: Yes
- Certificates
- Compliance certificates: CE
- Ports and interfaces
- Number of Combo SFP ports: 2
- Number of RJ-45 Ethernet ports for basic switching: 24
- Number of Gigabit Ethernet ports: 24
- RJ-45 Ethernet port type for basic switching: Gigabit Ethernet (10/100/1000)
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transmission
- Number of queues: 4
- Jumbo Frames extension: 9216
- Address table size: 8192 entries
- Forwarding rate: 35.7 Mpps
- Jumbo Frames support: Yes
- Routing/switching capacity: 48 Gbit/s
- Power over Ethernet (PoE)
- PoE support: No
- Safety warning
- Warnings
- Do not open the enclosure or attempt to repair the device yourself.
- This product must not be disposed of with regular household waste. Take used electronic equipment to a disposal point in accordance with local regulations.
- Make sure the device is adequately ventilated during operation.
- Warnings
- Sustainability
- Compliance with sustainability principles: Yes
