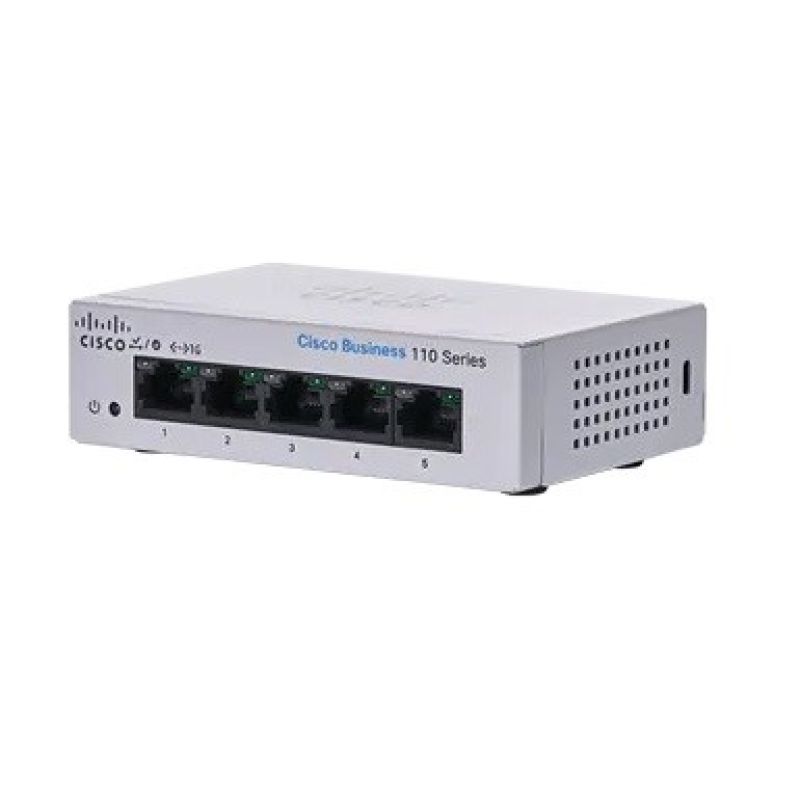

Cisco CBS110-5T-D-EU Switch
Cisco CBS110-5T-D-EU Switch
Cisco CBS110-5T-D-EU Switch
PRICE:
71,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting: Yes
- LED indicators: Yes
- Product colour: Grey
- Form factor: 1U
- Power
- Redundant power supply (RPS) support: No
- Number of power supply units: 1
- DC input voltage: 12 V
- Power supply included: Yes
- Weight and dimensions
- Product weight: 230 g
- Product height: 30 mm
- Product width: 110 mm
- Product depth: 75 mm
- Security
- Queue scheduling algorithms: Weighted Round Robin (WRR)
- Management features
- Quality of Service (QoS) support: Yes
- Switch type: Unmanaged
- Switching layer: L2
- Operating conditions
- Heat dissipation: 9.34 BTU/h
- Operating temperature range: 0 - 40 °C
- Permissible relative humidity: 5 - 90%
- Storage temperature range: -20 - 70 °C
- Relative humidity range: 10 - 90%
- Network
- Flow control support: Yes
- 10G support: No
- Full duplex: Yes
- Communication standards
- IEEE 802.1p
- IEEE 802.3u
- IEEE 802.3az
- IEEE 802.3x
- IEEE 802.3
- IEEE 802.3ab
- Ethernet LAN data transfer rates: 10,100,1000 Mbit/s
- Copper Ethernet cabling technology
- 10BASE-T
- 100BASE-TX
- 1000BASE-T
- Half duplex: Yes
- Head-of-line (HOL) blocking: Yes
- Automatic MDI/MDI-X: Yes
- Performance
- MTBF (Mean Time Between Failures): 4243002 h
- Packaging data
- Quick start guide: Yes
- Ports and interfaces
- RJ-45 Ethernet ports for basic switching: 5
- Number of Gigabit Ethernet ports: 5
- RJ-45 Ethernet port type for basic switching: Gigabit Ethernet (10/100/1000)
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transmission
- Address table size: 2048 entries
- Jumbo Frames extension: 9216
- Number of queues: 4
- Jumbo Frames support: Yes
- Forwarding rate: 7.4 Mpps
- Routing/switching capacity: 10 Gbit/s
- Power over Ethernet (PoE)
- PoE support: No
- Safety warning
- Warnings
- Do not open the enclosure or attempt to repair the device yourself.
- This product must not be disposed of with ordinary household waste. Take used electronic equipment to a disposal facility in accordance with local regulations.
- Ensure that the device is properly ventilated during operation.
- Warnings
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Product Type | Network switches |
| Producer | Cisco |
| Department | Electronics |
