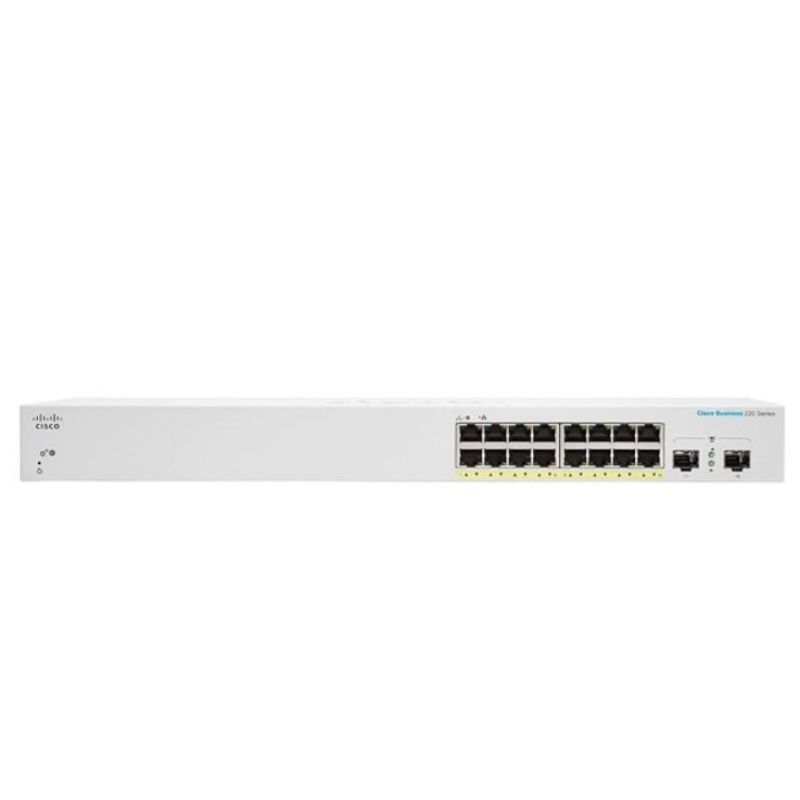

Cisco CBS220-16P-2G-EU Switch
Cisco CBS220-16P-2G-EU Switch
Cisco CBS220-16P-2G-EU Switch
PRICE:
493,99
€
IN A WAREHOUSE
8 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product colour: White
- Rack mounting possible: Yes
- Reset button: Yes
- LED indicators: Yes
- Power
- AC input frequency: 50–60 Hz
- Weight and dimensions
- Product width: 440 mm
- Product height: 44 mm
- Product weight: 3.03 kg
- Product depth: 203 mm
- Security
- IGMP snooping: Yes
- Access Control List (ACL) rules: 512
- IGMP entries: 256
- Access Control List (ACL): Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
- DHCP functions: DHCP client
- SSH/SSL support: Yes
- Encryption/security: SSL/TLS
- MAC address filtering: Yes
- Management features
- Configuring location settings (CLI): Yes
- Switching layer: L2
- System event reporting: Yes
- Switch type: Managed
- MIB support: Y
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Operating conditions
- Operating temperature range: 0–50 °C
- Permissible relative humidity: 10–90%
- Storage temperature range: -20–70 °C
- Relative humidity range: 10–90%
- Network
- Traffic congestion control: Yes
- Spanning Tree Protocol: Yes
- Port mirroring: Yes
- Link aggregation: Yes
- 10G support: No
- Head-of-line (HOL) blocking: Yes
- Number of VLANs: 256
- Flow control support: Yes
- Communication standards
- IEEE 802.1D
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3ad
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3at
- IEEE 802.1x
- Auto MDI/MDI-X: Yes
- VLAN support: Yes
- Performance
- Device software updates: Yes
- Protocols
- Management protocols: SNMP
- GARP VLAN Registration Protocol (GVRP): Yes
- Ports and interfaces
- Number of SFP module slots: 2
- Number of RJ-45 Ethernet ports for basic switching: 16
- Type of RJ-45 Ethernet ports for basic switching: Gigabit Ethernet (10/100/1000)
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transmission
- Jumbo Frames extension: 9216
- Address table size: 8192 entries
- Routing/switching capacity: 36 Gbit/s
- Jumbo Frames support: Yes
- Power over Ethernet (PoE)
- PoE support: Yes
- Total Power over Ethernet (PoE) budget: 130 W
- Multicast features
- Multicast support: Yes
- Number of filtered multicast groups: 256
- Safety warning
- Warnings
- Ensure that the device is adequately ventilated during operation.
- Do not open the enclosure or attempt to repair the device yourself.
- This product must not be disposed of with ordinary household waste. Take used electronic equipment to an appropriate disposal point in accordance with local regulations.
- Warnings
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Product Type | Network switches |
| Producer | Cisco |
| Department | Electronics |
