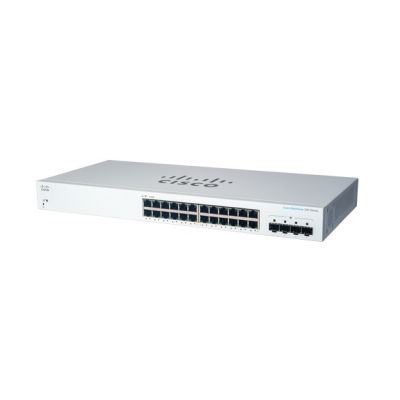

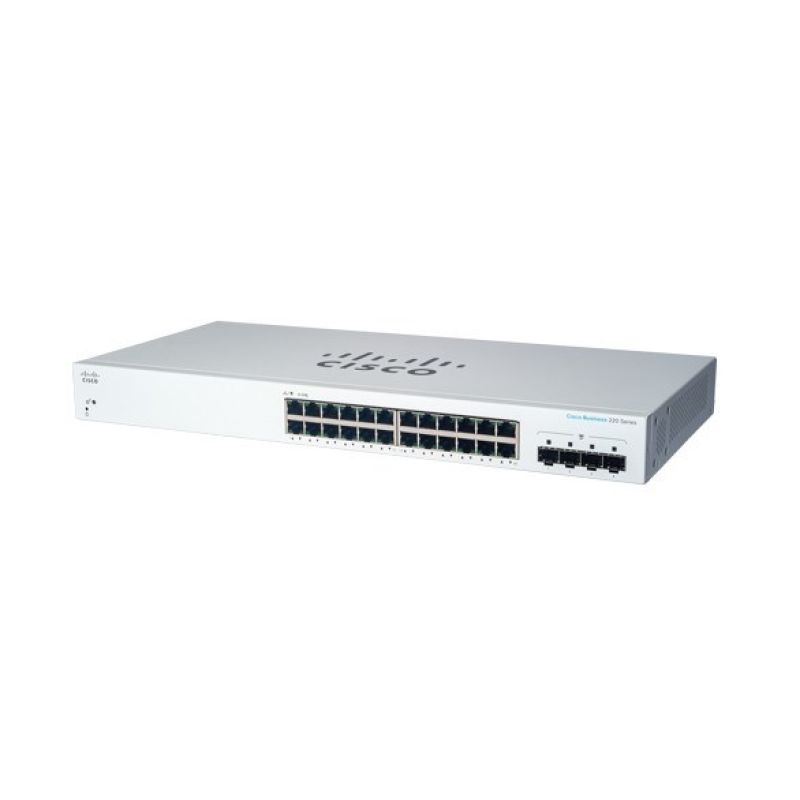

Cisco CBS220-24T-4G-EU Switch
Cisco CBS220-24T-4G-EU Switch
Cisco CBS220-24T-4G-EU Switch
PRICE:
429,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting: Yes
- Product colour: White
- Form factor: 1U
- Reset button: Yes
- LED indicators: Yes
- Power
- AC input frequency: 50–60 Hz
- AC input voltage: 100–240 V
- Weight and dimensions
- Product weight: 2.75 kg
- Product height: 44 mm
- Product width: 440 mm
- Product depth: 203 mm
- Security
- Authentication type: IEEE 802.1x, RADIUS
- Queue scheduling algorithms: Weighted Round Robin (WRR)
- Loop protection: Yes
- IGMP snooping: Yes
- DHCP functions: DHCP client
- Access Control List (ACL): Yes
- SSH/SSL support: Yes
- BPDU filtering/protection: Yes
- Encryption/security
- SNMP
- SNMPv2
- SNMPv3
- MAC address filtering: Yes
- Management features
- Switch layer: L2
- Switch type: Managed
- System event log: Yes
- Web-based management: Yes
- Quality of Service (QoS) support: Yes
- Operating conditions
- Heat dissipation: 61.42 BTU/h
- Permitted relative humidity: 10–90%
- Relative humidity range: 10–90%
- Operating temperature range: 0–50 °C
- Storage temperature range: -20–70 °C
- Network
- 10G support: Yes
- Link aggregation: Yes
- IP forwarding: Yes
- Flow control support: Yes
- Spanning Tree Protocol: Yes
- Number of VLANs: 256
- Broadcast storm control: Yes
- Head-of-line (HOL) blocking: Yes
- Port mirroring: Yes
- Communication standards
- IEEE 802.1x
- IEEE 802.3at
- IEEE 802.1D
- IEEE 802.3z
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3ad
- IEEE 802.3
- IEEE 802.1s
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3x
- Ethernet LAN data transfer rate: 10,100,1000 Mbit/s
- Automatic MDI/MDI-X: Yes
- VLAN support: Yes
- Performance
- Device software updates: Yes
- Internal memory capacity: 256 MB
- Built-in processor: Yes
- Flash memory size: 64 MB
- Protocols
- Management protocols: SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
- Ports and interfaces
- Number of SFP module slots: 4
- Basic Ethernet RJ-45 switching ports, type: Gigabit Ethernet (10/100/1000)
- Number of basic RJ-45 Ethernet switching ports: 24
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transmission
- Jumbo Frames extension: 9216
- Forwarding rate: 41.66 Mpps
- Address table size: 8192 entries
- Number of queues: 8
- Packet buffer memory: 4.1 MB
- Jumbo Frames support: Yes
- Routing/switching capacity: 56 Gbit/s
- Power over Ethernet (PoE)
- PoE support: No
- Multicast features
- MAC address table (multicast): 8192 entries
- Multicast support: Yes
- Safety warning
- Warnings
- Do not open the enclosure or attempt to repair the device yourself.
- The product must not be disposed of with regular household waste. Take the used electronic equipment to a disposal point in accordance with local regulations.
- Make sure that the device is adequately ventilated during operation.
