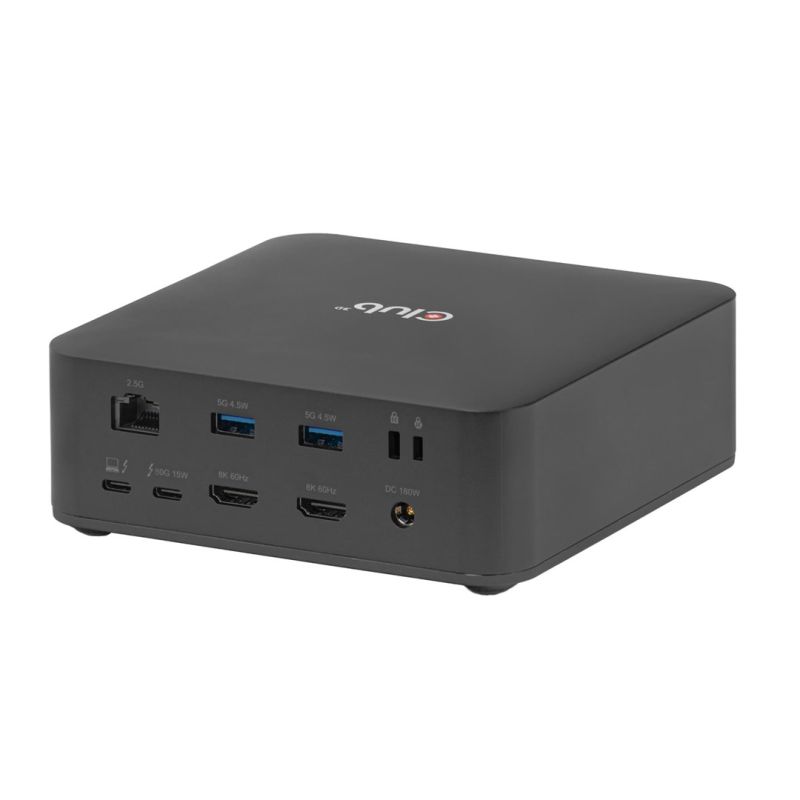

CLUB3D CSV-2562 13-1 Thunderbolt™ 5 Docking Station M.2 SSD 2x HDMI™ 8K60Hz Thunderbolt™ Share Certified 180W
CLUB3D CSV-2562 13-1 Thunderbolt™ 5 Docking Station M.2 SSD 2x HDMI™ 8K60Hz Thunderbolt™ Share Certified 180W
Sign up and unlock up to 10% off!
- Power
- USB cable length: 1 m
- Power supply: 180 W
- Power supply type: DC
- Weight and dimensions
- Product height: 50 mm
- Product weight: 794 g
- Product width: 140 mm
- Product depth: 140 mm
- Network
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- 2500
- Wired LAN: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Data transfer speed via Ethernet LAN
- Efficiency
- Maximum refresh rate: 144 Hz
- NVMe: Yes
- Integrated card reader: Yes
- Data transfer speed: 120 Gbit/s
- Supported memory cards
- SD
- MicroSD Express
- Number of displays supported: 3
- Product color: Black
- Cable lock slot type
- Kensington
- Nano
- Built-in switch: Yes
- Housing material: Plastic
- HD type: 8K Ultra HD
- Kensington Lock: Yes
- SSD Enclosure: Yes
- Packaging data
- Package depth: 59 mm
- Number of pieces: 1
- Package width: 302 mm
- Package height: 169 mm
- Weight with packaging: 1.6 kg
- Package contents
- Cables: Thunderbolt
- Audio
- Built-in speakers: No
- Ports and interfaces
- Headphone plug: 3.5 mm
- Connection method: Wired
- Headphone outputs: 1
- Number of USB 2.0 ports: 3
- Number of HDMI ports: 2
- Host Interface: Thunderbolt 5
- Microphone: No
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Maximum USB power: 140W
- Number of Thunderbolt 5 ports: 1
- Logistics data
- Harmonized System (HS) code: 8473 3020
- Sustainable development
- Environmental (sustainability) certification: SCS Product Category Rule (PCR)
- Package composition
- Total plastic packaging weight: 14 g
- Weight of paper/cardboard packaging: 168 g
- Plastic packaging weight: 7 g
- Total paper/cardboard packaging weight: 336 g
