Cooler Master Elite Gold 1200 Power Supply Module 1200W 24-pin ATX ATX Black
Cooler Master Elite Gold 1200 Power Supply Module 1200W 24-pin ATX ATX Black
Cooler Master Elite Gold 1200 Power Supply Module 1200W 24-pin ATX ATX Black
PRICE:
229,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Fan Location: Top
- Cooling type: Active
- Fan bowl diameter: 13.5 cm
- Number of fans: 1 fan
- Product color: Black
- Built-in switch: Yes
- Power

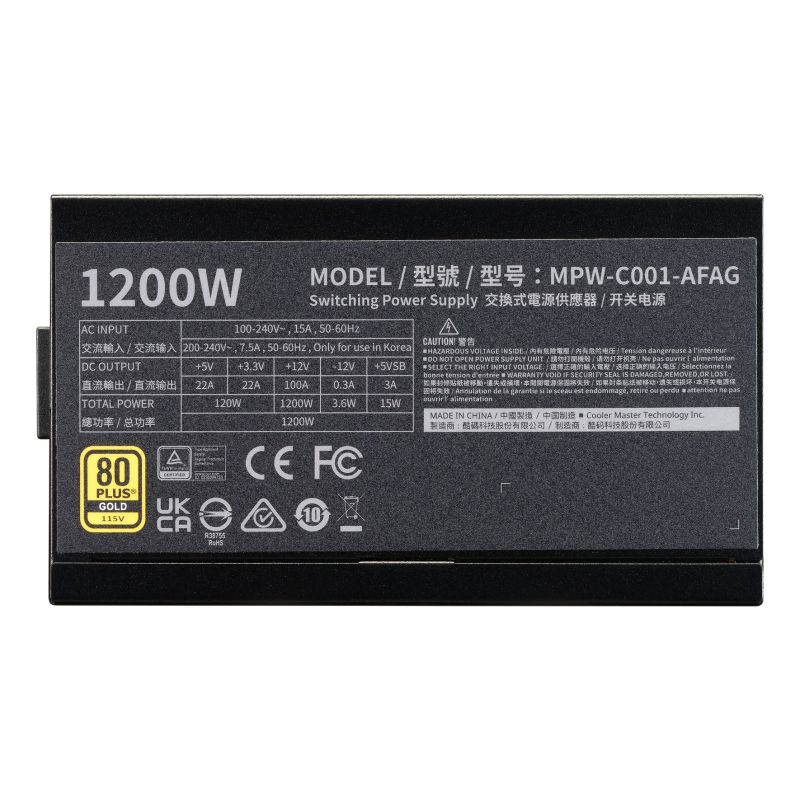

- Total power (+3.3V): 120 W
- Total power (+12V): 1200 W
- Maximum output current (+5 Vsb): 3 A
- Maximum output current (+3.3V): 22 A
- Total power (-12V): 3.6 W
- Maximum output current (-12V): 3.6A
- Total power (+5V): 120 W
- Maximum output current (+5V): 22A
- Hold time: 16 ms
- Good Signal Power Delay Range: 100 - 150 ms
- Efficiency: 90%
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12V): 100A
- Total power: 1200 W
- AC input frequency: 50/60 Hz
- Total power (+5 Vsb): 15 W
- Power protection features
- Low voltage protection
- Overload protection
- Short circuit
- Overheating protection
- Protection against overvoltage
- AC input voltage: 100 - 240 V
- Input current: 7.5 - 15 A
- Number of +12V rails: 1
- Weight and dimensions
- Product width: 150 mm
- Product height: 86 mm
- Product depth: 150 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- Power supply type (PSU): ATX
- ATX version: 3.1
- Bearing Technology: FDB
- Intended use: PC
- 80 PLUS Certificate: 80 PLUS Gold
- Ports and interfaces
- Number of SATA power connectors: 9
- SATA power cable length
- 600 mm
- 500 mm
- 700 mm
- Motherboard cable length: 60 cm
- PCI Express power connectors (6+2 pin): 6
- Motherboard power connector: 24-pin ATX
- Wiring Type: Fully Modular
- Peripheral (Molex) Power Connectors (4-pin): 3
- ATX power socket (24-pin): Yes
- Peripheral (Molex) Power Cable Length
- 700
- 500 mm
- 600 mm
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (12+4 pin) cable length: 600 mm
- Number of EPS connectors: 2
- Number of SATA power cables: 3
- PCI Express power connectors (12+4 pin): 1
