Cooler Master GX II Gold 850 ATX 3.1 Power Supply Module 850 W 24-pin ATX Black
Cooler Master GX II Gold 850 ATX 3.1 Power Supply Module 850 W 24-pin ATX Black
Cooler Master GX II Gold 850 ATX 3.1 Power Supply Module 850 W 24-pin ATX Black
PRICE:
264,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Cooling type: Active
- Number of fans: 1 fan
- Fan bowl diameter: 12 cm
- Product color: Black
- Fan speed: 0 - 2500 RPM
- Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 5 - 10 A
- Power protection features
- Short circuit
- Overheating protection
- Low voltage protection
- Overvoltage protection
- Overcurrent
- Overload protection
- Surge & Inrush
- Total power: 850 W
- Efficiency: 90%
- Good Signal Power Delay Range: 100 - 150 ms
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12V): 70.8 A
- Maximum output current (+5 Vsb): 3 A
- Total power (+12V): 849.6 W
- Maximum output current (-12V): 0.3A
- Maximum output current (+5V): 20A
- Maximum output current (+3.3V): 20 A
- Total power (-12V): 3.6 W
- Total power (+3.3V): 120 W
- Hold time: 16 ms
- Total power (+5V): 120 W
- Total power (+5 Vsb): 15 W
- Weight and dimensions
- Product weight: 2.61 kg
- Product height: 86 mm
- Product depth: 160 mm
- Product width: 150 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- Intended use: PC/server
- 80 PLUS Certificate: 80 PLUS Gold
- Power supply type (PSU): ATX
- MTBF (Mean Time Between Failures): 100000 h
- Bearing technology: HDB
- ATX version: 3.1
- Packaging data
- Weight with packaging: 3 kg
- Package width: 195 mm
- Packaging depth: 320 mm
- Package height: 125 mm
- Certificates
- Certificates of conformity
- RCM
- UKCA
- CCC
- BIS
- Federal Communications Commission (FCC)
- CE
- cTUVus
- EAC
- China Compulsory Certification (CCC)
- Central Committee
- BSMI
- RoHS
- Certificates of conformity
- Ports and interfaces

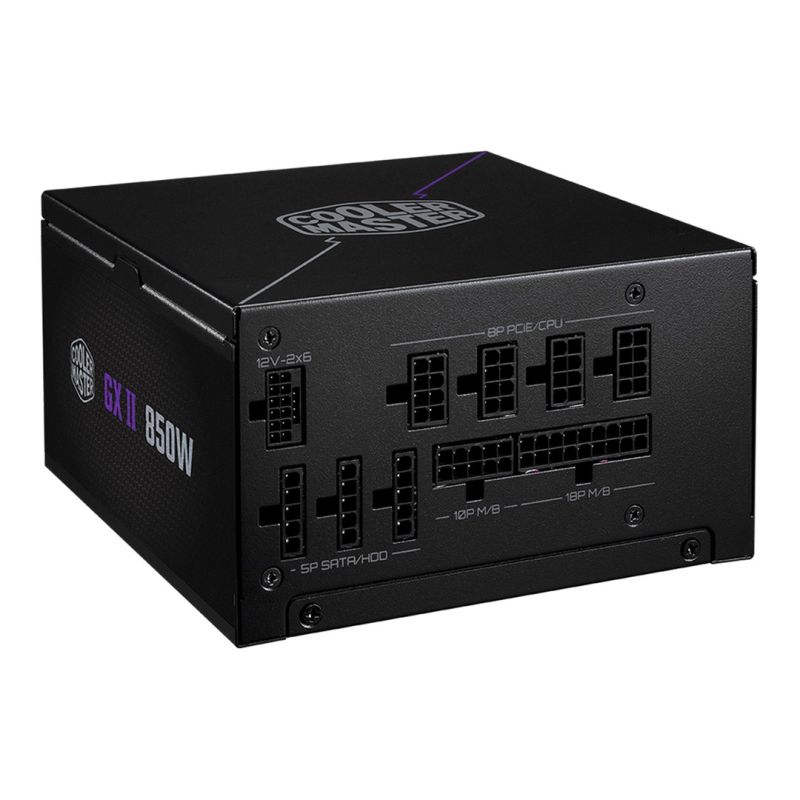

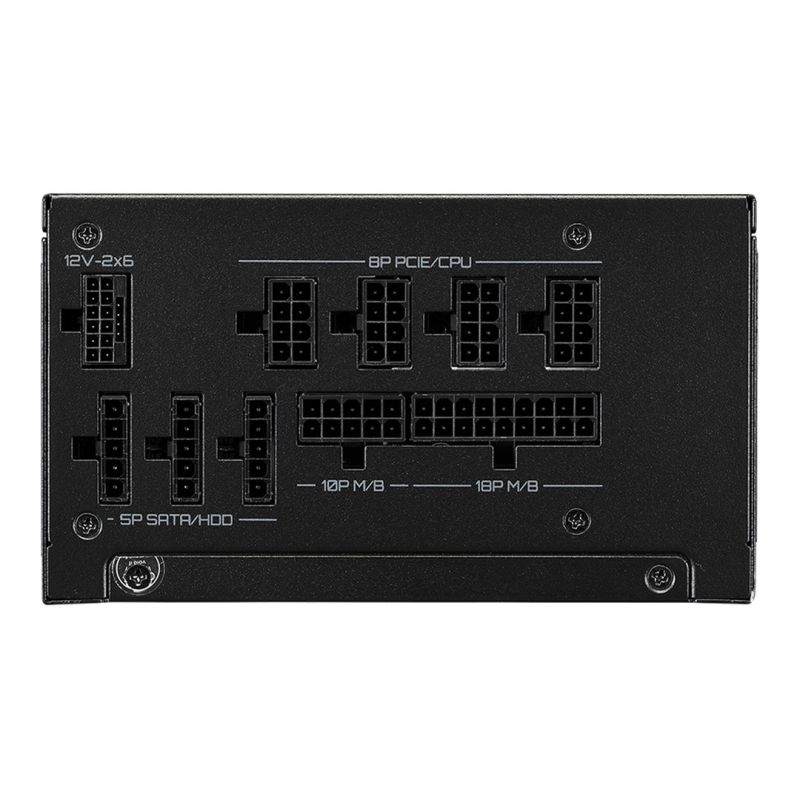

- Peripheral (Molex) Power Connectors (4-pin): 2
- EPS power supply connector (8-pin): Yes
- PCI Express power connectors (6+2 pin): 4
- Wiring Type: Fully Modular
- PCI Express power connectors (12+4 pin) cable length: 650 mm
- Peripheral (Molex) Power Cable Length
- 740
- 860 mm
- 620
- 500 mm
- SATA power cable length
- 620
- 860 mm
- 500 mm
- 740
- PCI Express power cable length: 62 cm
- Number of SATA power connectors: 6
- Motherboard power connector: 24-pin ATX
- EPS power connector (4+4 pin): Yes
- Motherboard cable length: 55 cm
- PCI Express power connectors (12+4 pin): 1
- Other functions
- EPS cable length: 60 cm
- Logistics data
- Collective (external) boxes per pallet: 24 pcs.
- Products in the main (outer) box: 4 pcs.
- Height of the standard (outer) box: 231 mm
- Width of the collection box (external): 335 mm
- Main (outer) case length: 520 mm
