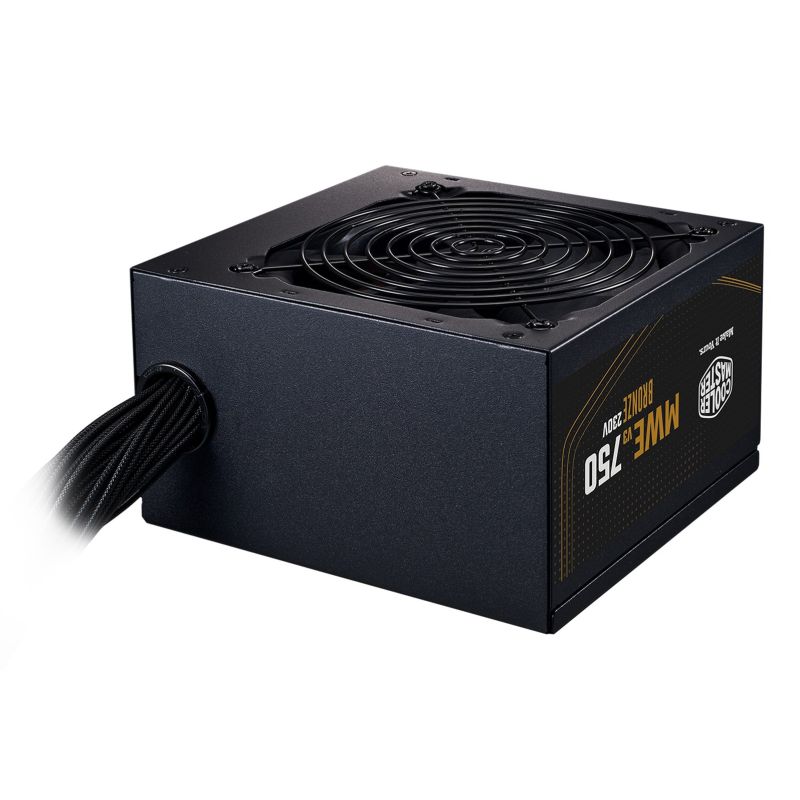

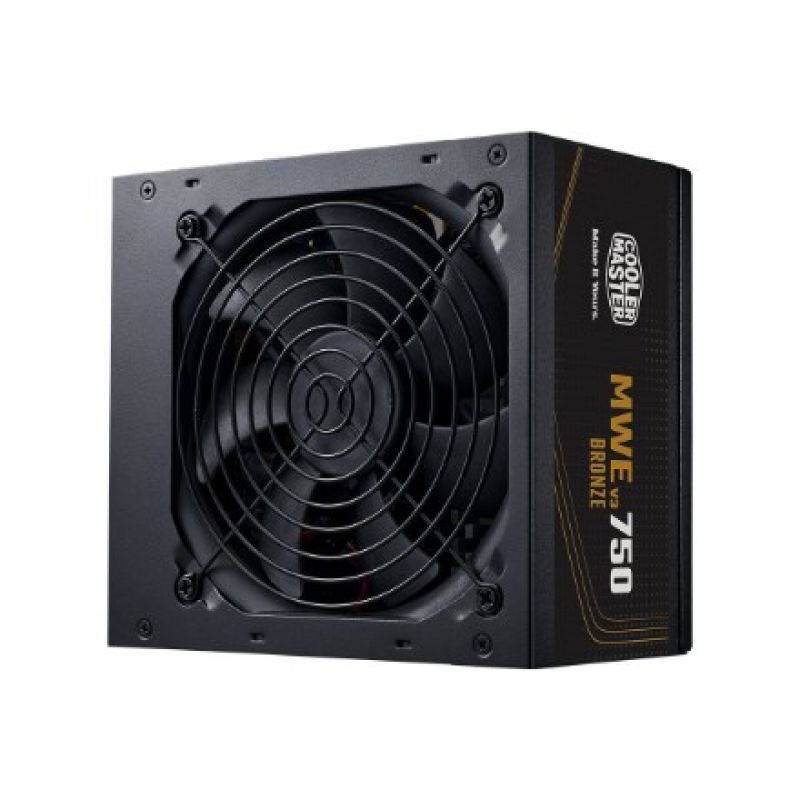

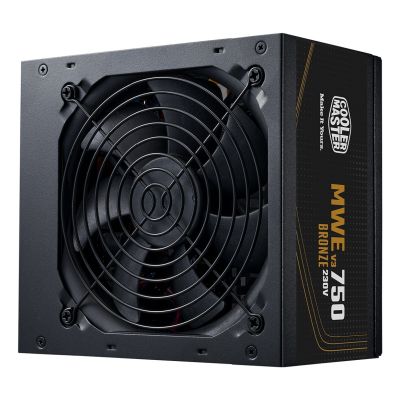

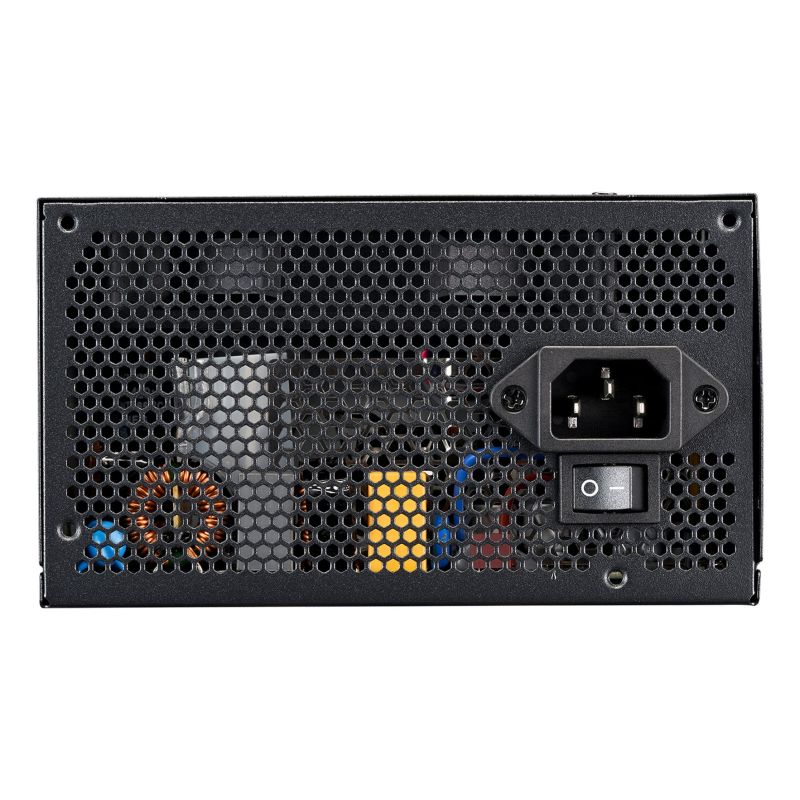

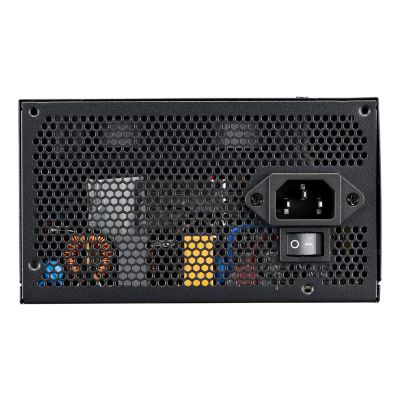

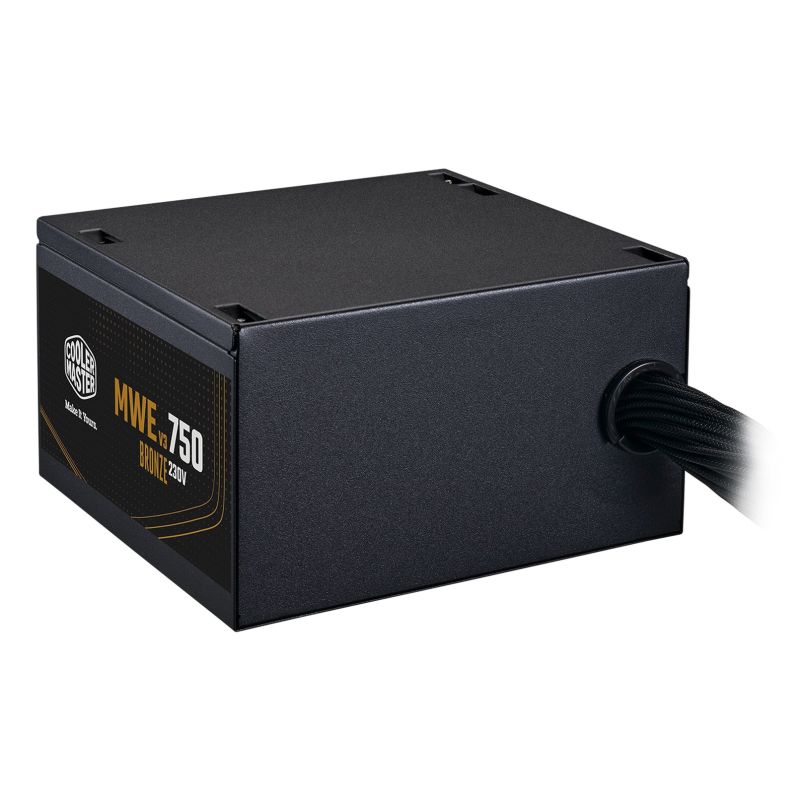

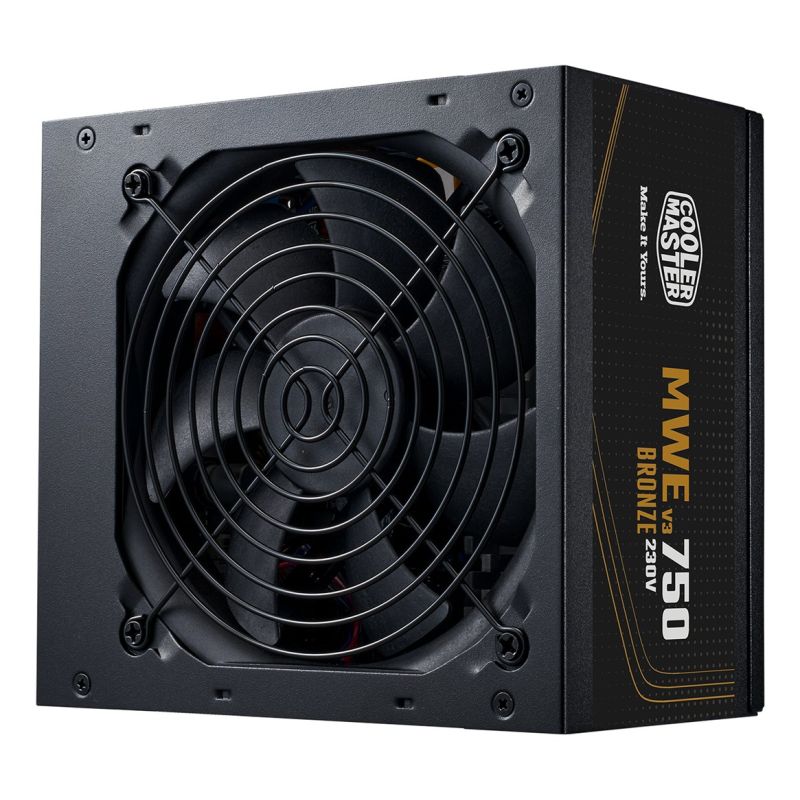

Cooler Master MWE Bronze 750 V3 230V Power Supply Module 750 W 24-pin ATX ATX Black
Cooler Master MWE Bronze 750 V3 230V Power Supply Module 750 W 24-pin ATX ATX Black
Cooler Master MWE Bronze 750 V3 230V Power Supply Module 750 W 24-pin ATX ATX Black
PRICE:
123,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Built-in switch: Yes
- Number of fans: 1 fan
- Product color: Black
- Cooling type: Active
- Fan bowl diameter: 12 cm

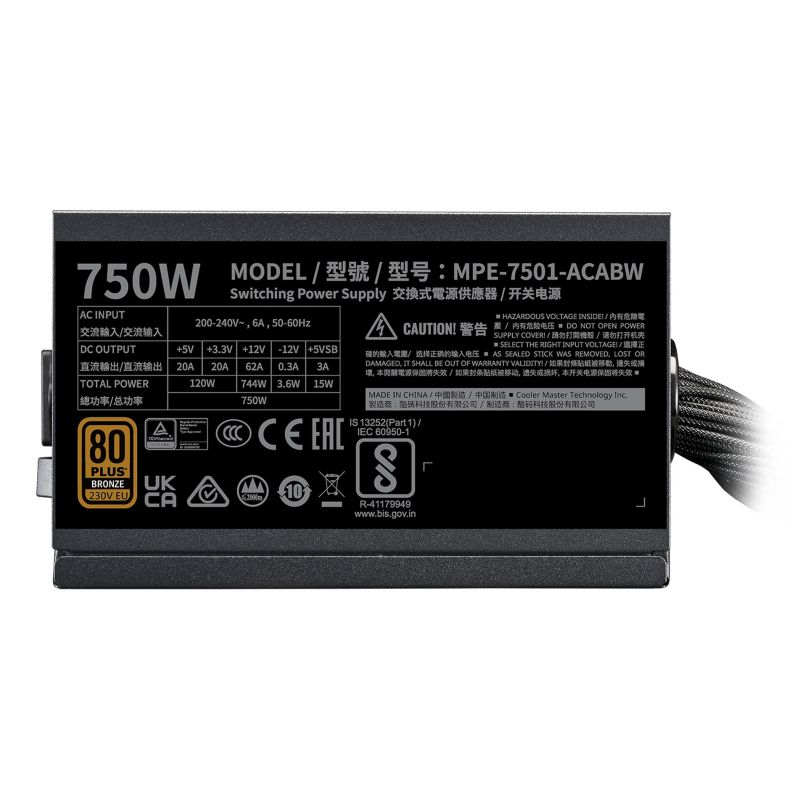

- Power
- Total power (+5V): 120 W
- Total power (+5 Vsb): 15 W
- Maximum output current (+3.3V): 20 A
- Power protection features
- Short circuit
- Protection against overvoltage
- Overload protection
- Low voltage protection
- AC input voltage: 220 - 240 V
- Total power (+3.3V): 120 W
- AC input frequency: 50/60 Hz
- Total power: 750 W
- Hold time: 16 ms
- Maximum output current (-12V): 0.3A
- Efficiency: 88%
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+5V): 20A
- Total power (+12V): 744 W
- Maximum output current (+5 Vsb): 3 A
- Input current: 6 A
- Maximum output current (+12V): 62A
- Total power (-12V): 3.6 W
- Good Signal Power Delay Range: 100 - 500 ms
- Weight and dimensions
- Product weight: 1.75 kg
- Product height: 86 mm
- Product depth: 140 mm
- Product width: 150 mm
- Efficiency
- Intended use: PC
- 80 PLUS Certificate: 80 PLUS Bronze
- Bearing technology: HDB
- ATX version: 3.1
- MTBF (Mean Time Between Failures): 100000 h
- Power supply type (PSU): ATX
- Packaging data
- Packaging type: Box
- Weight with packaging: 2.15 kg
- Package height: 110 mm
- Package width: 245 mm
- Packaging depth: 190 mm
- Certificates
- Certificates of conformity
- UKCA
- Central Committee
- RCM
- RoHS
- TÜV mark
- CE
- EAC
- Federal Communications Commission (FCC)
- China Compulsory Certification (CCC)
- BIS
- Certificates of conformity
- Ports and interfaces
- PCI Express power connectors (6+2 pin): 4
- Peripheral (Molex) Power Connectors (4-pin): 3
- Wiring Type: Non-Modular
- Motherboard power connector: 24-pin ATX
- ATX power socket (24-pin): Yes
- SATA power cable length
- 550
- 700 mm
- 400
- Motherboard cable length: 50 cm
- EPS power supply connector (8-pin): Yes
- Peripheral (Molex) Power Cable Length
- 550
- 700
- 400 mm
- EPS power connector (4+4 pin): Yes
- Number of SATA power connectors: 6
| Name | Details |
|---|---|
| Producer | Cooler Master |
