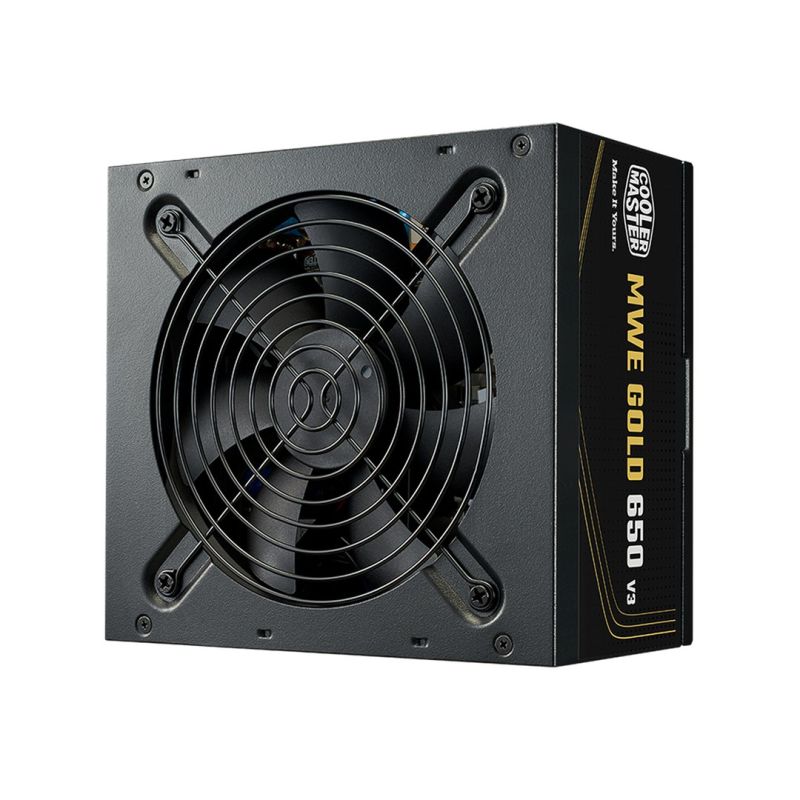

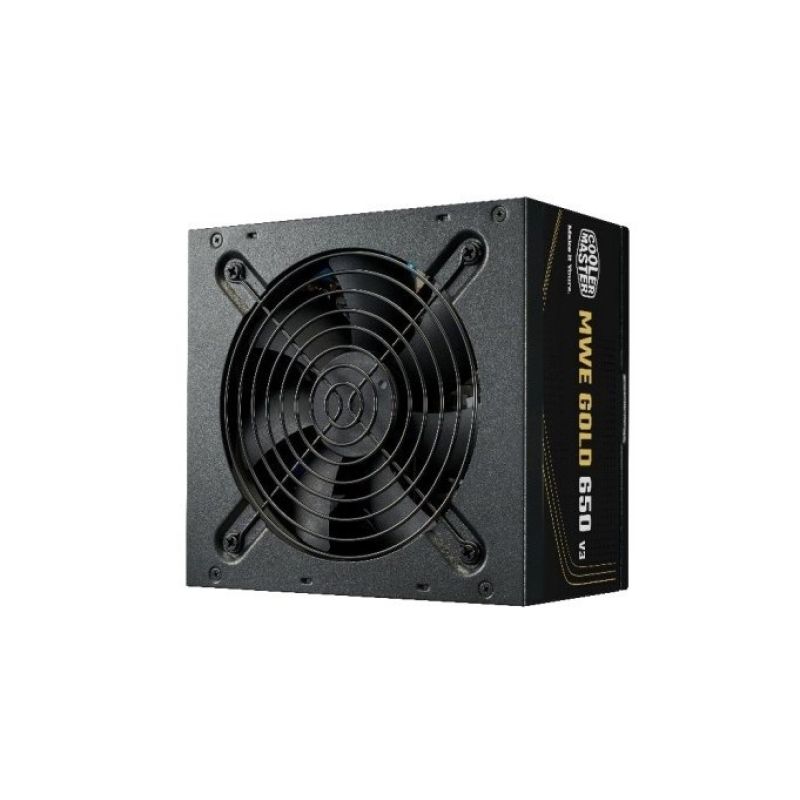

CoolerMaster MWE 650W V3 NM FR Gold Power Supply
CoolerMaster MWE 650W V3 NM FR Gold Power Supply
CoolerMaster MWE 650W V3 NM FR Gold Power Supply
PRICE:
135,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Cooling type: Active
- Fan bowl diameter: 12 cm
- Number of fans: 1 fan
- Fan speed: 0 - 2400 RPM
- Power
- Total power (+12V): 648 W
- Total power (+5V): 120 W
- AC input frequency: 50/60 Hz
- Total power (+5 Vsb): 15 W
- Input current: 5 - 10 A
- Total power: 650 W
- Efficiency: 90%
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12V): 54 A
- Maximum output current (+3.3V): 20 A
- AC input voltage: 100 - 240 V
- Total power (-12V): 3.6 W
- Power protection features
- Overvoltage protection
- Short circuit
- Overload protection
- Low voltage protection
- Overheating protection
- Overcurrent
- Total power (+3.3V): 120 W
- Hold time: 16 ms
- Maximum output current (-12V): 0.3A
- Maximum output current (+5V): 20A
- Maximum output current (+5 Vsb): 3 A
- Good Signal Power Delay Range: 100 - 150 ms
- Weight and dimensions
- Product height: 86 mm
- Product depth: 140 mm
- Product width: 150 mm
- Product weight: 1.7 kg
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Efficiency
- Intended use: PC/server
- 80 PLUS Certificate: 80 PLUS Gold
- ATX version: 3.1
- Bearing technology: HDB
- Power supply type (PSU): ATX
- MTBF (Mean Time Between Failures): 100000 h
- Packaging data
- Package height: 110 mm
- Package width: 190 mm
- Weight with packaging: 2.11 kg
- Package depth: 260 mm
- Certificates
- Certificates of conformity
- UKCA
- REACH
- RCM
- CCC
- Federal Communications Commission (FCC)
- RoHS
- cTUVus
- EAC
- BIS
- China Compulsory Certification (CCC)
- BSMI
- Central Committee
- Certificates of conformity
- Ports and interfaces
- PCI Express power connectors (6+2 pin): 4
- Motherboard cable length: 50 cm
- Wiring Type: Non-Modular
- Peripheral (Molex) Power Connectors (4-pin): 3
- EPS power supply connector (8-pin): Yes
- EPS power connector (4+4 pin): Yes
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 6
- PCI Express slot: Yes
- PCI Express power cable length: 62 cm
- SATA power cable length
- 700 mm
- 400 mm
- 550
- Peripheral (Molex) Power Cable Length
- 700
- 550
- 400 mm
- Number of EPS connectors: 2
- Other functions
- EPS cable length: 67 cm
- Logistics data
- Main (outer) case length: 570 mm
- Width of the collection box (external): 275 mm
- Height of the standard (outer) box: 215 mm
- Collective (external) boxes per pallet: 120 pcs.
