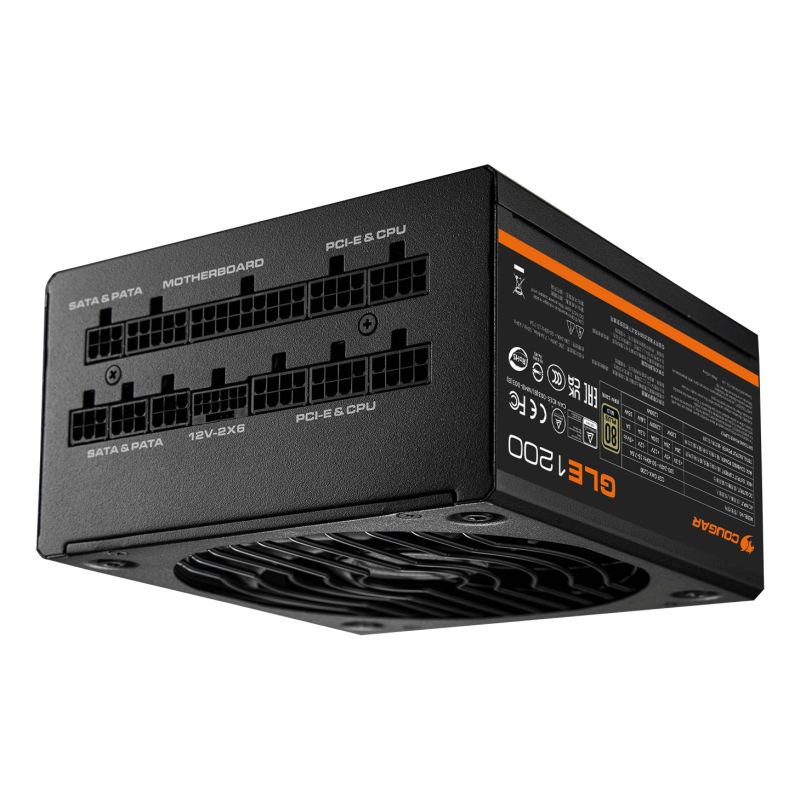

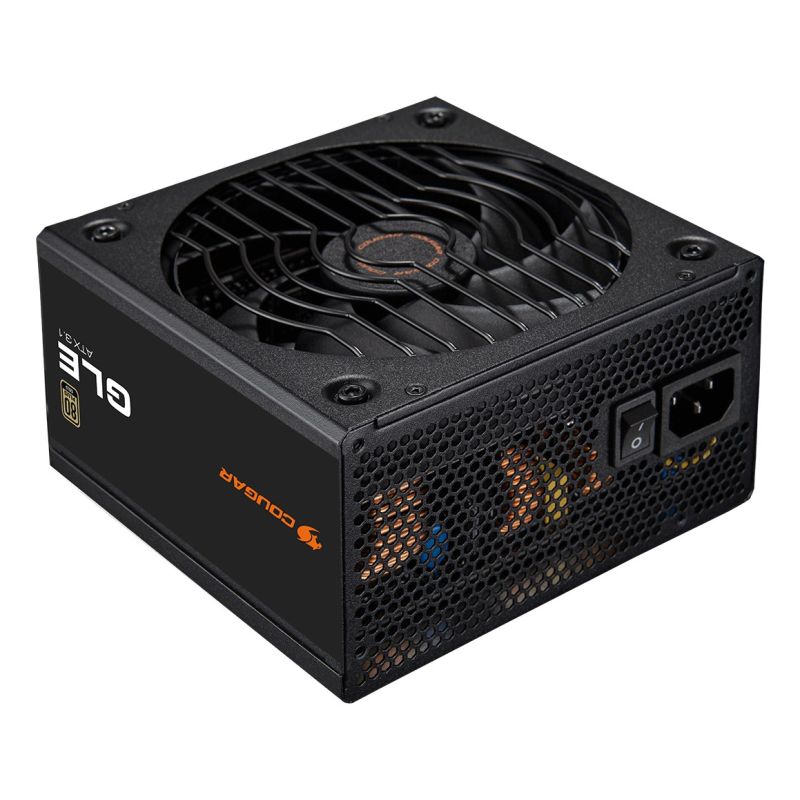

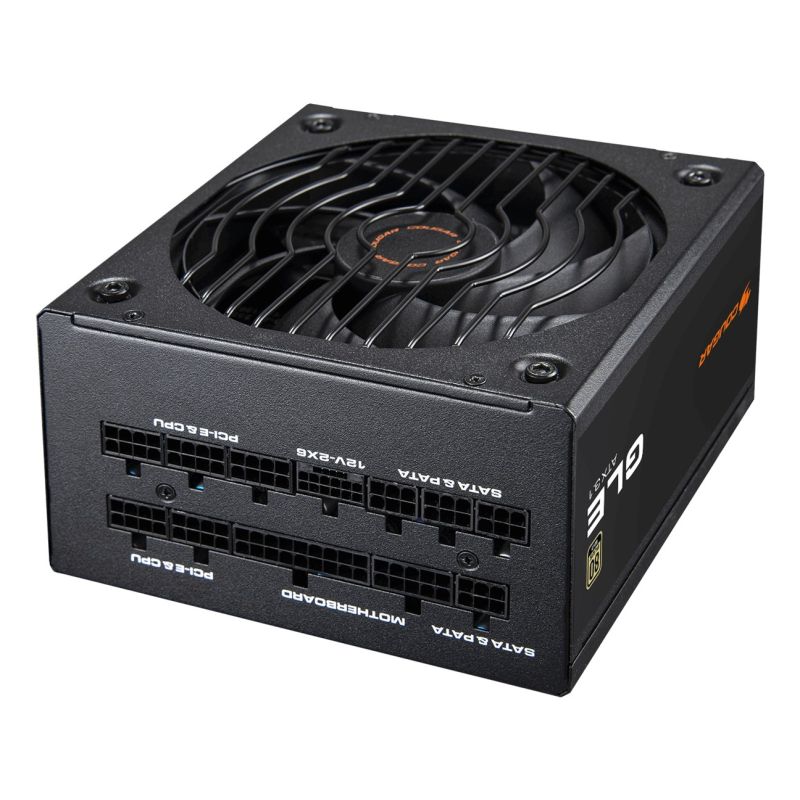

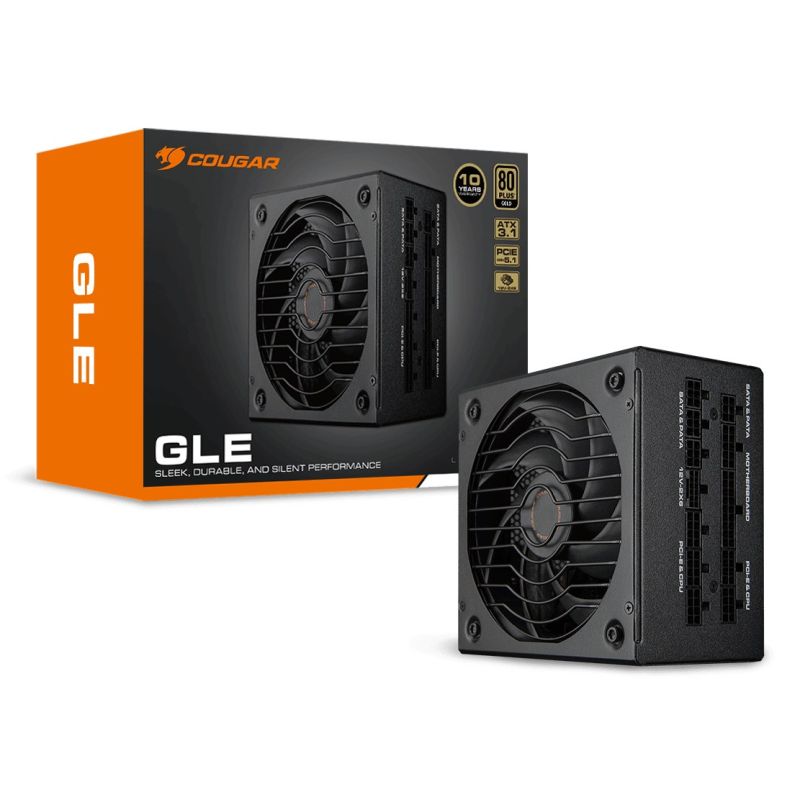

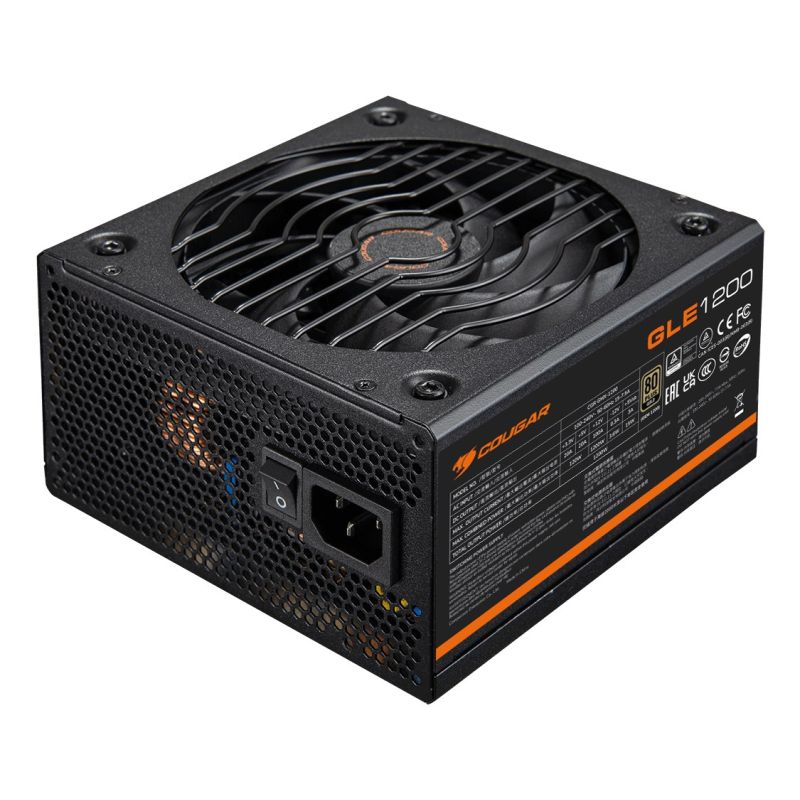

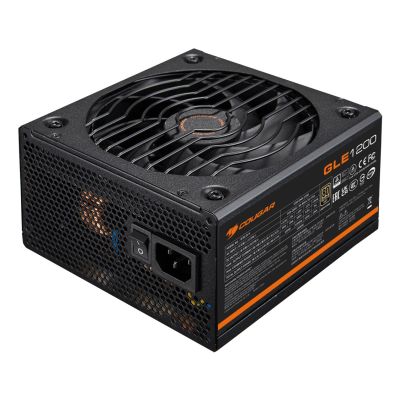

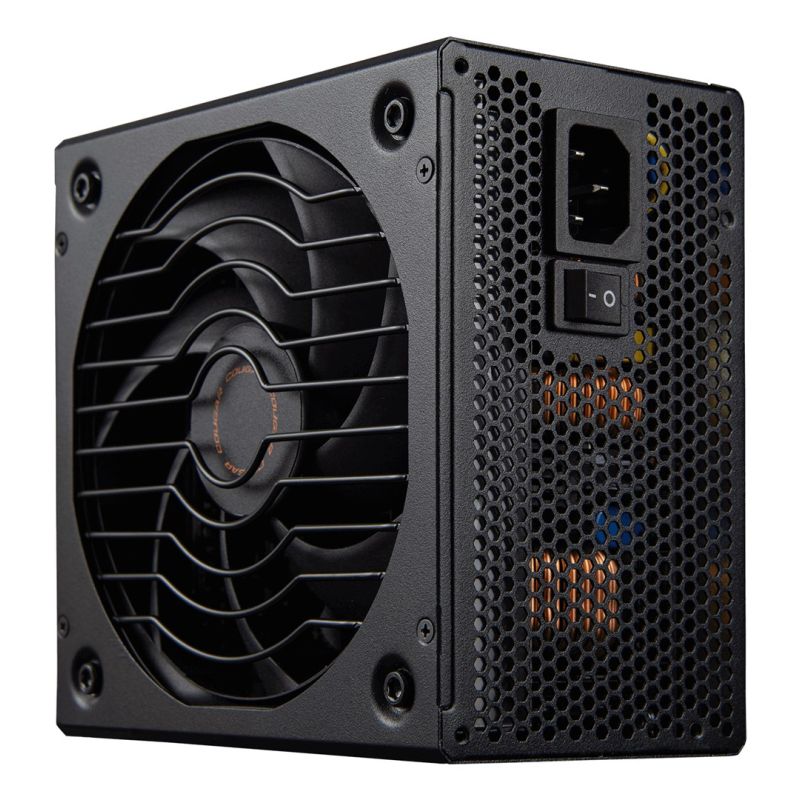

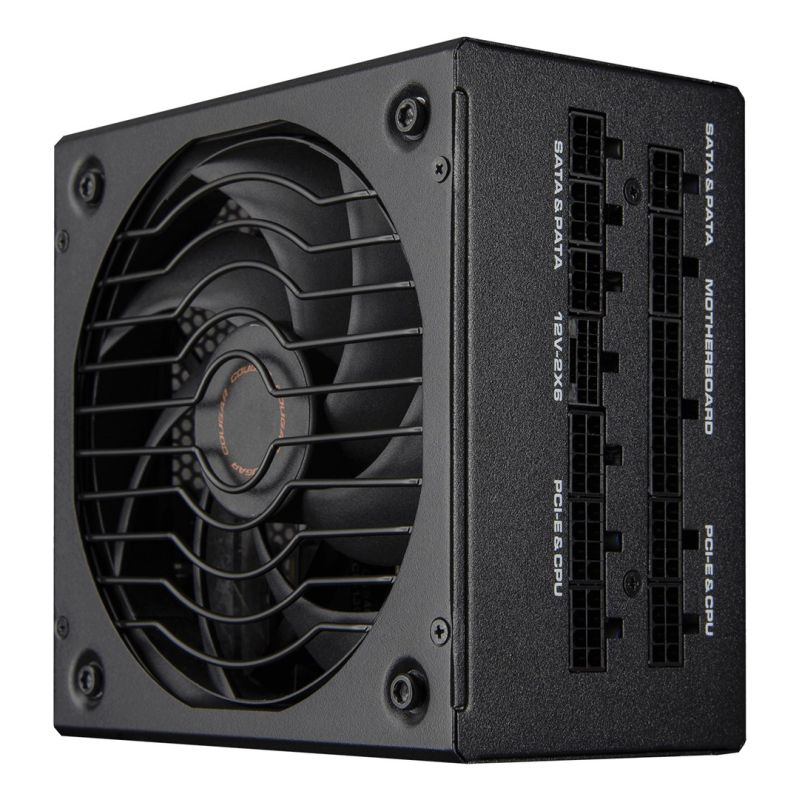

COUGAR CGR GLE-1000 Power Supply Module 1000 W 20+4 pin ATX ATX Black
COUGAR CGR GLE-1000 Power Supply Module 1000 W 20+4 pin ATX ATX Black
COUGAR CGR GLE-1000 Power Supply Module 1000 W 20+4 pin ATX ATX Black
PRICE:
219,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!

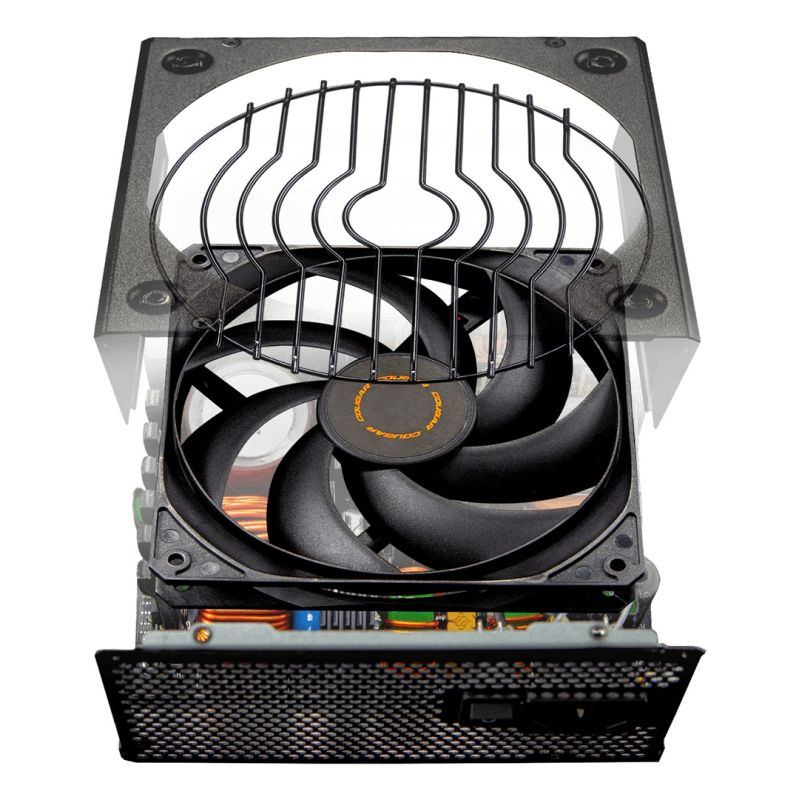

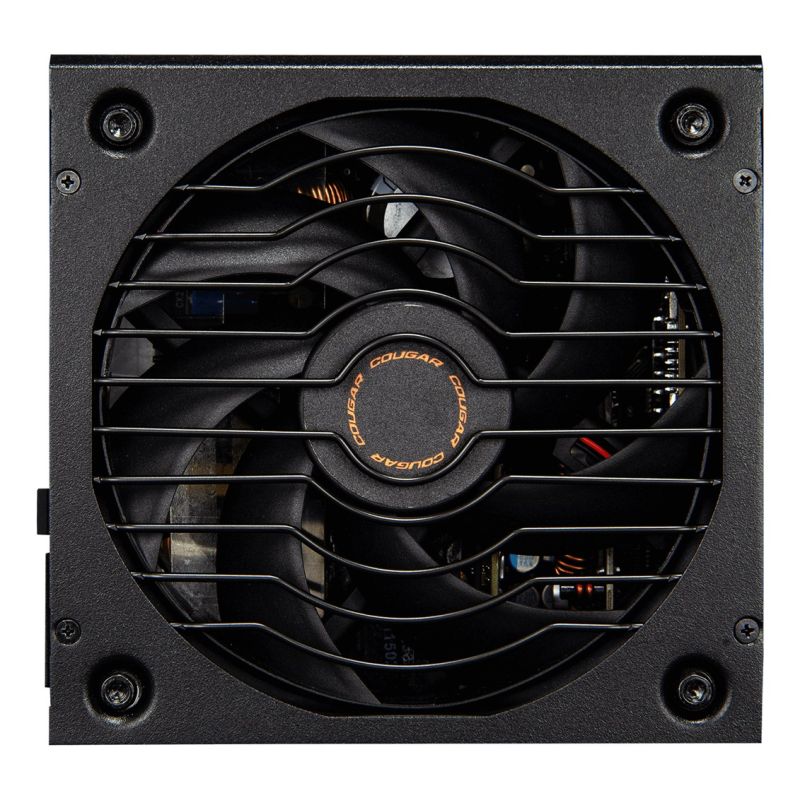

- Design
- Number of fans: 1 fan
- Product color: Black
- Fan Location: Top
- Cooling type: Active
- Fan bowl diameter: 13.5 cm

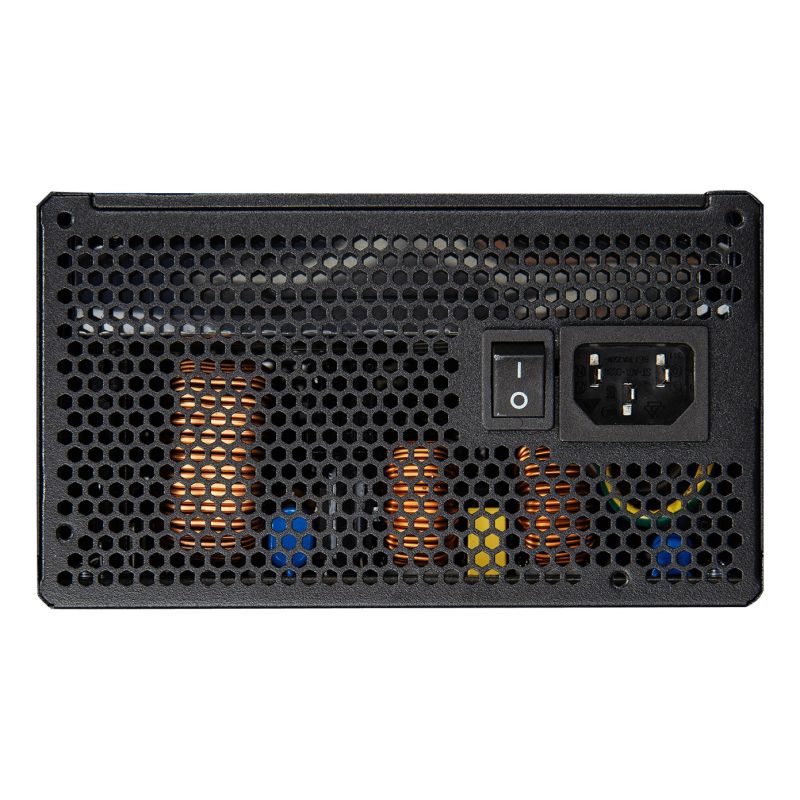

- Built-in switch: Yes

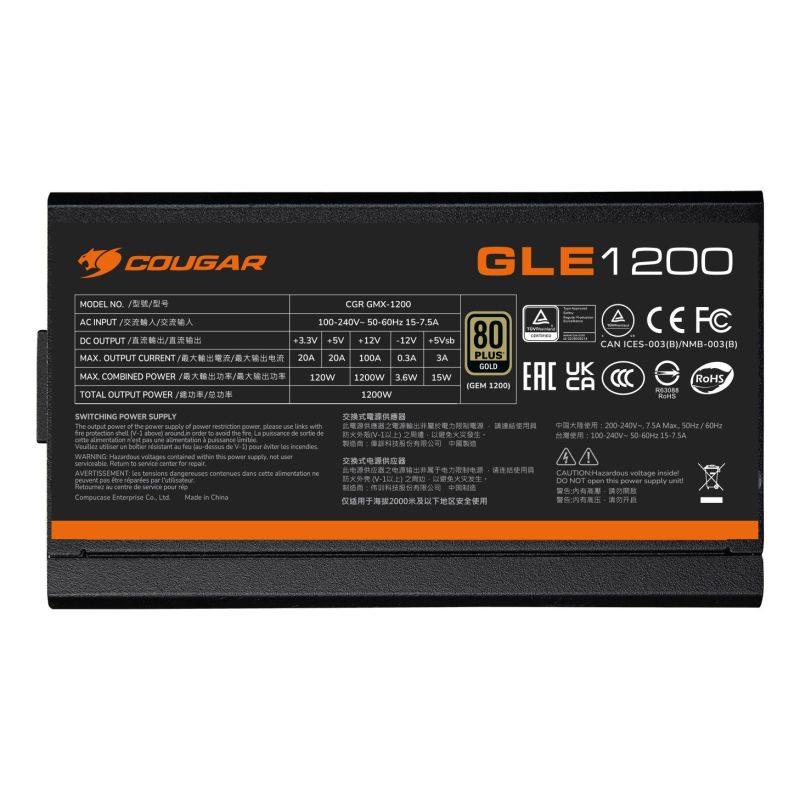

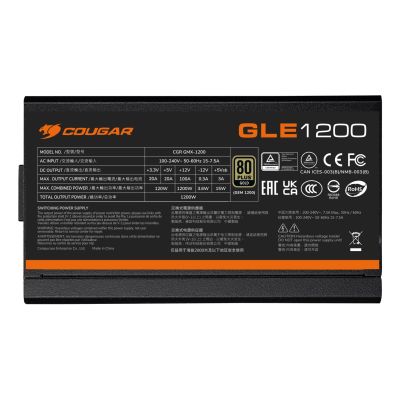

- Power
- Maximum output current (+3.3V): 20 A
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Total power (+5 Vsb): 15 W
- Total power (+12V): 1000 W
- Total power: 1000 W
- Input current: 15-7.5 A
- Total power (-12V): 3.6 W
- Power protection features
- Low voltage protection
- Overload protection
- Protection against overvoltage
- Overcurrent
- Short circuit
- Overheating protection
- Maximum output current (+12V): 83.3A
- Total power (+5V): 120 W
- Efficiency: 91%
- Total power (+3.3V): 120 W
- Maximum output current (+5V): 20A
- Maximum output current (-12V): 0.3A
- Maximum output current (+5 Vsb): 3 A
- Weight and dimensions
- Product width: 150 mm
- Product weight: 2.65 kg
- Product depth: 150 mm
- Product height: 86 mm
- Working conditions
- Temperature range (operation): 10 - 40 °C
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 20 - 85%
- Temperature range (storage): -40 - 70 °C
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- Bearing technology: HDB
- ATX version: 3.1
- Intended use: PC
- Power supply type (PSU): ATX
- 80 PLUS Certificate: 80 PLUS Gold
- Packaging data
- Packaging type: Box
- Package depth: 316 mm
- Package height: 107 mm
- Weight with packaging: 3.85 kg
- Package width: 220 mm
- Certificates
- Certificates of conformity
- UKCA
- Federal Communications Commission (FCC)
- CCC
- RoHS
- CE
- EAC
- Certificates of conformity

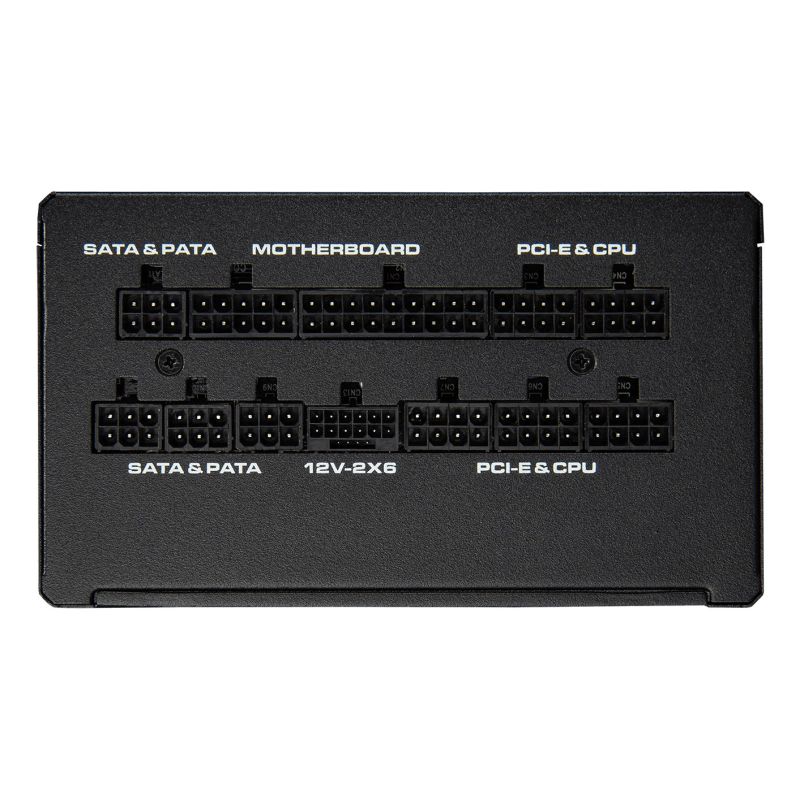

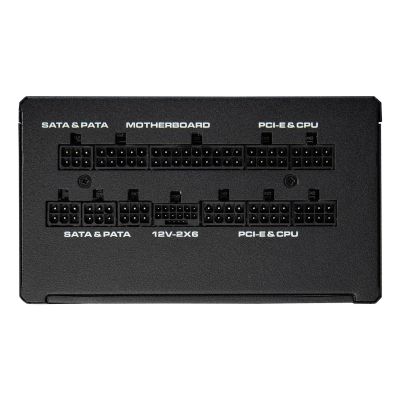

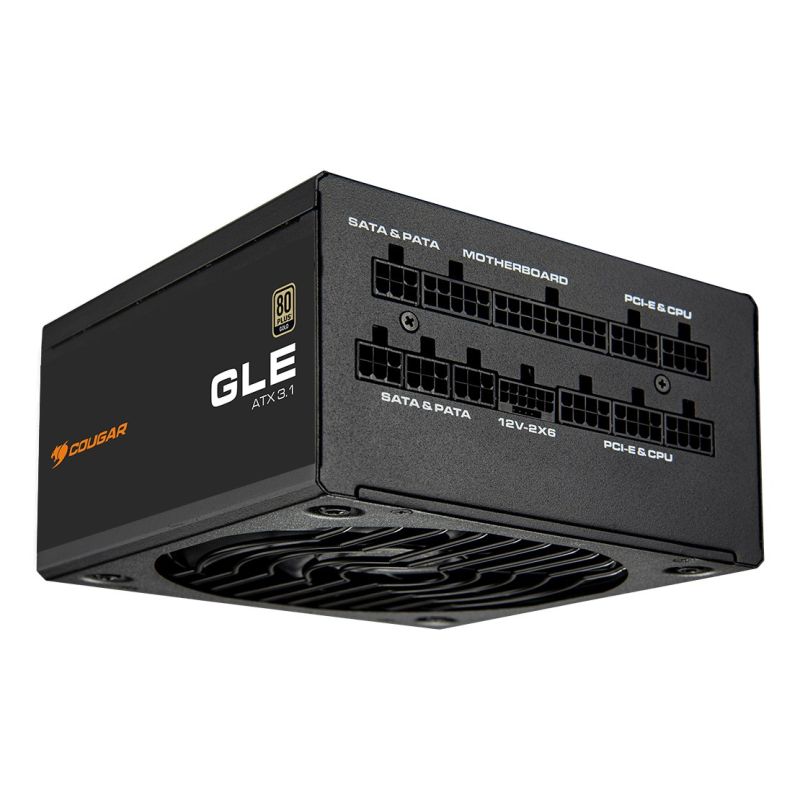

- Ports and interfaces
- PCI Express power connectors (12+4 pin): 1
- PCI Express power connectors (12+4 pin) cable length: 650 mm
- PCI Express power connectors (6+2 pin): 6
- SATA power cable length
- 500 mm
- 800 mm
- 950 mm
- 650
- Wiring Type: Fully Modular
- Peripheral (Molex) Power Connectors (4-pin): 4
- Motherboard cable length: 60 cm
- CPU power supply connector (4+4 pin): Yes
- Motherboard power connector: 20+4 pin ATX
- PCI Express power cable length: 65 cm
- CPU power cable length: 65 cm
- PCI Express slot: Yes
- Number of SATA power connectors: 12
| Name | Details |
|---|---|
| Producer | COUGAR |
