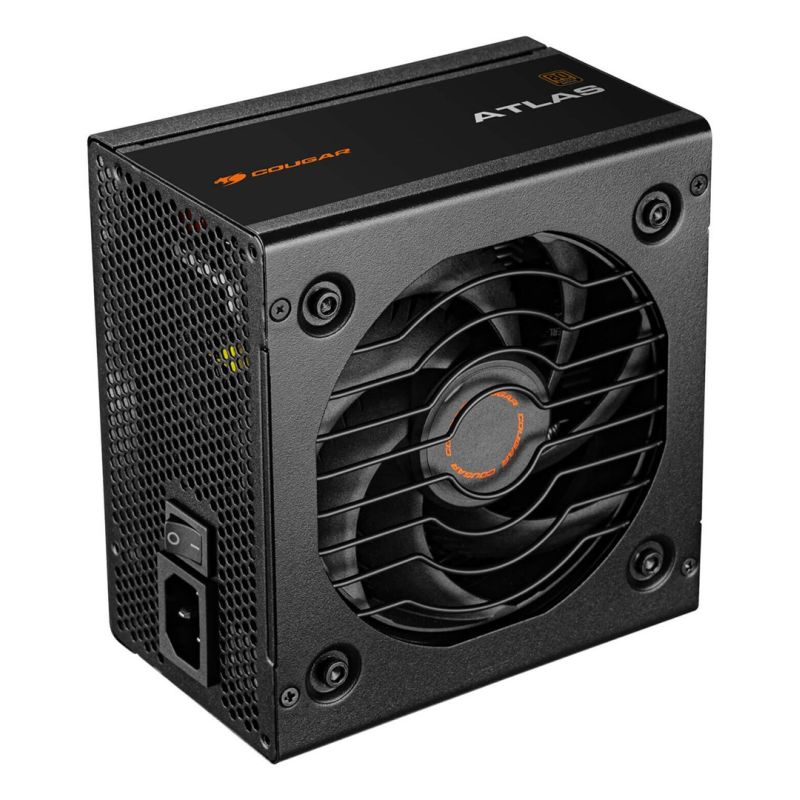

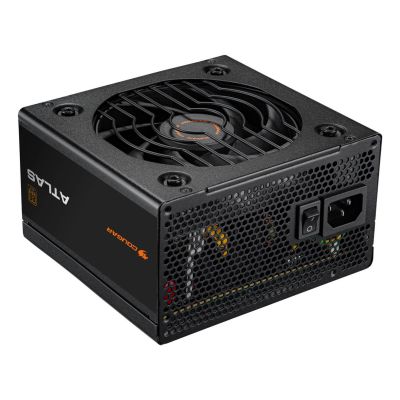

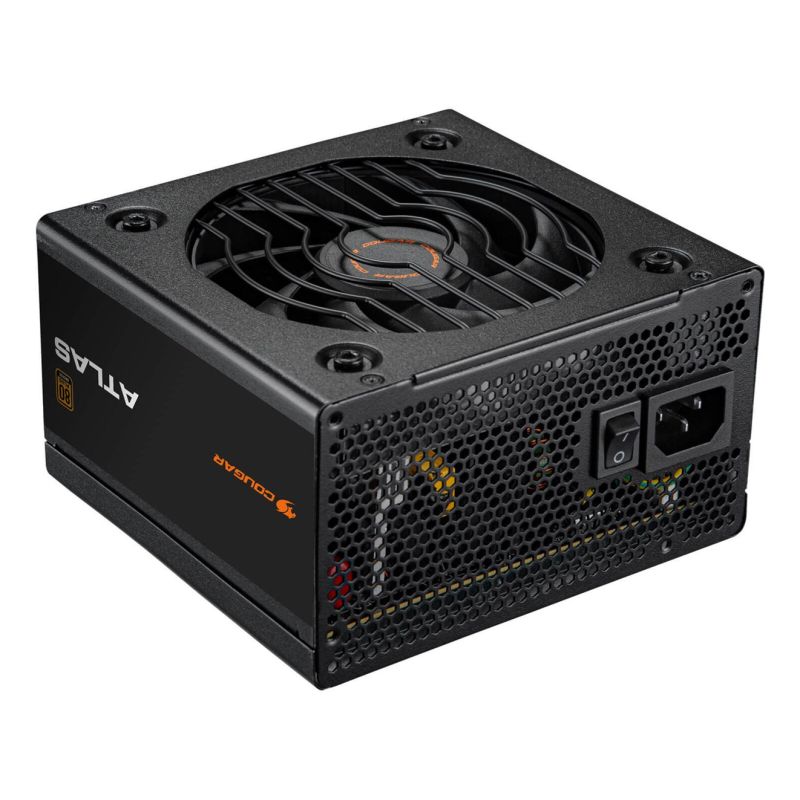

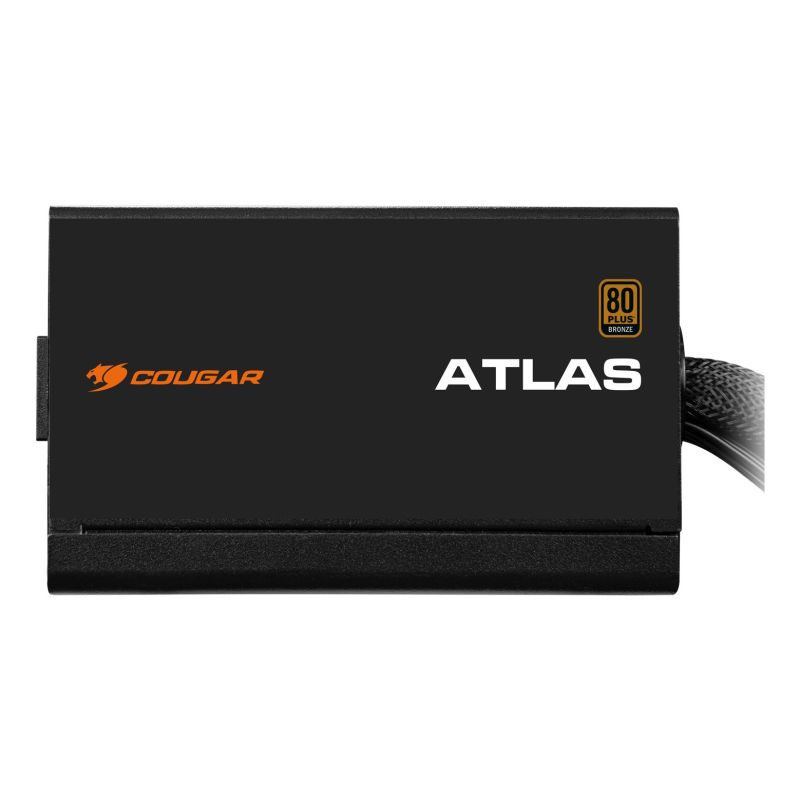

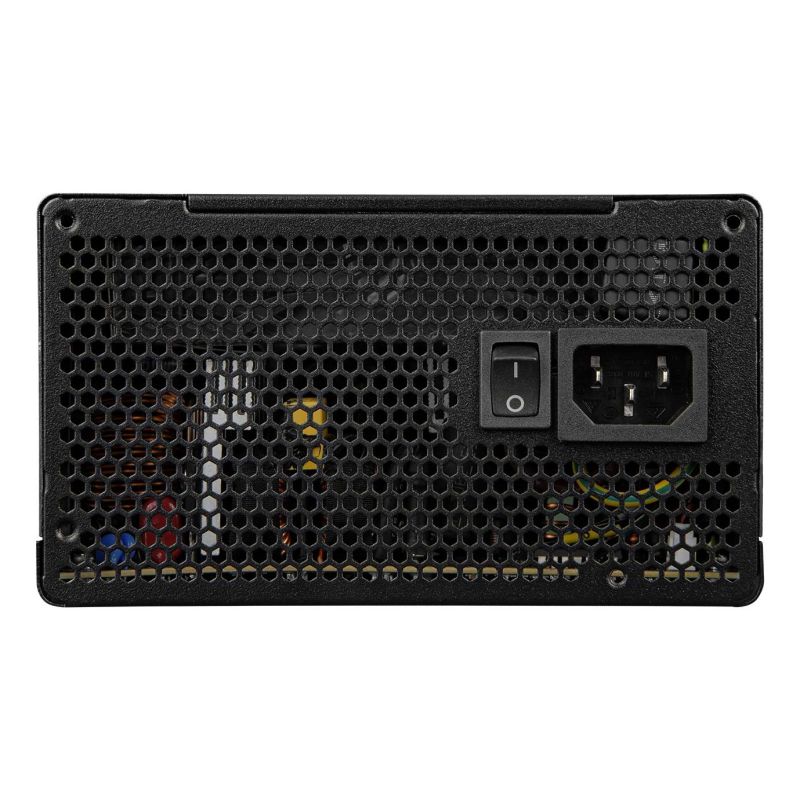

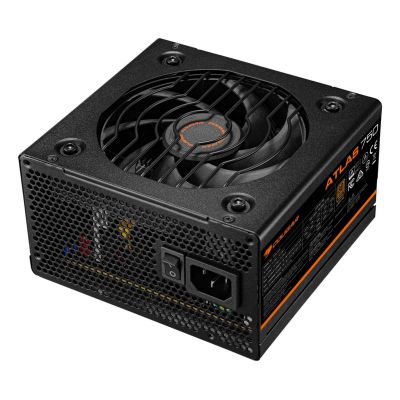

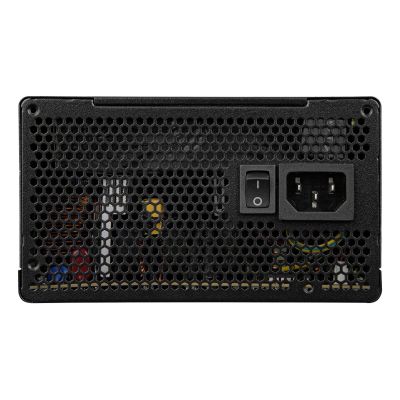

COUGAR CGRBD-550 Power Supply Module 550 W 20+4 pin ATX Black
COUGAR CGRBD-550 Power Supply Module 550 W 20+4 pin ATX Black
COUGAR CGRBD-550 Power Supply Module 550 W 20+4 pin ATX Black
PRICE:
81,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Number of fans: 1 fan
- Fan Location: Top
- Product color: Black
- Fan bowl diameter: 12 cm
- Cooling type: Active
- Built-in switch: Yes
- Power
- Total power (-12V): 3.6 W
- Total power (+12V): 528 W
- Maximum output current (+5 Vsb): 3 A
- AC input frequency: 50/60 Hz
- Total power: 550 W
- Maximum output current (+12V): 44 A
- Input current: 10 - 5 A
- Efficiency: 87%
- Maximum output current (+3.3V): 24 A
- Maximum output current (+5V): 20A
- Maximum output current (-12V): 0.3A
- AC input voltage: 100 - 240 V
- Total power (+5 Vsb): 15 W
- Total power (+5V): 120 W
- Power protection features
- Low voltage protection
- Protection against overvoltage
- Overcurrent
- Short circuit
- Overheating protection
- Overload protection
- Total power (+3.3V): 120 W
- Weight and dimensions
- Product width: 150 mm
- Product weight: 1.55 kg
- Product depth: 140 mm
- Product height: 86 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS Bronze
- Intended use: PC/server
- Packaging data
- Package depth: 187 mm
- Package height: 165 mm
- Package width: 158 mm
- Weight with packaging: 1.85 kg

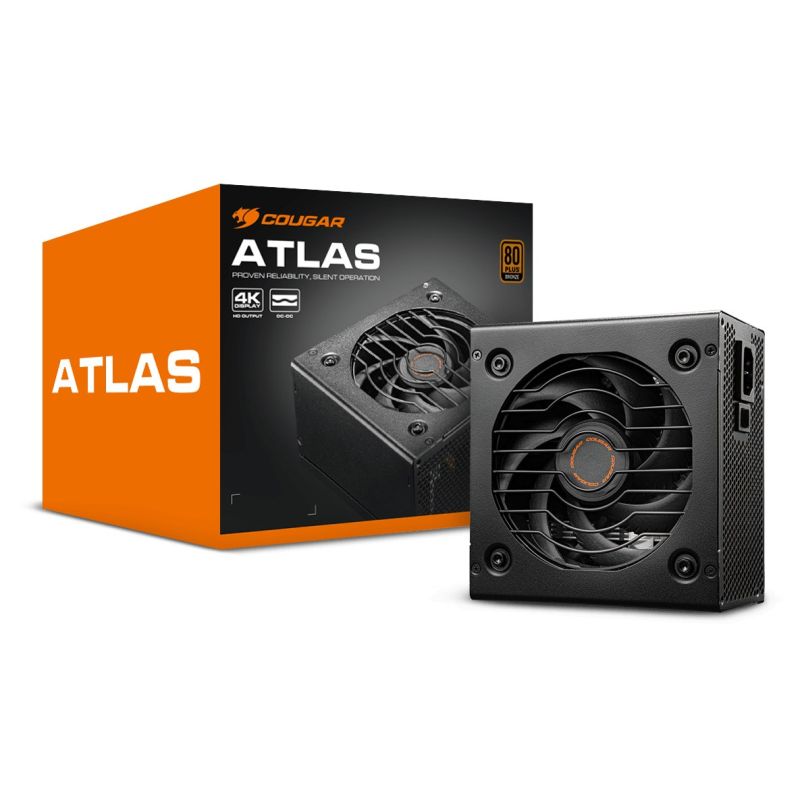

- Packaging type: Box
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- RoHS
- CE
- EAC
- CCC
- Certificates of conformity
- Ports and interfaces
- Number of PATA power connectors: 2
- PCI Express power connectors (6+2 pin): 2
- Number of SATA power connectors: 6
- PCI Express power cable length: 55 cm
- CPU power cable length: 70 cm
- Wiring Type: Non-Modular
- SATA power cable length
- 150
- 450
- Motherboard cable length: 50 cm
- Motherboard power connector: 20+4 pin ATX
- PCI Express slot: Yes
- CPU power supply connector (4+4 pin): Yes
| Name | Details |
|---|---|
| Producer | COUGAR |
