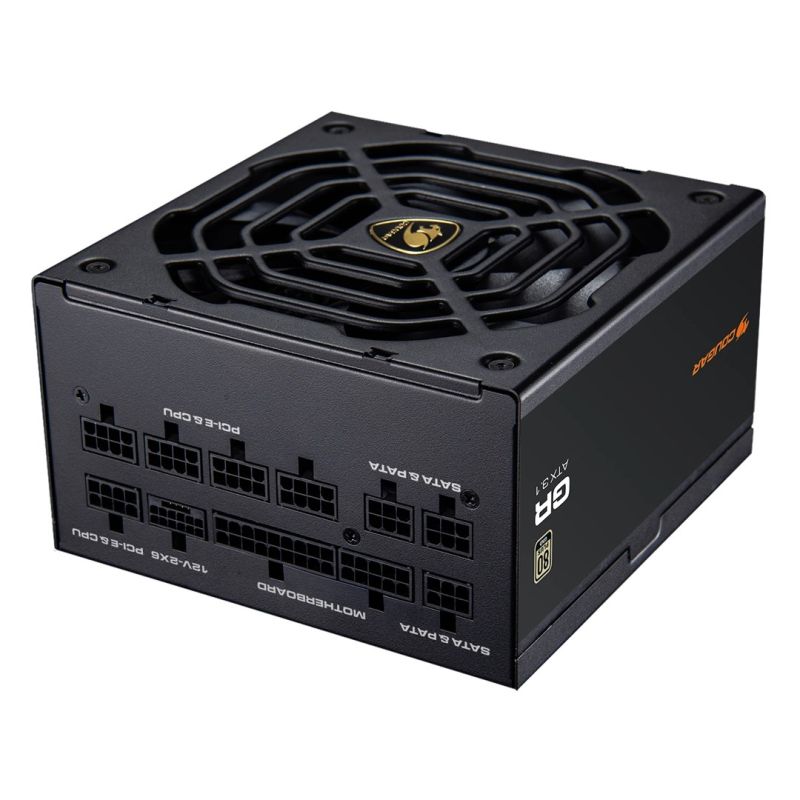

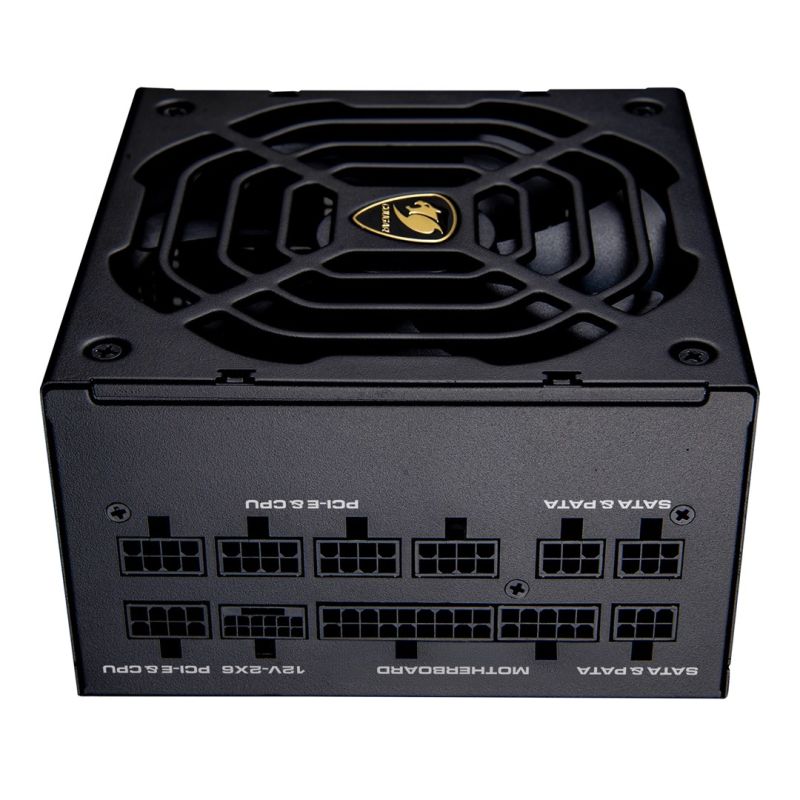

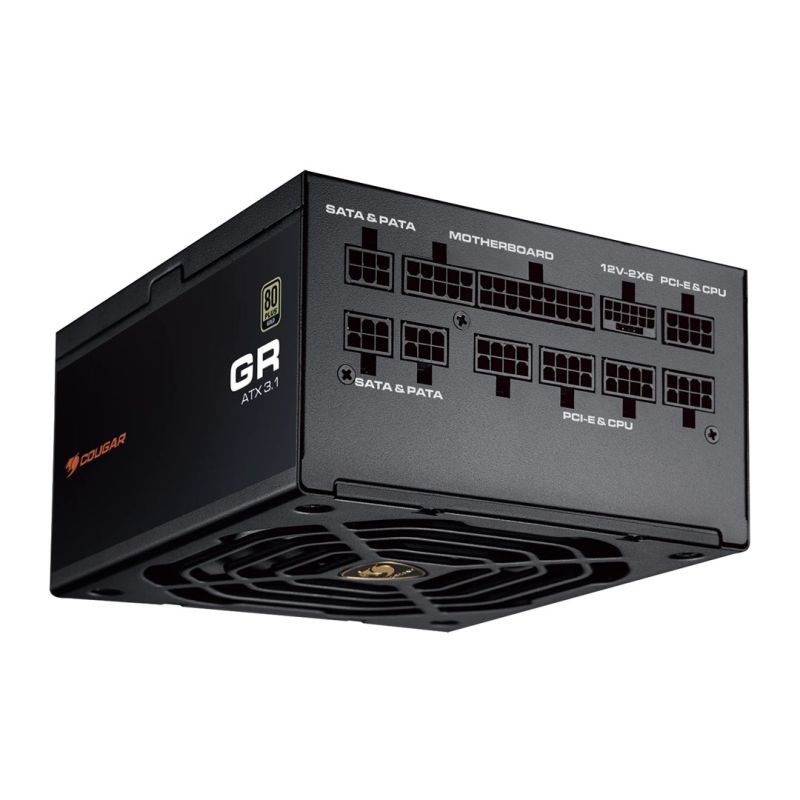

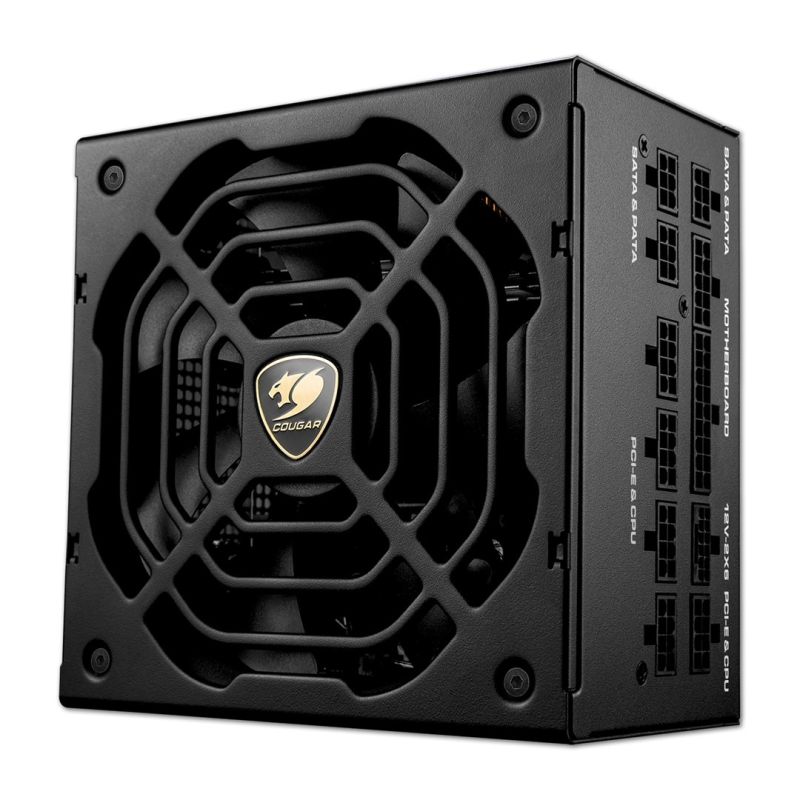

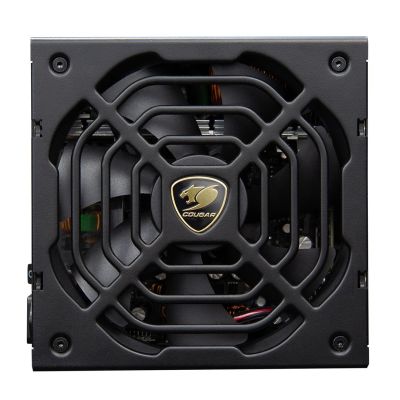

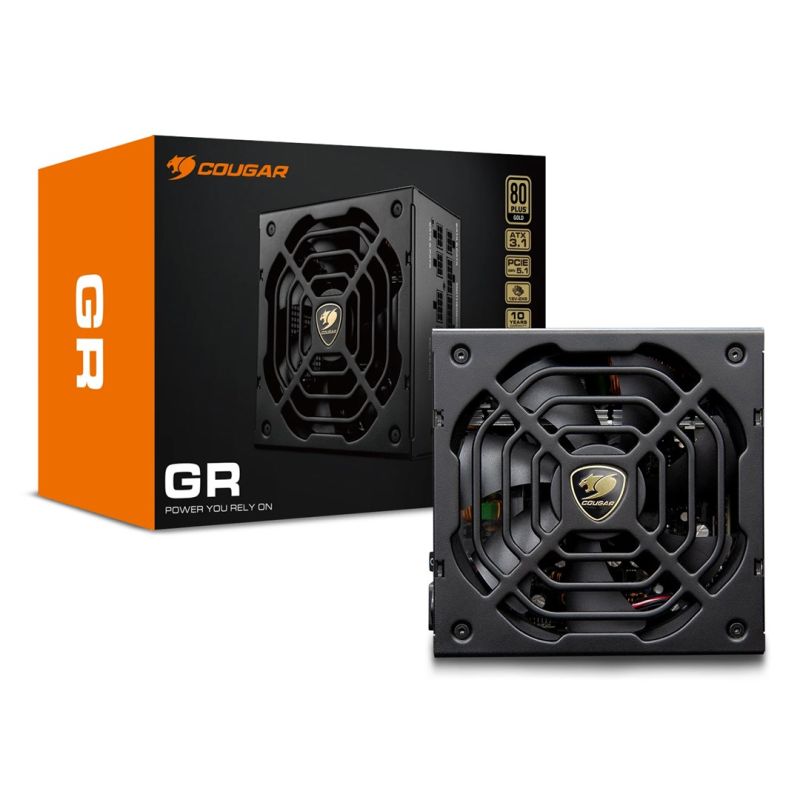

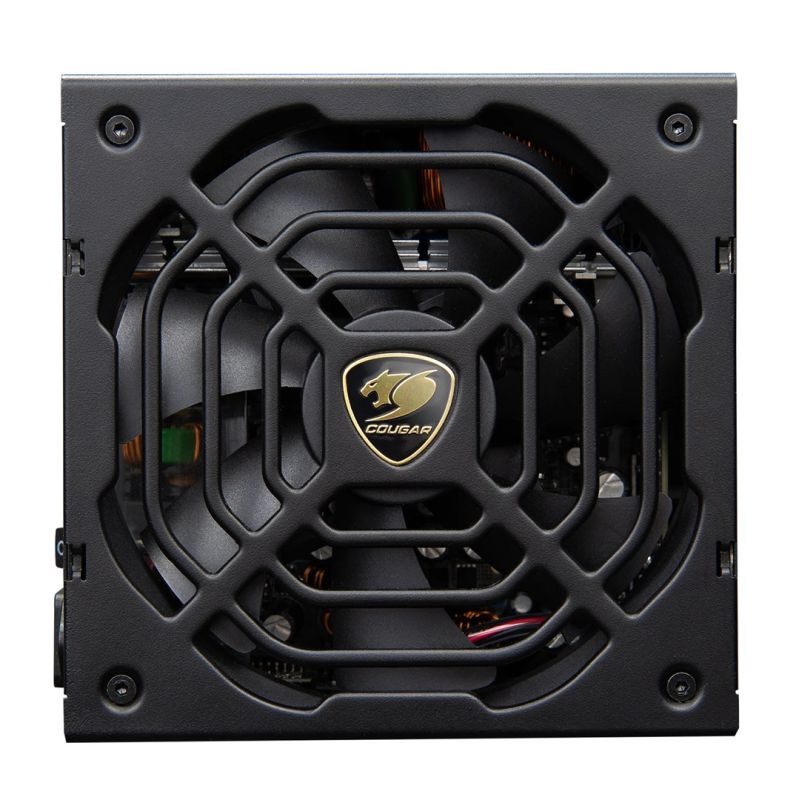

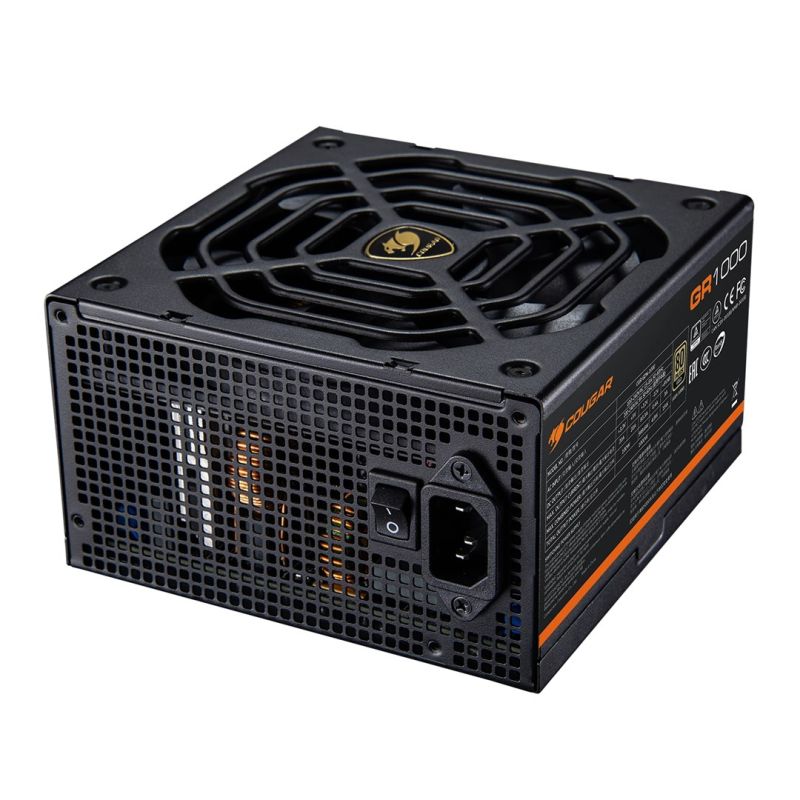

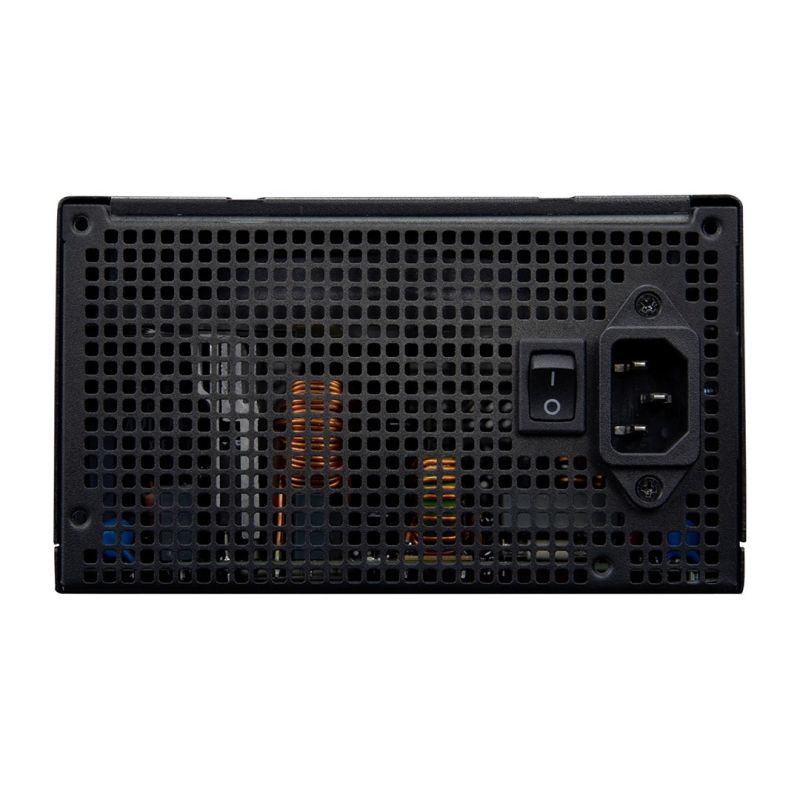

COUGAR CGRGDN-1000 Power Supply Module 1000 W 20+4 Pin ATX ATX Black
COUGAR CGRGDN-1000 Power Supply Module 1000 W 20+4 Pin ATX ATX Black
COUGAR CGRGDN-1000 Power Supply Module 1000 W 20+4 Pin ATX ATX Black
PRICE:
187,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Cooling type: Active
- Number of fans: 1 fan
- Built-in switch: Yes
- Fan bowl diameter: 12 cm
- Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 15-8 A
- Power protection features
- Short circuit
- Overheating protection
- Overload protection
- Under total voltage
- Protection against overvoltage
- Overcurrent
- Total power: 1000 W
- Efficiency: 91%
- Total power (-12V): 4.8 W
- Total power (+5 Vsb): 15 W
- Total power (+12V): 999.6 W
- Maximum output current (+5 Vsb): 3 A
- Total power (+5V): 100 W
- Maximum output current (+3.3V): 20 A
- Maximum output current (-12V): 0.4A
- Maximum output current (+12V): 83.3A
- Total power (+3.3V): 100 W
- Maximum output current (+5V): 20A
- Weight and dimensions
- Product weight: 2.25 kg
- Product depth: 150 mm
- Product height: 86 mm
- Product width: 150 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS Gold
- Power supply type (PSU): ATX
- MTBF (Mean Time Between Failures): 100000 h
- Intended use: PC
- ATX version: 3.1
- Bearing Technology: FDB
- Packaging data
- Packaging depth: 220 mm
- Weight with packaging: 3.45 kg
- Package height: 107 mm
- Package width: 316 mm

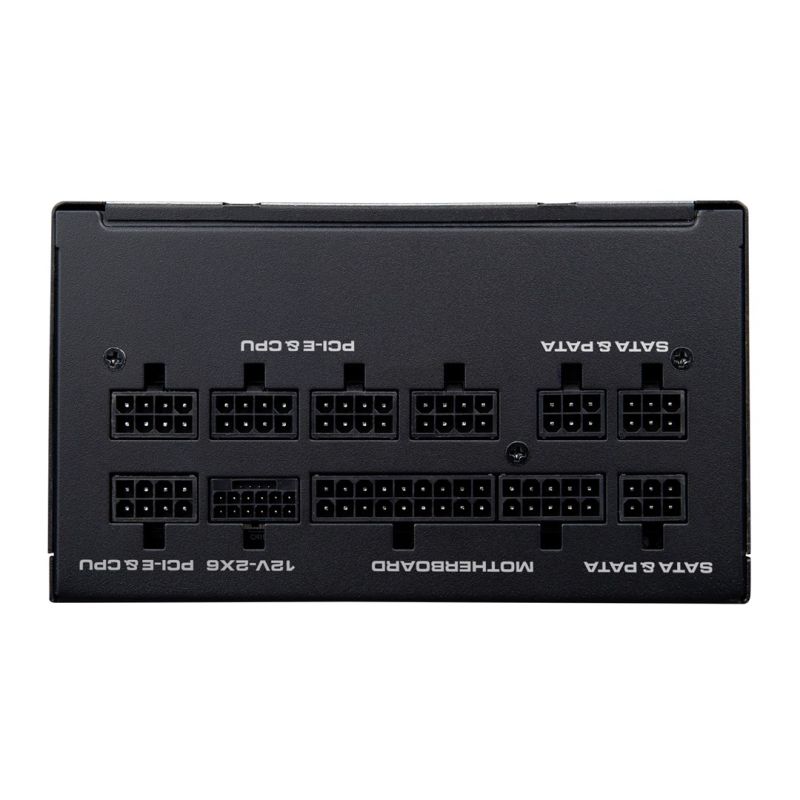

- Ports and interfaces
- Peripheral (Molex) Power Connectors (4-pin): 3
- Wiring Type: Fully Modular
- PCI Express power connectors (6+2 pin): 3
- PCI Express power connectors (12+4 pin): 1
- Number of SATA power connectors: 9
- PCI Express power connectors (12+4 pin) cable length: 600 mm
- SATA power cable length
- 150
- 450
- CPU power supply connector (4+4 pin): Yes
- Motherboard cable length: 60 cm
- Motherboard power connector: 20+4 pin ATX
- CPU power cable length: 70 cm
| Name | Details |
|---|---|
| Producer | COUGAR |
