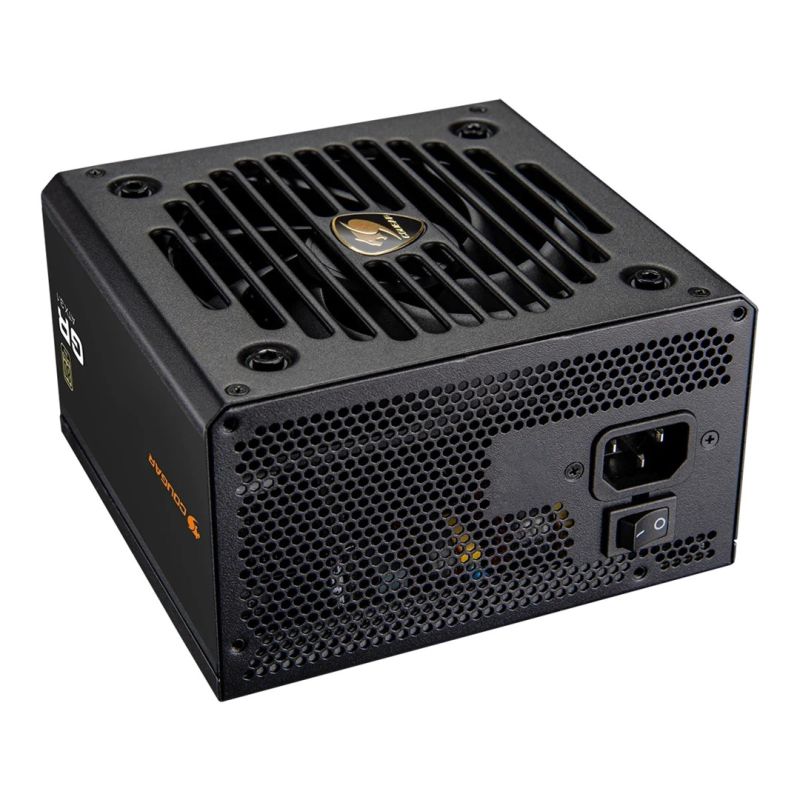

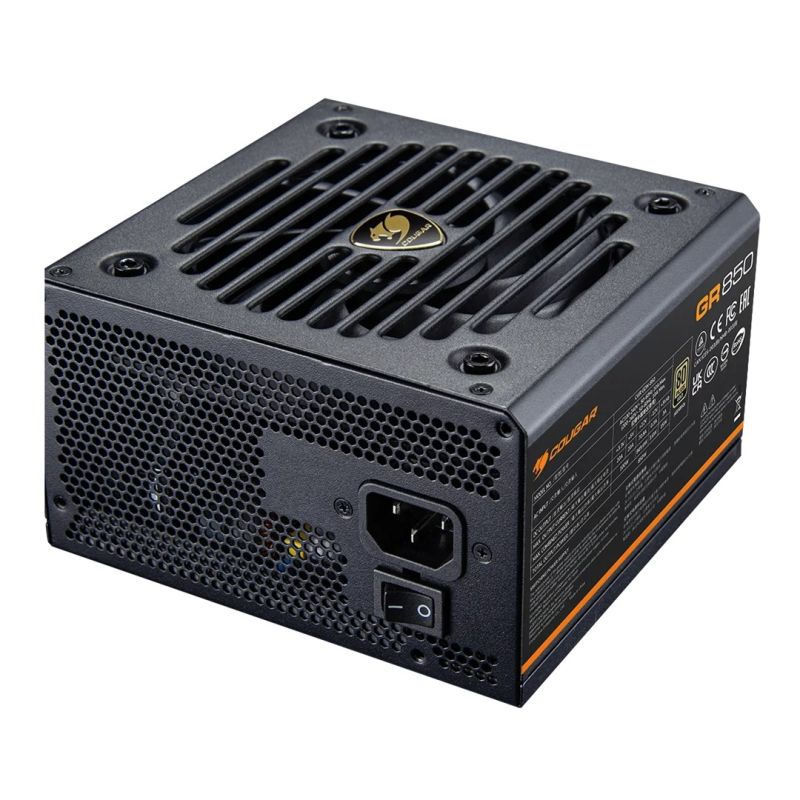

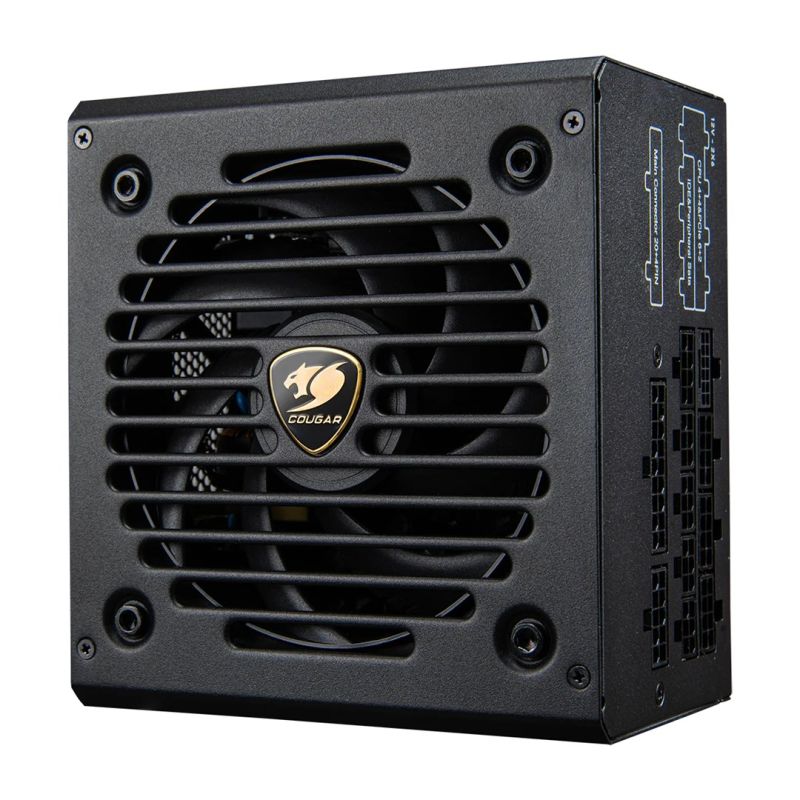

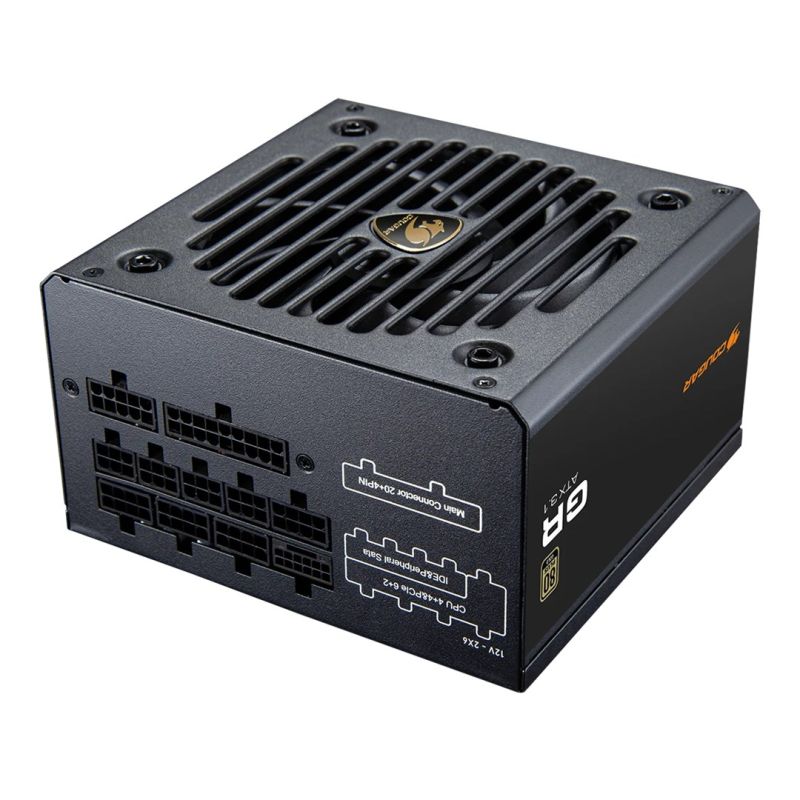

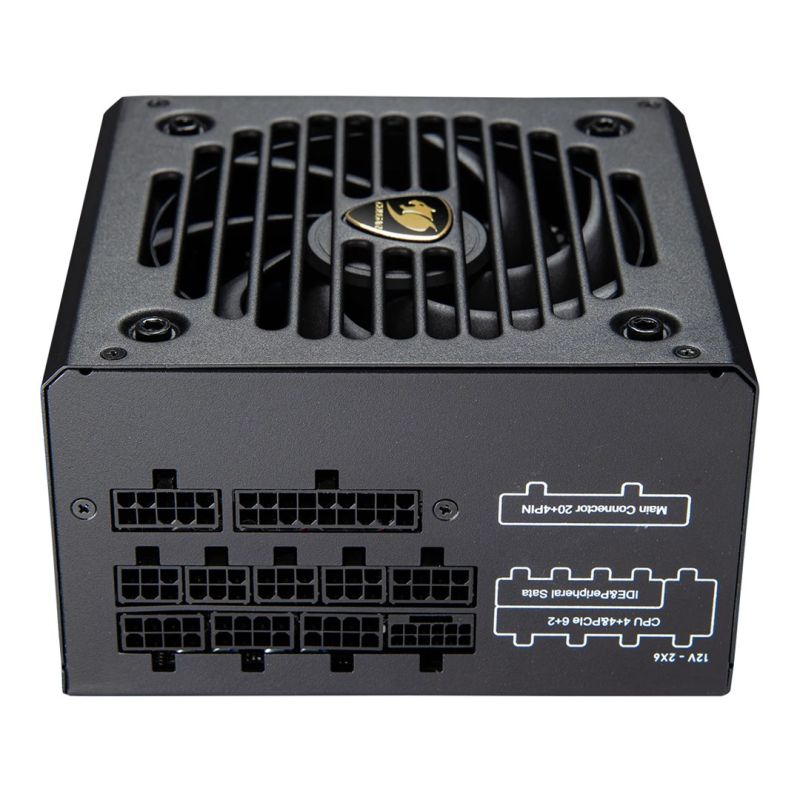

COUGAR CGRGDN-850 Power Supply Module 850 W 20+4 pin ATX ATX Black
COUGAR CGRGDN-850 Power Supply Module 850 W 20+4 pin ATX ATX Black
COUGAR CGRGDN-850 Power Supply Module 850 W 20+4 pin ATX ATX Black
PRICE:
148,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design

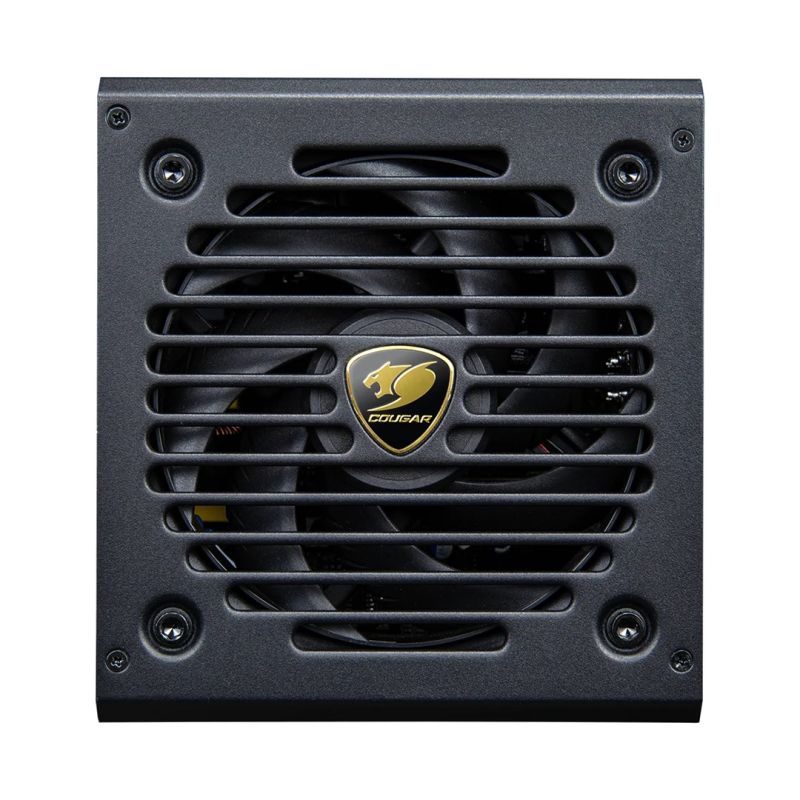

- Fan bowl diameter: 12 cm
- Cooling type: Active
- Number of fans: 1 fan
- Product color: Black

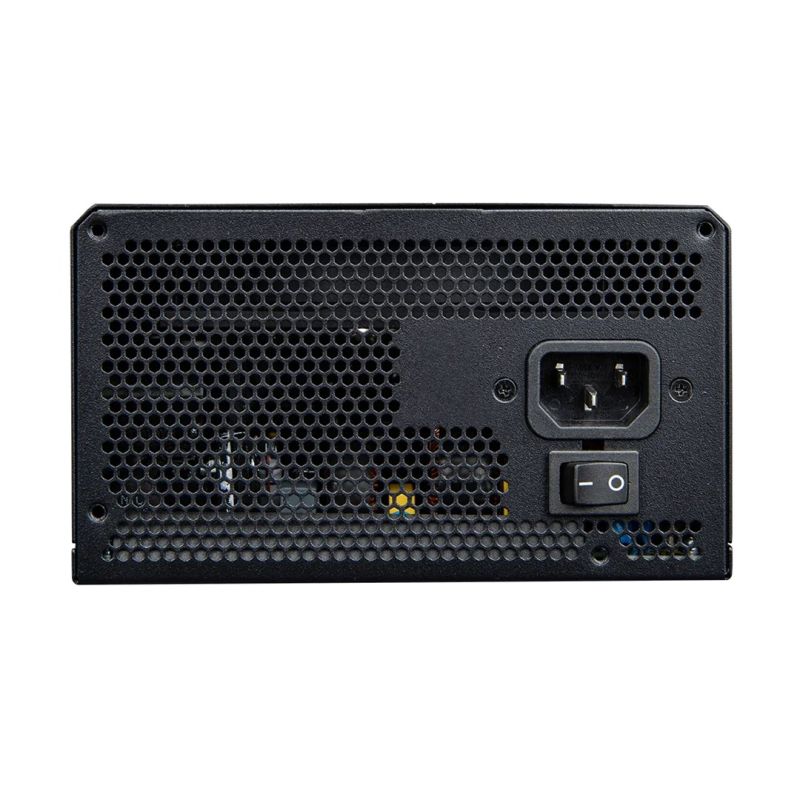

- Built-in switch: Yes

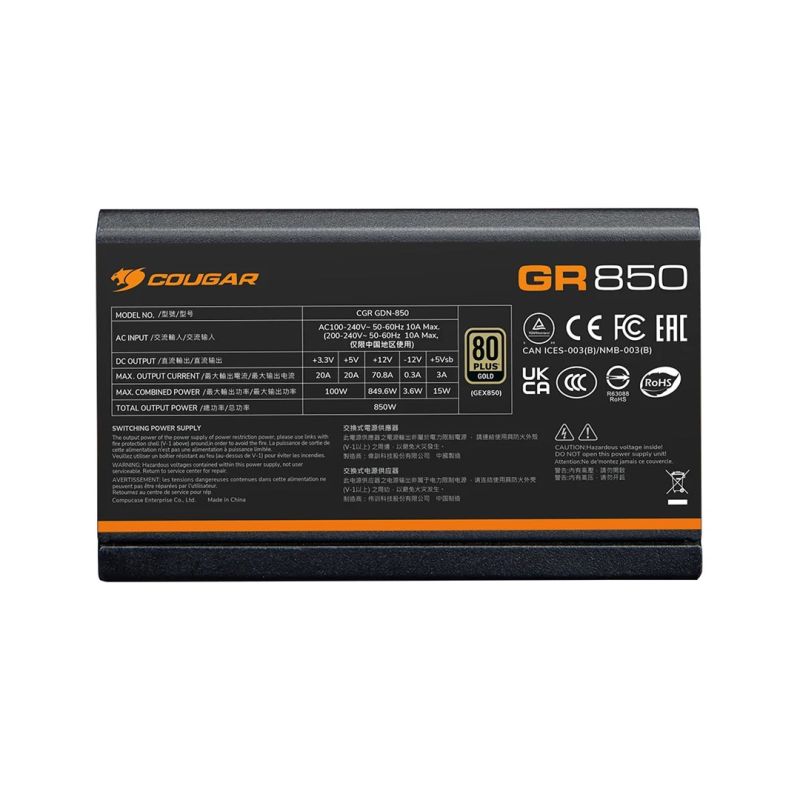

- Power
- AC input voltage: 100 - 240 V
- Efficiency: 91%
- Maximum output current (-12V): 0.3A
- Maximum output current (+12V): 70.8 A
- Total power: 850 W
- Maximum output current (+3.3V): 20 A
- Total power (+5 Vsb): 15 W
- Input current: 10 A
- Maximum output current (+5 Vsb): 3 A
- Total power (+12V): 849.6 W
- Maximum output current (+5V): 20A
- Total power (+5V): 100 W
- AC input frequency: 50/60 Hz
- Total power (-12V): 3.6 W
- Total power (+3.3V): 100 W
- Power protection features
- Protection against overvoltage
- Overcurrent
- Overload protection
- Short circuit
- Overheating protection
- Under total voltage
- Weight and dimensions
- Product depth: 150 mm
- Product weight: 2.4 kg
- Product width: 140 mm
- Product height: 86 mm
- Efficiency
- 80 PLUS Certificate: 80 PLUS Gold
- Bearing Technology: Rifle Bearing
- ATX version: 3.1
- Power supply type (PSU): ATX
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- Packaging data
- Weight with packaging: 2.75 kg
- Package width: 305 mm
- Package height: 105 mm
- Package depth: 210 mm

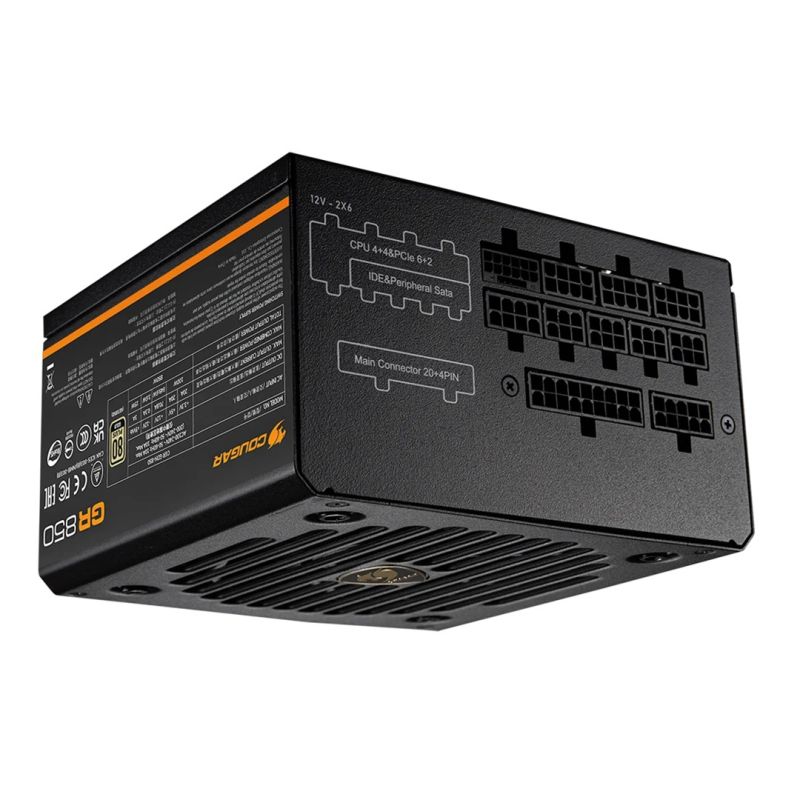

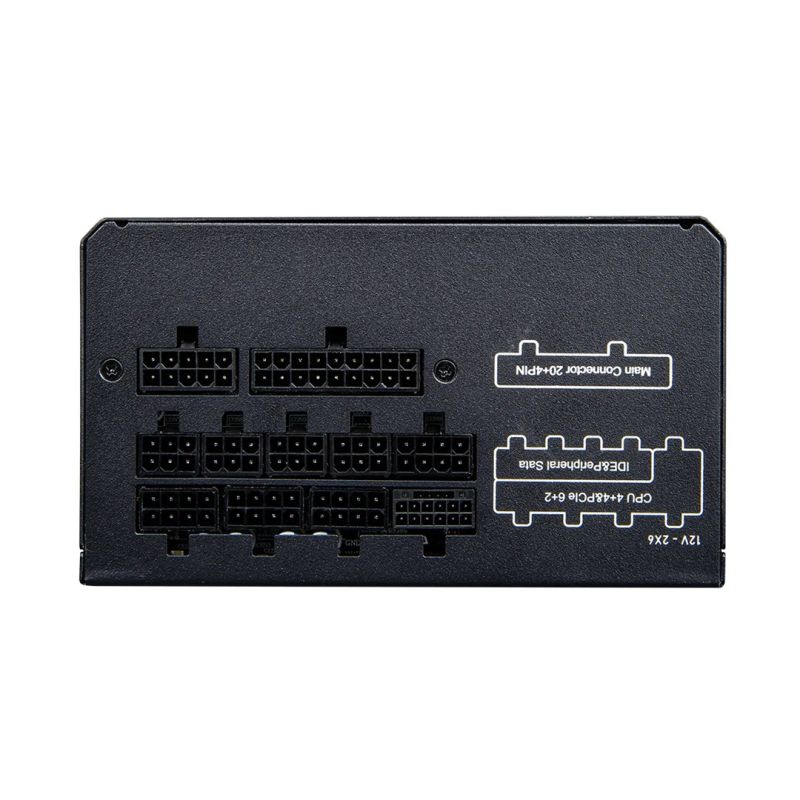

- Ports and interfaces
- CPU power cable length: 70 cm
- Wiring Type: Fully Modular
- Motherboard power connector: 20+4 pin ATX
- CPU power supply connector (4+4 pin): Yes
- SATA power cable length
- 150
- 450
- PCI Express power connectors (6+2 pin): 3
- Motherboard cable length: 55 cm
- Number of SATA power connectors: 6
- Peripheral (Molex) Power Connectors (4-pin): 2
- PCI Express power connectors (12+4 pin): 1
- PCI Express power connectors (12+4 pin) cable length: 600 mm
| Name | Details |
|---|---|
| Producer | COUGAR |
