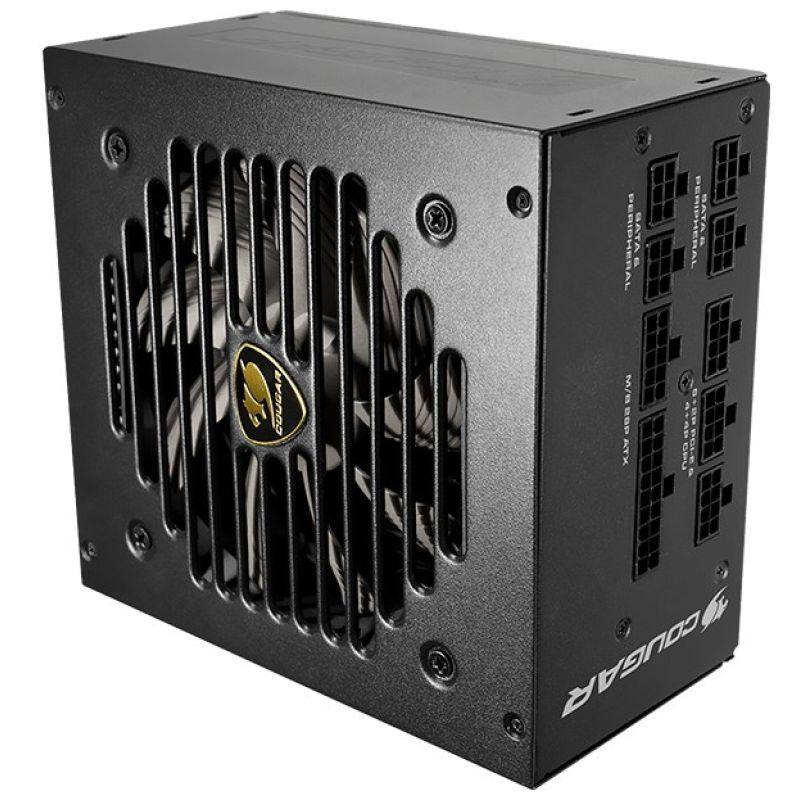

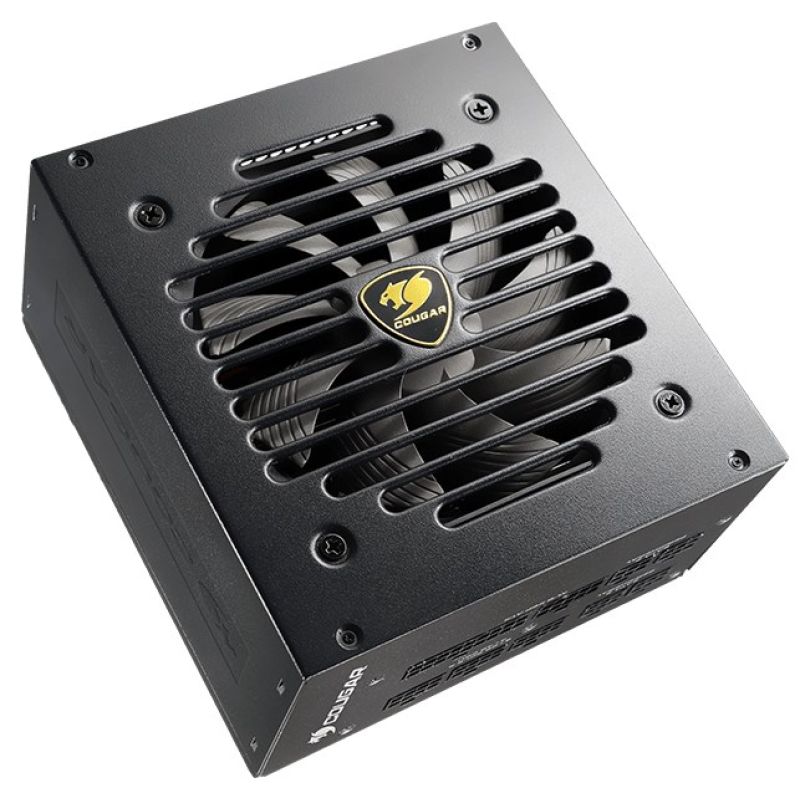

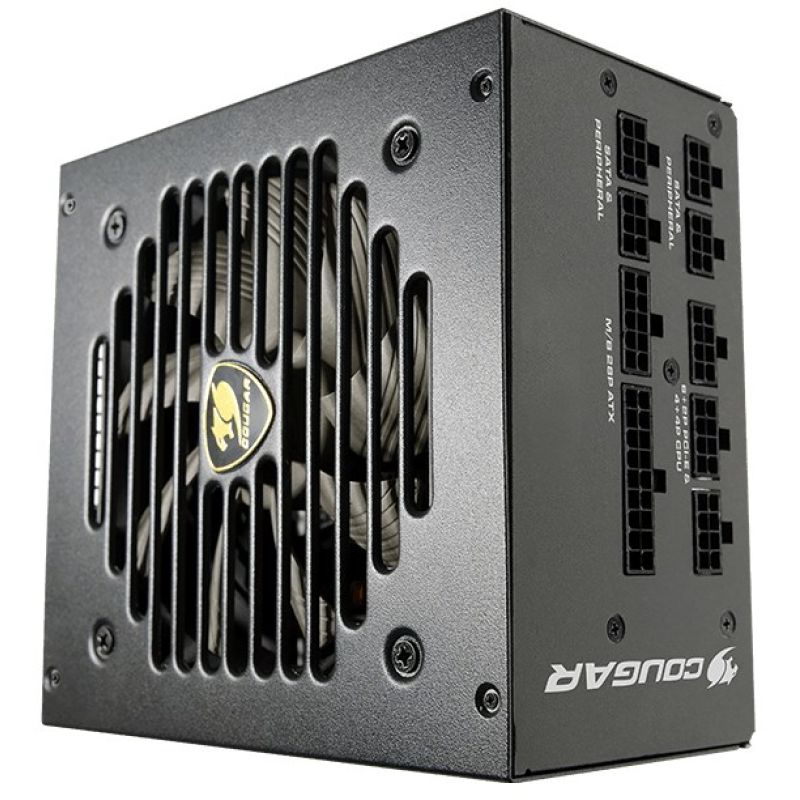

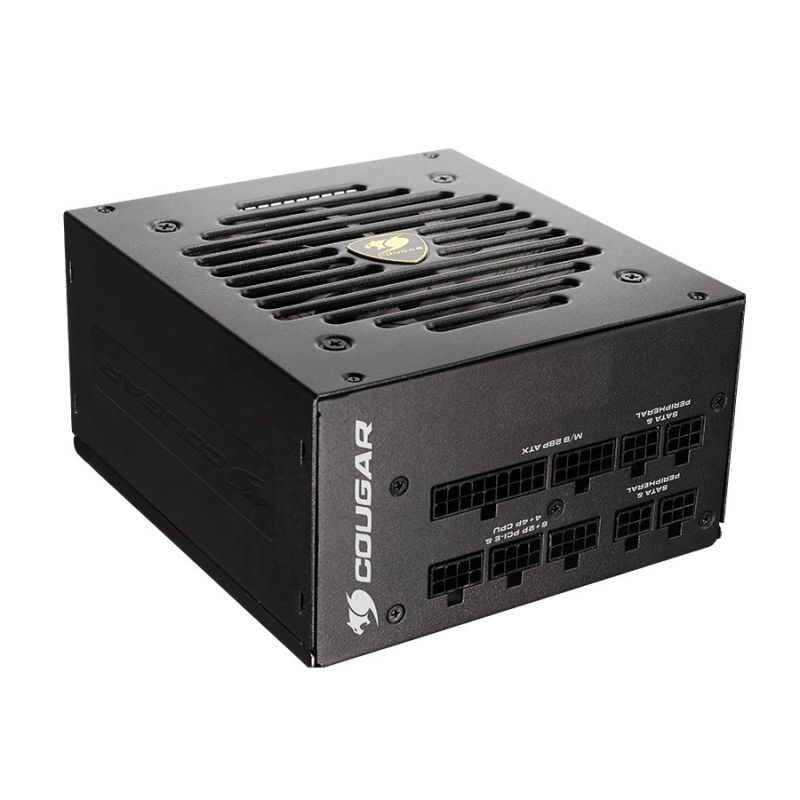

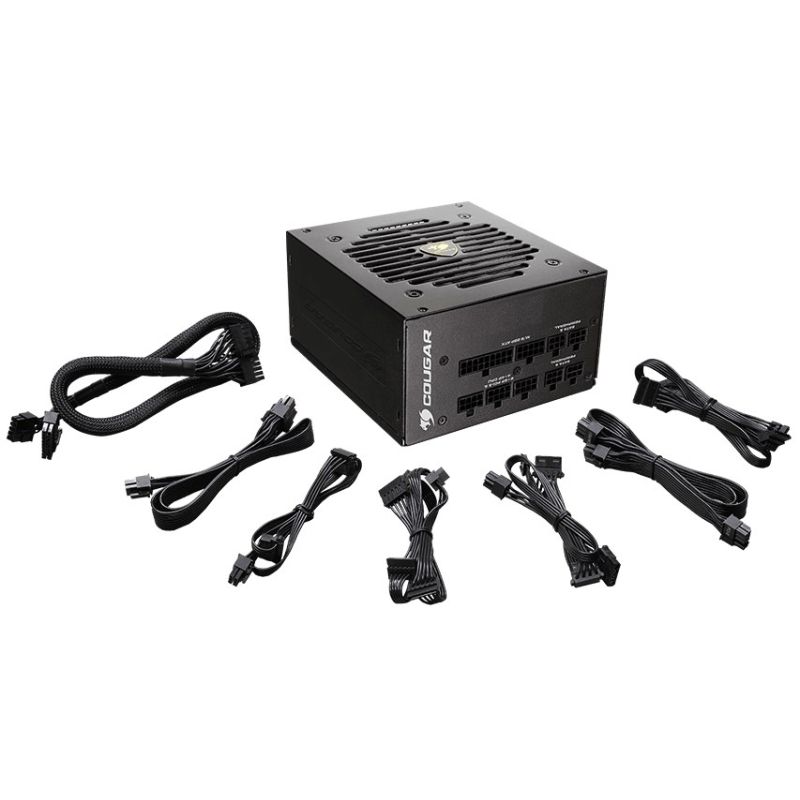

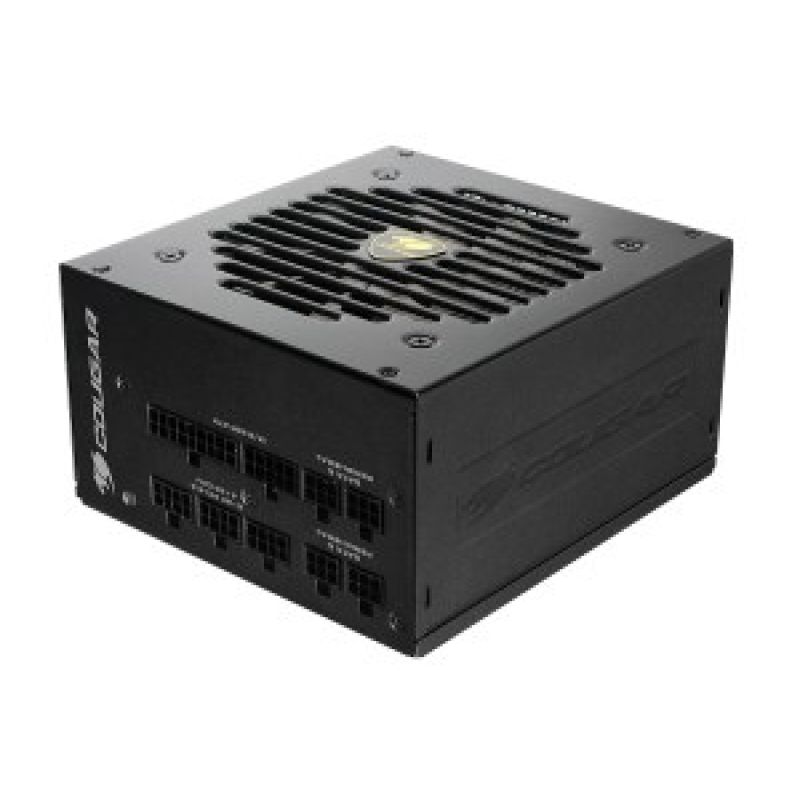

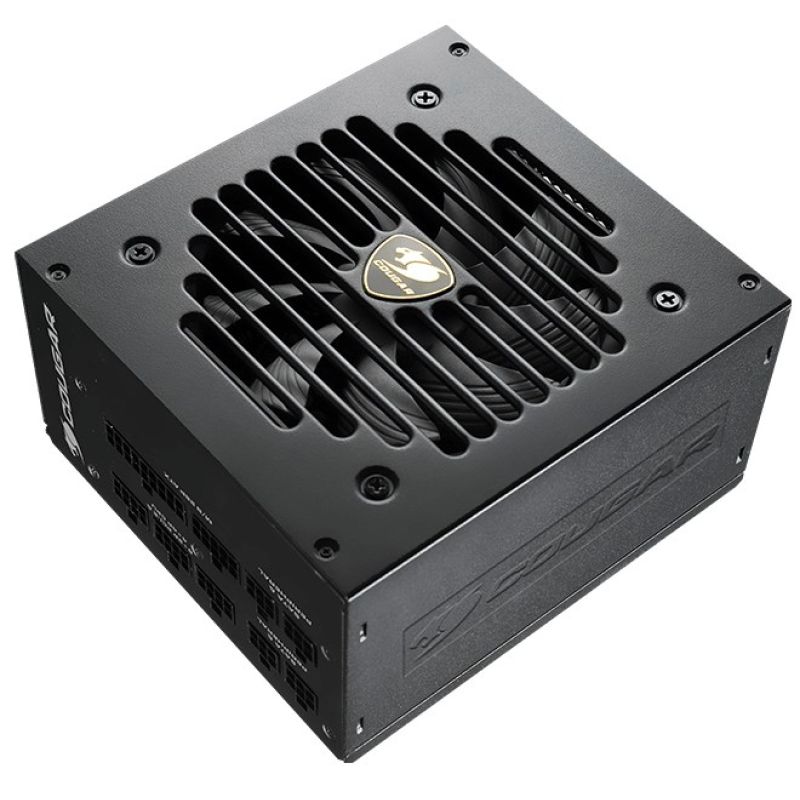

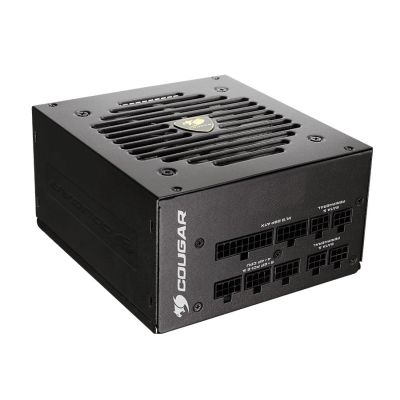

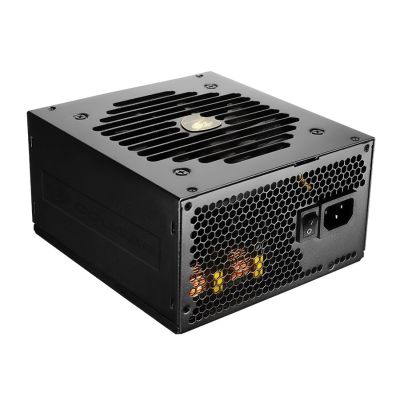

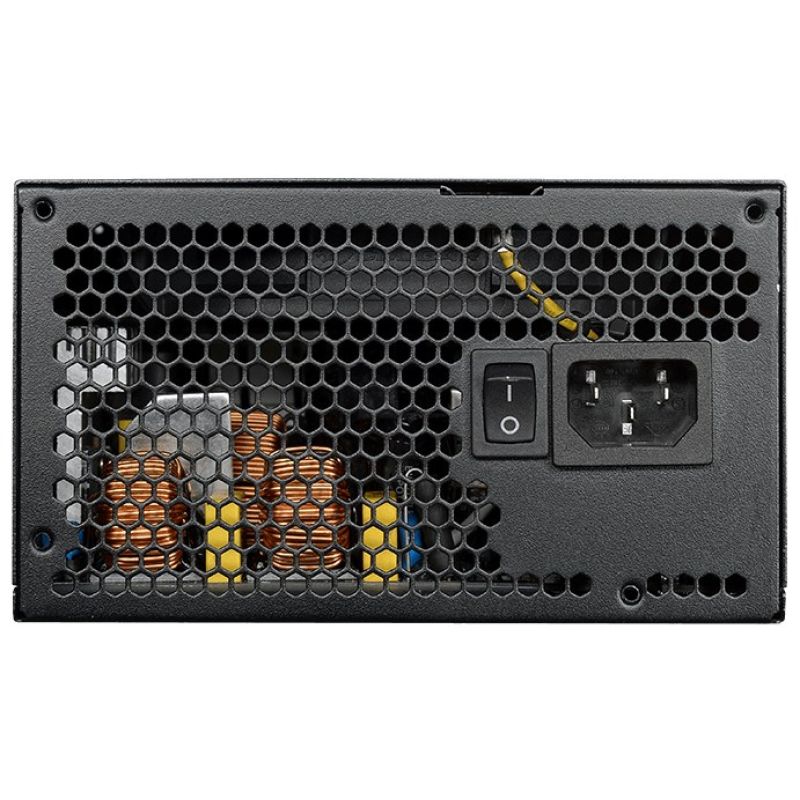

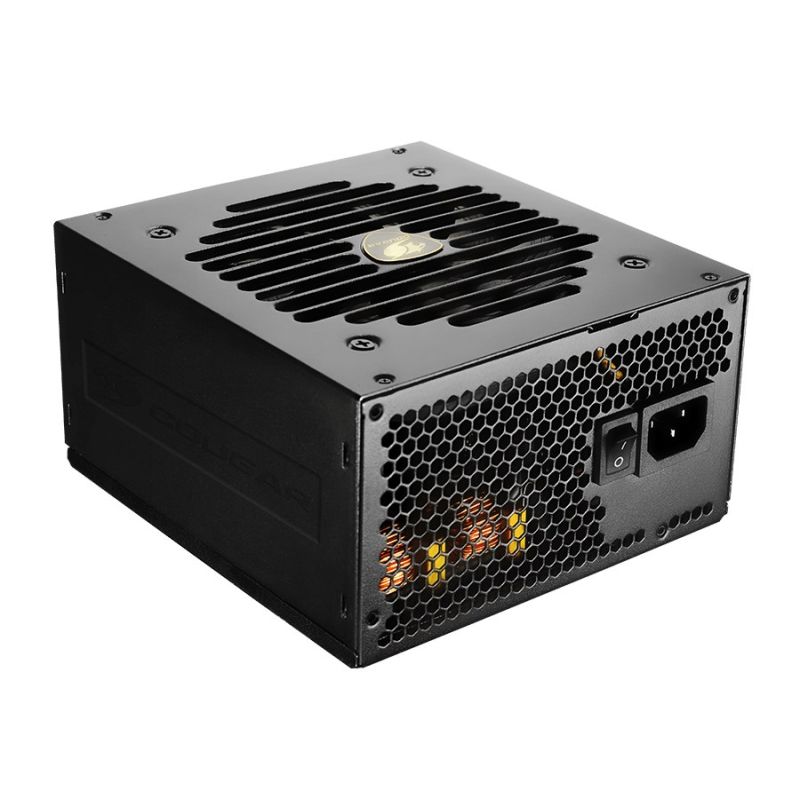

COUGAR GEX 850W ATX3.0 / 80 Plus Gold / Modular Power Supply
COUGAR GEX 850W ATX3.0 / 80 Plus Gold / Modular Power Supply
COUGAR GEX 850W ATX3.0 / 80 Plus Gold / Modular Power Supply
PRICE:
190,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!

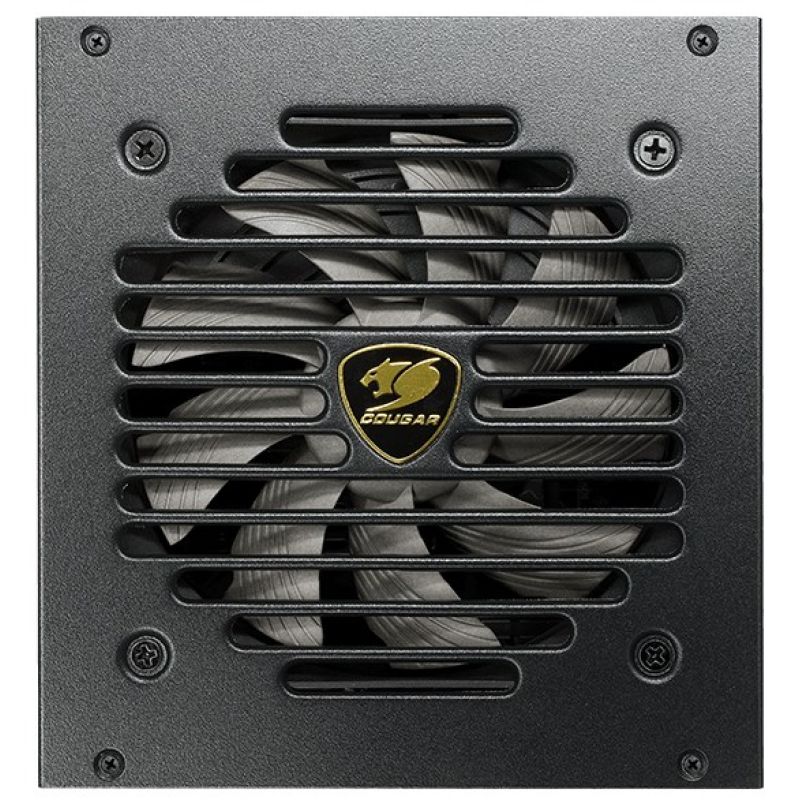

- Design
- Built-in switch: Yes
- Cooling type: Active
- Fan bowl diameter: 12 cm
- Product color: Black
- Number of fans: 1 fan
- Fan Location: Top
- Power
- AC input voltage: 100 - 240 V
- Power protection features
- Protection against overvoltage
- Overcurrent
- Low voltage protection
- Overload protection
- Short circuit
- Overheating protection
- AC input frequency: 50 - 60 Hz
- Input current: 12 - 6 A
- Efficiency: 91%
- Total power: 850 W
- Total power (+12V): 849.6 W
- Total power (+3.3V): 120 W
- Total power (+5 Vsb): 3 W
- Maximum output current (-12V): 0.3A
- Maximum output current (+5 Vsb): 3 A
- Maximum output current (+12V): 70.8 A
- Maximum output current (+3.3V): 20 A
- Total power (-12V): 0.3 W
- Maximum output current (+5V): 20A
- Total power (+5V): 120 W
- Weight and dimensions
- Product depth: 160 mm
- Product height: 86 mm
- Product weight: 1.56 kg
- Product width: 150 mm
- Working conditions
- Permissible relative humidity: 5 - 95%
- Temperature range (operation): 10 - 40 °C
- Relative humidity range: 20 - 85%
- Temperature range (storage): -40 - 70 °C
- Efficiency
- 80 PLUS Certificate: 80 PLUS Gold
- Intended use: PC
- Bearing technology: HDB
- Power supply type (PSU): ATX

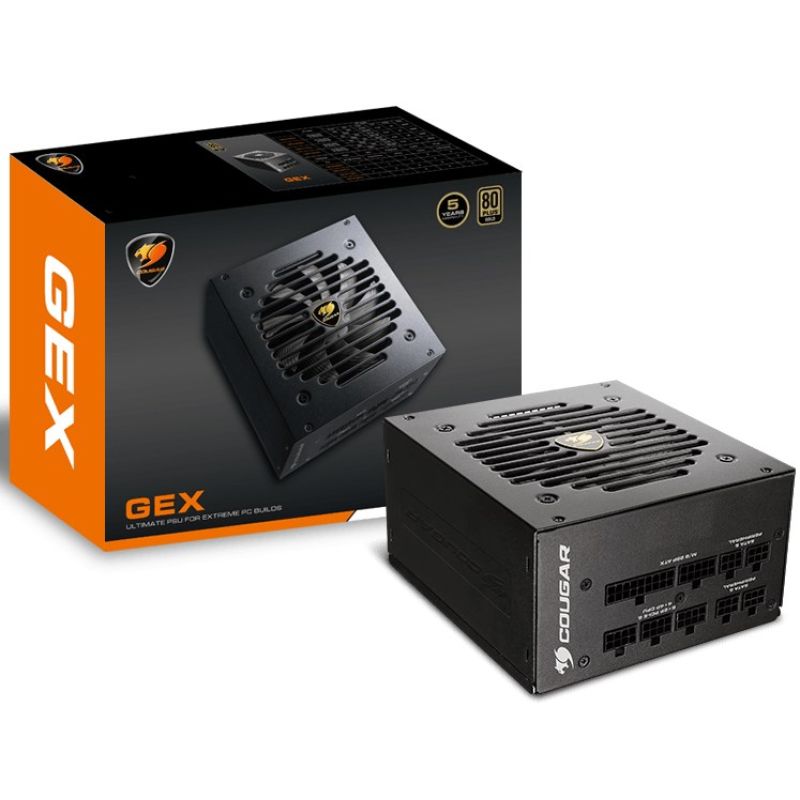

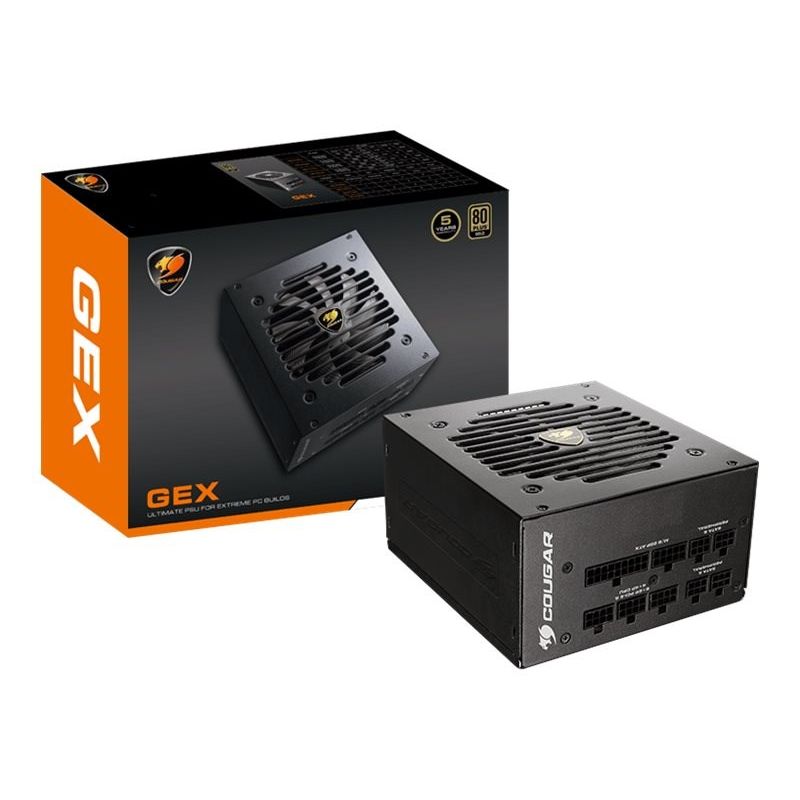

- Packaging data
- Packaging type: Box
- Package depth: 331 mm
- Weight with packaging: 2.76 kg
- Package width: 229 mm
- Package height: 107 mm
- Package contents
- Cables: AC, Processor, PCIe, Peripheral (Molex), SATA
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- RoHS
- TÜV mark
- CCC
- CE
- EAC
- Certificates of conformity

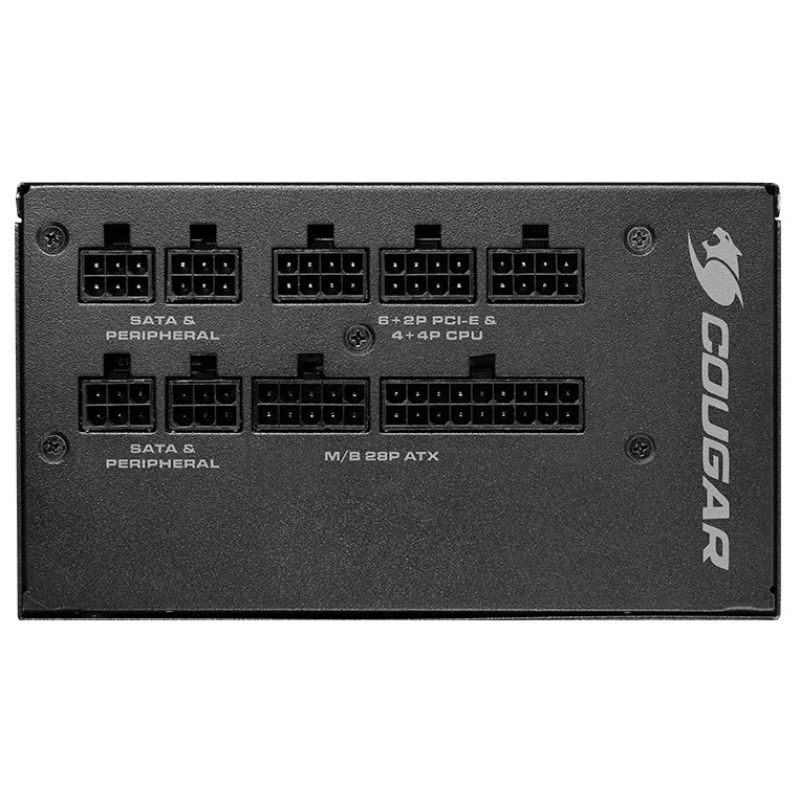

- Ports and interfaces
- Peripheral (Molex) Power Connectors (4-pin): 3
- PCI Express power connectors (6+2 pin): 6
- Wiring Type: Fully Modular
- CPU power cable length: 65 cm
- PCI Express power cable length: 60 cm
- Peripheral (Molex) Power Cable Length
- 120
- 450 mm
- ATX power supply connector (20+4 pin): Yes
- SATA power cable length
- 120
- 450
- Motherboard power connector: 20+4 pin ATX
- Number of PATA power connectors: 3
- CPU power supply connector (4+4 pin): Yes
- PCI Express slot: Yes
- Number of SATA power connectors: 8
- Motherboard cable length: 61 cm
- Logistics data
- Warranty period: 5 years
| Name | Details |
|---|---|
| Producer | COUGAR |
