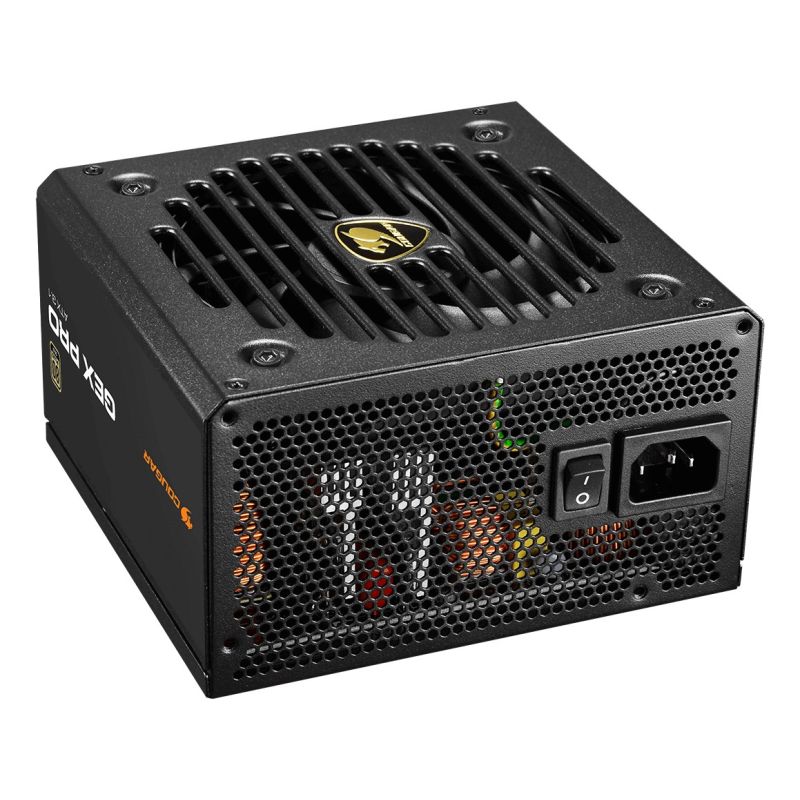

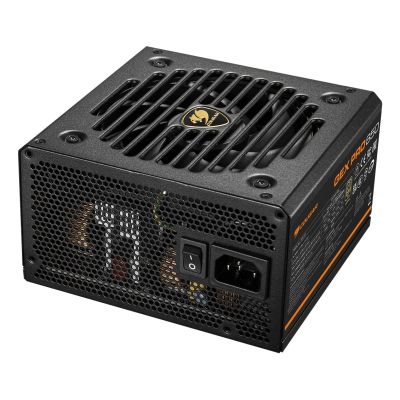

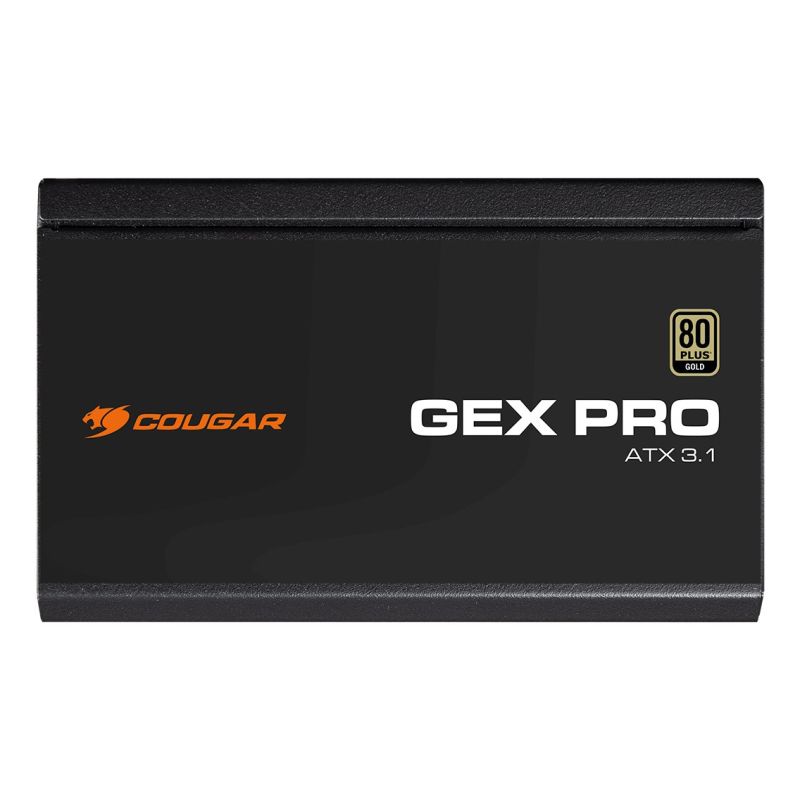

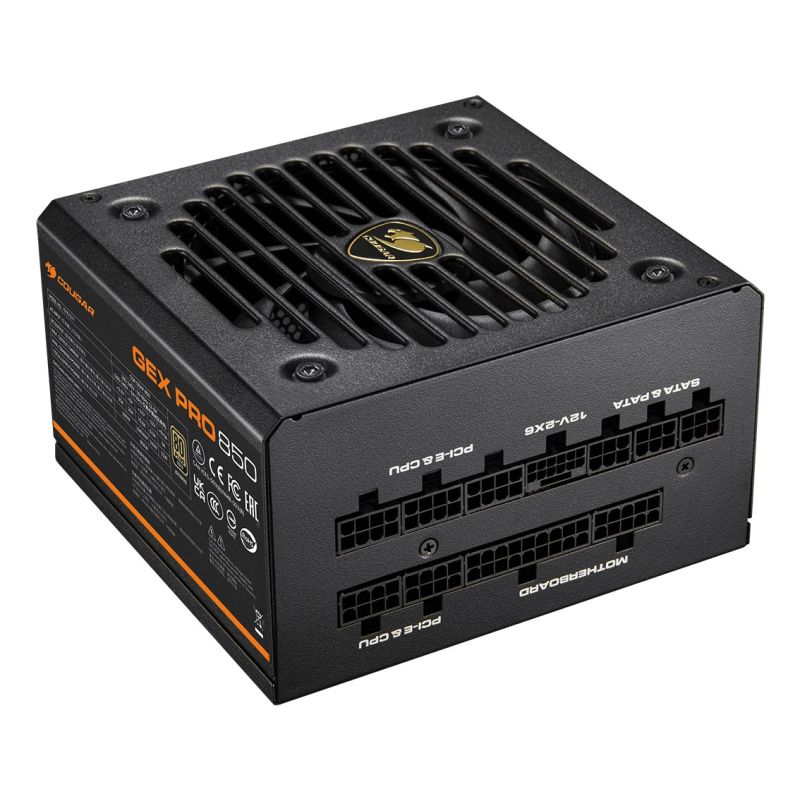

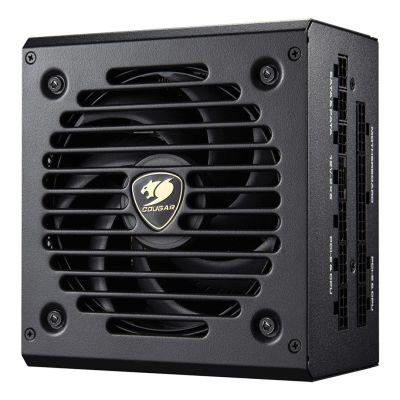

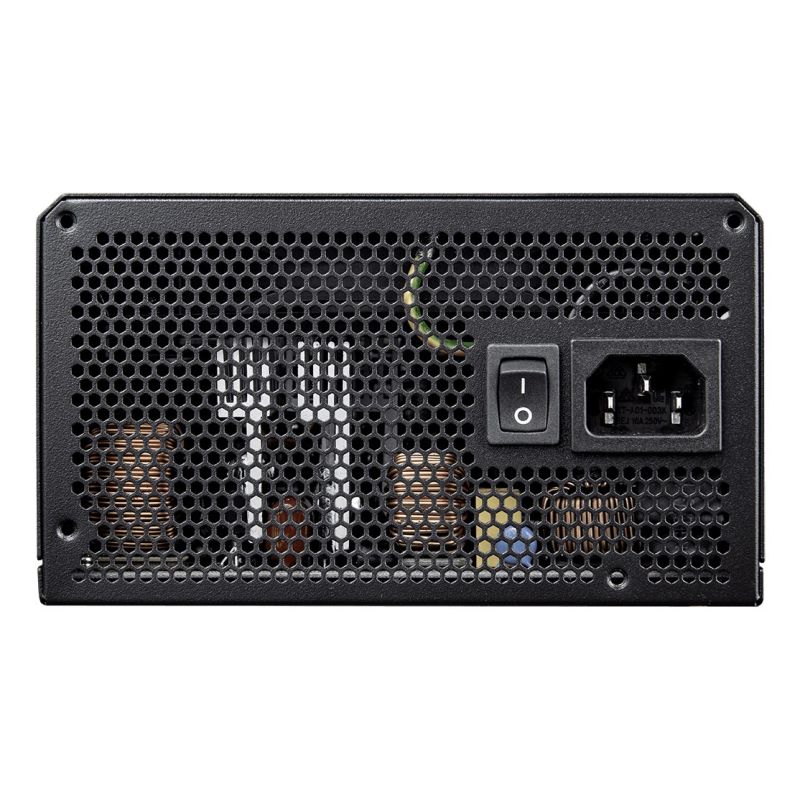

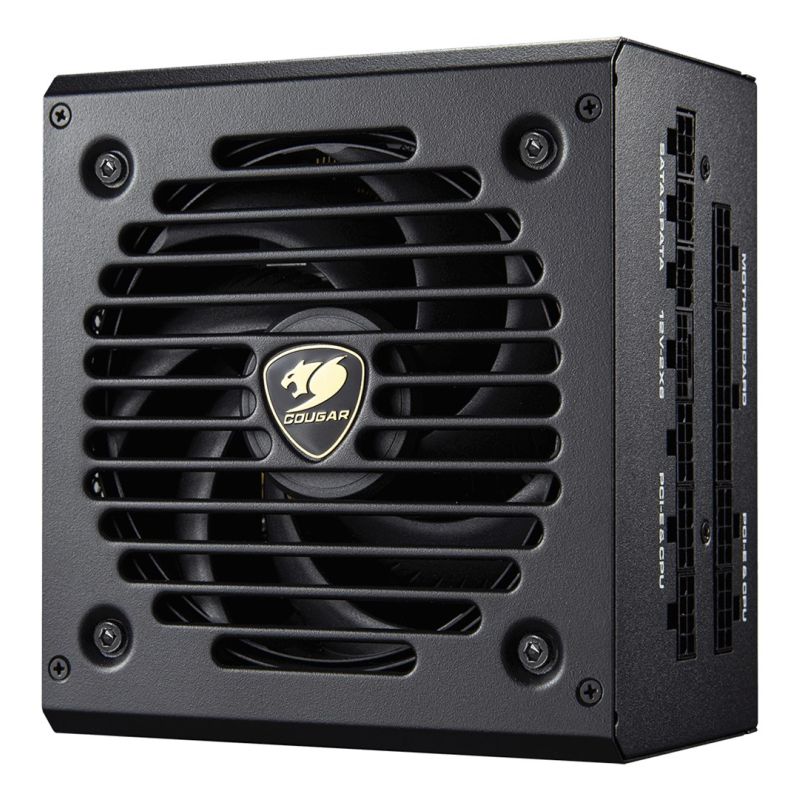

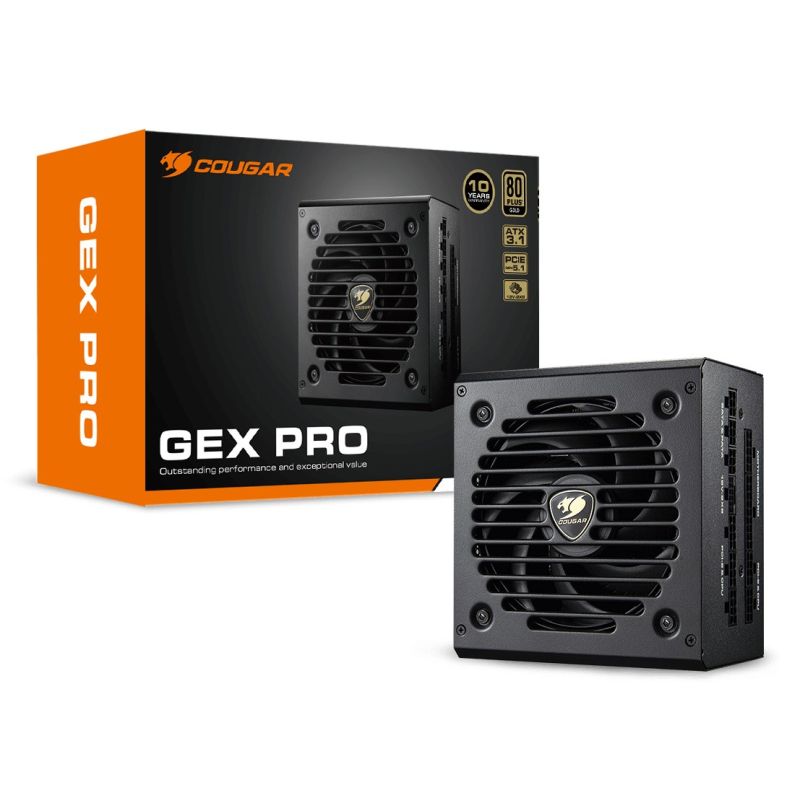

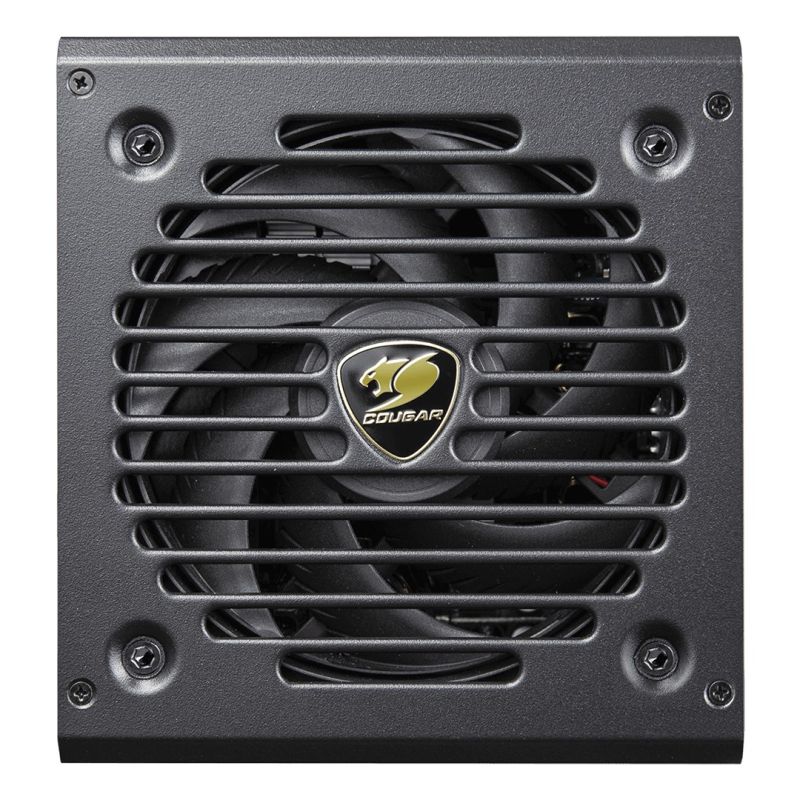

COUGAR GEX PRO 750W ATX3.1 / 80 Plus Gold / Modular Power Supply
COUGAR GEX PRO 750W ATX3.1 / 80 Plus Gold / Modular Power Supply
COUGAR GEX PRO 750W ATX3.1 / 80 Plus Gold / Modular Power Supply
PRICE:
182,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Fan Location: Top
- Number of fans: 1 fan

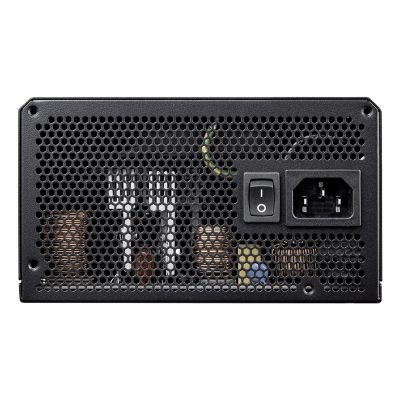

- Built-in switch: Yes
- Fan bowl diameter: 12 cm
- Cooling type: Active
- Product color: Black
- Power
- Total power: 750 W
- Maximum output current (+3.3V): 20 A
- Total power (+12V): 750 W
- Maximum output current (+5 Vsb): 3 A
- Total power (+5 Vsb): 15 W
- Maximum output current (-12V): 0.3A
- Power protection features
- Short circuit
- Overload protection
- Overheating protection
- Low voltage protection
- Protection against overvoltage
- Overcurrent
- Total power (+5V): 100 W
- Maximum output current (+5V): 20A
- Total power (+3.3V): 100 W
- Total power (-12V): 3.6 W
- Efficiency: 91%
- Maximum output current (+12V): 62.5A
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Input current: 10-5 A
- Weight and dimensions
- Product width: 150 mm
- Product depth: 140 mm
- Product height: 56 mm
- Product weight: 2.12 kg
- Working conditions
- Temperature range (operation): 10 - 40 °C
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 20 - 85%
- Temperature range (storage): -40 - 70 °C
- Efficiency
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- 80 PLUS Certificate: 80 PLUS Gold
- ATX version: 3.1
- Bearing technology: HDB
- Power supply type (PSU): ATX
- Packaging data

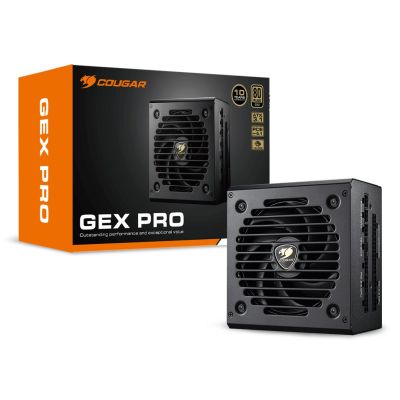

- Packaging type: Box
- Package height: 107 mm
- Package width: 215 mm
- Packaging depth: 330 mm
- Weight with packaging: 2.14 kg
- Certificates
- Certificates of conformity
- RoHS
- UKCA
- CE
- EAC
- Federal Communications Commission (FCC)
- Certificates of conformity

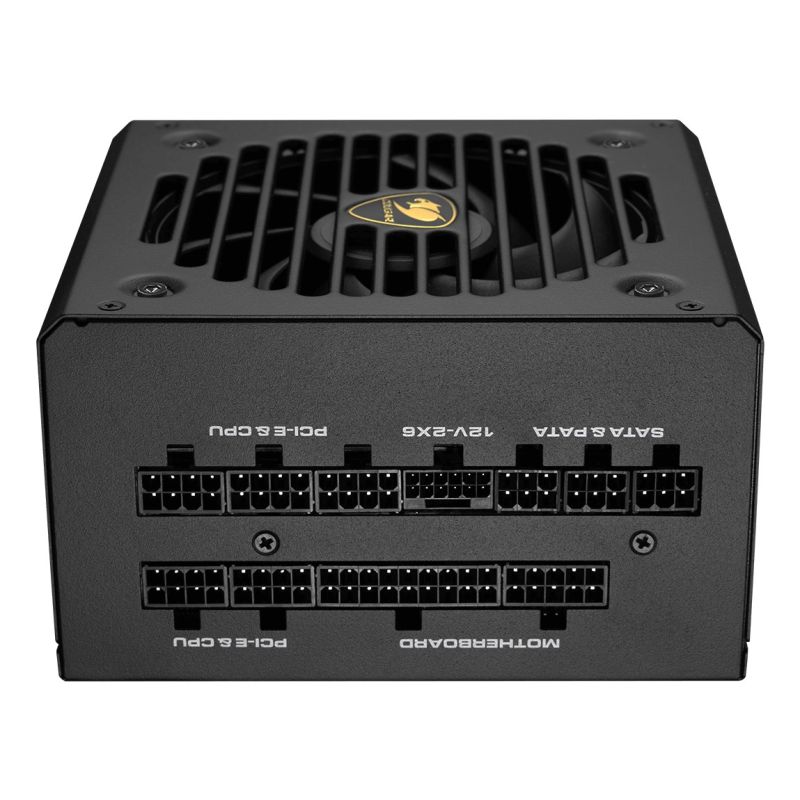

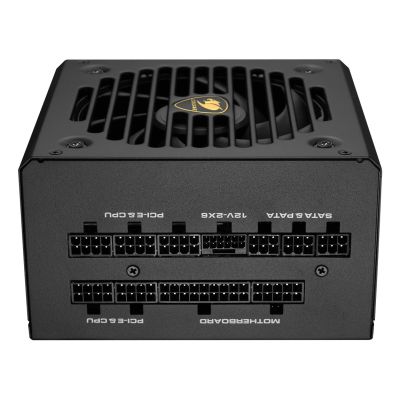

- Ports and interfaces
- CPU power supply connector (4+4 pin): Yes
- CPU power cable length: 70 cm
- SATA power cable length
- 520
- 400
- 640
- 760

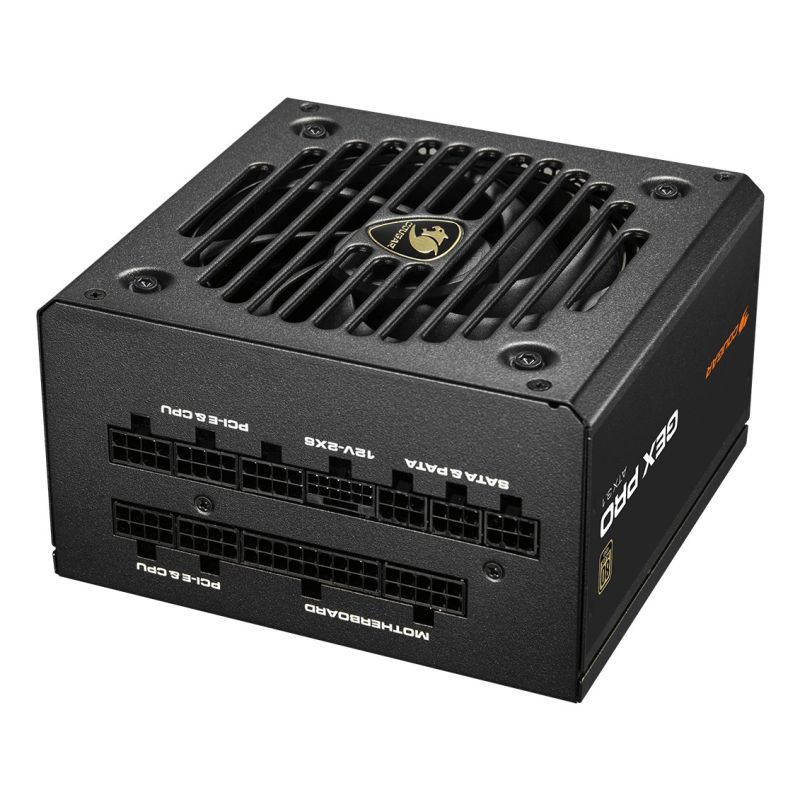

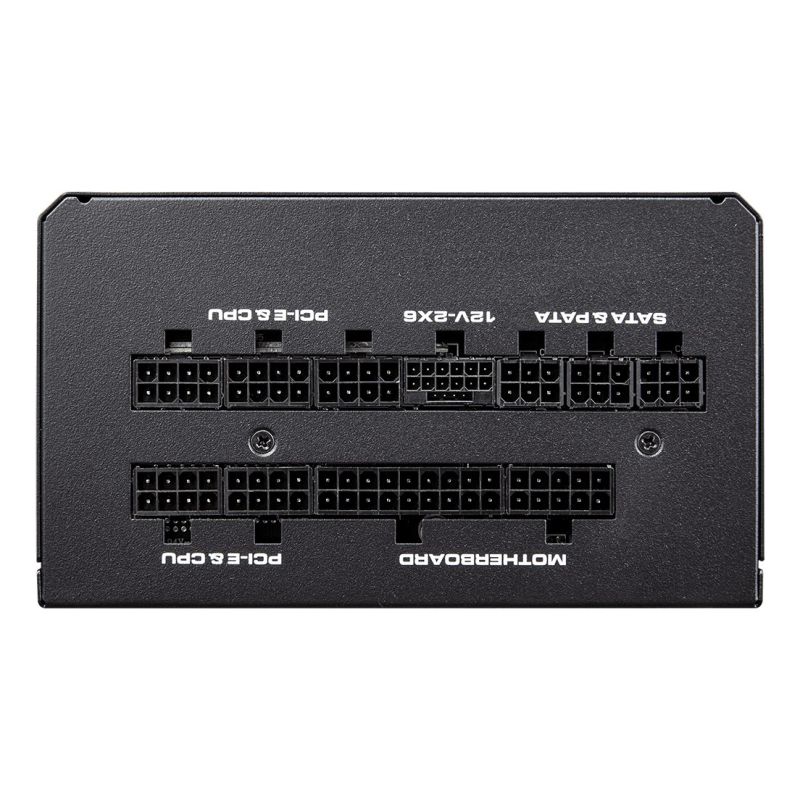

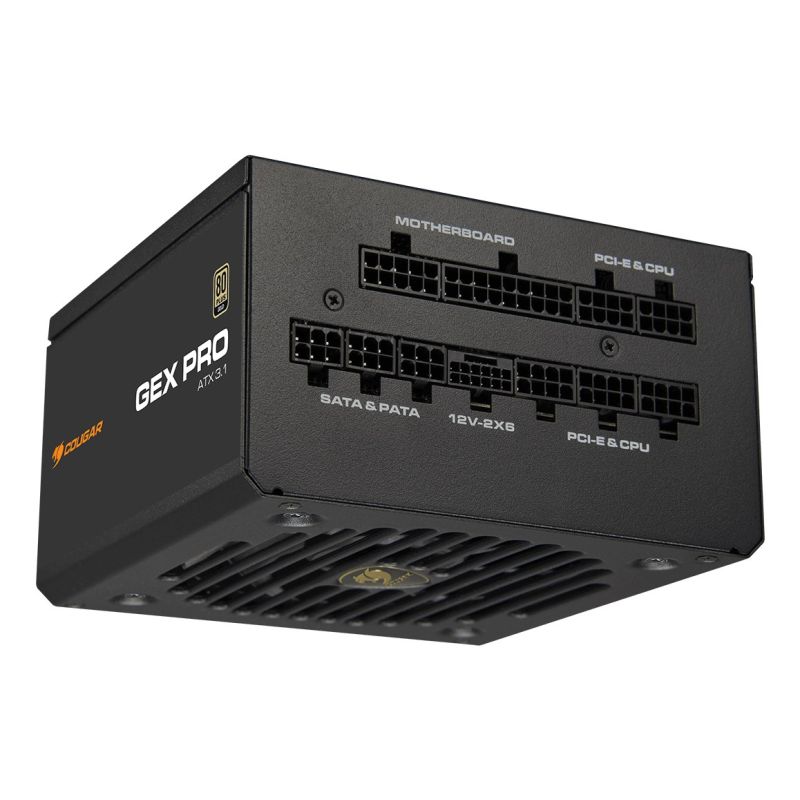

- Wiring Type: Fully Modular
- Motherboard power connector: 20+4 pin ATX
- PCI Express power connectors (6+2 pin): 3
- Motherboard cable length: 61 cm
- Number of SATA power connectors: 8
- Number of PATA power connectors: 3
- PCI Express slot: Yes
- PCI Express power connectors (12+4 pin) cable length: 650 mm
- PCI Express power connectors (12+4 pin): 1
| Name | Details |
|---|---|
| Producer | COUGAR |
