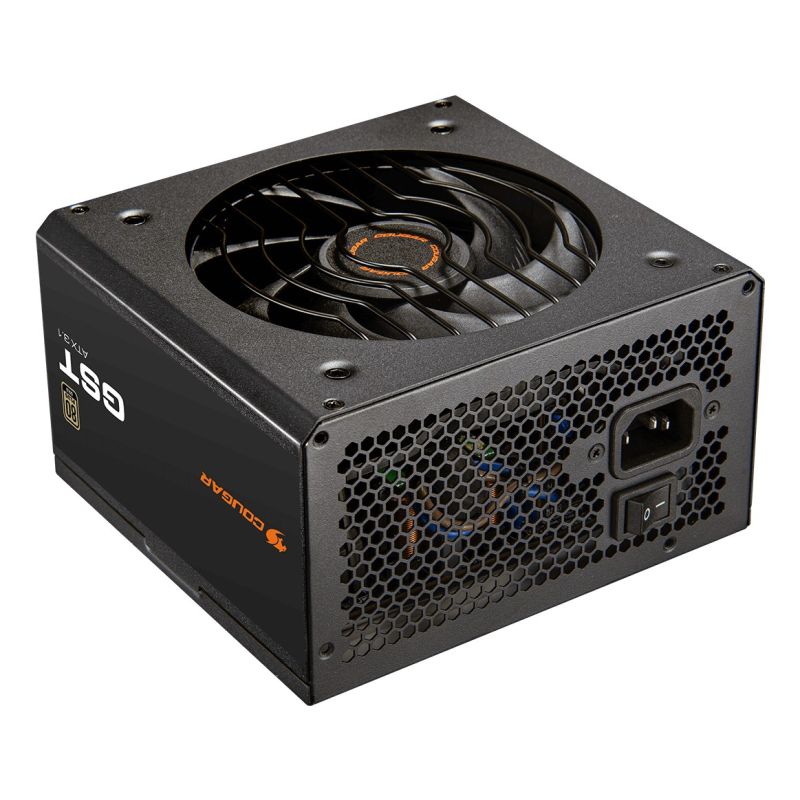

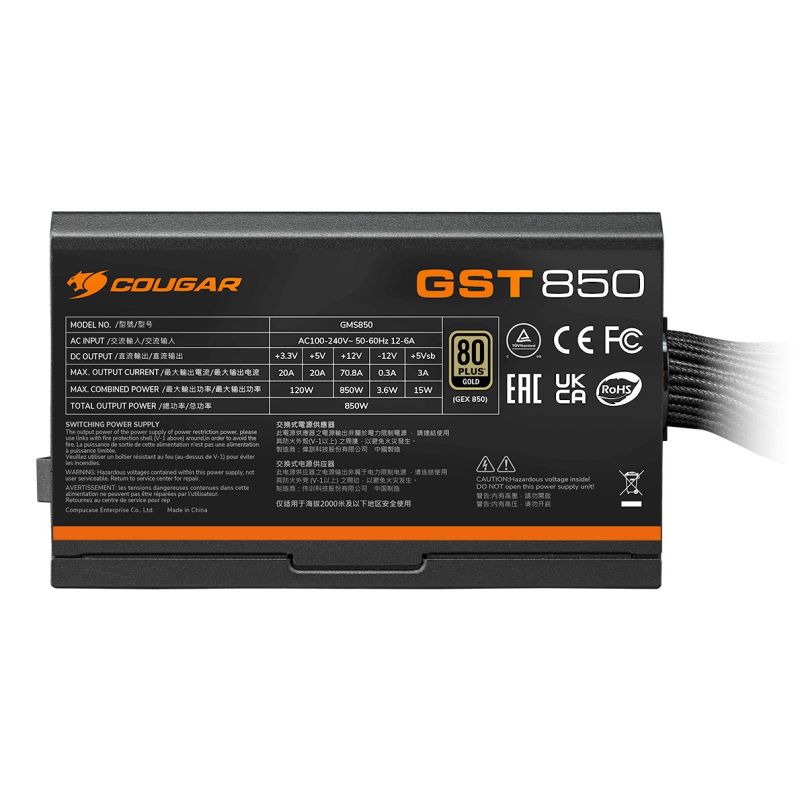

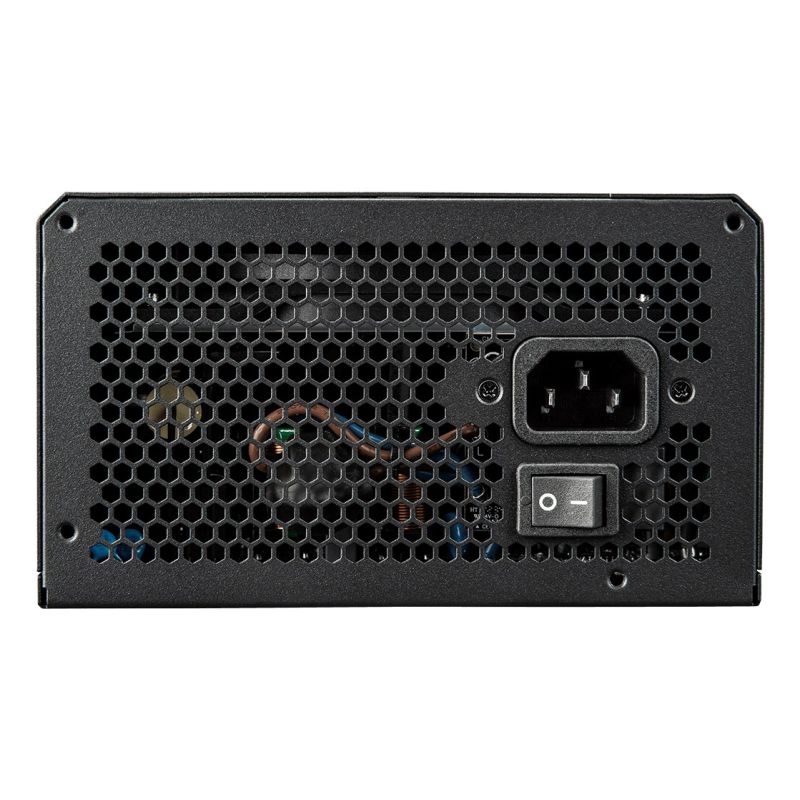

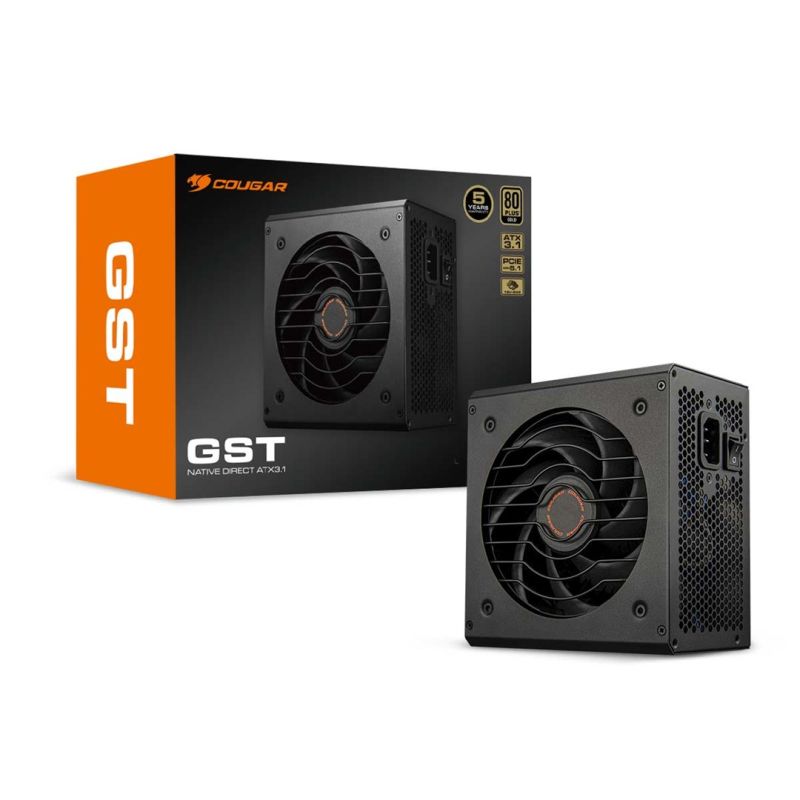

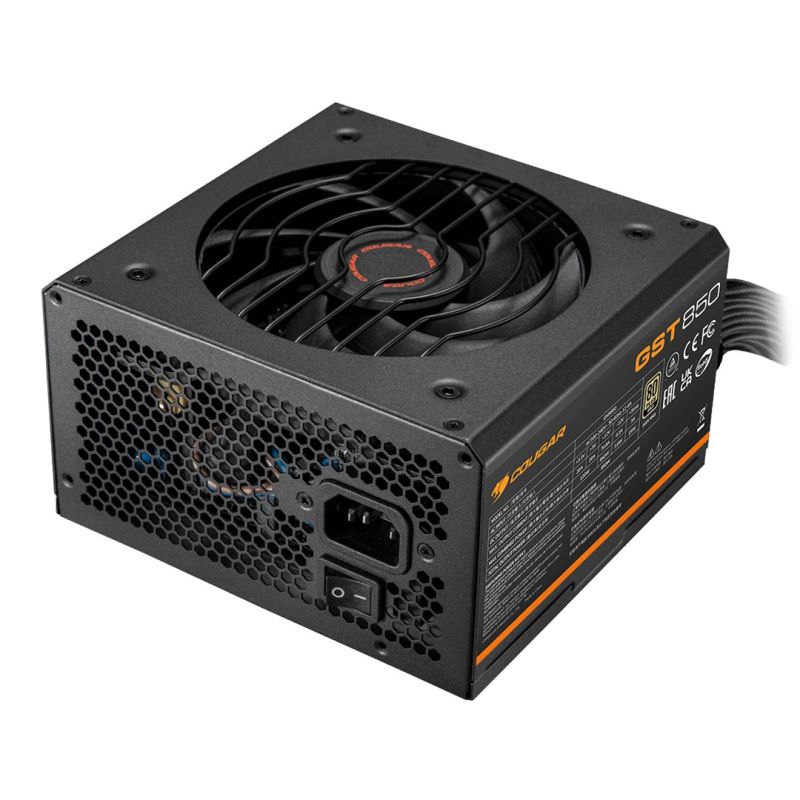

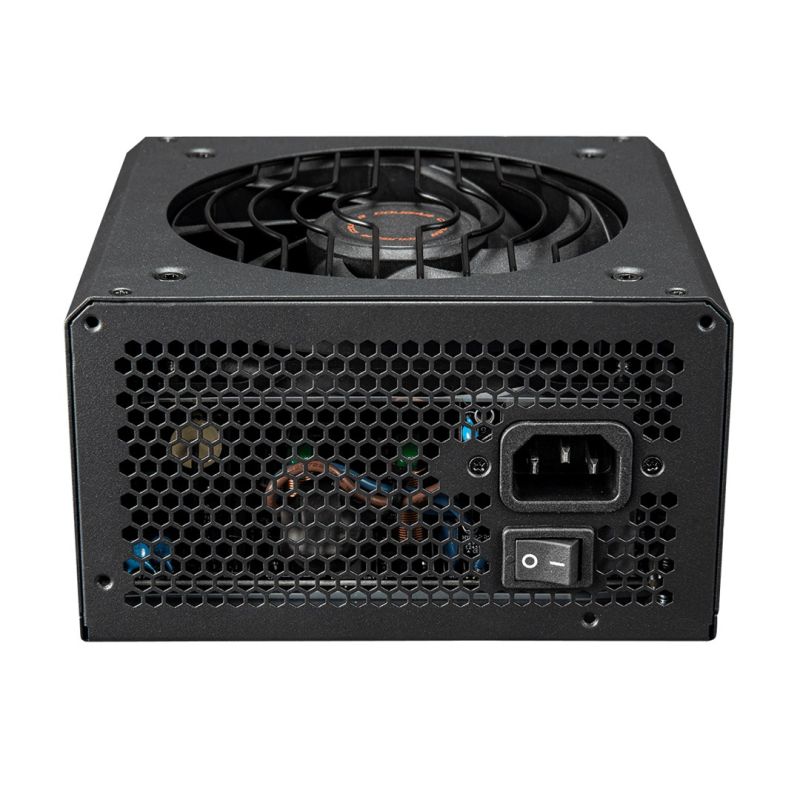

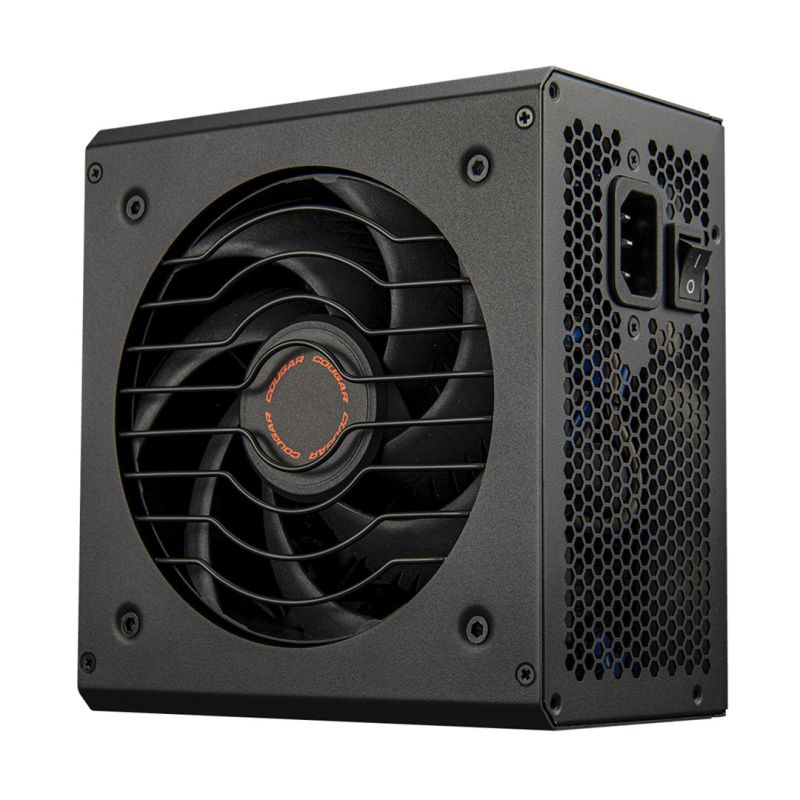

COUGAR GST 850W ATX3.1 / 80 Plus Gold Power Supply
COUGAR GST 850W ATX3.1 / 80 Plus Gold Power Supply
COUGAR GST 850W ATX3.1 / 80 Plus Gold Power Supply
PRICE:
165,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Cooling type: Active
- Product color: Black
- Number of fans: 1 fan
- Built-in switch: Yes
- Fan bowl diameter: 12 cm
- Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power protection features
- Overload protection
- Protection against overvoltage
- Overcurrent
- Short circuit
- Overheating protection
- Low voltage protection
- Input current: 12 - 6 A
- Total power (+5 Vsb): 15 W
- Maximum output current (-12V): 0.3A
- Total power (+3.3V): 120 W
- Total power: 850 W
- Maximum output current (+12V): 70.8 A
- Efficiency: 91%
- Maximum output current (+5V): 20A
- Maximum output current (+3.3V): 20 A
- Total power (+12V): 850 W
- Total power (+5V): 120 W
- Maximum output current (+5 Vsb): 3 A
- Total power (-12V): 3.6 W
- Weight and dimensions
- Product weight: 2.22 kg
- Product depth: 140 mm
- Product height: 86 mm
- Product width: 150 mm
- Working conditions
- Temperature range (operation): 10 - 40 °C
- Relative humidity range: 20 - 85%
- Temperature range (storage): -40 - 70 °C
- Permissible relative humidity: 5 - 95%
- Efficiency
- 80 PLUS Certificate: 80 PLUS Gold
- ATX version: 3.1
- Bearing technology: HDB
- Intended use: PC
- Power supply type (PSU): ATX
- Packaging data
- Package depth: 290 mm
- Package width: 215 mm
- Package height: 105 mm
- Weight with packaging: 3.02 kg
- Certificates
- Certificates of conformity
- CE
- EAC
- UKCA
- RoHS
- TÜV mark
- Federal Communications Commission (FCC)
- Certificates of conformity
- Ports and interfaces
- PCI Express power connectors (12+4 pin) cable length: 600 mm
- PCI Express power connectors (12+4 pin): 1
- Peripheral (Molex) Power Connectors (4-pin): 4
- Peripheral (Molex) Power Cable Length
- 450 mm
- 150
- Motherboard power connector: 20+4 pin ATX
- SATA power cable length
- 150
- 450
- Number of SATA power connectors: 8
- PCI Express power connectors (6+2 pin): 4
- CPU power cable length: 60 cm
- PCI Express power cable length: 55 cm
- Wiring Type: Non-Modular
- CPU power supply connector (4+4 pin): Yes
- PCI Express slot: Yes
- Motherboard cable length: 55 cm
| Name | Details |
|---|---|
| Producer | COUGAR |
