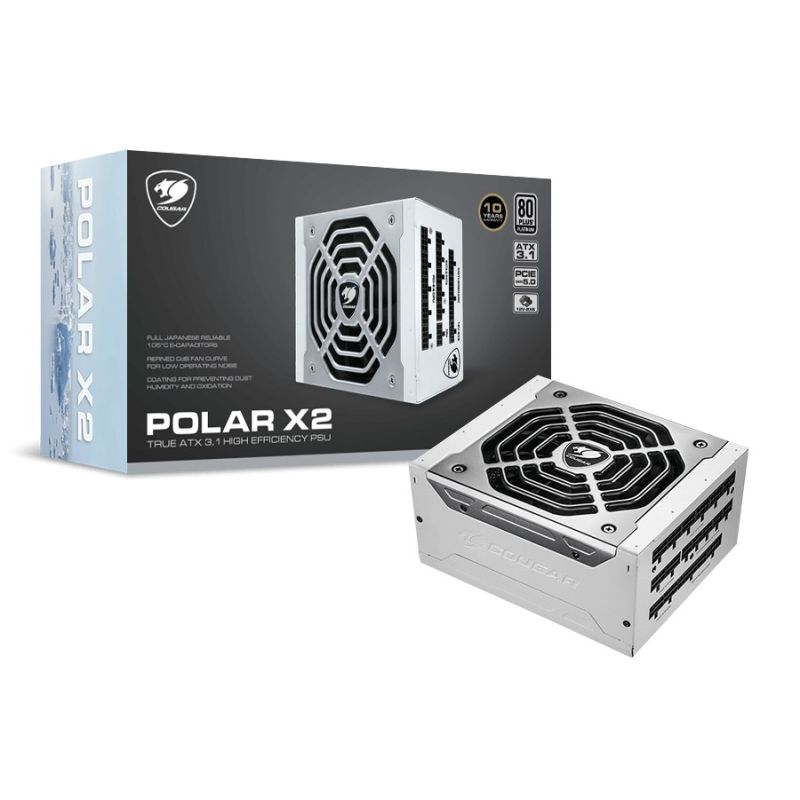

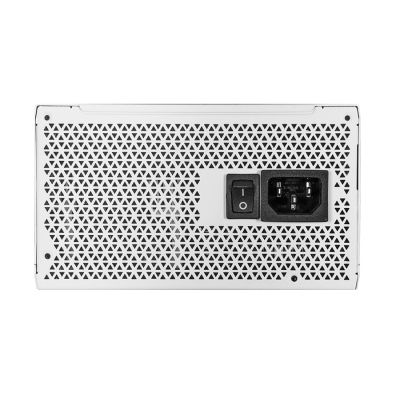

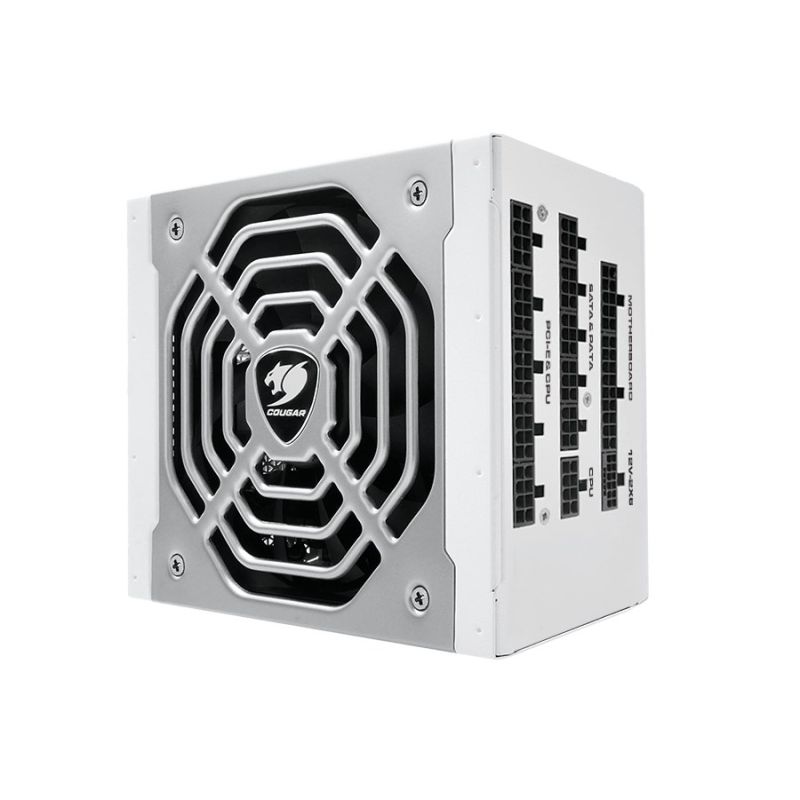

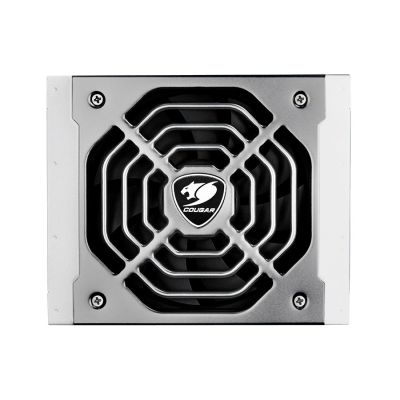

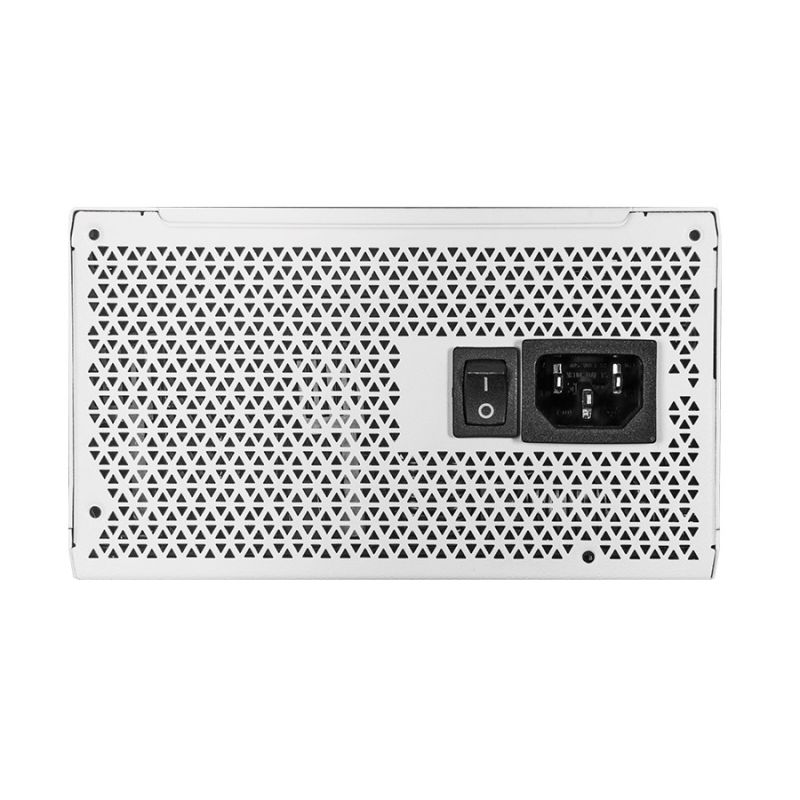

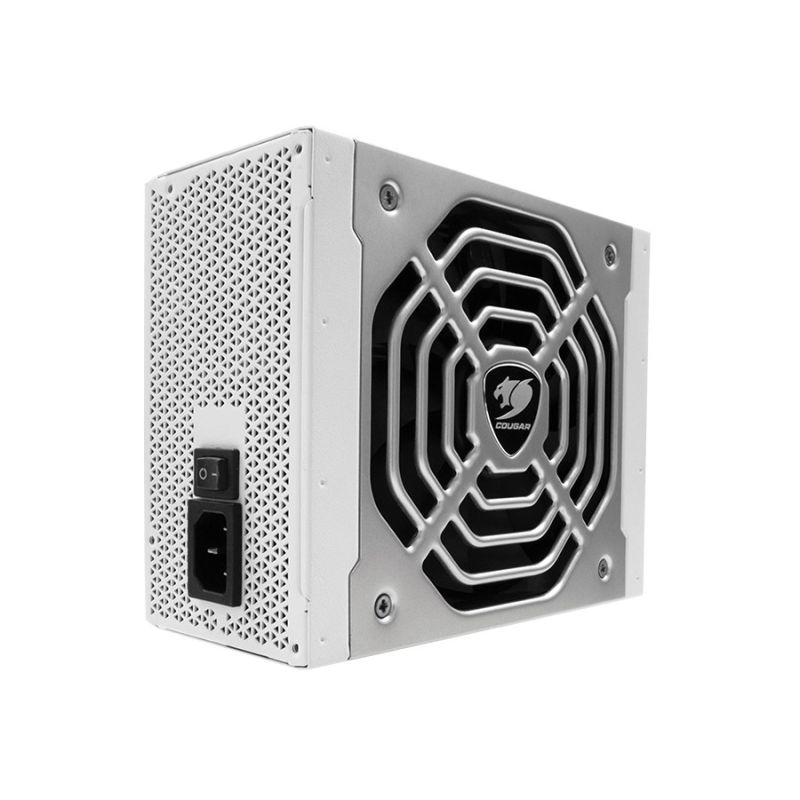

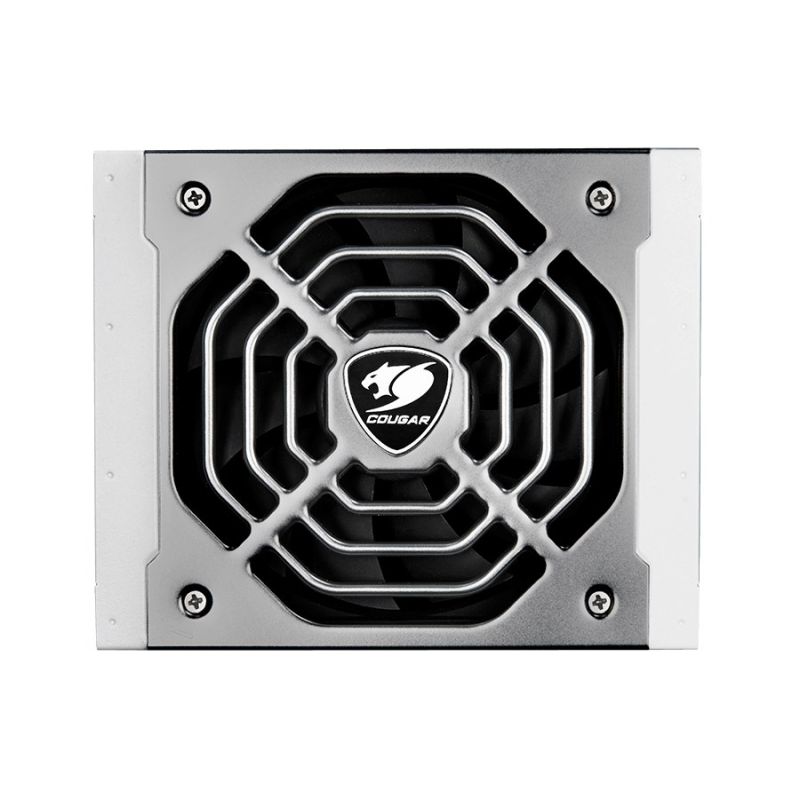

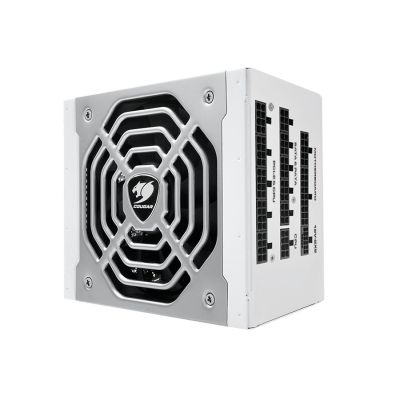

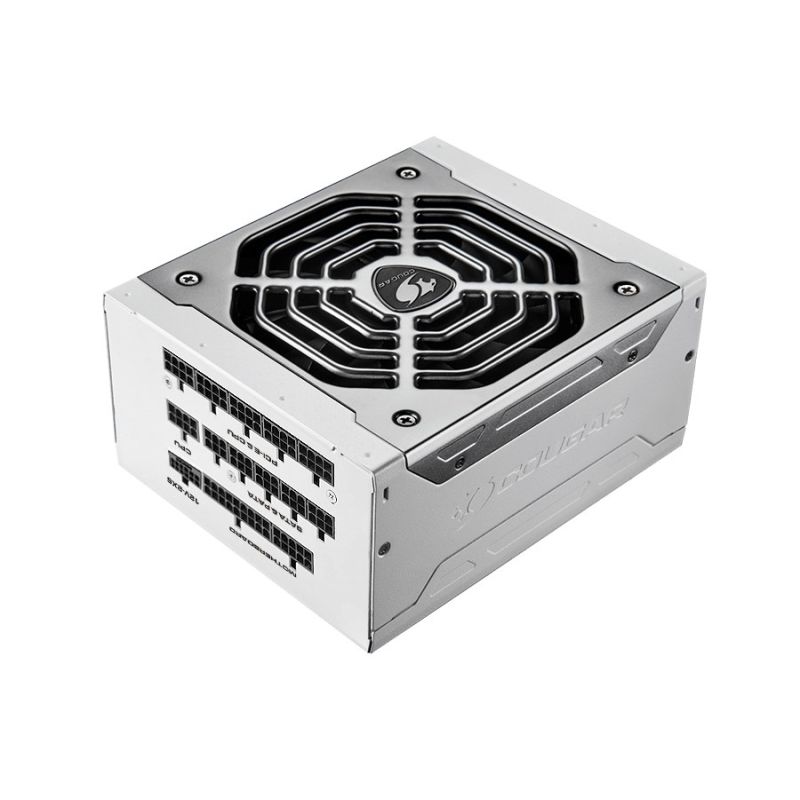

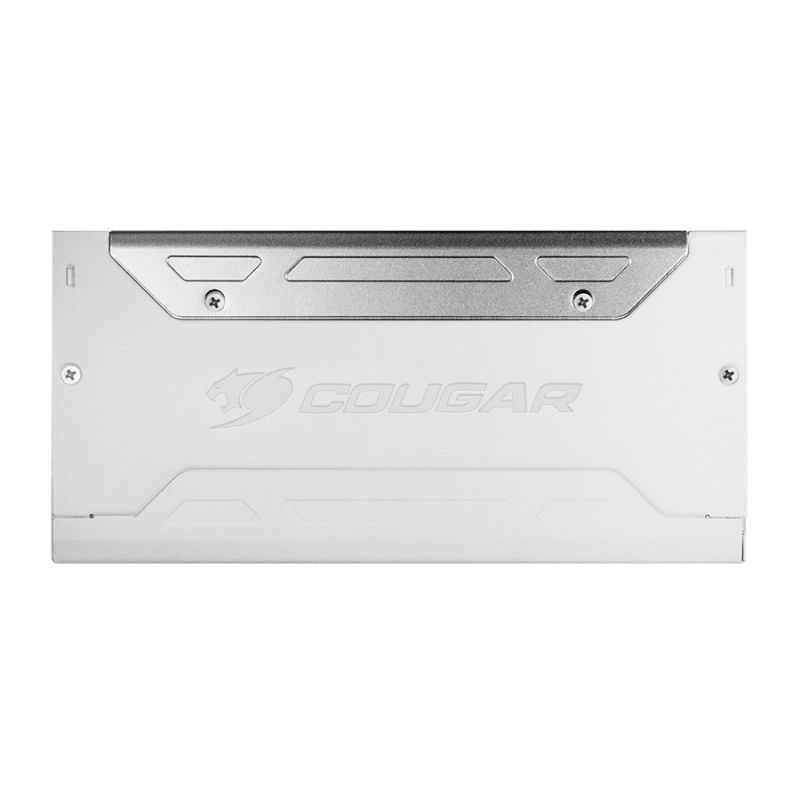

COUGAR POLAR X2 1050W ATX3.1/80 Plus Platinum/Modular Power Supply
COUGAR POLAR X2 1050W ATX3.1/80 Plus Platinum/Modular Power Supply
COUGAR POLAR X2 1050W ATX3.1/80 Plus Platinum/Modular Power Supply
PRICE:
271,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Cooling type: Active
- Number of fans: 1 fan
- Built-in switch: Yes
- Product color: Silver
- Fan bowl diameter: 13.5 cm
- Power
- Maximum output current (+3.3V): 20 A
- Efficiency: 90%
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Total power: 1050 W
- Total power (+5 Vsb): 15 W
- Total power (+12V): 1050 W
- Total power (+5V): 100 W
- Input current: 15 - 7 A
- Power protection features
- Low voltage protection
- Short circuit
- Overheating protection
- Protection against overvoltage
- Overcurrent
- Overload protection
- Total power (+3.3V): 100 W
- Total power (-12V): 3.6 W
- Maximum output current (+5 Vsb): 3 A
- Maximum output current (+5V): 20A
- Maximum output current (+12V): 87.5 A
- Maximum output current (-12V): 0.3A
- Weight and dimensions
- Product height: 86 mm
- Product width: 150 mm
- Product weight: 2.09 kg
- Product depth: 180 mm
- Working conditions
- Temperature range (operation): 10 - 50 °C
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 20 - 85%
- Temperature range (storage): -40 - 70 °C
- Efficiency
- Bearing technology: HDB
- ATX version: 3.1
- Intended use: PC
- 80 PLUS Certificate: 80 PLUS Platinum
- Power supply type (PSU): ATX
- MTBF (Mean Time Between Failures): 100000 h
- Silent mode: Yes
- Noise level: 22 dB
- Packaging data
- Package depth: 331 mm
- Packaging type: Box
- Weight with packaging: 3.59 kg
- Package height: 107 mm
- Package width: 229 mm
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- RoHS
- TÜV mark
- CCC
- CE
- EAC
- Certificates of conformity
- Ports and interfaces
- Wiring Type: Fully Modular
- PCI Express power connectors (6+2 pin): 6
- Peripheral (Molex) Power Connectors (4-pin): 4
- EPS power supply connector (8-pin): Yes
- CPU power supply connector (4+4 pin): Yes
- SATA power cable length
- 120
- 500 mm
- PCI Express power supply connector (8-pin): 1
- ATX power supply connector (20+4 pin): Yes
- Peripheral (Molex) Power Cable Length
- 500 mm
- 120
- CPU power cable length: 65 cm
- Motherboard cable length: 65 cm
- PCI Express slot: Yes
- Number of SATA power connectors: 12
- Number of PATA power connectors: 4
- Motherboard power connector: 20+4 pin ATX
- PCI Express power connectors (12+4 pin): 1
- PCI Express power connectors (12+4 pin) cable length: 650 mm
- Logistics data
- Country of origin: China
| Name | Details |
|---|---|
| Producer | COUGAR |
