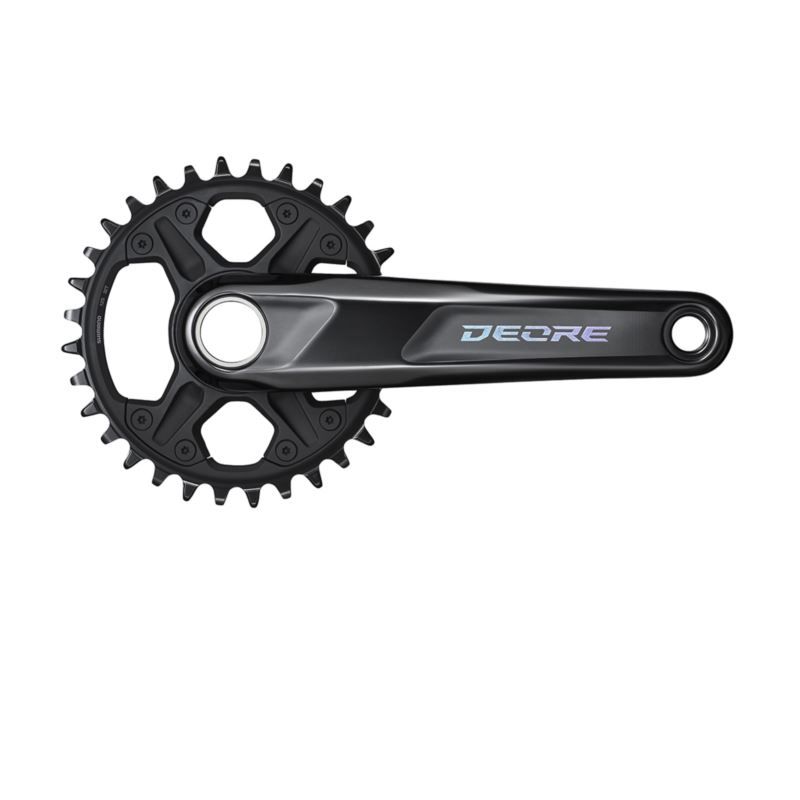

FC M6100 Hollowtech II Deore Shimano crank

The Shimano Deore FC-M6100 crankset features a completely new design that incorporates direct mount chainrings, a special chainring tooth profile for improved chain retention, and a 172mm Q-factor compatible with OLD 142mm or 148mm frames.

Manufacturer: Shimano
Group: Deore 6100
Model: FC M6100-1
Crank material: aluminum
Dial material: steel, composite
Axle material: steel
Gear ratios: 1x12
Number of teeth: 32T
Compatible chain: HG+ 12-speed
Q-factor: 172mm
Arm length: 175mm
Bottom bracket type: Hollowtech II
Axle diameter: 24mm
Compatible BSA width: 68mm, 73mm
Compatible bottom brackets: SM-BB52 or BB-MT500-PA Pressfit Hollowtech II (not included)
Chainline: 52mm

Deore FC-M6100-1 Features:

Excellent chain retention for a smoother ride, even on rough terrain
DYNAMIC CHAIN ENGAGEMENT+ technology improves chain guidance and stability
Direct mount crankset
Stiff, lightweight two-piece cranks with efficient power transfer
Fits dimensions 135, 142 and 148mm above locknut
Finish: Anodized cranks, painted disc

Technologie

Dynamic Chain Engagement+

Shimano's Dynamic Chain Engagement+ tooth design features a special tooth profile for single-chainring setups in XC, enduro, and trail riding. It provides improved chain retention and smooth pedaling—even on rough terrain. Proper chain retention in every gear reduces abrasion and wear.

2-pieces

Integrated crank arm and bottom bracket. Increased stiffness with less weight. Wider bearing spacing. Greater stiffness and efficient pedaling power transfer. Precision bearings, plus low maintenance and simplified installation.

The new SHIMANO DEORE groupset will add even more excitement to your active lifestyle, and a wider range of gears guarantees easy climbing, increased speed, and a more enjoyable ride. Gain greater confidence and control when mountain biking thanks to smoother, more stable chains, and confident shifting on the trail. Greater stability and predictable control let you conquer trails with steep climbs and descents. Experience the freedom of SHIMANO DEORE.
