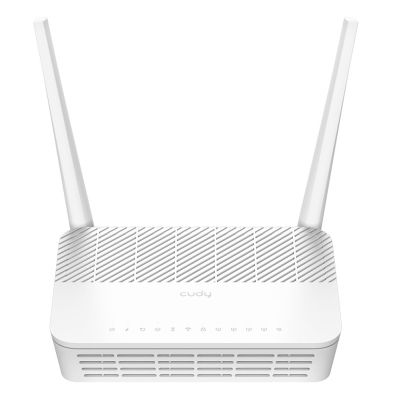

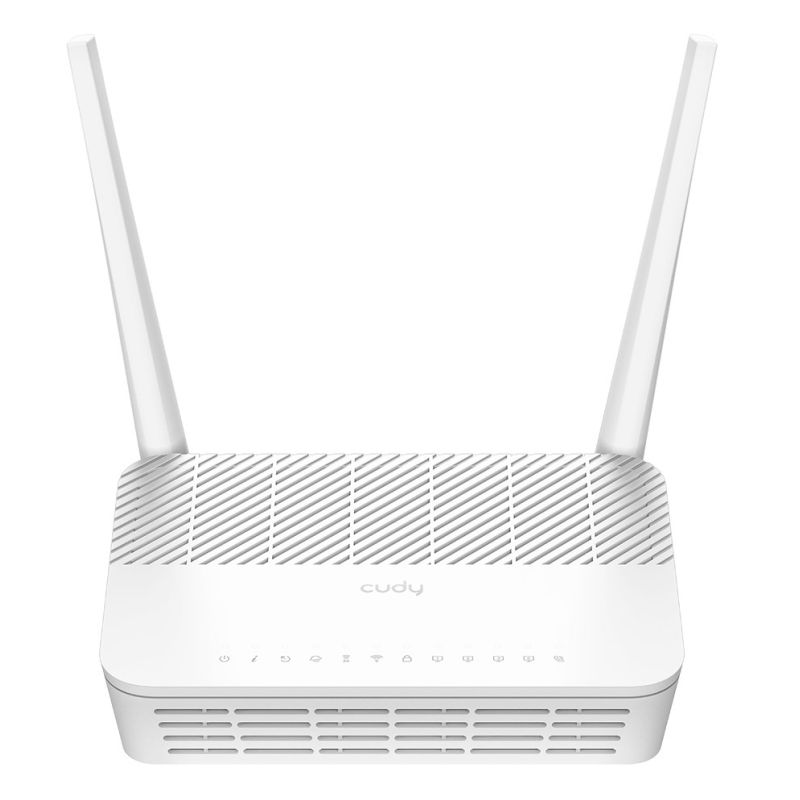

Cudy AC1200 Wi-Fi VoIP GPON Router
Cudy AC1200 Wi-Fi VoIP GPON Router
Sign up and unlock up to 10% off!
- Characteristics
- Internal memory capacity: 256 MB
- Number of processor cores: 2
- Flash memory size: 128 MB
- Processor clock speed: 1150 MHz
- Built-in processor: Yes
- Design
- Product type: Desktop router
- Product color: White

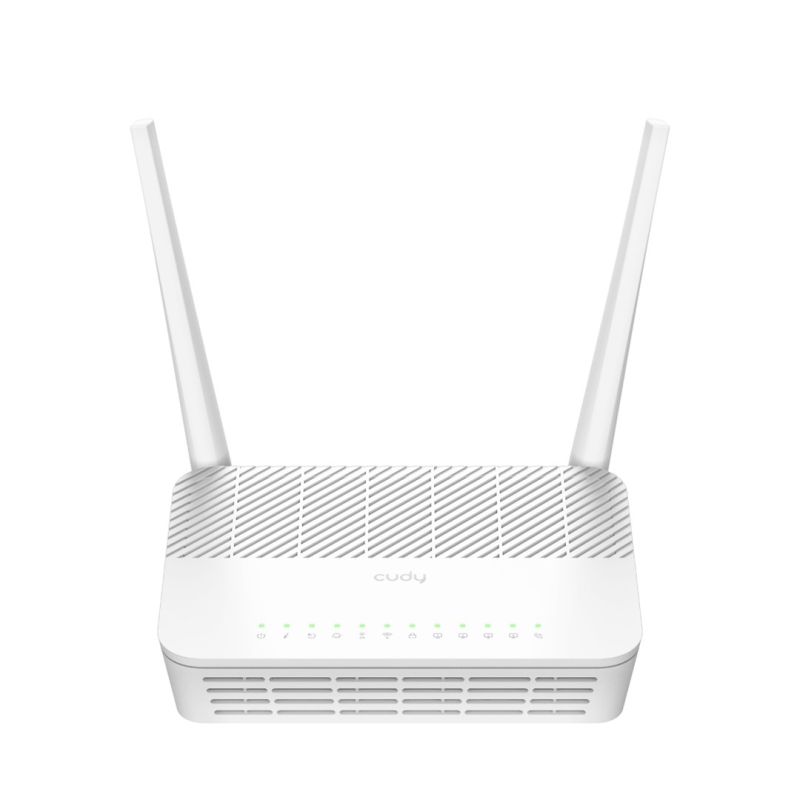

- LEDs: LAN, Power, WLAN
- Power
- Power supply type: AC
- Output current: 1 A
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Operating voltage: 12 V
- Weight and dimensions
- Product height: 33 mm
- Product depth: 123.8 mm
- Product width: 173 mm
- Management features

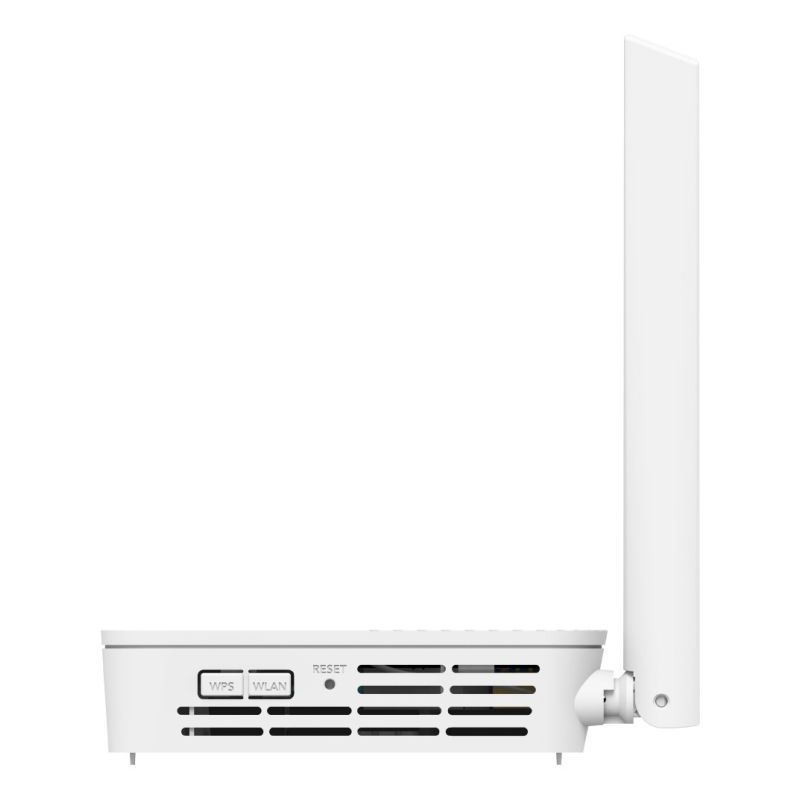

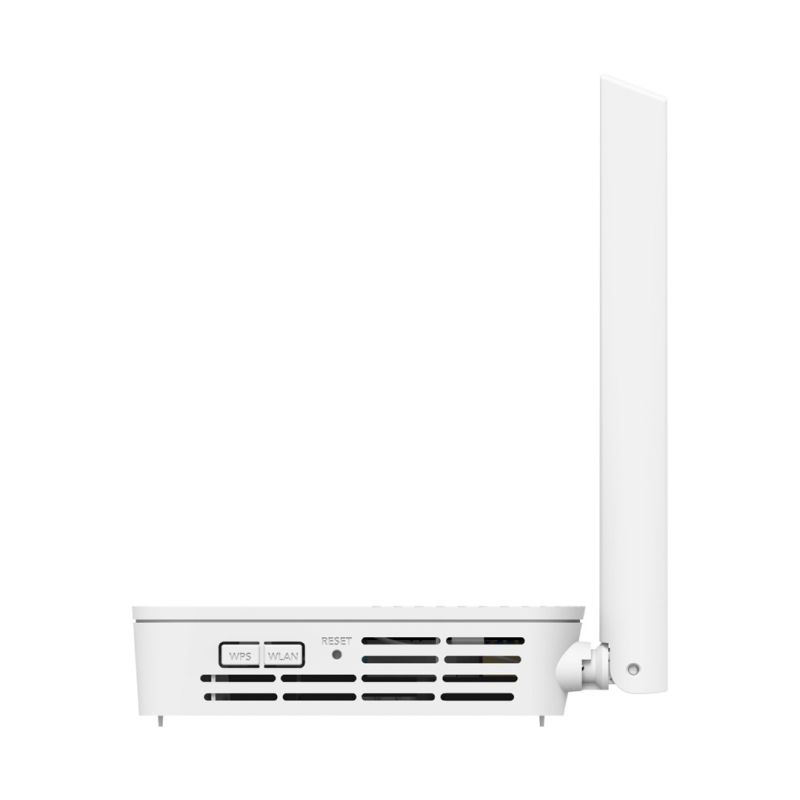

- WPS Button: Yes
- ALTHOUGH: Yes
- Reset button: Yes
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Permissible relative humidity: 5 - 90%
- Relative humidity range: 10 - 90%
- Temperature range (storage): -40 - 70 °C
- Network
- Communication standards: IEEE 802.3ah
- Ethernet LAN interface type: Gigabit Ethernet
- Wired LAN: Yes

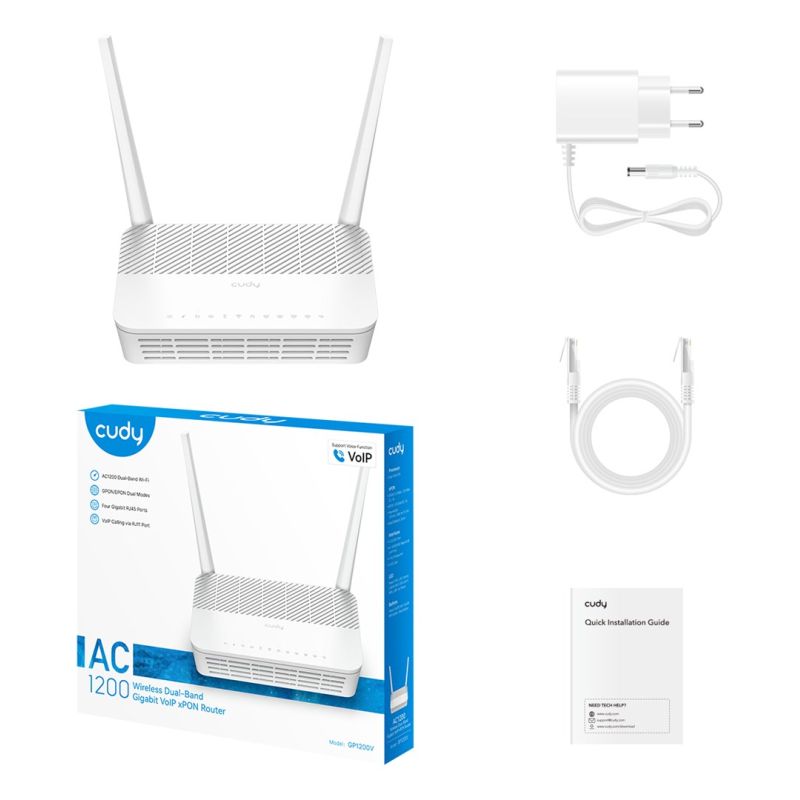

- Package contents
- Cables: LAN (RJ-45)
- AC adapter: Yes
- Quick Installation Guide: Yes
- Wireless LAN Features
- Basic Wi-Fi standard: Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (first band): 300 Mbit/s
- Wi-Fi frequency: Dual-band (2.4 GHz/5 GHz)
- WLAN data transfer rate (second band): 867 Mbit/s
- WLAN data transfer rate (max): 867 Mbit/s
- Certificates
- Certificates of conformity
- CE
- Federal Communications Commission (FCC)
- Certificates of conformity

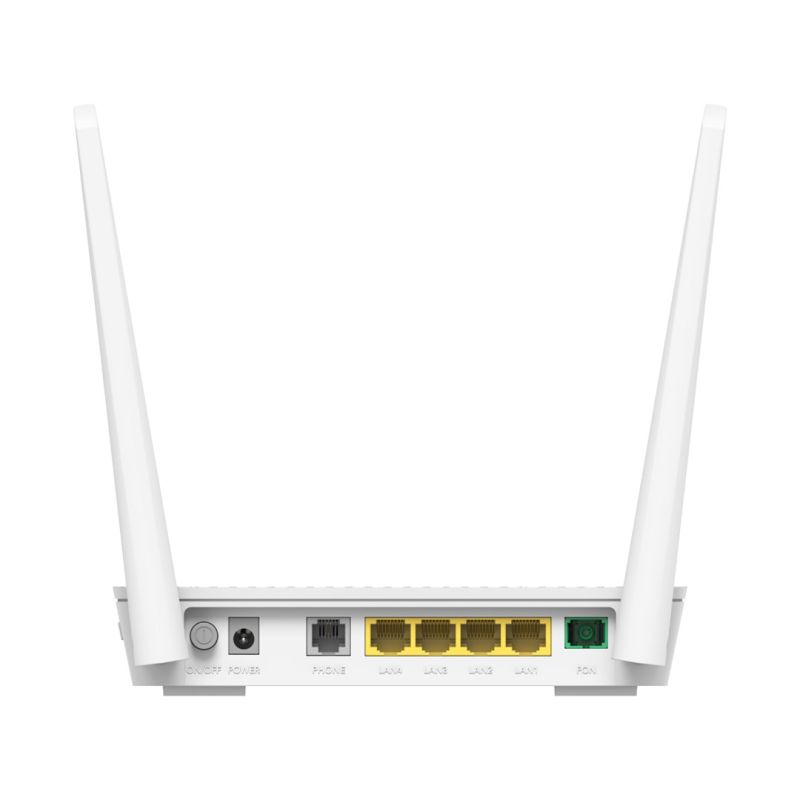

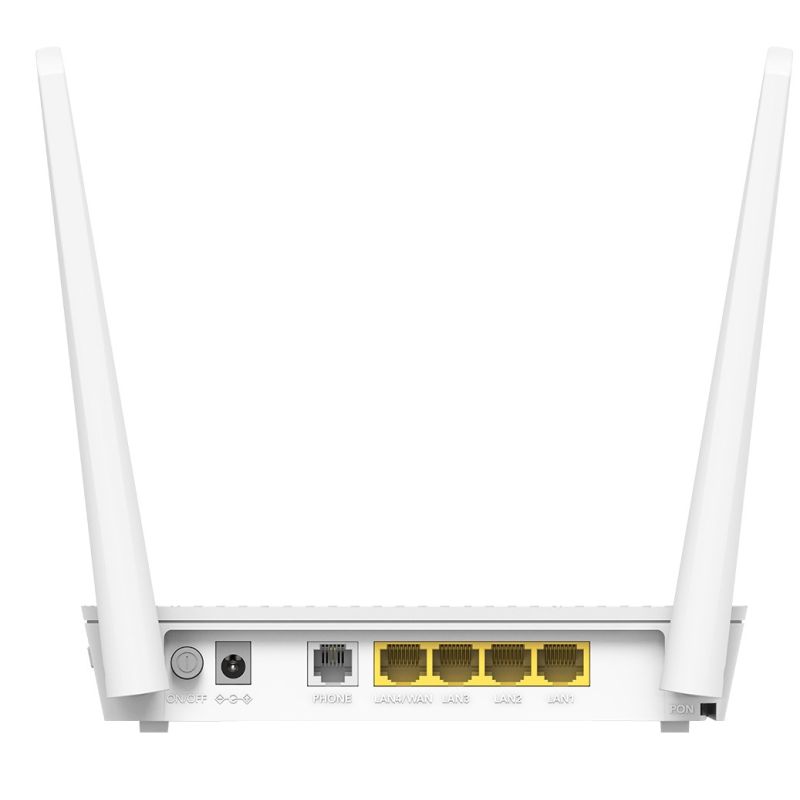

- Ports and interfaces
- Number of RJ-11 ports: 1
- USB port: No
- Number of Ethernet LAN ports (RJ-45): 4
- DC output socket: Yes

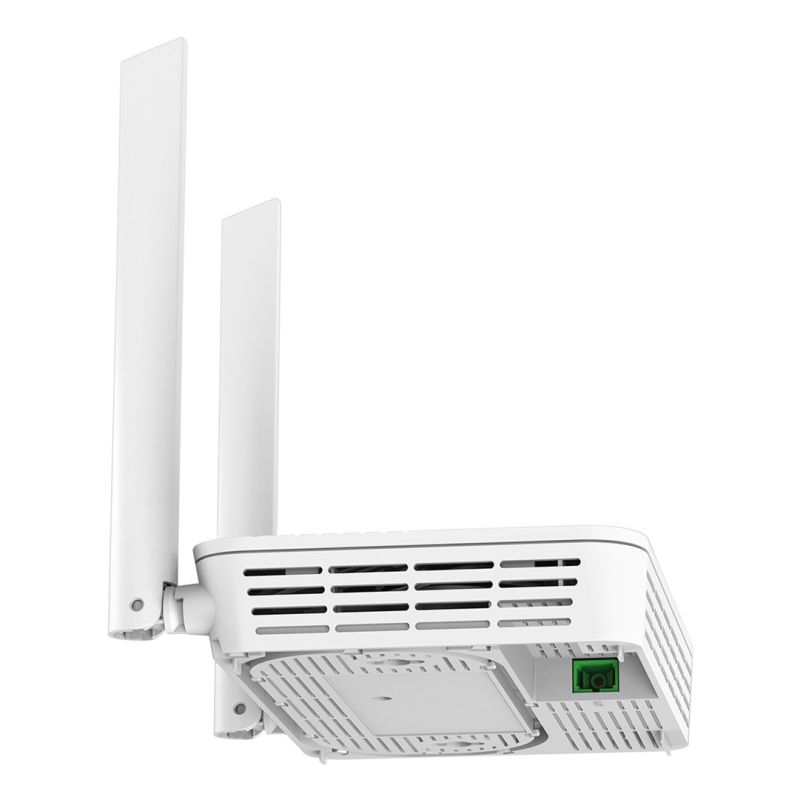

- Number of SC/APC GPON ports: 1
- Antenna
- Antenna gain level (max): 5 dBi
- Antenna type: 2x2
- Antenna Construction: External
- WAN connection
- DSL WAN: No
- Ethernet WAN: Yes
- WAN connection type: RJ-45
- SIM card slot: No
- USB 3G/4G Connection: No
| Name | Details |
|---|---|
| Producer | CUDY |
