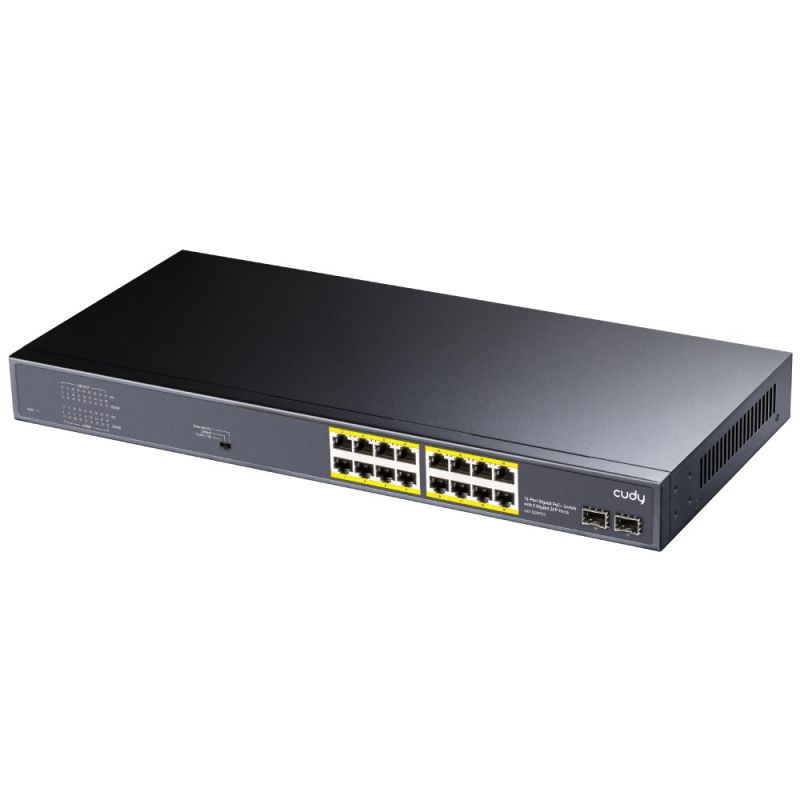

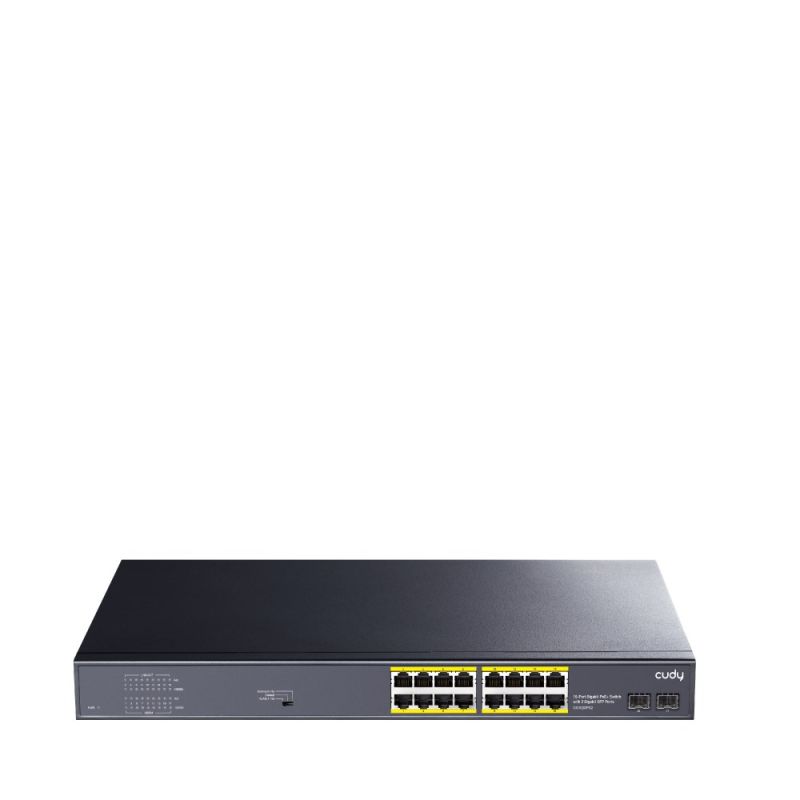

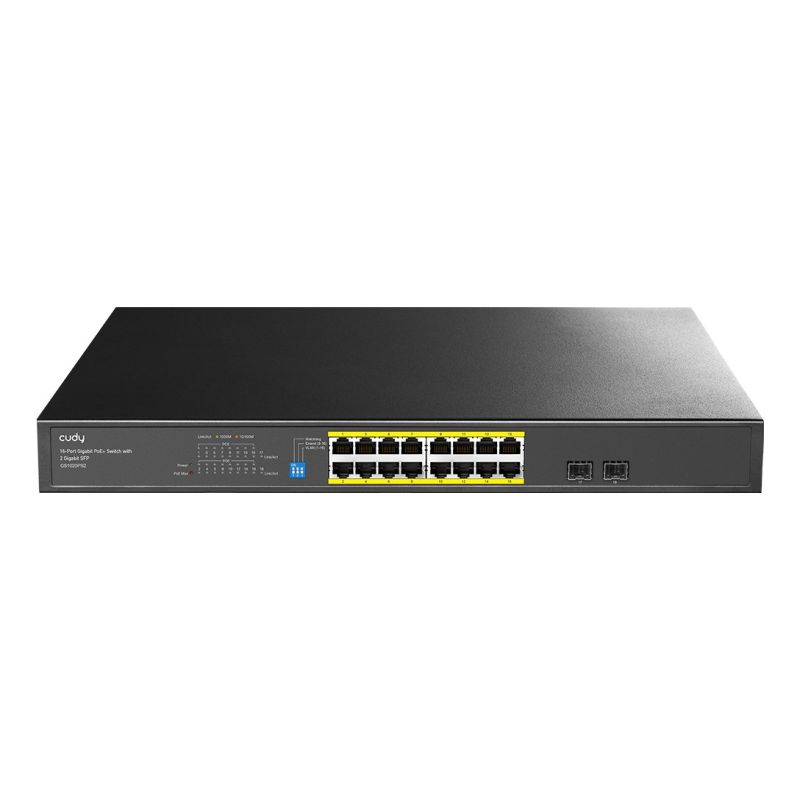

Cudy GS1020PS2 Gigabit Ethernet (10/100/1000) Network Links PoE Support Black
Cudy GS1020PS2 Gigabit Ethernet (10/100/1000) Network Links PoE Support Black
Cudy GS1020PS2 Gigabit Ethernet (10/100/1000) Network Links PoE Support Black
PRICE:
190,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Housing material: Metal
- Rack mounting options: Yes
- Airflow Direction: Side to Side Airflow
- Product color: Black
- LED diodes
- Action
- Power supply
- Link
- Power
- AC input voltage: 100 - 240 V
- Output current: 3.85 A
- Operating voltage: 52 V
- AC input frequency: 50 - 60 Hz
- Power supply included: Yes
- Power source: AC
- Working conditions
- Permissible relative humidity: 5 - 95%
- Permissible operating altitude (above sea level): 0 - 3000 m
- Temperature range (operation): -20 - 50 °C
- Relative humidity range: 10 - 90%
- Temperature range (storage): -40 - 80 °C
- Network
- Communication standards
- IEEE 802.3ab
- IEEE 802.3at
- IEEE 802.3z
- IEEE 802.3
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3u
- Supported cable types
- Cat6+
- Cat6a
- Cat5
- Cat7
- Cat6e
- Cat7e
- Cat8.1
- Cat5e
- Cat8
- Cat6
- Copper Ethernet cabling technology
- 10BASE-T
- 100BASE-TX
- 1000BASE-TX
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Auto Detection: Yes
- VLAN support: Yes
- Communication standards
- Efficiency
- MTBF (Mean Time Between Failures): 50000 h

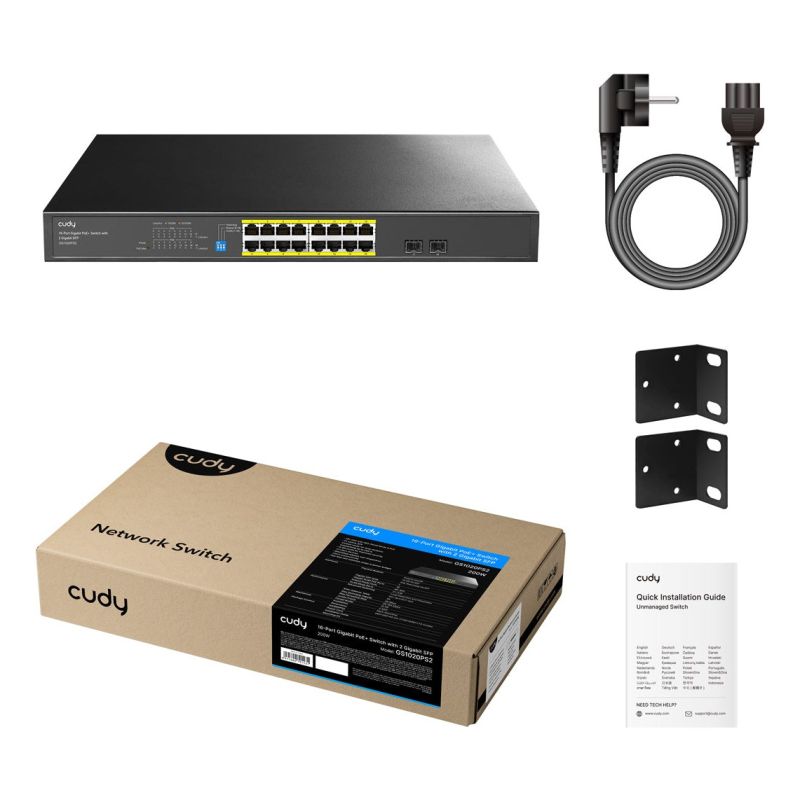

- Package contents
- Wires: Alternating Current
- Hook mounting kit: Yes
- Ports and interfaces
- Number of Fiber uplink ports: 2
- Number of SFP Combo Ports: 2
- Number of SFP modules installed: 2
- Basic RJ-45 Switching Number of Ethernet Ports: 16
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)

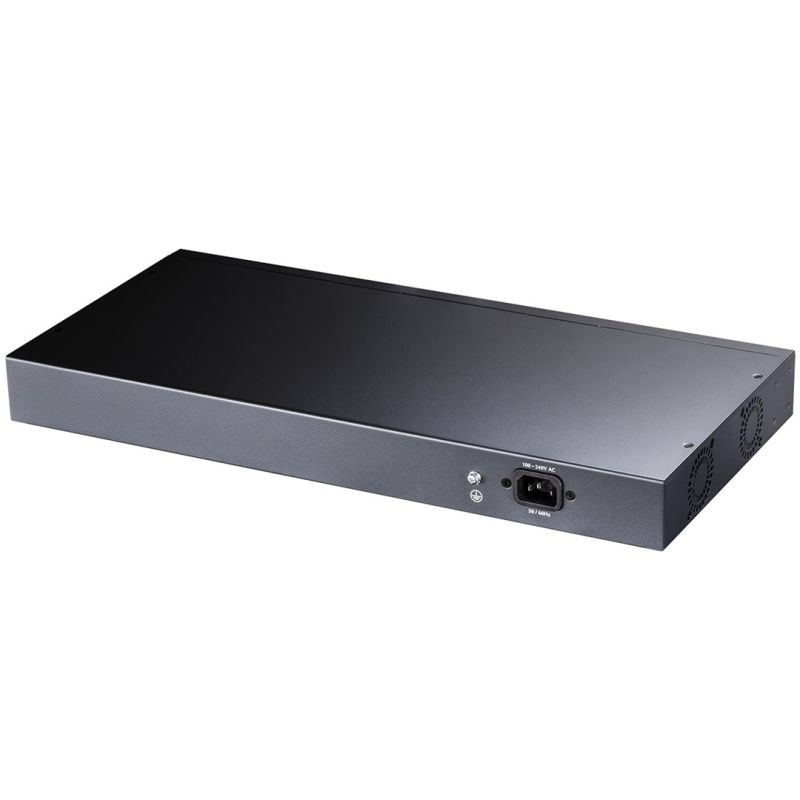

- Power Connector: AC Input Socket
- Other functions
- Bandwidth: 52 Gbps
- Data transfer
- Transfer speed: 38.7 Mpps
- Address table size: 8000 entries
- Packet buffer memory: 4 MB
- Power over Ethernet (PoE)
- Number of Fast Ethernet (PoE) ports: 16
- Power over Ethernet Plus (PoE +) ports: 16
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 200 W
- PoE Support: Yes
- Fiber optic
- Transmission distance (maximum): 120 km
- Optical Module Switch Type: Gigabit Ethernet
- Maximum transfer distance (multi mode): 2000 m
- Fiber optic type: Multifunctional
- Maximum transfer distance (single mode): 120000 m
| Name | Details |
|---|---|
| Producer | CUDY |
