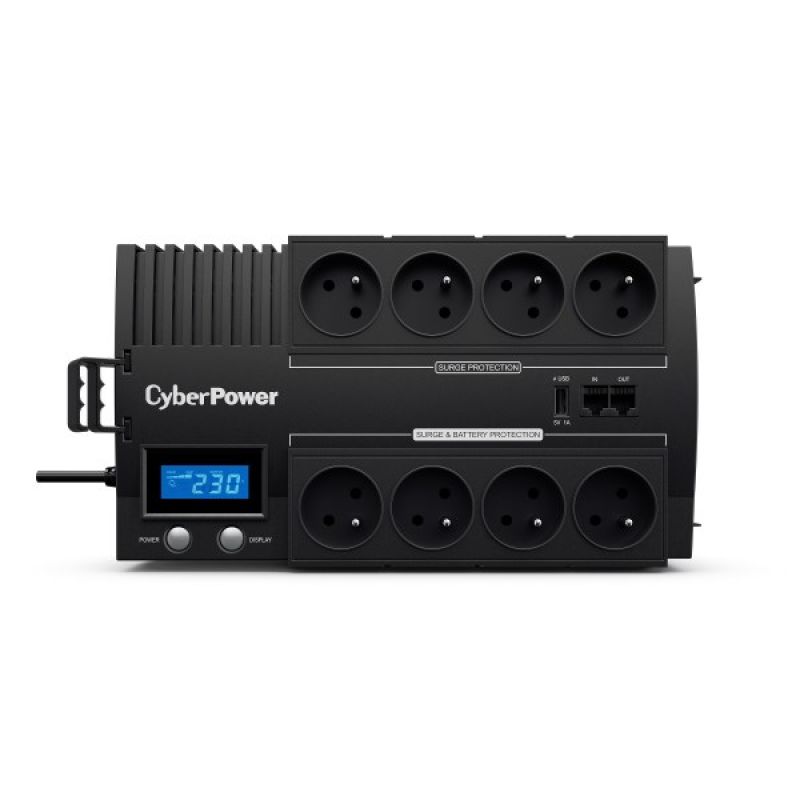

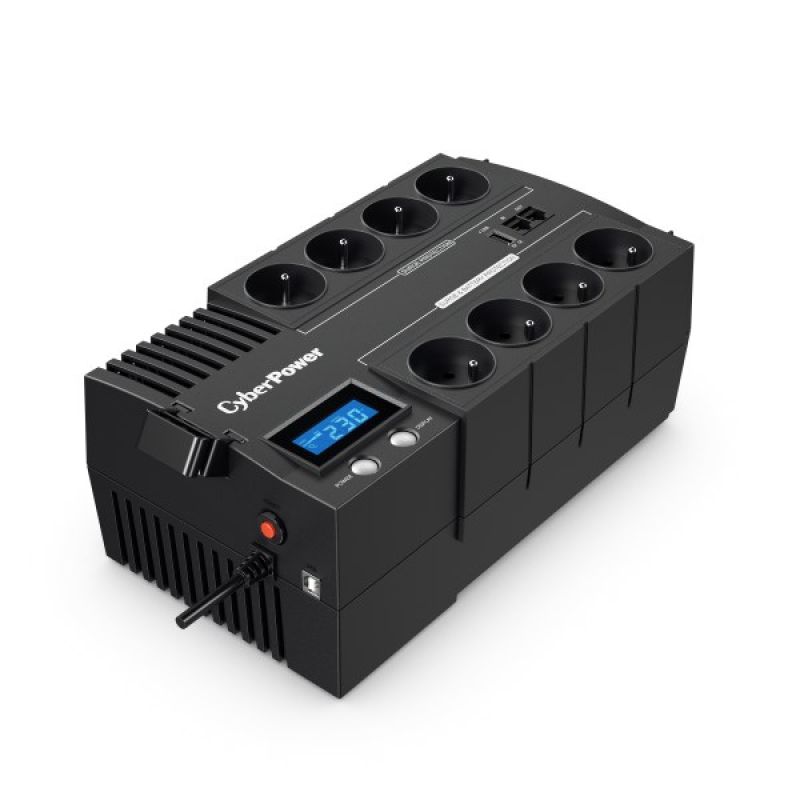

CyberPower BR1000ELCD-FR UPS (Brick; 1000VA)
CyberPower BR1000ELCD-FR UPS (Brick; 1000VA)
Sign up and unlock up to 10% off!
- Characteristics
- Response time (typical): 4 ms
- Input frequency: 50/60 Hz
- Input operating voltage (minimum): 165 V
- Output frequency: 50/60 Hz
- Maximum configurable power: 1 kVA
- EMI/RFI Filter: Yes
- Overvoltage protection: Yes
- UPS topology: Line-interactive technology
- Impact Energy Rating: 125 J
- Automatic Voltage Regulation (AVR): Yes
- Actual power: 600 W
- Power Protection Features: Overcharge
- Audible alarm: Yes
- Surge protection features
- Phone
- Digital Subscriber Line (DSL)
- Network
- Fax
- Modem
- Input operating voltage (maximum): 290 V
- Waveform: Sine
- Audible alarm modes: Battery alarm, Fault, Low battery alarm, Overload alarm
- Design
- Cable length: 1.5 m
- LEDs: Yes
- Layout: Compact
- Product color: Black
- Housing material: Plastic
- Display type: LCD
- Weight and dimensions
- Product weight: 6.5 kg
- Product depth: 288 mm
- Product width: 166 mm
- Product height: 118 mm
- Working conditions
- Temperature range (storage): -20 - 50 °C
- Temperature range (operation): 0 - 40 °C
- Permissible relative humidity: 0 - 90%
- Permissible operating altitude (above sea level): 0 - 3000 m
- Relative humidity range: 0 - 90%
- Permissible altitude (above sea level): 0 - 3000 m
- Certificates
- Certificates of conformity: RoHS
- Ports and interfaces
- Number of network sockets: 8 x network socket
- Number of Ethernet LAN ports (RJ-45): 2
- Number of USB 2.0 ports: 1
- AC Output Types: Type E
- USB port: Yes
- RJ-11 modem ports: 2
- Battery
- Battery type: Lead acid (VRLA)
- Charging time: 8 h
- Typical backup time at full load: 1 min
- Cold start: Yes
- Typical backup time at half load: 6 min
- Safety warning
- Warnings
- Keep away from sources of fire and water.
- Do not disassemble the device housing, as this may result in electric shock.
- The device should be used in well-ventilated areas to avoid overheating.
- Warnings
