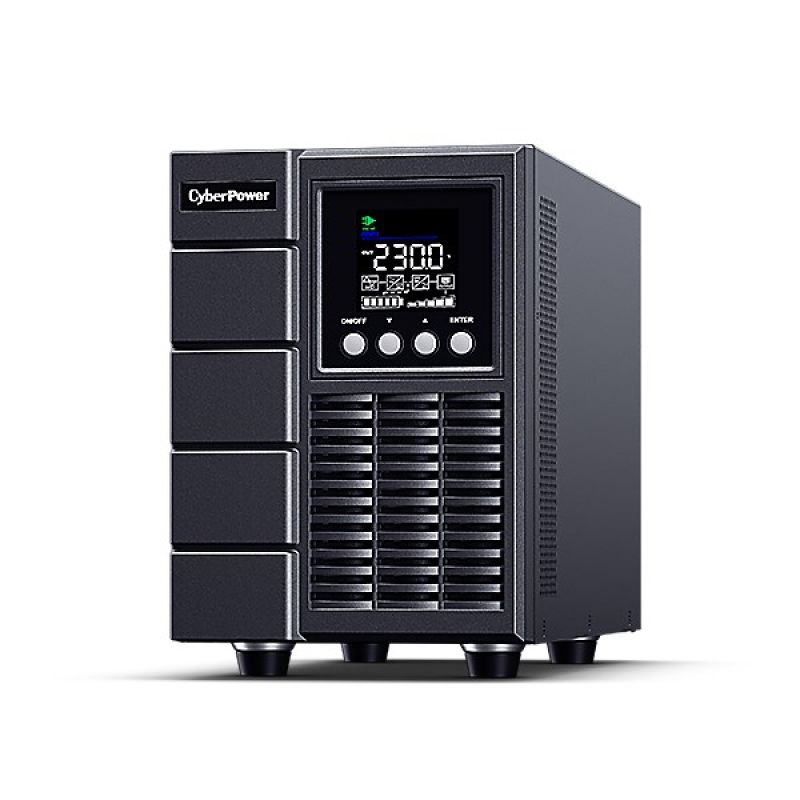

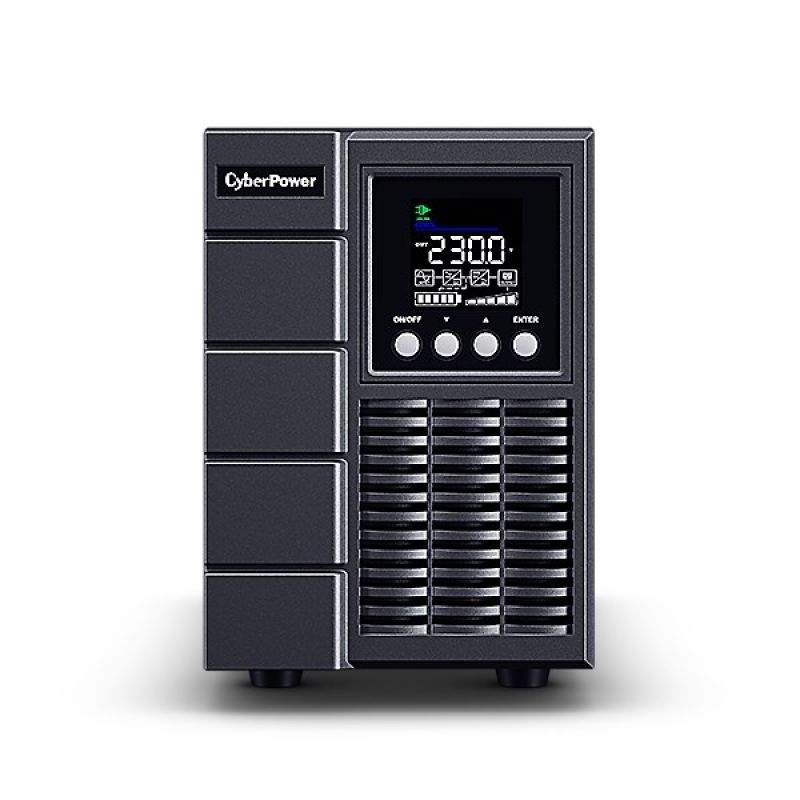

CyberPower OLS1500EA-DE UPS
CyberPower OLS1500EA-DE UPS
Sign up and unlock up to 10% off!
- Characteristics
- Waveform: Pure sine
- Impact Energy Rating: 345 J
- Efficiency (ECO mode): 95%
- Output frequency: 50/60 Hz
- Power Protection Features: Overcharge
- Output current THD level: 5%
- Output operating voltage (minimum): 240 V
- Response time (typical): 0 ms
- Maximum configurable power: 1.5 kVA
- Audible alarm: Yes
- Maximum current: 9 A
- EMI/RFI Filter: Yes
- Input frequency: 50/60 Hz
- Input operating voltage (maximum): 300 V
- Overvoltage protection: Yes
- UPS Topology: Double Conversion (Online)
- Power factor: 0.9
- Input operating voltage (minimum): 190 V
- Output operating voltage (maximum): 208 V
- Audible alarm modes: Battery replacement, Fault, Low battery alarm, Overload alarm
- Input power factor: 0.98
- Actual power: 1350 W
- Design
- Housing material: Metal
- Product color: Black
- Display type: LCD
- Layout: Tower
- Cable length: 1.5 m
- Weight and dimensions
- Product width: 151 mm
- Product height: 225 mm
- Product depth: 394 mm
- Product weight: 14.4 kg
- Working conditions
- Relative humidity range: 20 - 90%
- Permissible operating altitude (above sea level): 0 - 1500 m
- Permissible relative humidity: 10 - 90%
- Permissible altitude (above sea level): 0 - 1500 m
- Temperature range (storage): -20 - 50 °C
- Temperature range (operation): 0 - 40 °C
- Packaging data
- Package width: 241 mm
- Package height: 313 mm
- Package contents
- User Manual: Yes
- Cables: USB cable
- Certificates
- Certificates of conformity: CE

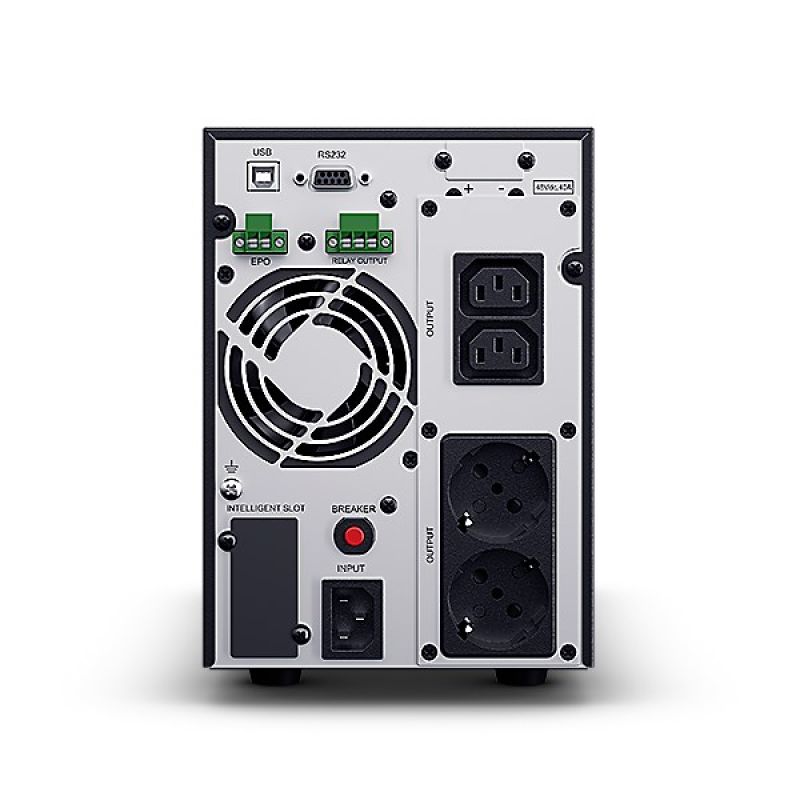

- Ports and interfaces
- Number of IEC output jumpers: 2
- Emergency Power Off (EPO) Connector: Yes
- AC Output Types: IEC 320
- Number of network sockets: 4 x network socket
- Plug: C13 panel
- USB port: Yes
- Number of USB 2.0 ports: 1
- Battery
- Charging current: 1.5 A
- Typical backup time at full load: 5.3 min
- Battery type: Lead acid (VRLA)
- Charging time: 4 hours
- Typical backup time at half load: 15.3 min
- Logistics data
- Harmonized System (HS) code: 8504408590
| Name | Details |
|---|---|
| Producer | CyberPower |
