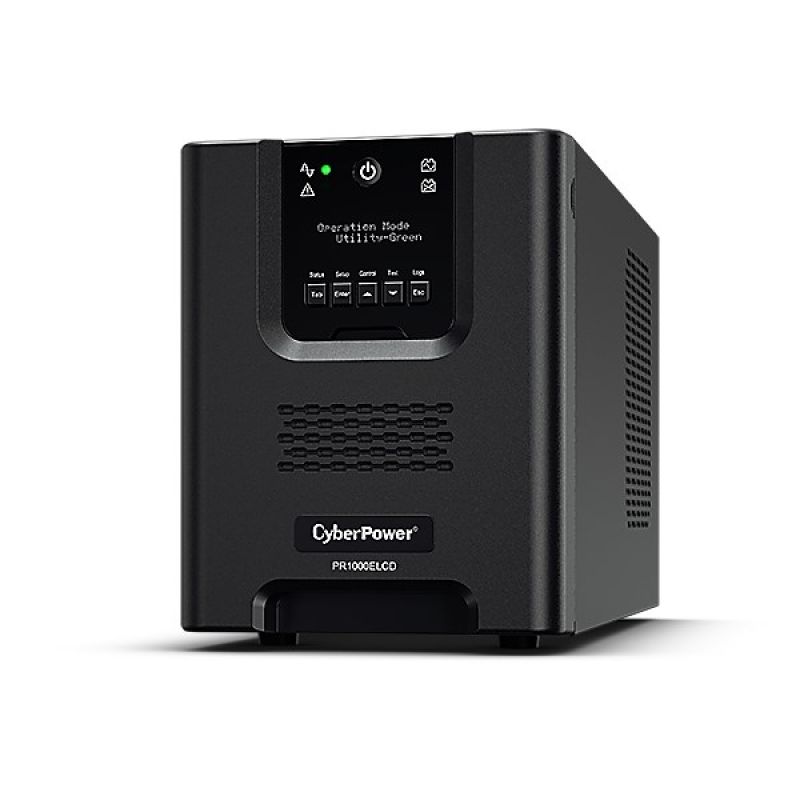

CyberPower PR1000ELCD UPS (TWR; 1000VA)
CyberPower PR1000ELCD UPS (TWR; 1000VA)
Sign up and unlock up to 10% off!
- Characteristics
- Output frequency: 50/60 Hz
- Waveform: Pure sine
- Automatic Voltage Regulation (AVR): Yes
- UPS topology: Line-interactive technology
- Impact Energy Rating: 405 J
- Power factor: 0.9
- Input operating voltage (maximum): 301 V
- Output operating voltage (maximum): 230 V
- Overvoltage protection: Yes
- EMI/RFI Filter: Yes
- Input frequency: 50/60 Hz
- Input operating voltage (minimum): 151 V
- Power Protection Features: Overcharge
- Actual power: 900 W
- Response time (typical): 4 ms
- Output operating voltage (minimum): 230 V
- Maximum configurable power: 1 kVA
- Design
- LED diodes
- Mistake
- Operations
- Layout: Tower
- Display type: LCD
- Housing material: Metal
- Product color: Black
- LED diodes
- Weight and dimensions
- Product height: 221 mm
- Product depth: 432 mm
- Product weight: 18.9 kg
- Product width: 170 mm
- Working conditions
- Permissible relative humidity: 0 - 95%
- Temperature range (storage): -15 - 45 °C
- Temperature range (operation): 0 - 40 °C
- Permissible operating altitude (above sea level): 0 - 3000 m
- Relative humidity range: 0 - 95%
- Permissible altitude (above sea level): 0 - 15000 m
- Packaging data
- Package height: 360 mm
- Package width: 316 mm
- Package contents
- Cables: USB cable

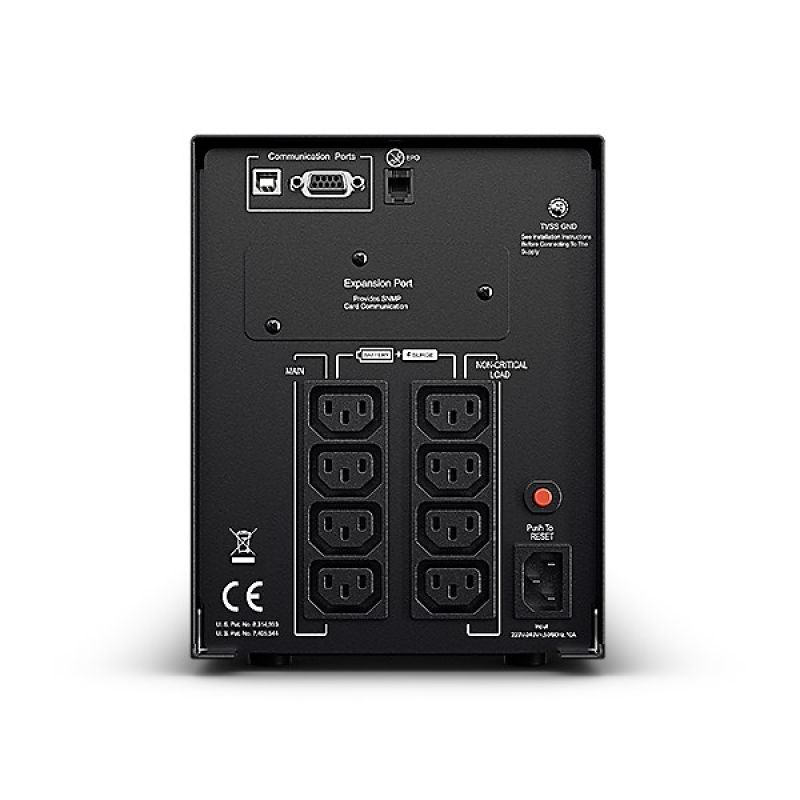

- Ports and interfaces
- Number of IEC output jumpers: 1
- AC output types: C13 panel
- Serial communication ports: 1
- Number of network sockets: 8 x network socket
- Plug: C14 panel
- Number of USB 2.0 ports: 1
- Battery

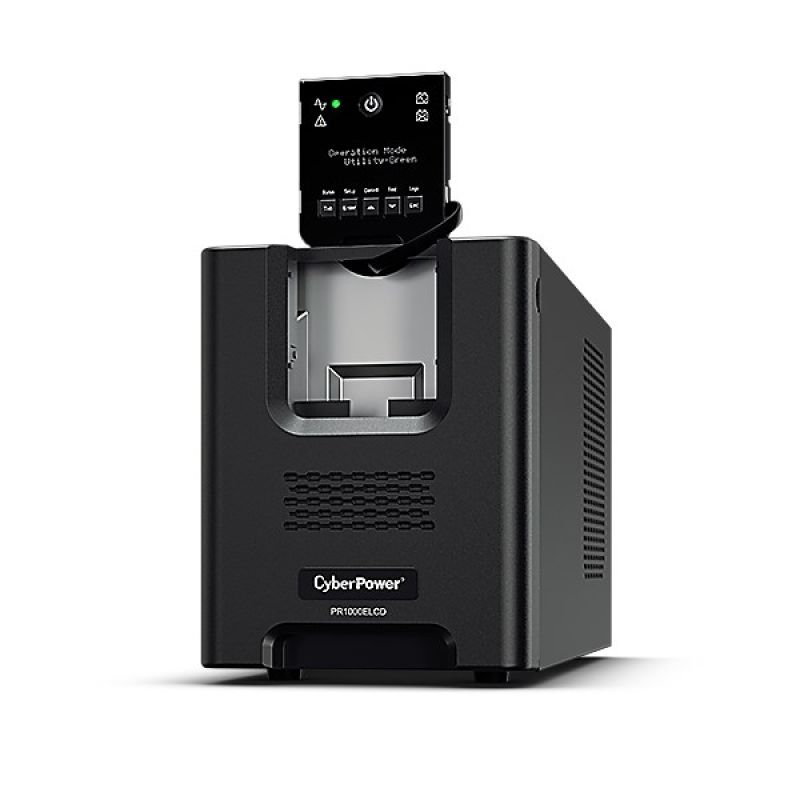

- Hot-swappable batteries: Yes
- Charging time: 8 h
- Number of batteries supported: 1
- Typical backup time at half load: 16 min
- Battery type: Lead acid (VRLA)
- Typical backup time at full load: 4 min
- Other functions
- Overload protection: Yes
- Logistics data
- Harmonized System (HS) code: 8504408590
- Safety warning
- Warnings
- The device should be used in well-ventilated areas to avoid overheating.
- Keep away from sources of fire and water.
- Do not disassemble the device housing, as this may result in electric shock.
- Warnings
| Name | Details |
|---|---|
| Producer | CyberPower |
