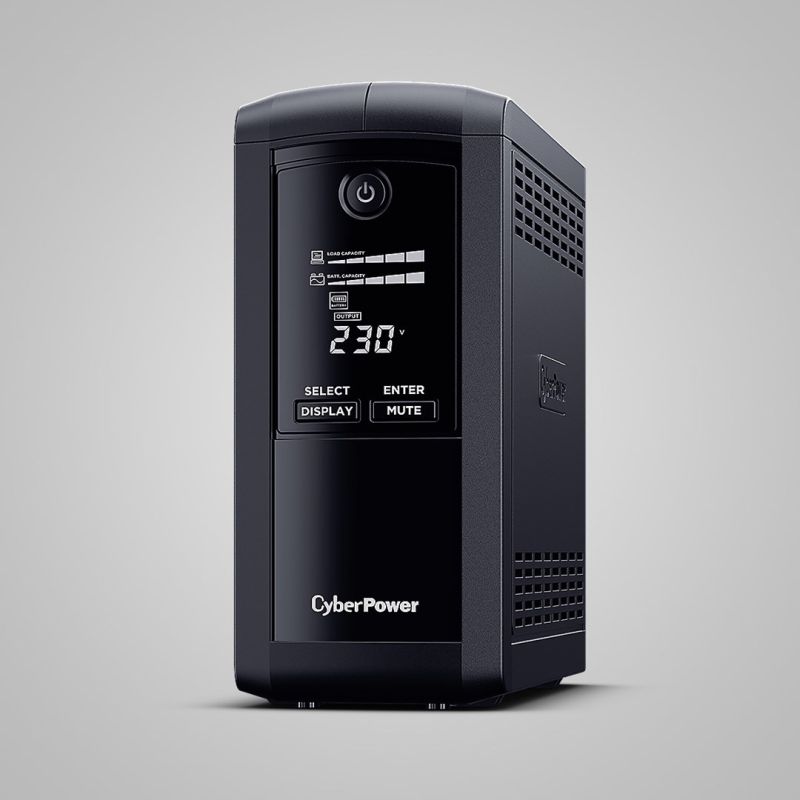

CyberPower VP700ELCD-FR UPS
CyberPower VP700ELCD-FR UPS
Sign up and unlock up to 10% off!
- Characteristics
- Waveform: Sine
- Impact Energy Rating: 450 J
- Input operating voltage (minimum): 167 V
- Overvoltage protection: Yes
- UPS topology: Line-interactive technology
- Input frequency: 50/60 Hz
- EMI/RFI Filter: Yes
- Maximum configurable power: 0.7 kVA
- Audible alarm: Yes
- Input operating voltage (maximum): 295 V
- Response time (typical): 4 ms
- Output frequency: 50/60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Audible alarm modes: Battery alarm, Fault, Low battery alarm, Overload alarm
- Maximum current: 3.04 A
- Actual power: 390 W
- Output operating voltage (minimum): 230 V
- Noise level: 40 dB
- Design
- Cable length: 1.5 m
- Display type: LCD
- Product color: Black
- Layout: Tower
- Housing material: Plastic
- LEDs: Yes
- Weight and dimensions
- Product height: 2227 mm
- Product width: 100 mm
- Product weight: 5.14 kg
- Product depth: 260 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 0 - 90%
- Permissible altitude (above sea level): 0 - 3048 m
- Permissible operating altitude (above sea level): 0 - 3048 m
- Permissible relative humidity: 0 - 90%
- Temperature range (storage): -20 - 50 °C
- Package contents
- Cables: USB cable
- User Manual: Yes
- Certificates
- Certificates of conformity: RoHS
- Ports and interfaces
- Serial interface: Yes
- USB port type: USB Type B
- SCSI interface: RS-232
- Number of Ethernet LAN ports (RJ-45): 1
- Serial communication ports: 1
- USB port: Yes
- Number of USB 2.0 ports: 1
- AC Output Types: Type E
- Number of network sockets: 4 x network socket
- Battery
- Typical backup time at half load: 10 min
- Typical backup time at full load: 1 min
- Charging time: 8 h
- Battery type: Lead acid (VRLA)
- Safety warning
- Warnings
- Keep away from sources of fire and water.
- The device should be used in well-ventilated areas to avoid overheating.
- Do not disassemble the device housing, as this may result in electric shock.
- Warnings
| Name | Details |
|---|---|
| Producer | CyberPower |
