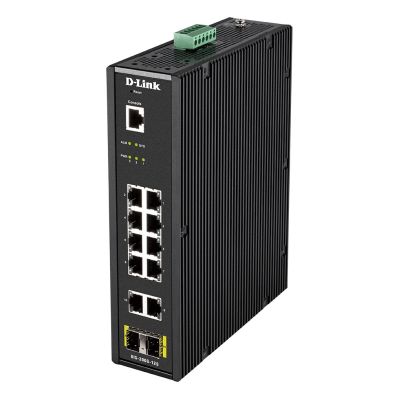

D-Link 12 Port L2 Industrial Smart Switch
D-Link 12 Port L2 Industrial Smart Switch
D-Link 12 Port L2 Industrial Smart Switch
PRICE:
886,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- IP protection class: IP30
- Housing material: Metal
- LEDs: Yes
- Rack mounting options: Yes
- Product color: Black
- Number of fans: 0 fans
- Wall mountable: Yes
- DIN rail mounting: Yes
- EMC standards: CISPR 22, FCC Part 15B Class A
- Power
- Power consumption (max): 10.26 W

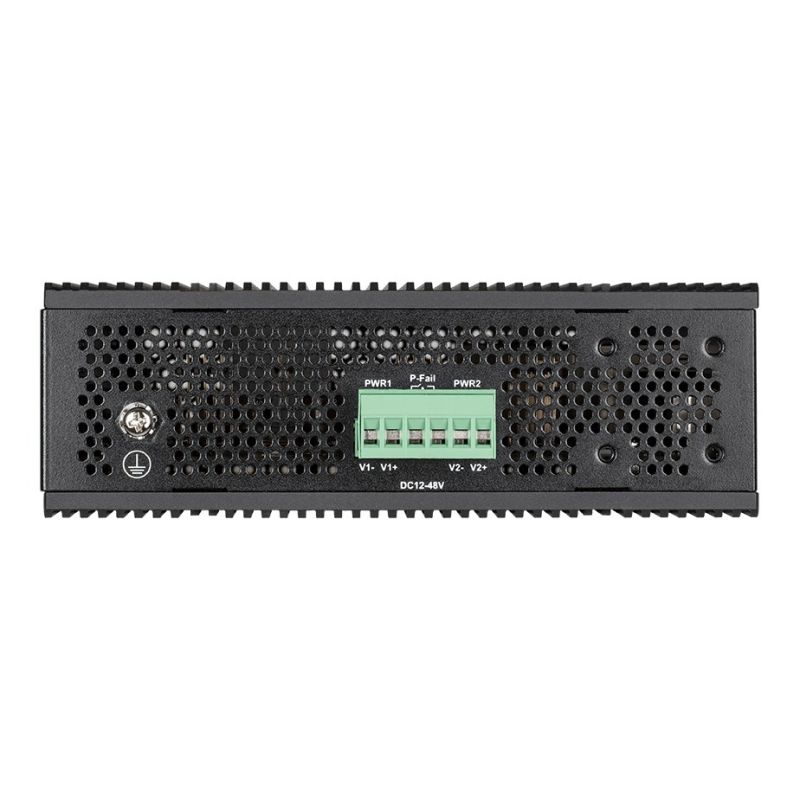

- DC input voltage: 12 - 48 V
- Weight and dimensions
- Product weight: 1.63 kg
- Product depth: 53 mm
- Product width: 171.2 mm
- Product height: 210 mm
- Security
- Encryption/Security
- 802.1x RADIUS
- SSL/TLS
- IGMP snooping: Yes
- DHCP functions: DHCP client
- Authentication type: RADIUS
- Queue planning algorithms
- SPQ
- Weighted Round Robin (WRR)
- Authentication: Port-based authentication
- Encryption/Security
- Management features
- Website management: Yes
- Quality of Service (QoS) Support: Yes
- Configuring Location Settings (CLI): Yes
- Switch type: Managed
- System Event Report: Yes
- Switch Layer: L2
- Working conditions
- Temperature range (operation): -40 - 65 °C
- Temperature range (storage): -40 - 85 °C
- Relative humidity range: 0 - 95%
- Permissible relative humidity: 0 - 95%
- Heat emission: 35.01 BTU/h
- Network
- Communication standards
- IEEE 802.3az
- IEEE 802.3ab
- IEEE 802.1x
- IEEE 802.1p
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3
- IEEE 802.1Q
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.3ad
- VLAN support: Yes
- Full duplex: Yes
- Auto MDI/MDI-X: Yes
- 10G Support: No
- Copper Ethernet cabling technology
- 10BASE-T
- 100BASE-TX
- 1000BASE-T
- Number of VLANs: 4094
- Auto-Negotiation: Yes
- Virtual LAN Features
- Voice VLAN
- Port-based VLAN
- Tagged VLAN
- Flow Control Support: Yes
- Connection Aggregator: Yes
- Port Mirroring: Yes
- Spanning Tree Protocol: Yes
- Traffic Growth Control: Yes
- Active connection search: Yes
- Communication standards
- Efficiency
- MTBF (Mean Time Between Failures): 276773 h
- Protocols
- Management protocols: SNMP v1/v2c/v3, SNTP, Telnet
- Ports and interfaces
- Number of SFP Module slots: 2
- Basic RJ-45 Switching Number of Ethernet Ports: 10
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Console port: RJ-45
- Number of Gigabit Ethernet ports: 10
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Routing/Switching Throughput: 24 Gbit/s
- Jumbo Frame Compatible: Yes
- Address table size: 8000 entries
- Jumbo Frames Expansion: 9216
- Store-and-forward: Yes
- Forwarding speed: 17.85 Mpps
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
- Fiber optic
- Fiber Ethernet cabling technology: 1000BASE-X
| Name | Details |
|---|---|
| Producer | D-Link |
