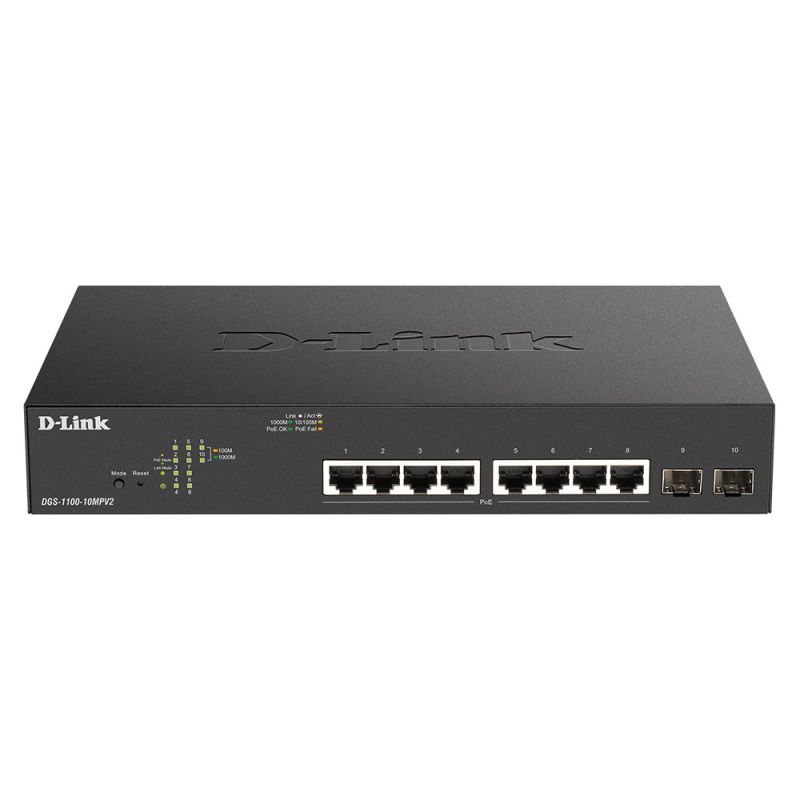

D-Link DGS-1100-10MPV2 Managed L2 Gigabit Ethernet (10/100/1000) PoE Support 1U Black
D-Link DGS-1100-10MPV2 Managed L2 Gigabit Ethernet (10/100/1000) PoE Support 1U Black
D-Link DGS-1100-10MPV2 Managed L2 Gigabit Ethernet (10/100/1000) PoE Support 1U Black
PRICE:
278,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting options: Yes
- Product color: Black
- Layout: 1U
- Power
- Power consumption (max): 164.6 W
- AC input voltage: 100 - 240 V
- Weight and dimensions
- Product height: 44 mm
- Product depth: 180 mm
- Product weight: 1.5 kg
- Product width: 280 mm
- Security
- IGMP snooping: Yes
- Encryption/Security: SSL/TLS
- Queue Planning Algorithms: Weighted Round Robin (WRR)
- Management features
- Website management: Yes
- Switch Layer: L2
- Quality of Service (QoS) Support: Yes
- Switch type: Managed
- Working conditions
- Heat emission: 118.1 BTU/h
- Temperature range (storage): -40 - 70 °C
- Temperature range (operation): -10 - 50 °C
- Permissible relative humidity: 0 - 95%
- Relative humidity range: 0 - 95%
- Network
- Connection Aggregator: Yes
- Flow Control Support: Yes
- Number of VLANs: 4094
- Half-duplex: Yes
- Full duplex: Yes
- 10G Support: No
- Head-of-line (HOL) blocking: Yes
- Auto-Negotiation: Yes
- Communication standards
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.1D
- IEEE 802.1Q
- IEEE 802.3bt
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3ad
- IEEE 802.3ab
- Auto MDI/MDI-X: Yes
- Virtual LAN Features
- Tagged VLAN
- Voice VLAN
- Port-based VLAN
- VLAN support: Yes
- Frequency Limit: Yes
- Efficiency
- Noise level: 37 dB
- Flash memory size: 16 MB
- MTBF (Mean Time Between Failures): 406887 h
- Ports and interfaces
- Number of SFP Module slots: 2
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Data transfer
- Address table size: 8000 entries
- Jumbo Frames Expansion: 9216
- Number of rounds: 4
- Packet buffer memory: 4.1 MB
- Jumbo Frame Compatible: Yes
- Routing/switching capacity: 20 Gbit/s
- Forwarding speed: 14.88 Mpps
- Power over Ethernet (PoE)
- PoE Support: Yes
- Power over Ethernet Plus (PoE +) ports: 8
- Total Power over Ethernet (PoE) budget: 130 W
- Multicast functions
- Multicast Support: Yes
| Name | Details |
|---|---|
| Producer | D-Link |
